Garrett
Turbo 838417-5006S
Turbo 838417-5006S
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

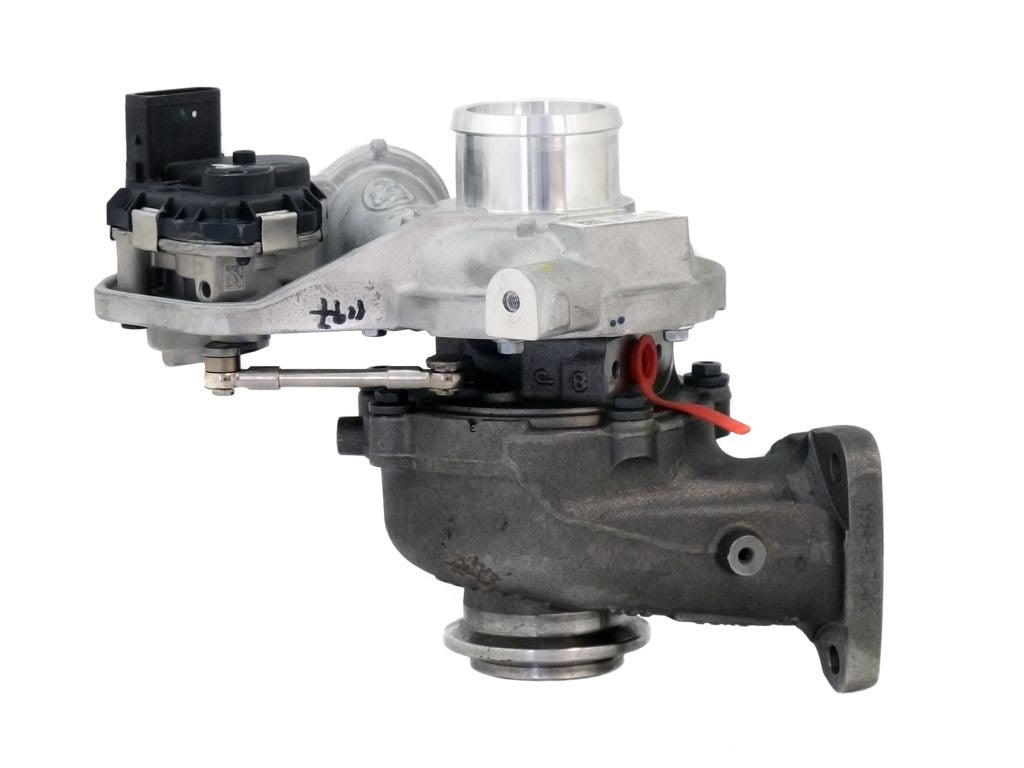

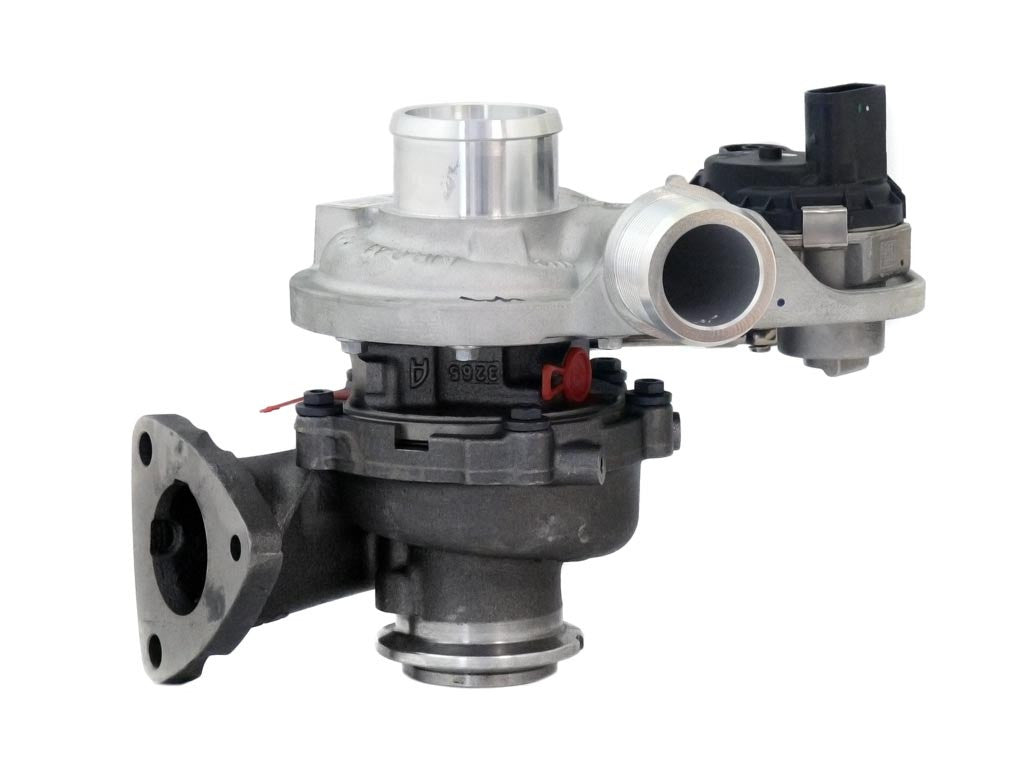

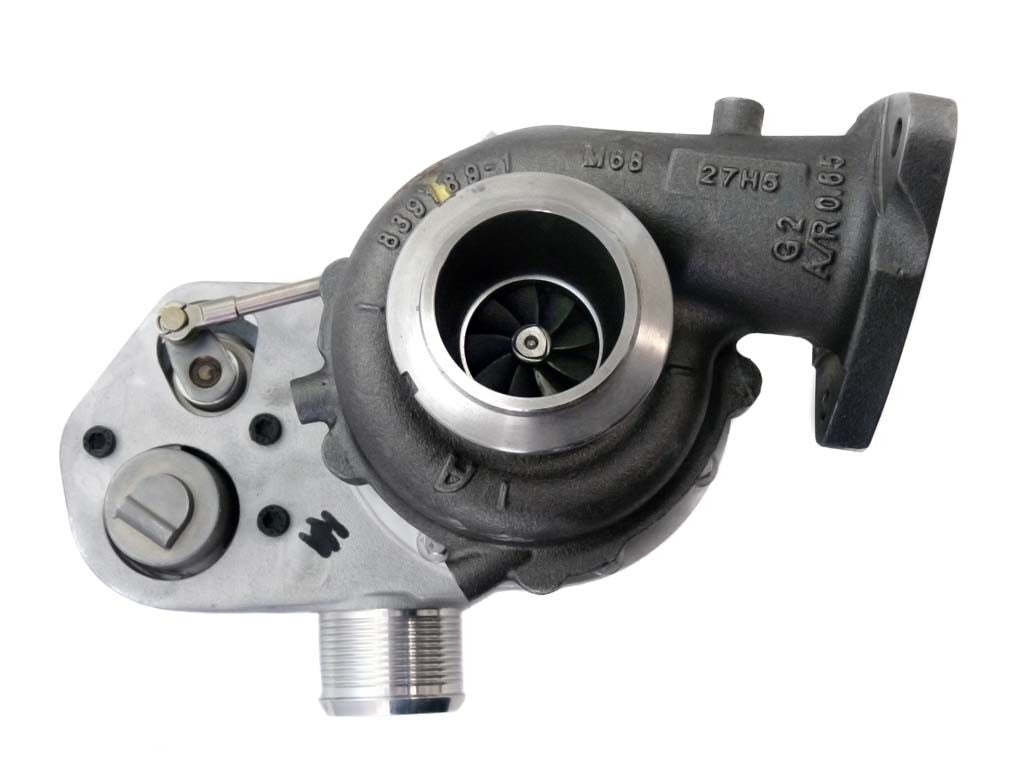

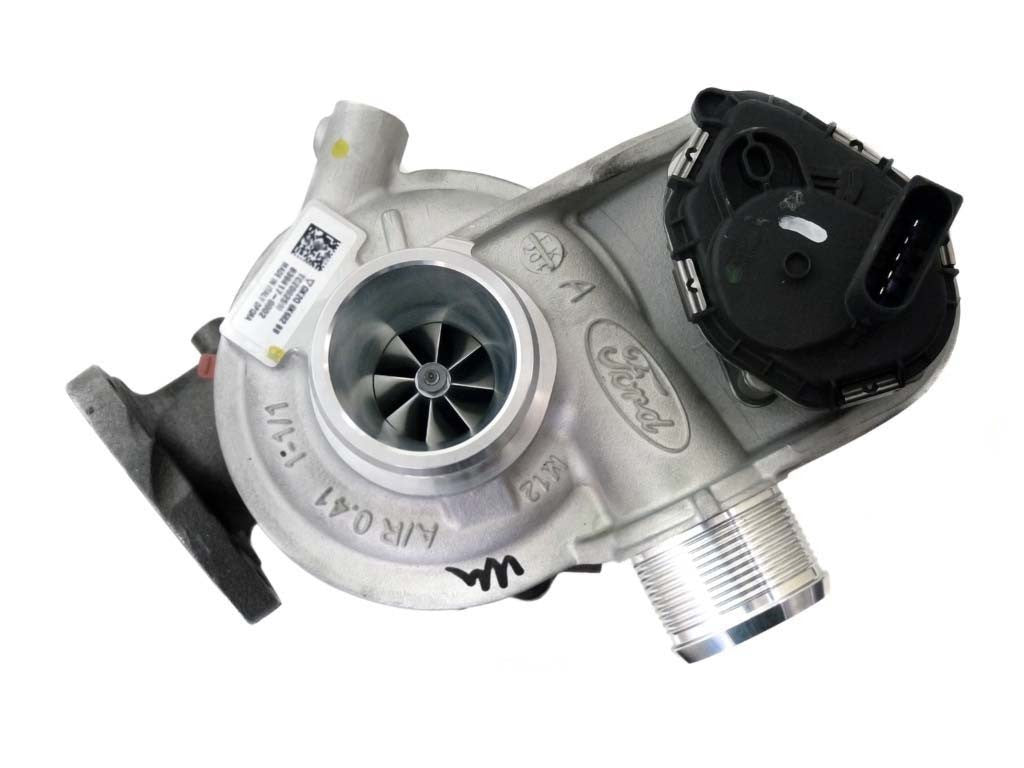

838417-5006S (GK2Q-6K682-BE, GK2Q6K682BE) - Turbocharger GTD14V
Brand: Garrett
Model: GT14 - GTD14V
Garrett Reference: 838417-5006S
OEM Numbers: GK2Q-6K682-BE, GK2Q6K682BE
838417-5006S - Alternative numbers
GHT (Garrett turbo number): 838417-0006
GHT (Garrett turbo number): 838417-5006S
838417-5006S - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
838417-5006S - Turbo replacements
Replacement for: Garrett GTD1444VZ 838417-0003, 838417-5003S, 838417-9003S, GK2Q-6K682-BB, GK2Q6K682BB
Replacement for: Garrett GTD14V 838417-0004, 838417-5004S, GK2Q6K682BE
Replacement for: Garrett GTD1444VZ 838417-5003S, 838417-0003, 838417-9003S, GK2Q-6K682-BB, GK2Q6K682BB
838417-5006S - Turbo interchangeability
Interchangeable with: Garrett GTD1444VZ 838417-0001, 838417-5001S
Interchangeable with: Garrett GTD1444VZ 838417-0002, 838417-5002S, GK2Q6K682BB
Interchangeable with: Garrett GTD1444VZ 838417-0003, 838417-5003S, 838417-9003S, GK2Q-6K682-BB, GK2Q6K682BB
Interchangeable with: Garrett GTD14V 838417-0004, 838417-5004S, GK2Q6K682BE
Interchangeable with: Garrett GTD1444VZ 838417-5003S, 838417-0003, 838417-9003S, GK2Q-6K682-BB, GK2Q6K682BB
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bearing housing | GA-01-0192 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0156 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0157 | 1 | -- | -- |
| TurboCentras | Repair kit | GA-04-0005 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0027 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0065 | 1 | -- | -- |
| TurboCentras | VNT centering ring | GA-27-0001 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GA-50-0010 | 1 | -- | -- |
| EE Turbo | Cartridge | GT14-045B | 1 | -- | -- |
| TurboCentras | Gasket kit | TC-62-0018 | 1 | -- | -- |
838417-0006, 838417-5006S, GK2Q-6K682-BE, GK2Q6K682BE
Data updated: 2025-10-02 09:29:44
