1 4

TurboCentras

Shaft and wheel GA-02-0171

Shaft and wheel GA-02-0171

€25,70 EUR
€25,70 EUR
Znižanje Razprodano

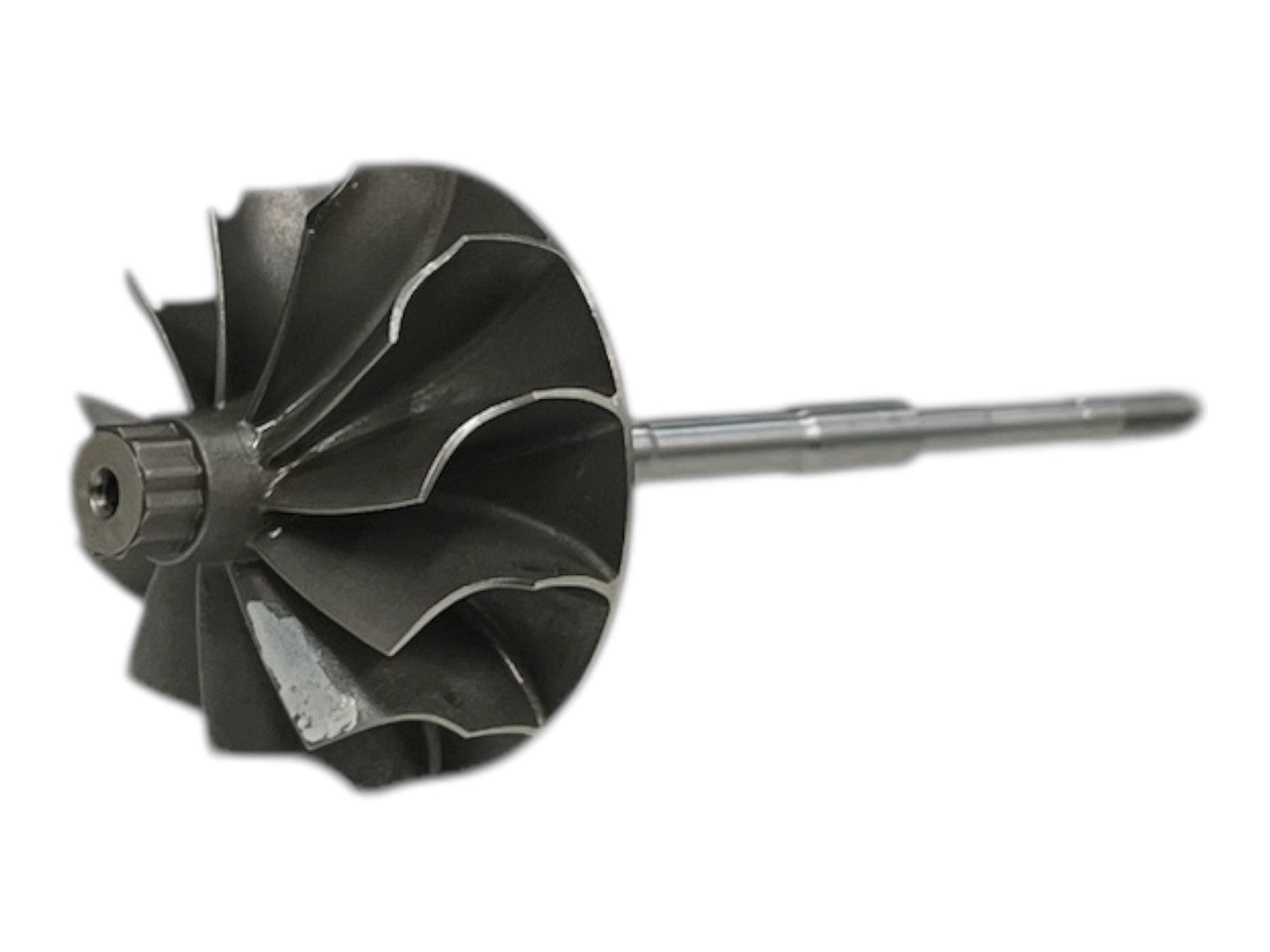

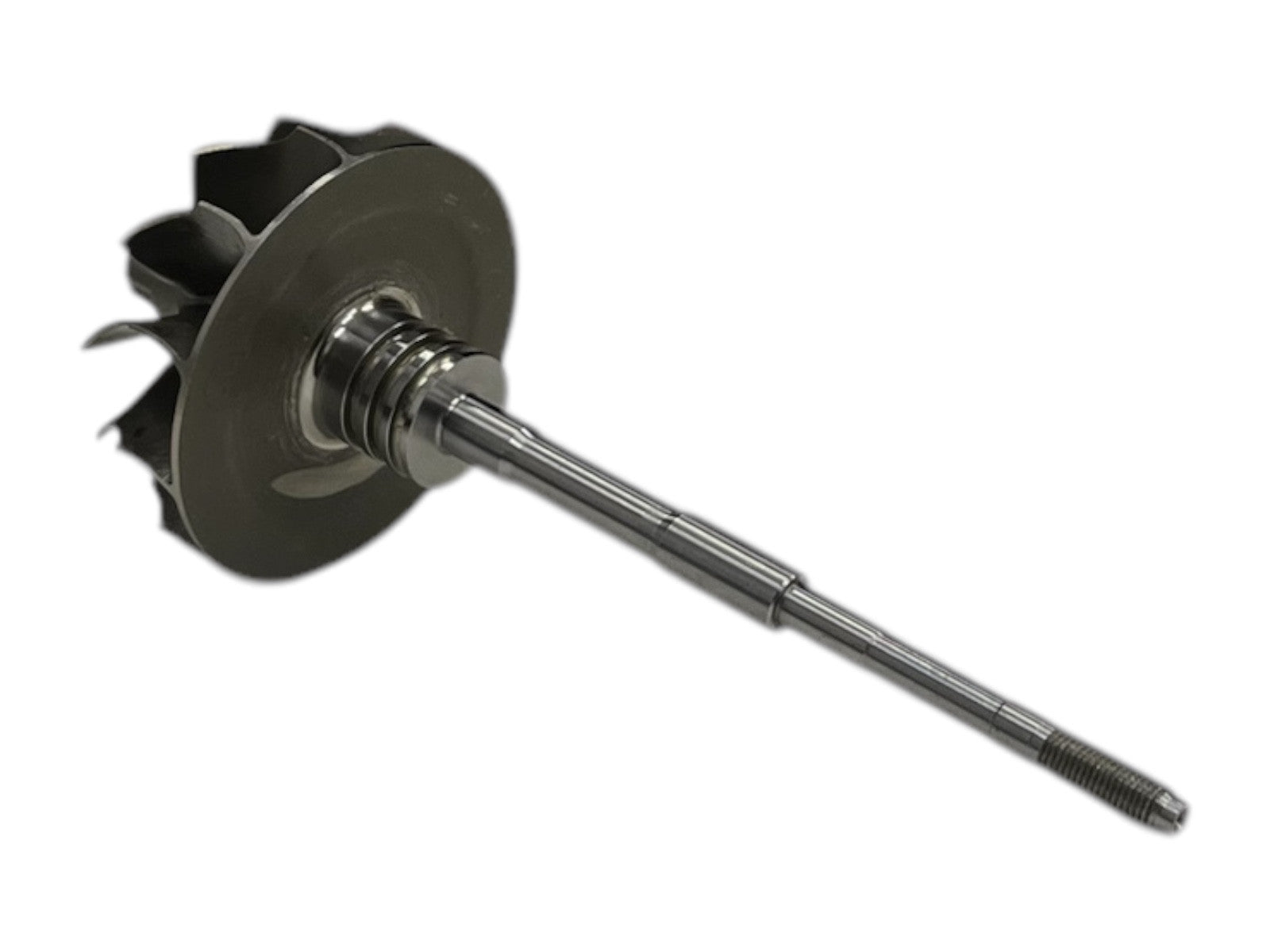

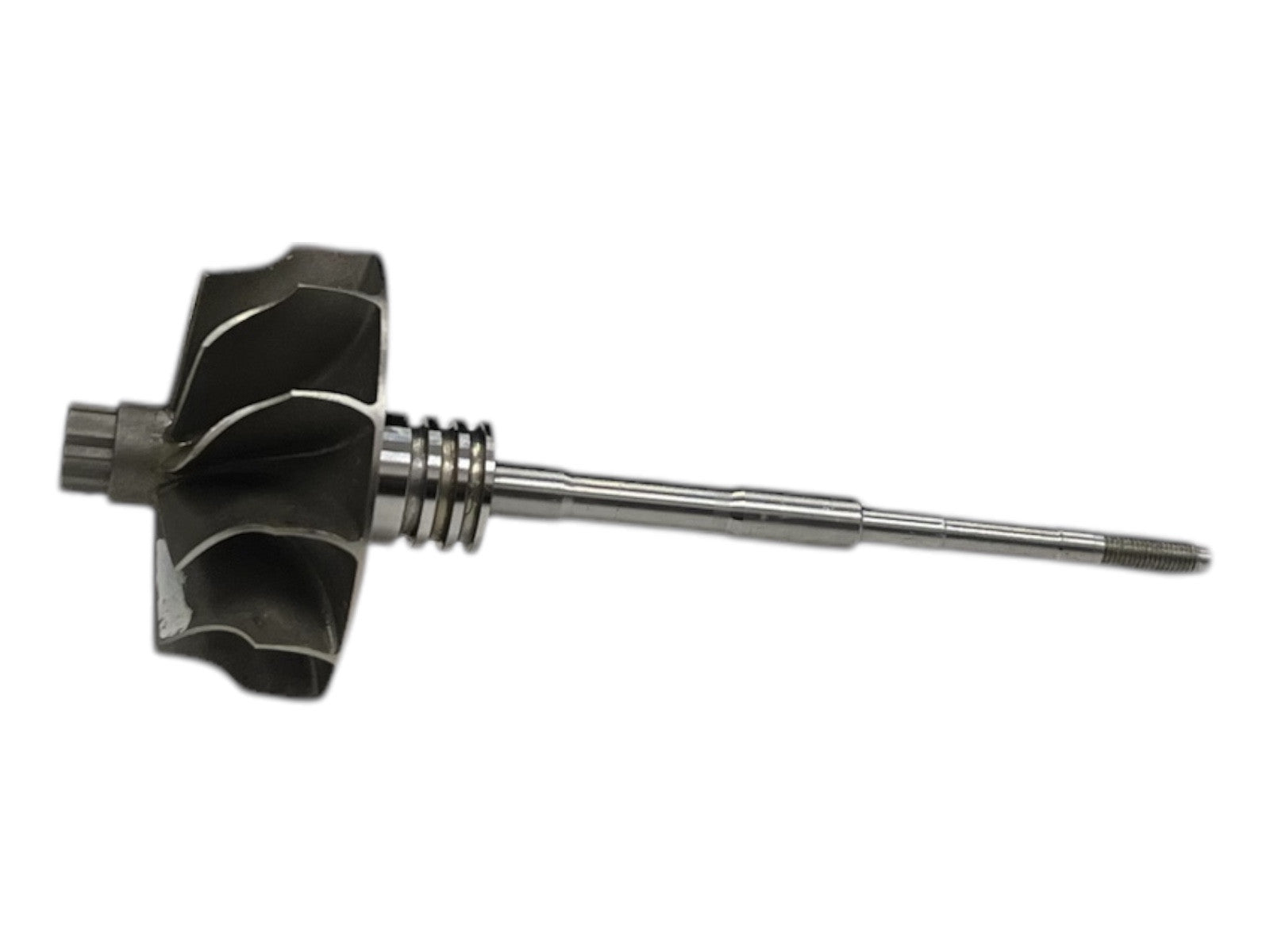

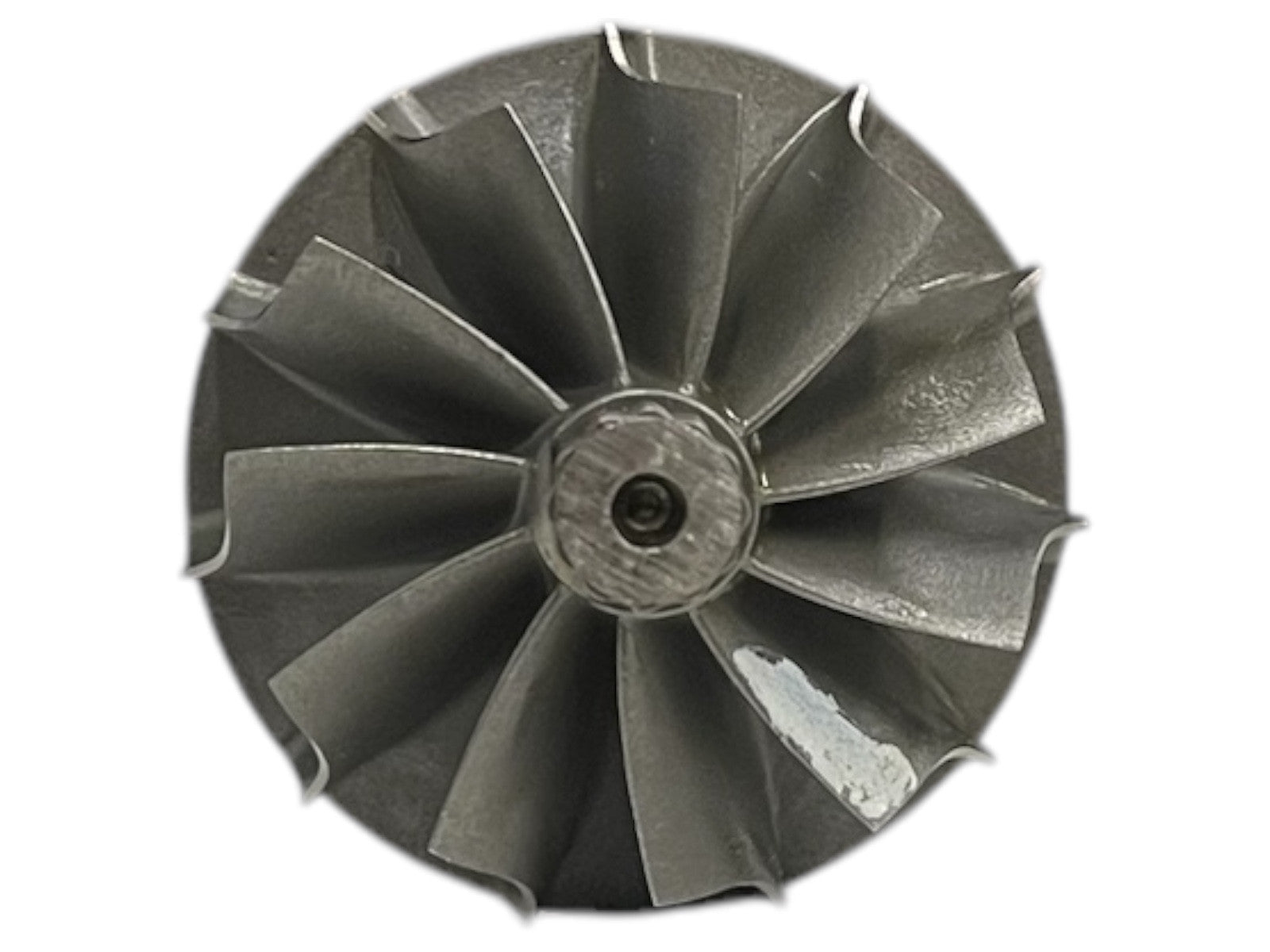

GA-02-0171 - Shaft and wheel

Brand: TurboCentras

TurboCentras Reference: GA-02-0171

GA-02-0171 - Alternative numbers

TCP (TurboCentras part number): GA-02-0171

GA-02-0171 - Compatibility table

Shaft and wheel GA-02-0171 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
Garrett GTE1449VZ 840140-0006 840140-0006, 840140-5006S 282314A740
Garrett GTE1446VZK 850229-0004 850229-0004 JB3Q-6K682-AA, JB3Q6K682AA
Garrett GTE1446VZK 850229-0007 850229-0007 LB3Q-6K682-AB
Garrett GTE1446VZK 850229-0010 850229-0010 JB3Q-6K682-AB
Garrett GTE1446VZK 850229-0011 850229-0011 LB3Q-6K682-AB
Garrett GTD1444KVZ 850840-0007 850840-0007, 850840-5007S KK2Q6K682BA, KK2Q6K682BB
Garrett GTD1444KVZ 850840-0009 850840-0009, 850840-5009S KK2Q-6K682-BC, KK2Q6K682BC
Garrett GTE1446KVZ 850841-0006 850841-0006 KK3Q-6K682-BA, KK3Q6K682BA
Garrett GTE1446KVZ 850841-0007 850841-0007, 850841-5007S KK3Q-6K682-BB, KK3Q6K682BB
Garrett GTE1446KVZ 850841-0010 850841-0010, 850841-5010S KK3Q-6K682-BC, KK3Q6K682BC
Garrett GTE1446VZK 852072-0002 852072-0002, 852072-5002S HG9Q-6K682-LA, HG9Q6K682LA
Garrett GTE1446VZK 852072-0007 852072-0007, 852072-5007S HG9Q-6K682-LC, HG9Q6K682LC
Garrett GTE1449KVZ 860517-0002 860517-0002, 860517-5002S 46340583
Garrett GTE1449KVZ 860517-0003 860517-0003, 860517-5003S 46340583
Garrett GTD1446VZ 872869-0001 872869-0001, 872869-5001S 05L253010
Garrett GTE1446VZ 872869-0003 872869-0003, 872869-5003S 05L 253 010 C, 05L253010C
Garrett GTE1449VZ 877019-0002 877019-0002, 877019-5002S 46341764
Garrett GTE1449VZ 877019-0003 877019-0003, 877019-5003S 46341764
Garrett GTE1449KVZ 877674-0004 877674-0004, 877674-5004S 5802363734
Garrett GTE1449 877675-0001 877675-0001, 877675-5001S 8502377343
Garrett GTE1449KVZ 877675-0003 877675-0003 --
Garrett GTE1449KVZ 898723-0002 898723-0002, 898723-5002S 46349133
Garrett GTE1449KVZ 898723-0003 898723-0003, 898723-5003S 46349133
Garrett GTE1449KVZ 898723-5003S 898723-0003, 898723-5003S 46349133
Garrett GTE1449KVZ 900454-0001 900454-0001, 900454-5001S 5802815821

GA-02-0171 - Part Properties

Blades (Shaft & Wheel blades count): 11

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Slender

Back (Shaft & Wheel back type): Full

P.R. (Shaft & Wheel piston rings count): Twin

A (Size A): 39.30

A1 (Size A1): 39.30

B (Size B): 33.80

C (Size C): 7.44

D (Size D): 5.20

E (Size E): 3.58

H (Size H): 16.00

L (Size L): 80.00

T (Size T): M3.5X0.5LH

GA-02-0171
GA-02-0171
05L253010C, 282314A740, 840140-0006, 840140-5006S, 850229-0004, JB3Q-6K682-AA, JB3Q6K682AA, 850229-0007, LB3Q-6K682-AB, 850229-0010, JB3Q-6K682-AB, 850229-0011, LB3Q-6K682-AB, 850840-0007, 850840-5007S, KK2Q6K682BA, KK2Q6K682BB, 850840-0009, 850840-5009S, KK2Q-6K682-BC, KK2Q6K682BC, 850841-0006, KK3Q-6K682-BA, KK3Q6K682BA, 850841-0007, 850841-5007S, KK3Q-6K682-BB, KK3Q6K682BB, 850841-0010, 850841-5010S, KK3Q-6K682-BC, KK3Q6K682BC, 852072-0002, 852072-5002S, HG9Q-6K682-LA, HG9Q6K682LA, 852072-0007, 852072-5007S, HG9Q-6K682-LC, HG9Q6K682LC, 46340583, 860517-0002, 860517-5002S, 46340583, 860517-0003, 860517-5003S, 05L253010, 872869-0001, 872869-5001S, 05L 253 010 C, 05L253010C, 872869-0003, 872869-5003S, 46341764, 877019-0002, 877019-5002S, 46341764, 877019-0003, 877019-5003S, 5802363734, 877674-0004, 877674-5004S, 8502377343, 877675-0001, 877675-5001S, 877675-0003, 46349133, 898723-0002, 898723-5002S, 46349133, 898723-0003, 898723-5003S, 46349133, 898723-0003, 898723-5003S, 5802815821, 900454-0001, 900454-5001S

Data updated: 2025-02-24 11:36:45
