Compressor wheel HO-03-0020

Compressor wheel HO-03-0020

€19,04 EUR
€19,04 EUR
Znižanje Razprodano

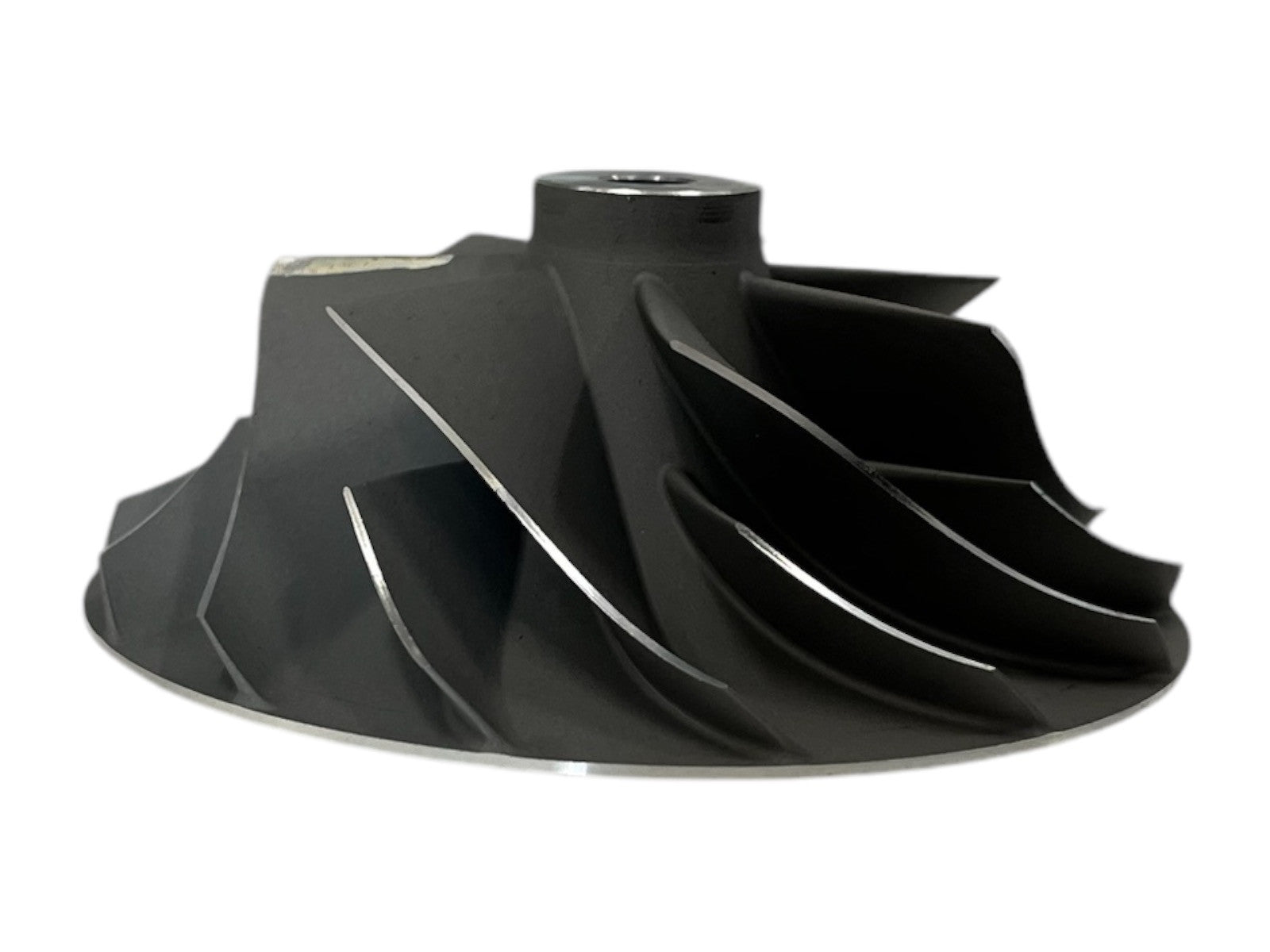

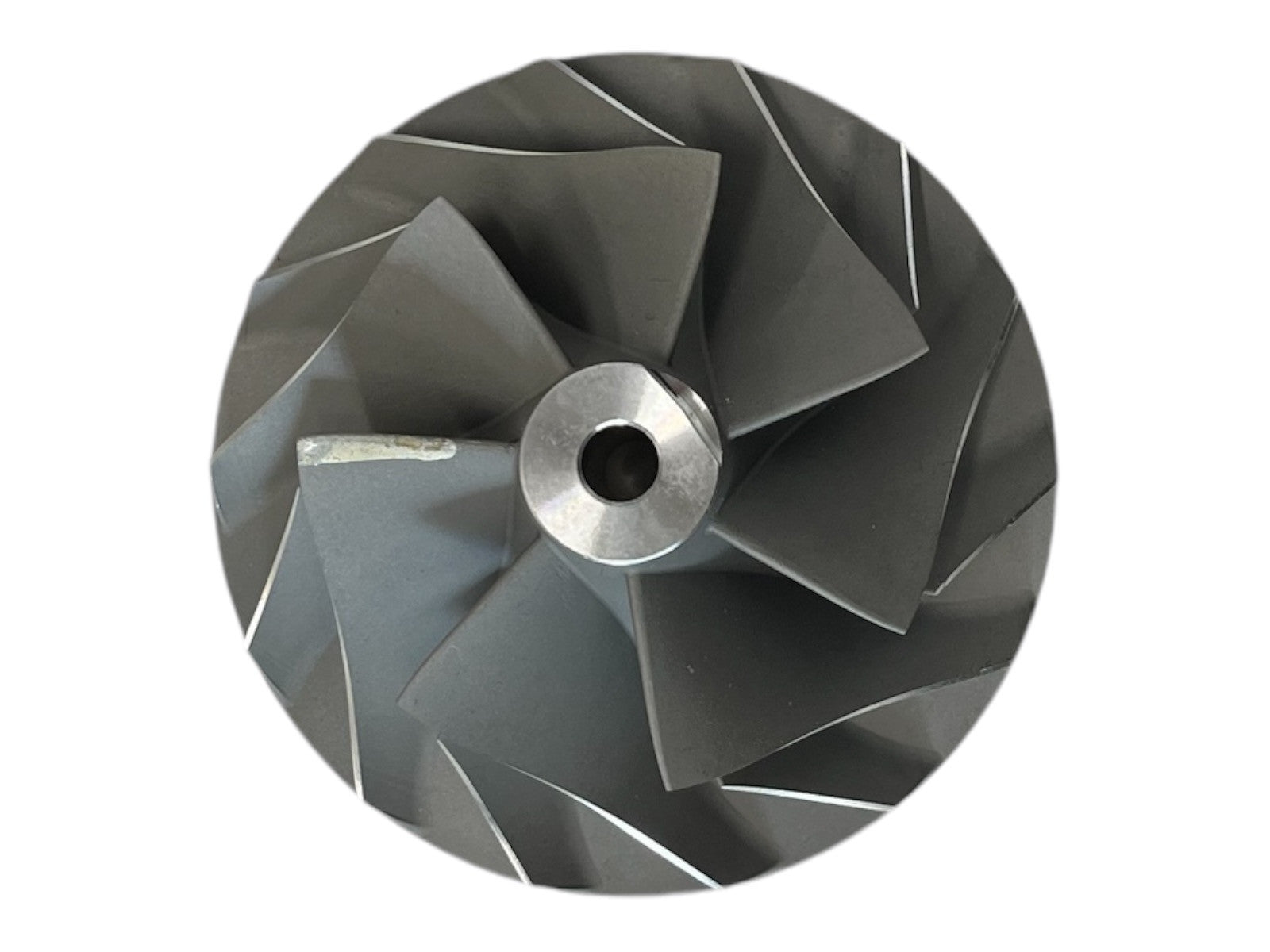

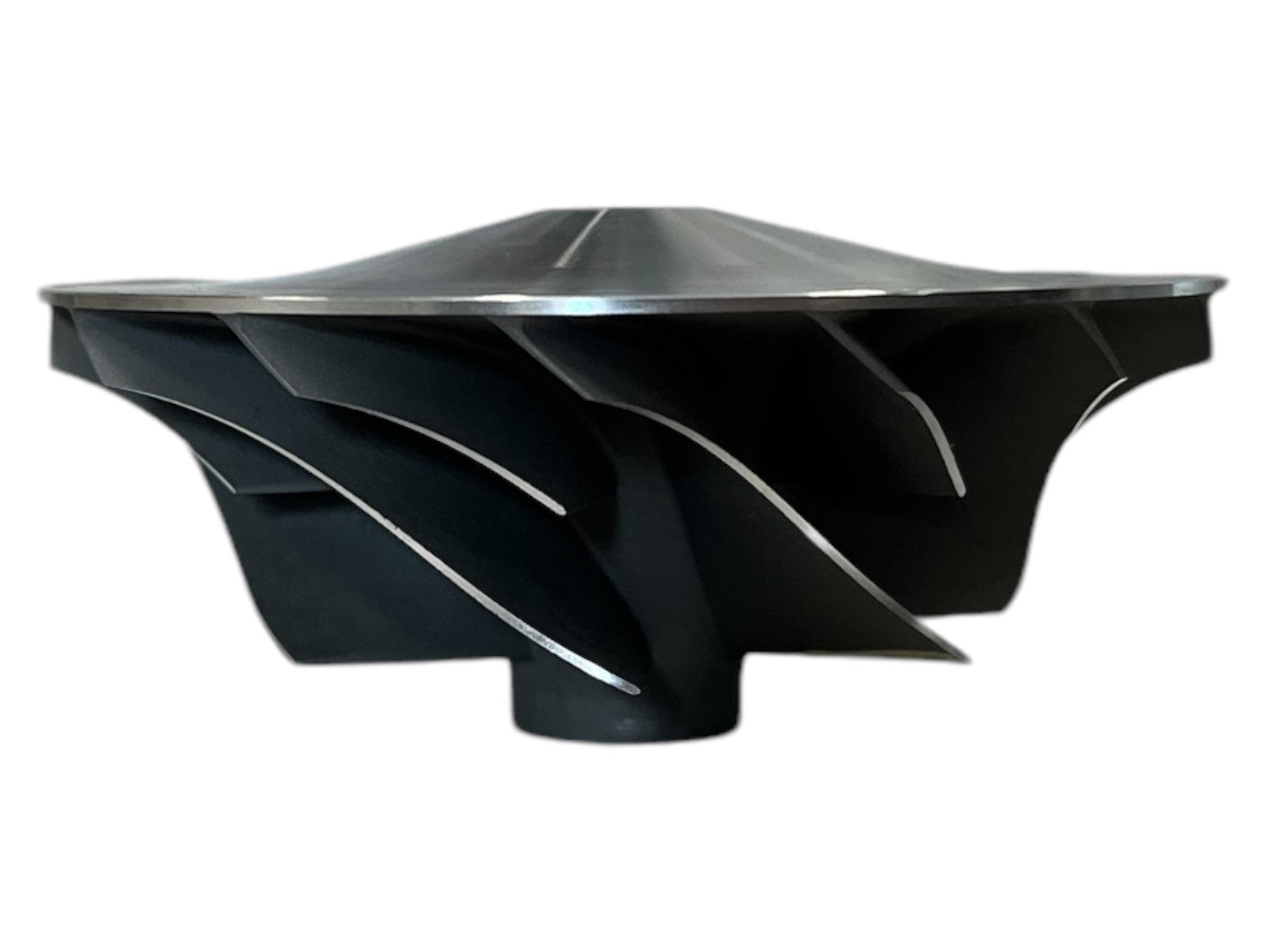

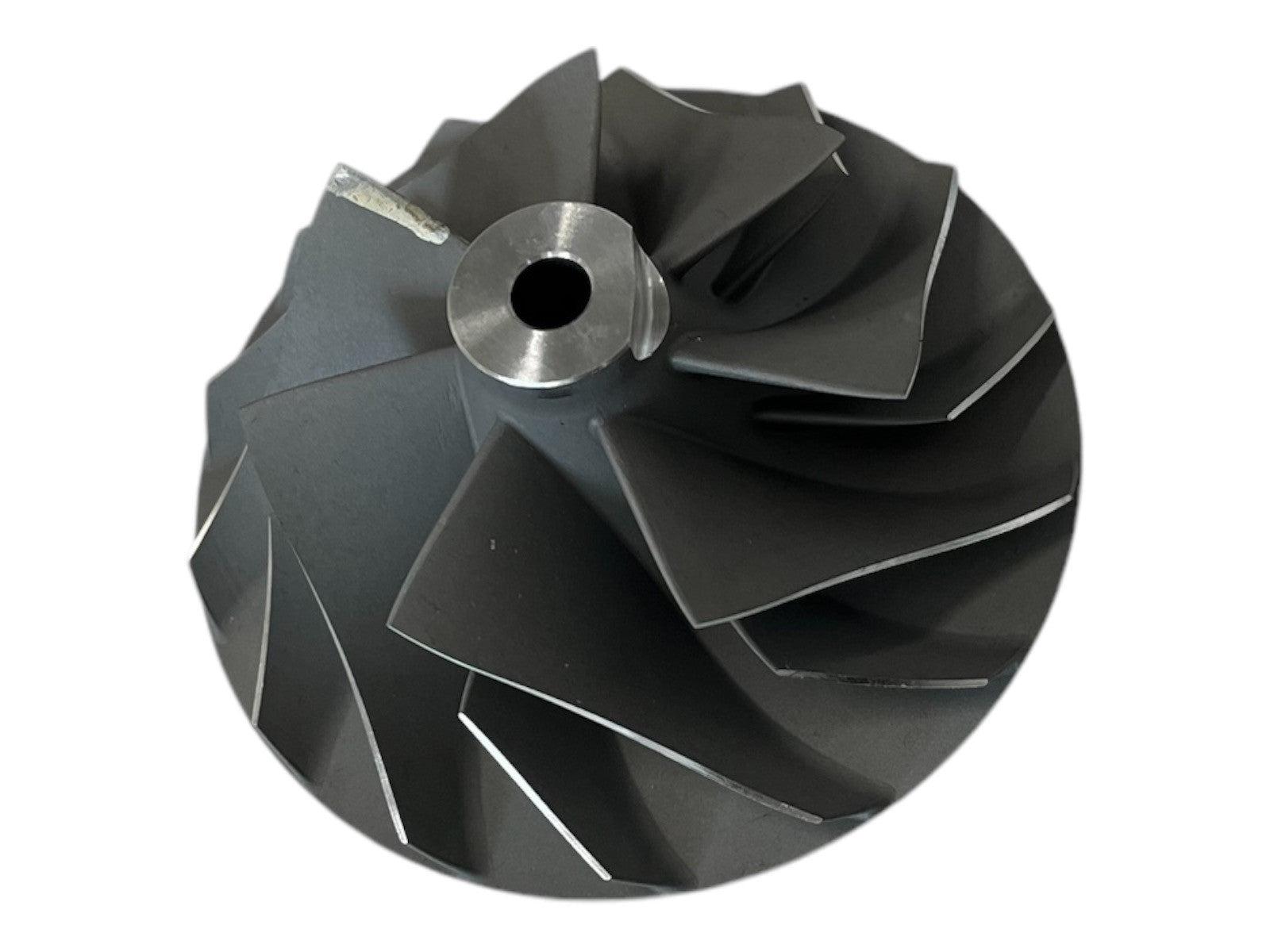

HO-03-0020 (3596134) - Compressor wheel

Brand: TurboCentras

TurboCentras Reference: HO-03-0020

OEM Numbers: 3596134

HO-03-0020 - Alternative numbers

TCP (TurboCentras part number): HO-03-0020

HO-03-0020 - Compatibility table

Compressor wheel HO-03-0020 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
Holset HX50 2834106 2834106, 4033216H, 5331 988 7503 51.09100-7599
Holset HX50W 2836329 2836329 4033564
Holset HX50W 2836329-HX50W 2836329 4033564
Holset HX50W 2836638 2836638, 2836658 05003903510
Holset HX50W 2836655 2836655, 2836659 5040130860
Holset HE500WG 2841396 2841396, 2841404 1859342
Holset HX50 3532973 3532973, 4033617H, 5321810 3532974, 4033617, 866076
Holset HX50 3532973-HX50 3532973, 4033617H, 5321810 3532974, 4033617, 866076
Holset HX50 3533951 3533951, 3533952, 4033151H 1352389
Holset HX50 3536269 3536269, 3536270 --
Holset HX50 3590810 3590810 1409517, 3591948
Holset HX50 3590810-HX50 3590810 1409517, 3591948
Holset HX50 3592094 3592094, 3592095 51.09100-7462
Holset HX50 3592629 3592629, 3592630, 5331 988 6707, 5331 988 6712 51.09100-7466, 51.09100-7476, 51.09100-7477
Holset HX50 3593894 3593894, 3593895, 5331 988 6710 51.09100-7462, 51.09100-7463, 51.09100-7484
Holset HX50W 3596206 3596206, 3596207 504013086
Holset HX50W 3596693 3594505, 3596693 500390351
Holset HX50W 3768323 3768323, 3768324 05003903510
Holset HX50W 3771289 3771289 4032875
Holset HX50W 3771290 3771290 4032876
Holset HX50W 3781008 3781008 3780895, 612630110765
Holset HX50 3787431 3787431 1000476487, 1000476487Y, 1000476487Z, 1001786336, 1001786336Y, 1001786336Z, 1003899196, 1003899196Y, 1003899196Z, 2834836, 2834837, 2834838, 2834839, 2834840, 2834843, 2835555, 2838724, 3773304, 3773305, 3776399, 3788505, 3788631, 3789198, 3789200, 3793424, 3793986, 3793987, 3793988, 4051275, 5351253, 5351254, 5351255, 5497717, 5497718, 5497719, 5603974, 5603975, 5603976, 612600113212, 612600113212Y, 612600113212Z, 612600118901, 612601110970, 612601110970Y, 612601110970Z, 612601110971, 612601110971Y, 612601110971Z, 612601111171, 612601111171Y, 612601111171Z, 612630110320, 612630110320Y, 612630110320Z, 612630110744, 612630110834, 612630110834Y, 612630110834Z
Holset HX50W 3787437 3787437 2841182, 2841183, 612601110965, 612601110980
Holset HX50W 3787438 3787438 2840444, 612601110991
Holset HX50W 3787439 3787439 2838849, 612601111009
Holset HX50W 3787465 3787465 3780895, 612630110765
Holset HX50 3789971 3789971 1000951735, 3789972, 5358670, 612630110819
Holset HE500WG 3794644 2841404, 3794644 1859342
Holset HX50W 3796924 3594505, 3786829, 3786829H, 3796924 500390351
Holset HX50W 3796925 3768324, 3796925, 4033106H 05003903510
Holset HE500FG 3797397 3797397, 4033325H, 4033325HX, 5321997 1409517, 3591948
Holset HX50 4027622 4027622, 5331 988 6711 51.09100-7470
Holset HX50 4027623 4027623, 4027623H, 4034305, 5331 988 6708 51.09100-7467
Holset HX50W 4033106 4033106 --
Holset HX50 4033216 4033216 --
Holset HX50 4033325 4033325 --
Holset HX50W 4036104 4033933H, 4036104, 5452057 05040666920, 4036107
Holset HX50W 4042387 4033346H, 4042387, 5322034 05041509130, 4042388

HO-03-0020 - Part Properties

Blades (Compressor wheel blades count): 7/7

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method type): Cast

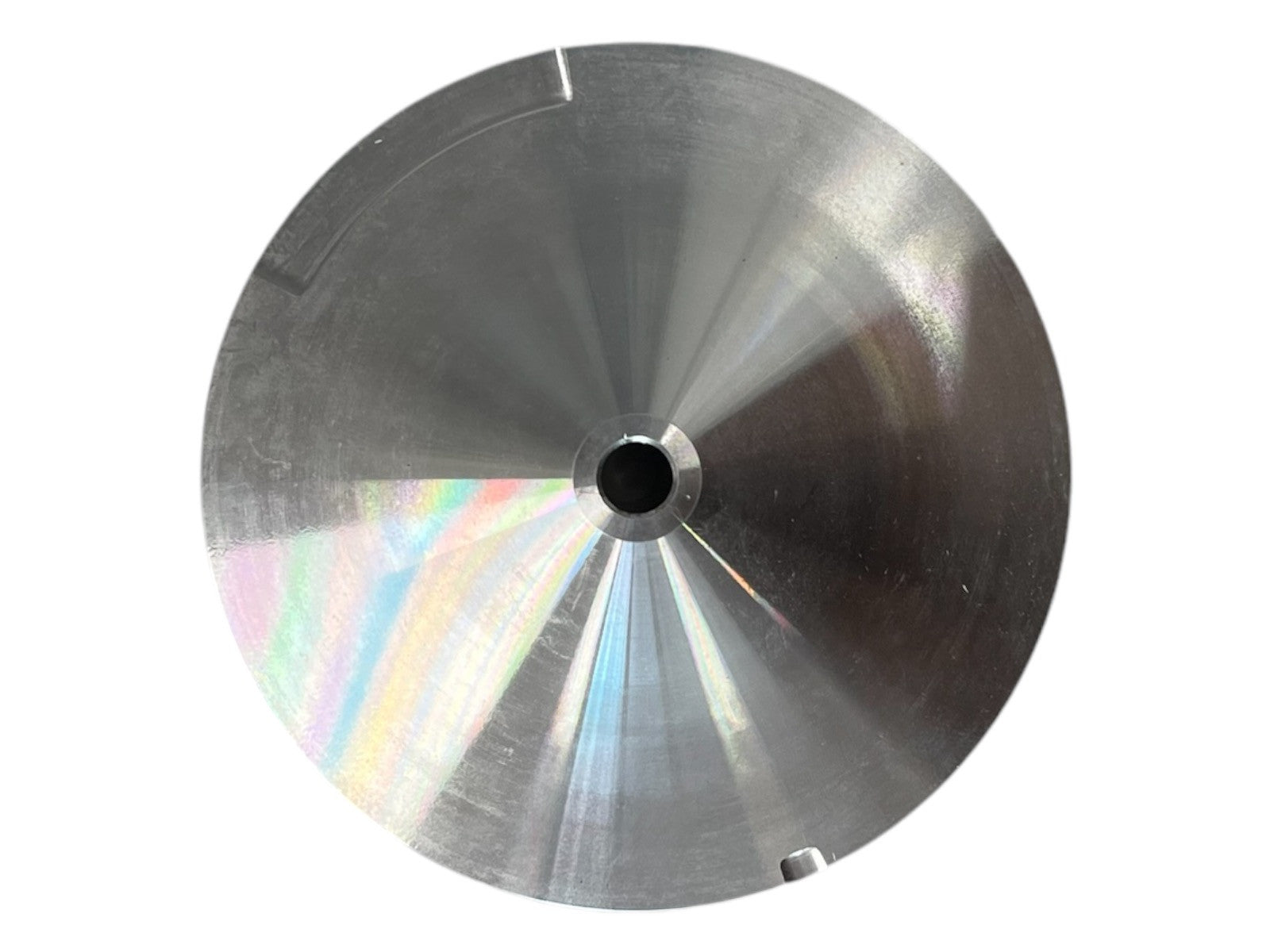

Back (Compressor wheel back design): Super

A (Size A): 99

A1 (Size A1): 99

B (Size B): 69

C (Size C): 6.89

C1 (Size C1): 6.11

D (Size D): 45.00

E (Size E): 8.00

HO-03-0020
3596134, HO-03-0020
53319886708, 53319886711, 53319886710, 53319886712, 53319886707, 53319887503, 2834106, 4033216H, 51.09100-7599, 5331 988 7503, 2836329, 4033564, 2836329, 4033564, 05003903510, 2836638, 2836658, 2836655, 2836659, 5040130860, 1859342, 2841396, 2841404, 3532973, 3532974, 4033617, 4033617H, 5321810, 866076, 3532973, 3532974, 4033617, 4033617H, 5321810, 866076, 1352389, 3533951, 3533952, 4033151H, 3536269, 3536270, 1409517, 3590810, 3591948, 1409517, 3590810, 3591948, 3592094, 3592095, 51.09100-7462, 3592629, 3592630, 51.09100-7466, 51.09100-7476, 51.09100-7477, 5331 988 6707, 5331 988 6712, 3593894, 3593895, 51.09100-7462, 51.09100-7463, 51.09100-7484, 5331 988 6710, 3596206, 3596207, 504013086, 3594505, 3596693, 500390351, 05003903510, 3768323, 3768324, 3771289, 4032875, 3771290, 4032876, 3780895, 3781008, 612630110765, 1000476487, 1000476487Y, 1000476487Z, 1001786336, 1001786336Y, 1001786336Z, 1003899196, 1003899196Y, 1003899196Z, 2834836, 2834837, 2834838, 2834839, 2834840, 2834843, 2835555, 2838724, 3773304, 3773305, 3776399, 3787431, 3788505, 3788631, 3789198, 3789200, 3793424, 3793986, 3793987, 3793988, 4051275, 5351253, 5351254, 5351255, 5497717, 5497718, 5497719, 5603974, 5603975, 5603976, 612600113212, 612600113212Y, 612600113212Z, 612600118901, 612601110970, 612601110970Y, 612601110970Z, 612601110971, 612601110971Y, 612601110971Z, 612601111171, 612601111171Y, 612601111171Z, 612630110320, 612630110320Y, 612630110320Z, 612630110744, 612630110834, 612630110834Y, 612630110834Z, 2841182, 2841183, 3787437, 612601110965, 612601110980, 2840444, 3787438, 612601110991, 2838849, 3787439, 612601111009, 3780895, 3787465, 612630110765, 1000951735, 3789971, 3789972, 5358670, 612630110819, 1859342, 2841404, 3794644, 3594505, 3786829, 3786829H, 3796924, 500390351, 05003903510, 3768324, 3796925, 4033106H, 1409517, 3591948, 3797397, 4033325H, 4033325HX, 5321997, 4027622, 51.09100-7470, 5331 988 6711, 4027623, 4027623H, 4034305, 51.09100-7467, 5331 988 6708, 4033106, 4033216, 4033325, 05040666920, 4033933H, 4036104, 4036107, 5452057, 05041509130, 4033346H, 4042387, 4042388, 5322034

Data updated: 2024-06-06 14:13:15
