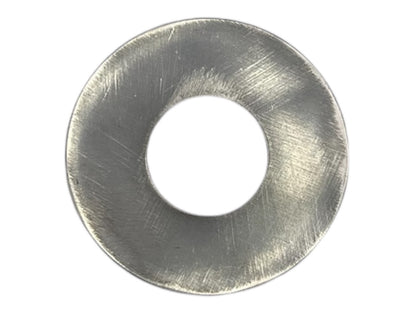

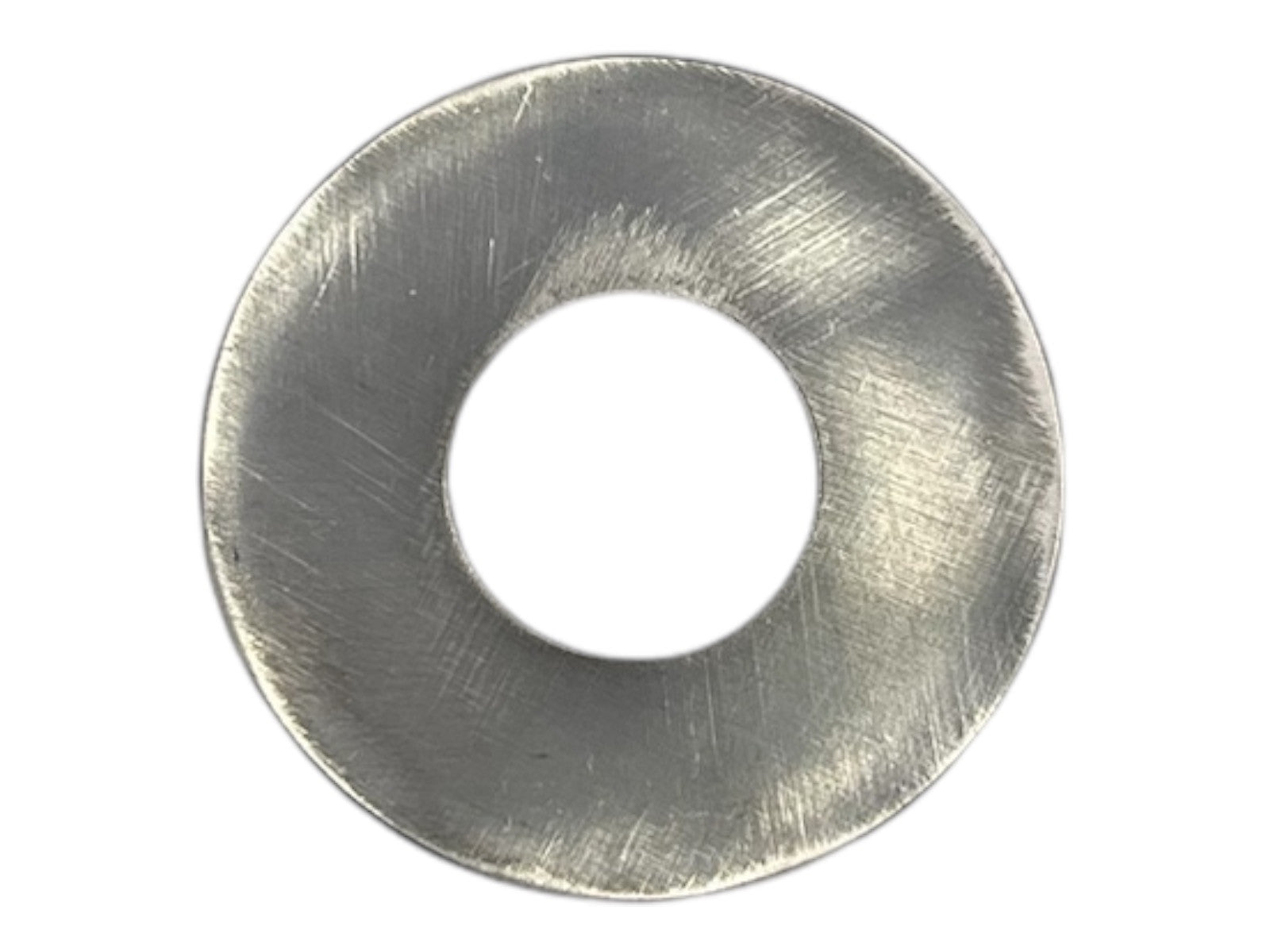

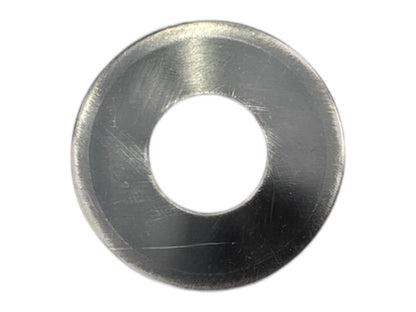

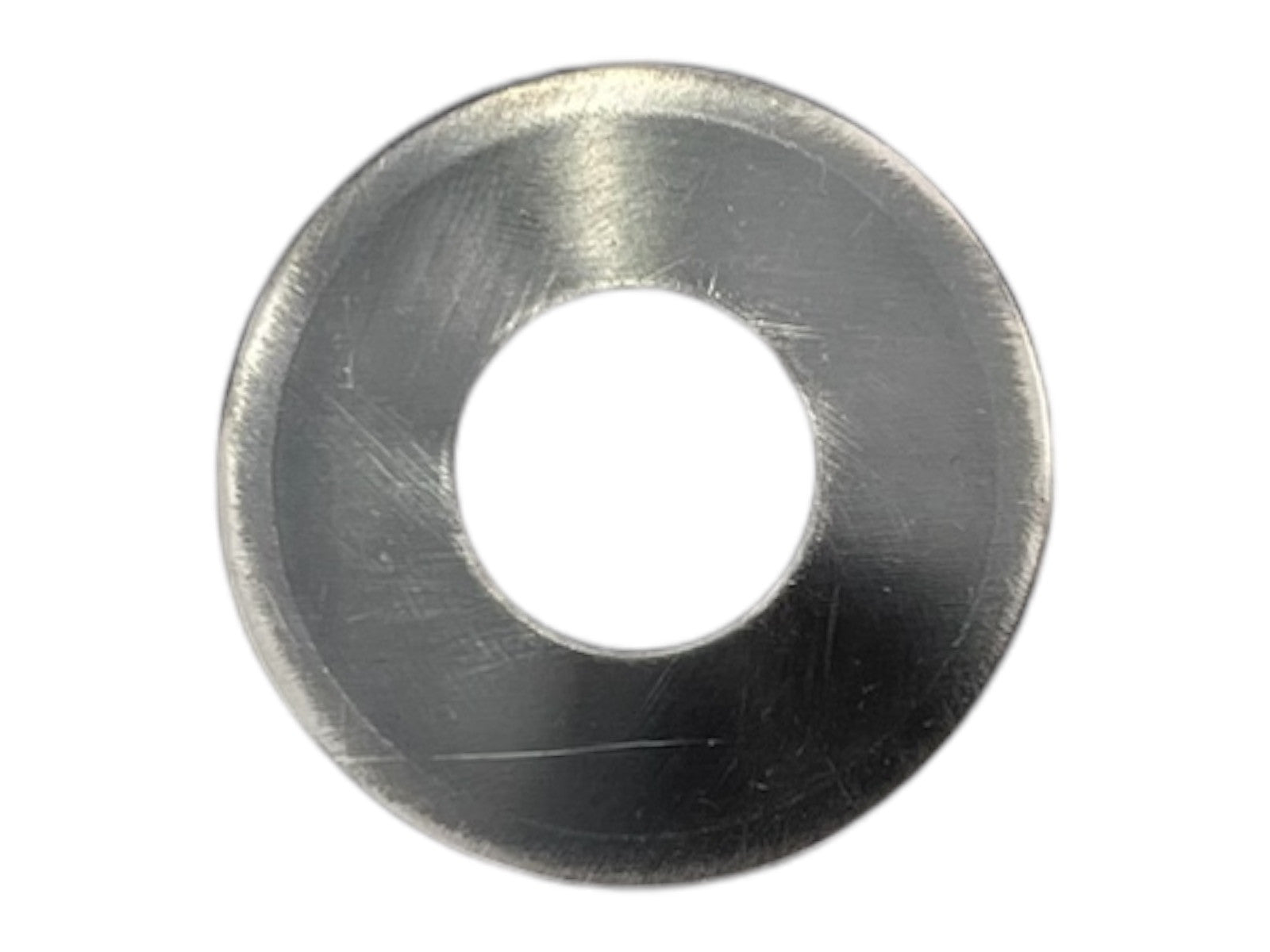

Heat shield BW-52-0002
Heat shield BW-52-0002
Redna cena
€5,04 EUR
Redna cena
Znižana cena
€5,04 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
BW-52-0002 - Heat shield
Brand: TurboCentras
TurboCentras Reference: BW-52-0002
BW-52-0002 - Alternative numbers
TCP (TurboCentras part number): BW-52-0002
TCO (TurboCentras old part number): KP35-325B
BW-52-0002 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| BorgWarner | B01V | 16309700000 | 1630 970 0000 | 04B253019 |
| BorgWarner | B01V | 16309700001 | 1630 970 0001 | 04B253019F |
| BorgWarner | B01V | 16309700002 | 1630 970 0002 | V03846515C |
| BorgWarner | B01V | 16309700003 | 1630 970 0003, BV30-66A-0003 | 04B253019G |
| BorgWarner | B01V | 16309980005 | 1630 970 0005, 1630 998 0005 | 04B253020 |
| BorgWarner | BV30 | 54309700000 | 5430 970 0000, 5430 988 0000 | 55233062 |
BW-52-0002 - Part Properties
D1 (OD) (D1 outer diameter mm): 38.80
D2 (ID) (D2 inner diameter mm): 19.00
D3 (s) (D3 metal thickness (s) mm): 0.80
D4 (h) (D4 Height mm): 3.00
D5 (IND) (D5 Inducer area diameter mm): 38.80
BW-52-0002, KP35-325B
54309880000, 54309700000, 16309980005, 16309700005, 16309700003, 16309700002, 16309700001, 16309700000, 04B253019, 1630 970 0000, 04B253019F, 1630 970 0001, 1630 970 0002, V03846515C, 04B253019G, 1630 970 0003, BV30-66A-0003, 04B253020, 1630 970 0005, 1630 998 0005, 5430 970 0000, 5430 988 0000, 55233062
Data updated: 2024-03-01 17:47:30
