TurboCentras
Heat shield GA-05-0027
Heat shield GA-05-0027
Redna cena
€4,44 EUR
Redna cena
Znižana cena
€4,44 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

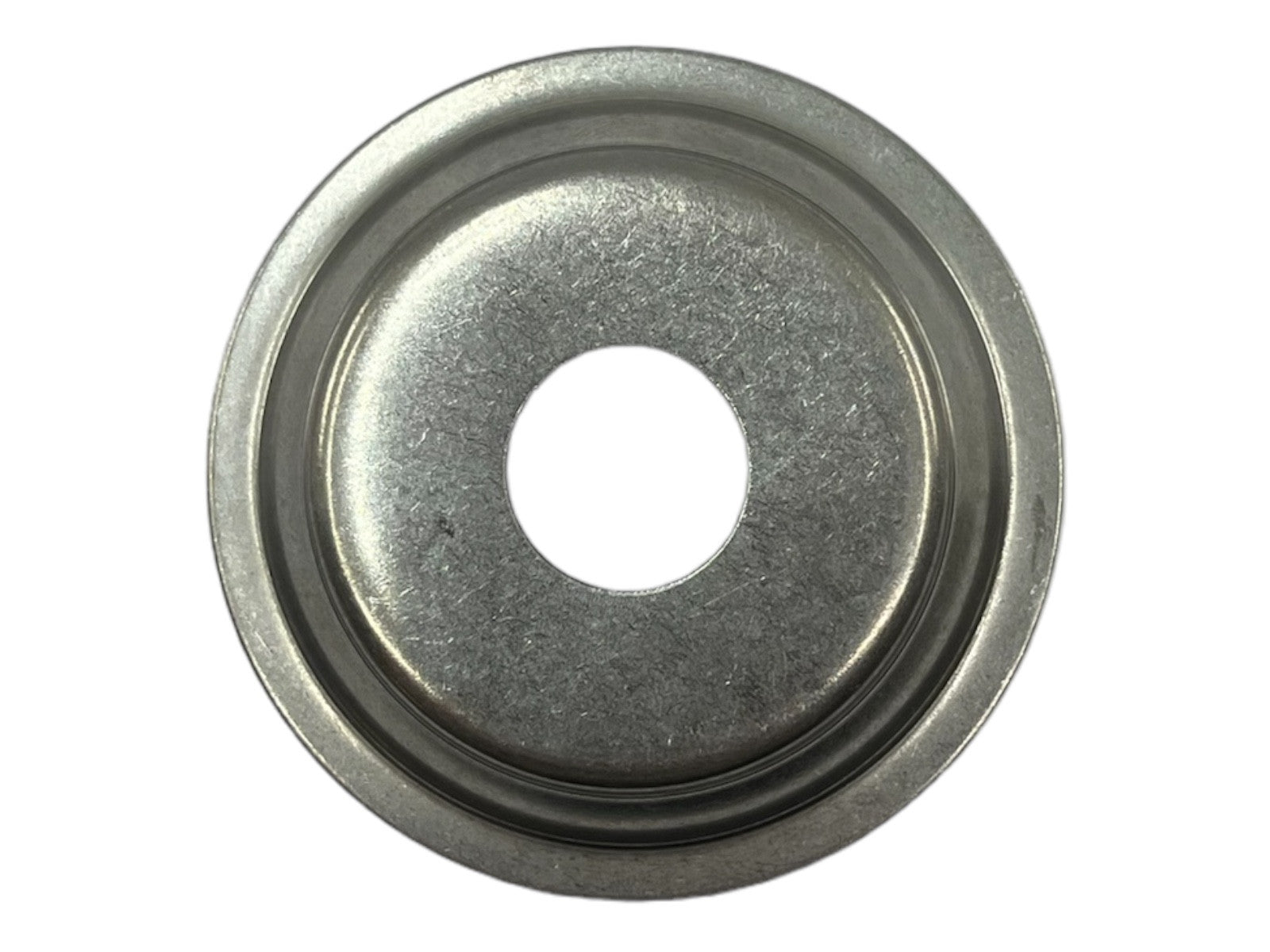

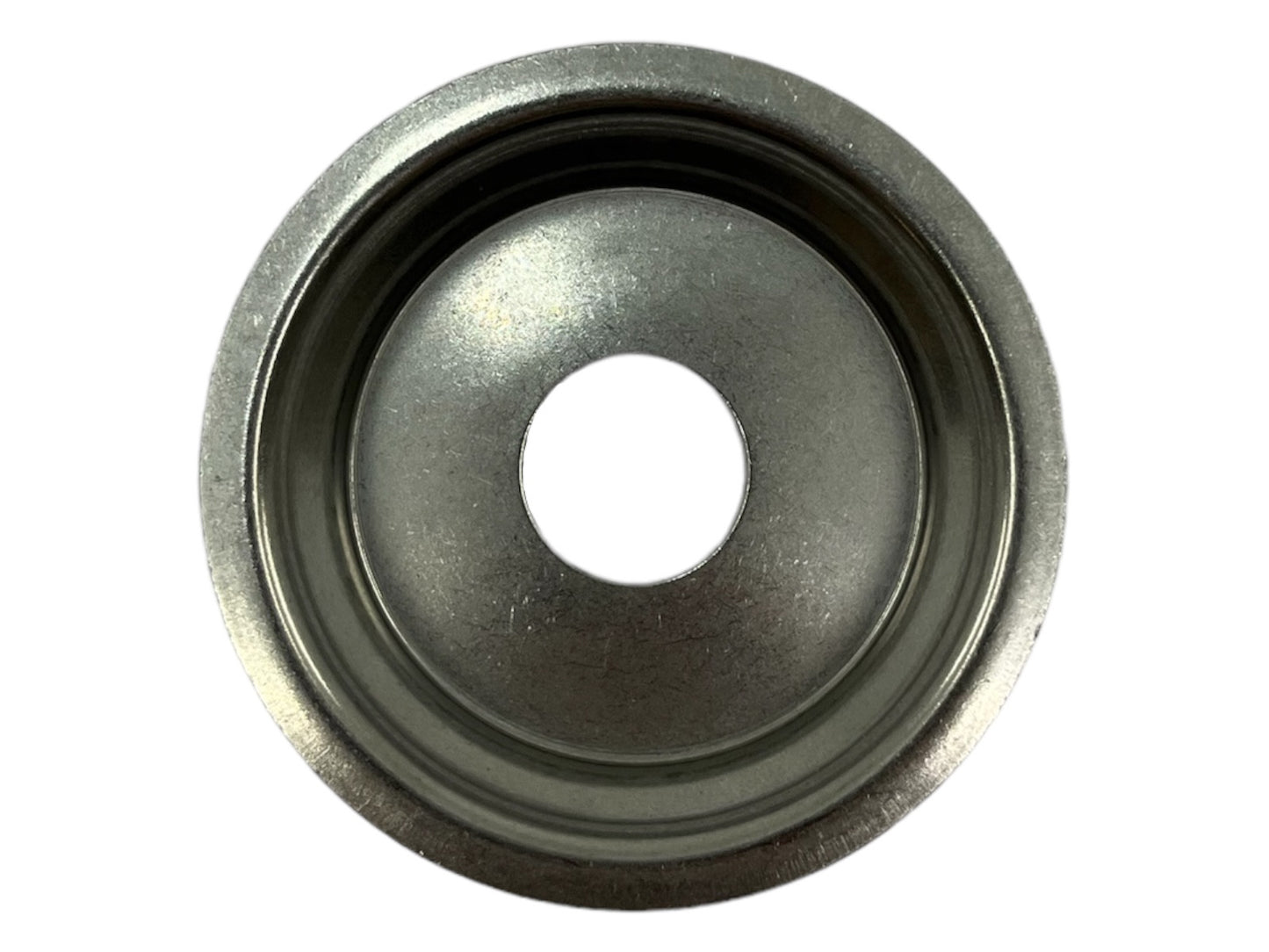

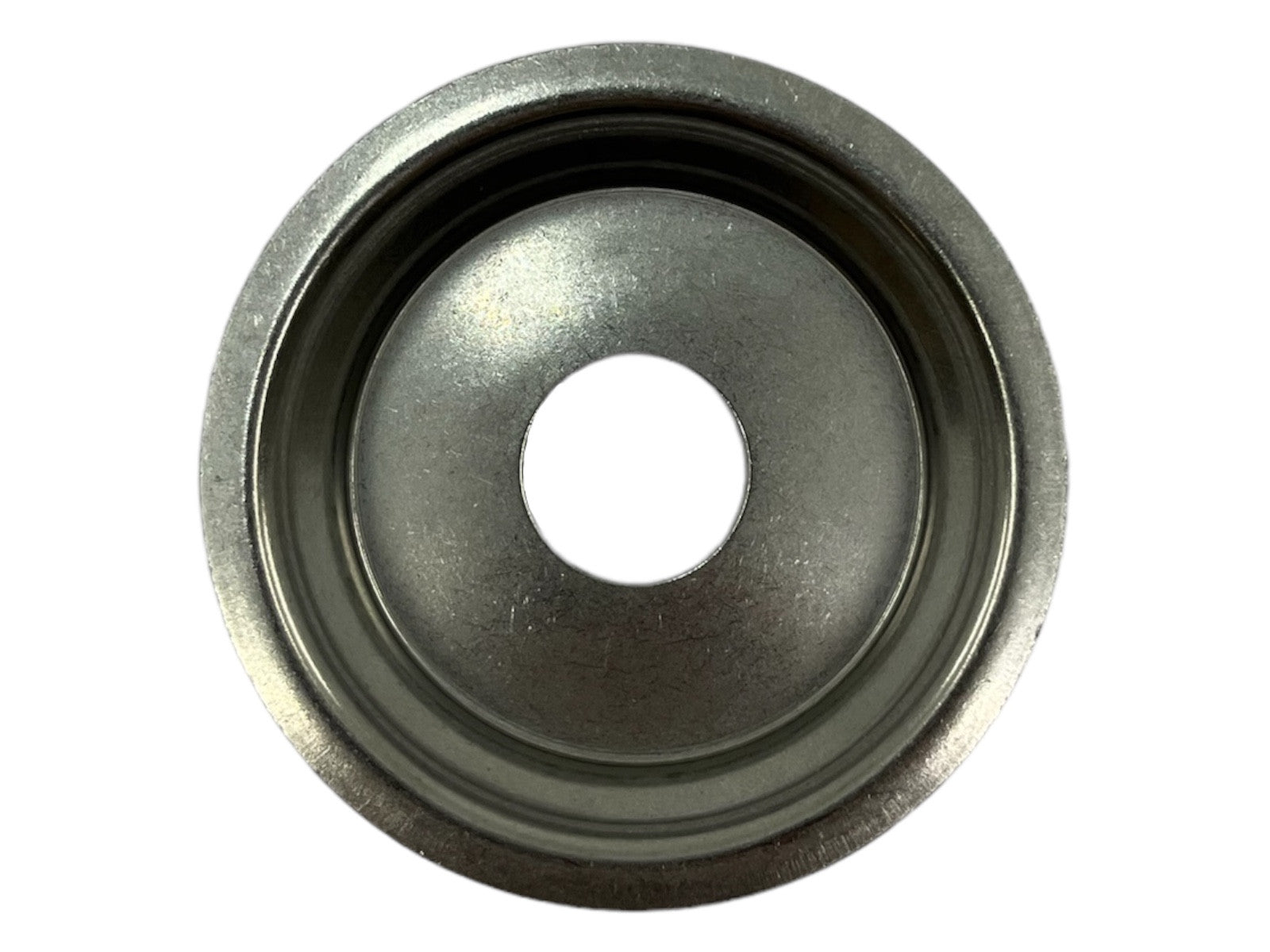

GA-05-0027 - Heat shield
Brand: TurboCentras
TurboCentras Reference: GA-05-0027
GA-05-0027 - Alternative numbers
TCP (TurboCentras part number): GA-05-0027
GA-05-0027 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Garrett | GT2252S | 451298-0001 | 451298-0001 | 1441169T00 |
| Garrett | GT2252S | 451298-0003 | 451298-0003 | 1441169T00 |
| Garrett | GT2252S | 451298-0005 | 451298-0005 | 1441169T00 |
| Garrett | GT2252S | 451298-0006 | 451298-0006 | -- |
| Garrett | GT2252S | 452187-0001 | 452187-0001, 452187-5001S | 14411-69T00 |
| Garrett | GT2252S | 452187-0003 | 452187-0003 | 1441169T00 |
| Garrett | GT2252S | 452187-0005 | 452187-0005 | 1441169T00 |
| Garrett | GT2252S | 452187-0006 | 452187-0006, 452187-5006S | 1441169T00 |
| Garrett | GT2052S | 452191-0001 | 452191-0001 | -- |
| Garrett | GT2052S | 452191-0002 | 452191-0002 | -- |
| Garrett | GT2052S | 452191-0003 | 452191-0003 | -- |
| Garrett | GT2052S | 452191-0007 | 452191-0007 | -- |
| Garrett | GT1752S | 452204-0005 | 452204-0005 | 5955703 |
| Garrett | GT1752S | 452204-0007 | 452204-0007, 452204-5007S | 5955703 |
| Garrett | GTA2056V | 452214-0001 | 452214-0001 | -- |
| Garrett | GT2259S | 452214-0003 | 452214-0003, 452214-5003S | 9040960799, A9040960799KZ |
| Garrett | GT2052 | 452222-0001 | 452222-0001 | 2674A089 |
| Garrett | GT2052 | 452222-0005 | 452222-0005 | 2674A315 |
| Garrett | GT2052 | 452222-0007 | 452222-0007 | 2674A314 |
| Garrett | GT2052 | 452222-0008 | 452222-0008 | 2674A339 |
| Garrett | GT2052 | 452222-0009 | 452222-0009 | 2674A341 |
| Garrett | GT2052S | 452264-0001 | 452264-0001 | -- |
| Garrett | GT2052S | 452264-0002 | 452264-0002 | -- |
| Garrett | GT2052S | 452264-0003 | 452264-0003 | -- |
| Garrett | GT2052S | 452271-0001 | 452271-0001 | -- |
| Garrett | GT2052S | 452271-0002 | 452271-0002 | -- |
| Garrett | GT2052S | 452301-0002 | 452301-0002 | -- |
| Garrett | GTA2056S | 454126-0001 | 454126-0001 | -- |
| Garrett | GT2259S | 702989-0003 | 702989-0003, 702989-5003S | 4891639 |
| Garrett | GT2259S | 702989-0006 | 702989-0006, 702989-5006S | 504094261 |
| Garrett | GT2259S | 702989-0006-R | 702989-0006, 702989-9006S | 504094261 |
| Garrett | GT2259S | 702989-5006S | 702989-0006, 702989-5006S | 504094261 |
| Garrett | GT2259S | 704809-0003 | 704809-0003, 704809-5003S | 1118010-C012 |
| Garrett | GT2259S | 704809-0005 | 704809-0005 | 1118010-55D |
| Garrett | GT2052S | 705104-0002 | 705104-0002 | 2674A332 |
| Garrett | GT2052S | 708257-0001 | 708257-0001, 708257-5001S | 79050 |
| Garrett | GT2052S | 708258-0001 | 708258-0001, 708258-5001S | 79054 |
| Garrett | GT2252S | 709683-0002 | 709683-0002 | -- |
| Garrett | GT2252S | 709693-0001 | 709693-0001, 709693-5001S | 14411-69T60, 1441169T60 |
| Garrett | GT2052S | 710641-0001 | 710641-0001 | A6620903280 |
| Garrett | GT2052S | 710641-0002 | 710641-0002, 710641-5002S | A6620903880 |
| Garrett | GT2052S | 710641-0003 | 710641-0003, 710641-5003S | A6620903280 |
| Garrett | GT2052S | 710641-0004 | 710641-0004 | A6620903880 |
| Garrett | GTA2056S | 714652-0004 | 714652-0004, 714652-5004S | 8200184484 |
| Garrett | GTA2056S | 714652-0005 | 714652-0005, 714652-5005S | 8200459494 |
| Garrett | GTA2056S | 714652-0006 | 714652-0006, 714652-5006S | 8200683859 |
| Garrett | GT2052S | 715645-0001 | 715645-0001 | -- |
| Garrett | GT2052S | 715645-0002 | 715645-0002, 715645-5002S | 14411G2408 |
| Garrett | GT2052S | 715645-0004 | 715645-0004, 715645-5004S | 1441169T91 |
| Garrett | GT2052S | 721843-0001 | 721843-0001, 721843-5001S | 79159 |
| Garrett | GT2052S | 722687-0001 | 722687-0001, 722687-5001S | 14411-7F411, 144117F411 |
| Garrett | GT2049S | 723190-0003 | 723190-0003, 723190-5003S | -- |
| Garrett | GT2049S | 723190-0006 | 723190-0006, 723190-5006S | -- |
| Garrett | GT2052S | 724249-0001 | 724249-0001 | 9.0529.20.1.007402 |
| Garrett | GT2052S | 724352-0001 | 724352-0001, 724352-5001S | A662 090 36 80 |
| Garrett | GT2052S | 724353-0001 | 724353-0001, 724353-5001S | A6620903780 |
| Garrett | GT2052S | 724353-0002 | 724353-0002, 724353-5002S | A6620903980 |
| Garrett | GT2052S | 727262-0001 | 727262-0001, 727262-5001S | 2674A351 |
| Garrett | GT2052S | 727262-0005 | 727262-0005, 727262-5005S | 2674A315, 2674A355 |
| Garrett | GT2052S | 727262-0007 | 727262-0007, 727262-5007S | 2674A357 |
| Garrett | GT2052S | 727263-0001 | 727263-0001 | -- |
| Garrett | GT2052S | 727263-0002 | 727263-0002, 727263-5002S | -- |
| Garrett | GT2052S | 727264-0007 | 727264-0007, 727264-5007S | -- |
| Garrett | GT2052 | 727265-0001 | 727265-0001 | -- |
| Garrett | GT2052 | 727265-0002 | 727265-0002, 727265-5002S | -- |
| Garrett | GT2052 | 727265-0003 | 727265-0003 | -- |
| Garrett | GT2052S | 727266-0002 | 727266-0002, 727266-5002S | -- |
| Garrett | GT2259LS | 732409-0011 | 732409-0011, 732409-5011S | 241004252A |
| Garrett | GT2259LS | 732409-0012 | 732409-0012, 732409-5012S | 241004260A |
| Garrett | GT2259LS | 732409-0021 | 732409-0021, 732409-5021S | 241004610A |
| Garrett | GT2259LS | 732409-0022 | 732409-0022 | -- |
| Garrett | GT2259LS | 732409-0024 | 732409-0024, 732409-5024S | 17201E0450 |
| Garrett | GT2259LS | 732409-0026 | 732409-0026, 732409-5026S | 241004252A |
| Garrett | GT2259LS | 732409-0039 | 732409-0039, 732409-5039S | 17201E0451 |
| Garrett | GT2259LS | 732409-0040 | 732409-0040, 732409-5040S | 17201E0630 |
| Garrett | GT2259LS | 732409-0041 | 732409-0041, 732409-5041S | 17201EO441 |
| Garrett | GT2259LS | 732409-0042 | 732409-0042, 732409-5042S | 241004260A |
| Garrett | GT2259LS | 732409-0045 | 732409-0045, 732409-5045S | 17201E0452 |
| Garrett | GT2256S | 738769-0007 | 738769-0007, 738769-5007S | E049339000056 |
| Garrett | GT2259S | 743031-0003 | 743031-0003 | 18900WRMA0000 |
| Garrett | GT2056S | 751578-0001 | 751578-0001, 751578-5001S | 504071574 |
| Garrett | GT2056S | 751578-0002 | 751578-0002, 751578-5001S, 751578-5002S | 504071573 |
| Garrett | GT2256S | 752528-0005 | 752528-0005, 752528-5005S | 905292010097 |
| Garrett | GT2049S | 754111-0007 | 754111-0007, 754111-5007S | -- |
| Garrett | GT2049S | 754111-0008 | 754111-0008, 754111-5008S | -- |
| Garrett | GT2049 | 754111-0009 | 754111-0009, 754111-5009S | -- |
| Garrett | GT2259S | 754958-0001 | 754958-0001, 754958-5001S | 1378564 |
| Garrett | GT2259S | 755310-0001 | 755310-0001, 755310-5001S | 504094449 |
| Garrett | GT2256S | 759638-0001 | 759638-0001, 759638-5001S | 1008200FA020 |
| Garrett | GT2256S | 759638-0002 | 759638-0002, 759638-5002S | 1008200FA060 |
| Garrett | GT2256S | 759638-0003 | 759638-0003, 759638-5003S | 1008200FA040 |
| Garrett | GT2256S | 759638-0004 | 759638-0004, 759638-5004S | 1008200FA011 |
| Garrett | GT2256S | 759638-0006 | 759638-0006, 759638-5006S | 1008200FA100 |
| Garrett | GT2256S | 759638-0007 | 759638-0007, 759638-5007S | 1008200FA051 |
| Garrett | GT2259LS | 761916-0003 | 761916-0003, 761916-5003S | 244000494C |
| Garrett | GT2259LS | 761916-0006 | 761916-0006, 761916-5006S | S1760E0010A |
| Garrett | GT2259LS | 761916-0007 | 761916-0007, 761916-5007S | S1760E0011 |
| Garrett | GT2259LS | 761916-0008 | 761916-0008, 761916-5008S | 17201EO520 |
| Garrett | GT2259LS | 761916-0009 | 761916-0009, 761916-5009S | S1720E0012 |
| Garrett | GT2259LS | 761916-0010 | 761916-0010, 761916-5010S | 17201-E0521 |
| Garrett | GT2259LS | 761916-0011 | 761916-0011, 761916-5011S | S1760E0014 |
| Garrett | GT2259LS | 761916-0012 | 761916-0012, 761916-5012S | 17201E0522 |
| Garrett | GT2256S | 765326-0002 | 765326-0002, 765326-5002S | 9.0529.201.0091, 90529201012102 |
| Garrett | GT2259LS | 766237-0001 | 766237-0001, 766237-5001S | 1.7201E+84 |
| Garrett | GT2259LS | 766237-0002 | 766237-0002, 766237-5002S | 17201-E0061 |
| Garrett | GT2259LS | 766237-0003 | 766237-0003, 766237-5003S | 17201-E0062 |
| Garrett | GT2259LS | 766237-0004 | 766237-0004, 766237-5004S | 17201E0081 |
| Garrett | GT2259LS | 766237-0005 | 766237-0005, 766237-5005S | 17201-E0711 |
| Garrett | GT2259LS | 766237-0008 | 766237-0008, 766237-5008S | 17201-E0711 |
| Garrett | GT2259LS | 766237-0009 | 766237-0009, 766237-5009S | 17201E0713 |
| Garrett | GT2049 | 773378-0003 | 773378-0003, 773378-5003S | -- |
| Garrett | GT2259LS | 787873-0001 | 787873-0001, 787873-5001S | 17201-E0520 |
| Garrett | GT2259LS | 787876-0001 | 787876-0001 | -- |
| Garrett | GT2259S | 797648-0001 | 797648-0001, 797648-5001S | 504379020 |
| Garrett | GT2259S | 797648-0003 | 797648-0003, 797648-5003S | 5801397254 |
| Garrett | GT2259S | 797648-0005 | 797648-0005, 797648-5005S | 580155886 |
| Garrett | GT2259LS | 801644-0001 | 801644-0001, 801644-5001S | -- |
| Garrett | GT2259LS | 801801-0001 | 801801-0001 | -- |
| Garrett | GT2259LS | 801897-0001 | 801897-0001, 801897-5001S | -- |
| Garrett | GT2256S | 804557-0029 | 804557-0029, 804557-5029S | -- |
| Garrett | GT2256S | 804557-0030 | 804557-0030, 804557-5030S | -- |
| Garrett | GT2256S | 804557-0031 | 804557-0031, 804557-5031S | -- |
| Garrett | GT2256S | 804557-0032 | 804557-0032, 804557-5032S | -- |
| Garrett | GT2256S | 804557-0034 | 804557-0034, 804557-5034S | -- |
| Garrett | GT2256S | 804557-0035 | 804557-0035, 804557-5035S | -- |
| Garrett | GT2256S | 804557-0036 | 804557-0036, 804557-5036S | -- |
| Garrett | GT2256S | 804557-0038 | 804557-0038, 804557-5038S | -- |
| Garrett | GT2256S | 804557-0039 | 804557-0039, 804557-5039S | -- |
| Garrett | GT2256S | 804557-0040 | 804557-0040, 804557-5040S | -- |
| Garrett | GT2256S | 804557-0041 | 804557-0041, 804557-5041S | -- |
| Garrett | GT2256S | 804557-0042 | 804557-0042, 804557-5042S | -- |
| Garrett | GT2256S | 805928-0001 | 805928-0001, 805928-5001S | 252714510142 |
| Garrett | GT2256S | 805928-0002 | 805928-0002, 805928-5002S | 252714510143 |
| Garrett | GT2259LS | 806883-0001 | 806883-0001, 806883-5001S | 17201E0801 |
| Garrett | GT2259LS | 806883-0003 | 806883-0003, 806883-5003S | 17201E0802 |
| Garrett | GT2259LS | 806883-0005 | 806883-0005, 806883-5005S | 17201E0803 |
| Garrett | GT2259LS | 806883-0006 | 806883-0006, 806883-5006S | 17201EW032 |
| Garrett | GT2256S | 846903-0001 | 846903-0001, 846903-5001S | -- |
| Garrett | GT2256S | 846903-0002 | 846903-0002, 846903-5002S | -- |
| Garrett | GT2256S | 846903-0003 | 846903-0003, 846903-5003S | -- |
| Garrett | GT2256S | 846903-0004 | 846903-0004, 846903-5004S | -- |
| Garrett | GT2256S | 846903-0006 | 846903-0006, 846903-5006S | -- |
| Garrett | GT2256S | 846903-0007 | 846903-0007, 846903-5007S | -- |
| Garrett | GT2256S | 846903-0008 | 846903-0008, 846903-5008S | -- |
| Garrett | GT2256S | 846903-0010 | 846903-0010, 846903-5010S | -- |
| Garrett | GT2256S | 846903-0011 | 846903-0011, 846903-5011S | -- |
| Garrett | GT2256S | 846903-0012 | 846903-0012, 846903-5012S | -- |
| Garrett | GT2256S | 846903-0013 | 846903-0013, 846903-5013S | -- |
| Garrett | GT2256S | 846903-0014 | 846903-0014, 846903-5014S | -- |
| Garrett | GT2259NS | 878998-0001 | 878998-0001, 878998-5001S | 5802746681 |
| Garrett | GT2259NS | 878998-0002 | 878998-0002, 878998-5002S | 5802741359 |
| Garrett | GT2259NS | 878998-0003 | 878998-0003, 878998-5003S | 5801558886, 5802741363 |
| Garrett | GT2049 | 880061-0001 | 880061-0001, 880061-5001S | 5586961 |
| Garrett | GT2049S | 880061-0002 | 880061-0002, 880061-5002S | 6158562 |
GA-05-0027 - Part Properties
D1 (OD) (D1 outer diameter mm): 67.60
D2 (ID) (D2 inner diameter mm): 18.50
D3 (s) (D3 metal thickness (s) mm): 1.00
D4 (h) (D4 Height mm): 9.00
D5 (IND) (D5 Inducer area diameter mm): 50.00
GA-05-0027
A6620903680, 1441169T00, 451298-0001, 1441169T00, 451298-0003, 1441169T00, 451298-0005, 451298-0006, 14411-69T00, 452187-0001, 452187-5001S, 1441169T00, 452187-0003, 1441169T00, 452187-0005, 1441169T00, 452187-0006, 452187-5006S, 452191-0001, 452191-0002, 452191-0003, 452191-0007, 452204-0005, 5955703, 452204-0007, 452204-5007S, 5955703, 452214-0001, 452214-0003, 452214-5003S, 9040960799, A9040960799KZ, 2674A089, 452222-0001, 2674A315, 452222-0005, 2674A314, 452222-0007, 2674A339, 452222-0008, 2674A341, 452222-0009, 452264-0001, 452264-0002, 452264-0003, 452271-0001, 452271-0002, 452301-0002, 454126-0001, 4891639, 702989-0003, 702989-5003S, 504094261, 702989-0006, 702989-5006S, 504094261, 702989-0006, 702989-9006S, 504094261, 702989-0006, 702989-5006S, 1118010-C012, 704809-0003, 704809-5003S, 1118010-55D, 704809-0005, 2674A332, 705104-0002, 708257-0001, 708257-5001S, 79050, 708258-0001, 708258-5001S, 79054, 709683-0002, 14411-69T60, 1441169T60, 709693-0001, 709693-5001S, 710641-0001, A6620903280, 710641-0002, 710641-5002S, A6620903880, 710641-0003, 710641-5003S, A6620903280, 710641-0004, A6620903880, 714652-0004, 714652-5004S, 8200184484, 714652-0005, 714652-5005S, 8200459494, 714652-0006, 714652-5006S, 8200683859, 715645-0001, 14411G2408, 715645-0002, 715645-5002S, 1441169T91, 715645-0004, 715645-5004S, 721843-0001, 721843-5001S, 79159, 14411-7F411, 144117F411, 722687-0001, 722687-5001S, 723190-0003, 723190-5003S, 723190-0006, 723190-5006S, 724249-0001, 9.0529.20.1.007402, 724352-0001, 724352-5001S, A662 090 36 80, 724353-0001, 724353-5001S, A6620903780, 724353-0002, 724353-5002S, A6620903980, 2674A351, 727262-0001, 727262-5001S, 2674A315, 2674A355, 727262-0005, 727262-5005S, 2674A357, 727262-0007, 727262-5007S, 727263-0001, 727263-0002, 727263-5002S, 727264-0007, 727264-5007S, 727265-0001, 727265-0002, 727265-5002S, 727265-0003, 727266-0002, 727266-5002S, 241004252A, 732409-0011, 732409-5011S, 241004260A, 732409-0012, 732409-5012S, 241004610A, 732409-0021, 732409-5021S, 732409-0022, 17201E0450, 732409-0024, 732409-5024S, 241004252A, 732409-0026, 732409-5026S, 17201E0451, 732409-0039, 732409-5039S, 17201E0630, 732409-0040, 732409-5040S, 17201EO441, 732409-0041, 732409-5041S, 241004260A, 732409-0042, 732409-5042S, 17201E0452, 732409-0045, 732409-5045S, 738769-0007, 738769-5007S, E049339000056, 18900WRMA0000, 743031-0003, 504071574, 751578-0001, 751578-5001S, 504071573, 751578-0002, 751578-5001S, 751578-5002S, 752528-0005, 752528-5005S, 905292010097, 754111-0007, 754111-5007S, 754111-0008, 754111-5008S, 754111-0009, 754111-5009S, 1378564, 754958-0001, 754958-5001S, 504094449, 755310-0001, 755310-5001S, 1008200FA020, 759638-0001, 759638-5001S, 1008200FA060, 759638-0002, 759638-5002S, 1008200FA040, 759638-0003, 759638-5003S, 1008200FA011, 759638-0004, 759638-5004S, 1008200FA100, 759638-0006, 759638-5006S, 1008200FA051, 759638-0007, 759638-5007S, 244000494C, 761916-0003, 761916-5003S, 761916-0006, 761916-5006S, S1760E0010A, 761916-0007, 761916-5007S, S1760E0011, 17201EO520, 761916-0008, 761916-5008S, 761916-0009, 761916-5009S, S1720E0012, 17201-E0521, 761916-0010, 761916-5010S, 761916-0011, 761916-5011S, S1760E0014, 17201E0522, 761916-0012, 761916-5012S, 765326-0002, 765326-5002S, 9.0529.201.0091, 90529201012102, 1.7201E+84, 766237-0001, 766237-5001S, 17201-E0061, 766237-0002, 766237-5002S, 17201-E0062, 766237-0003, 766237-5003S, 17201E0081, 766237-0004, 766237-5004S, 17201-E0711, 766237-0005, 766237-5005S, 17201-E0711, 766237-0008, 766237-5008S, 17201E0713, 766237-0009, 766237-5009S, 773378-0003, 773378-5003S, 17201-E0520, 787873-0001, 787873-5001S, 787876-0001, 504379020, 797648-0001, 797648-5001S, 5801397254, 797648-0003, 797648-5003S, 580155886, 797648-0005, 797648-5005S, 801644-0001, 801644-5001S, 801801-0001, 801897-0001, 801897-5001S, 804557-0029, 804557-5029S, 804557-0030, 804557-5030S, 804557-0031, 804557-5031S, 804557-0032, 804557-5032S, 804557-0034, 804557-5034S, 804557-0035, 804557-5035S, 804557-0036, 804557-5036S, 804557-0038, 804557-5038S, 804557-0039, 804557-5039S, 804557-0040, 804557-5040S, 804557-0041, 804557-5041S, 804557-0042, 804557-5042S, 252714510142, 805928-0001, 805928-5001S, 252714510143, 805928-0002, 805928-5002S, 17201E0801, 806883-0001, 806883-5001S, 17201E0802, 806883-0003, 806883-5003S, 17201E0803, 806883-0005, 806883-5005S, 17201EW032, 806883-0006, 806883-5006S, 846903-0001, 846903-5001S, 846903-0002, 846903-5002S, 846903-0003, 846903-5003S, 846903-0004, 846903-5004S, 846903-0006, 846903-5006S, 846903-0007, 846903-5007S, 846903-0008, 846903-5008S, 846903-0010, 846903-5010S, 846903-0011, 846903-5011S, 846903-0012, 846903-5012S, 846903-0013, 846903-5013S, 846903-0014, 846903-5014S, 5802746681, 878998-0001, 878998-5001S, 5802741359, 878998-0002, 878998-5002S, 5801558886, 5802741363, 878998-0003, 878998-5003S, 5586961, 880061-0001, 880061-5001S, 6158562, 880061-0002, 880061-5002S
Data updated: 2024-06-07 16:10:42
