Heat shield MH-05-0012

Heat shield MH-05-0012

€2,60 EUR
€2,60 EUR
Znižanje Razprodano

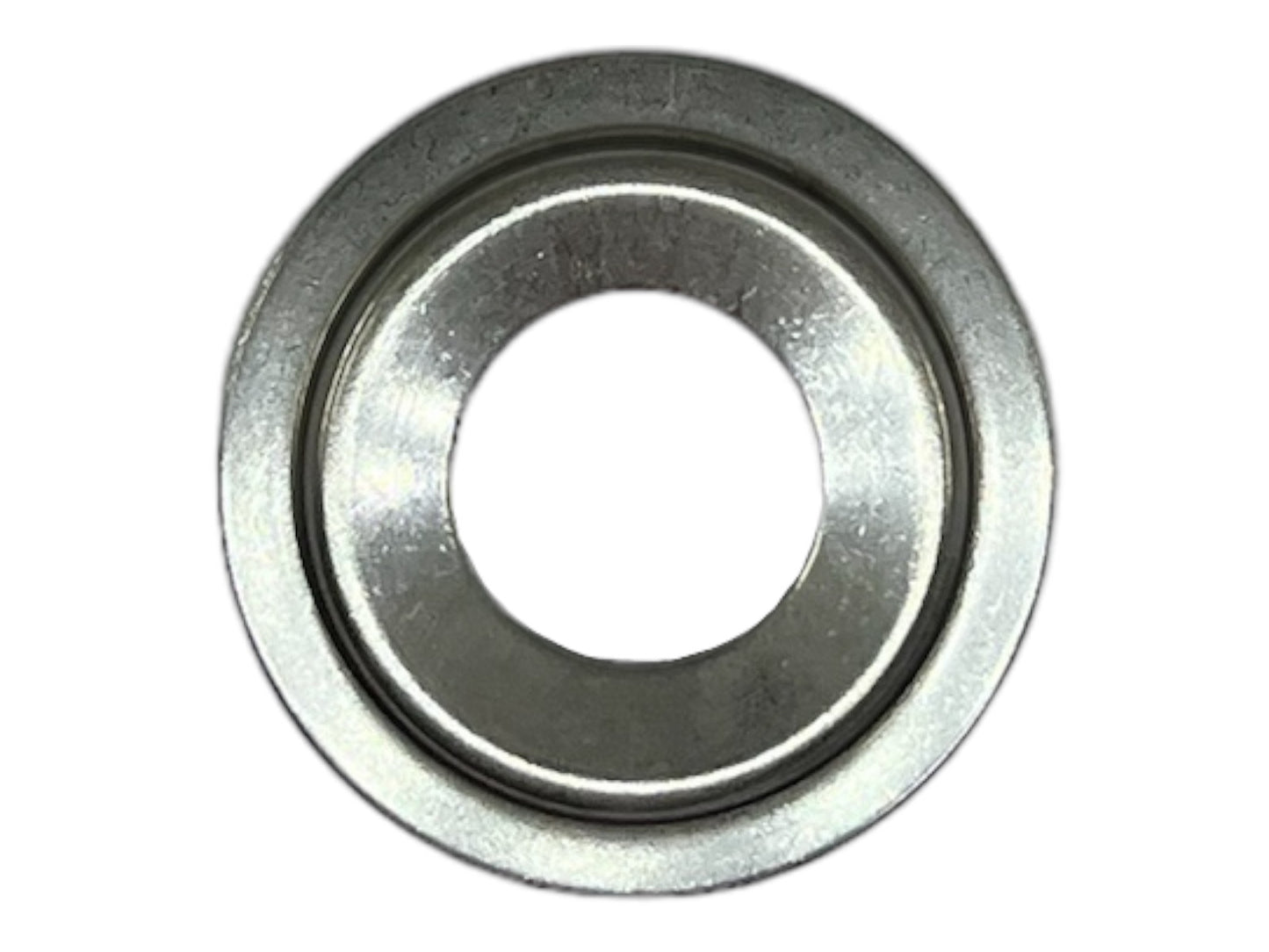

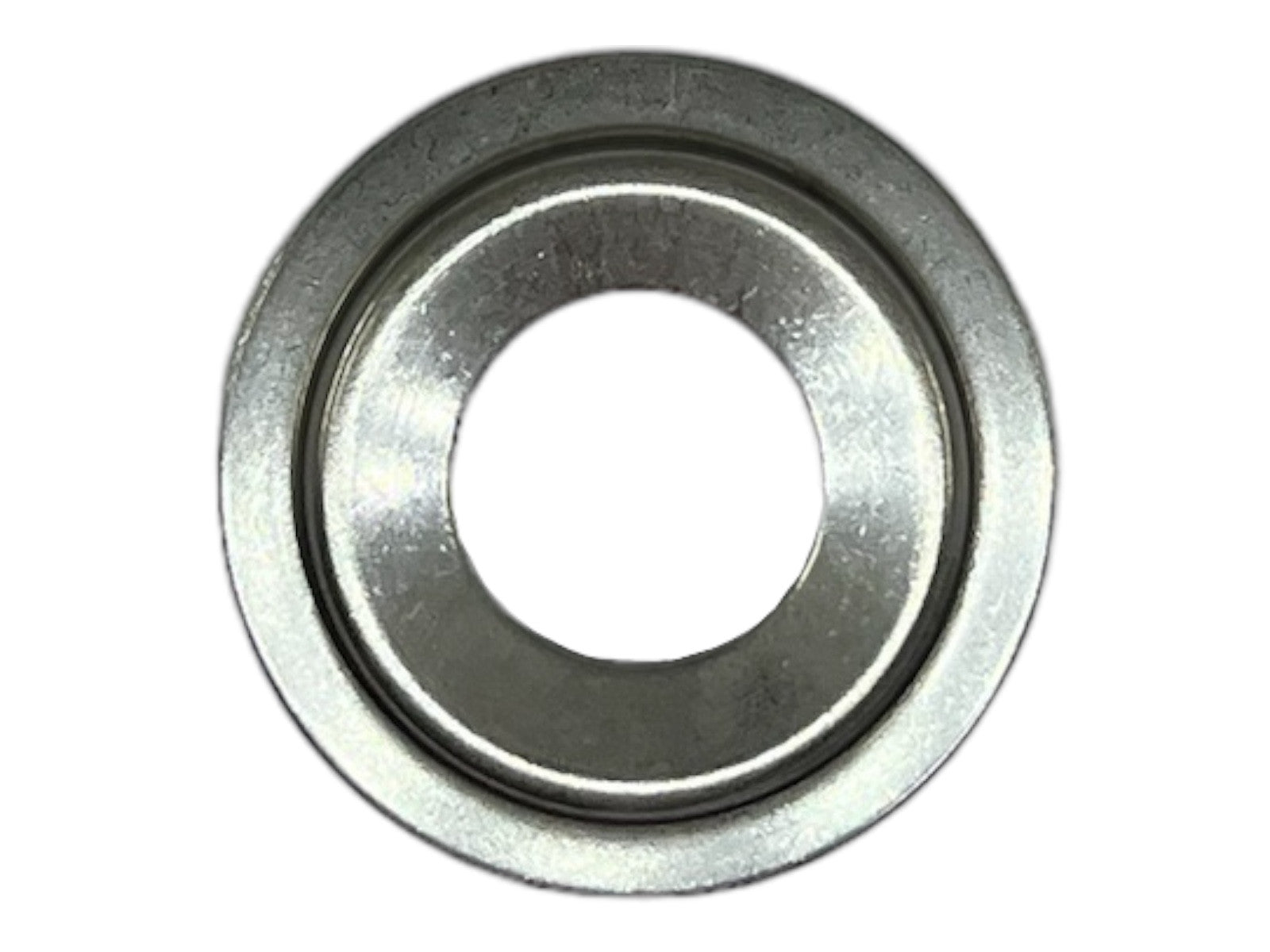

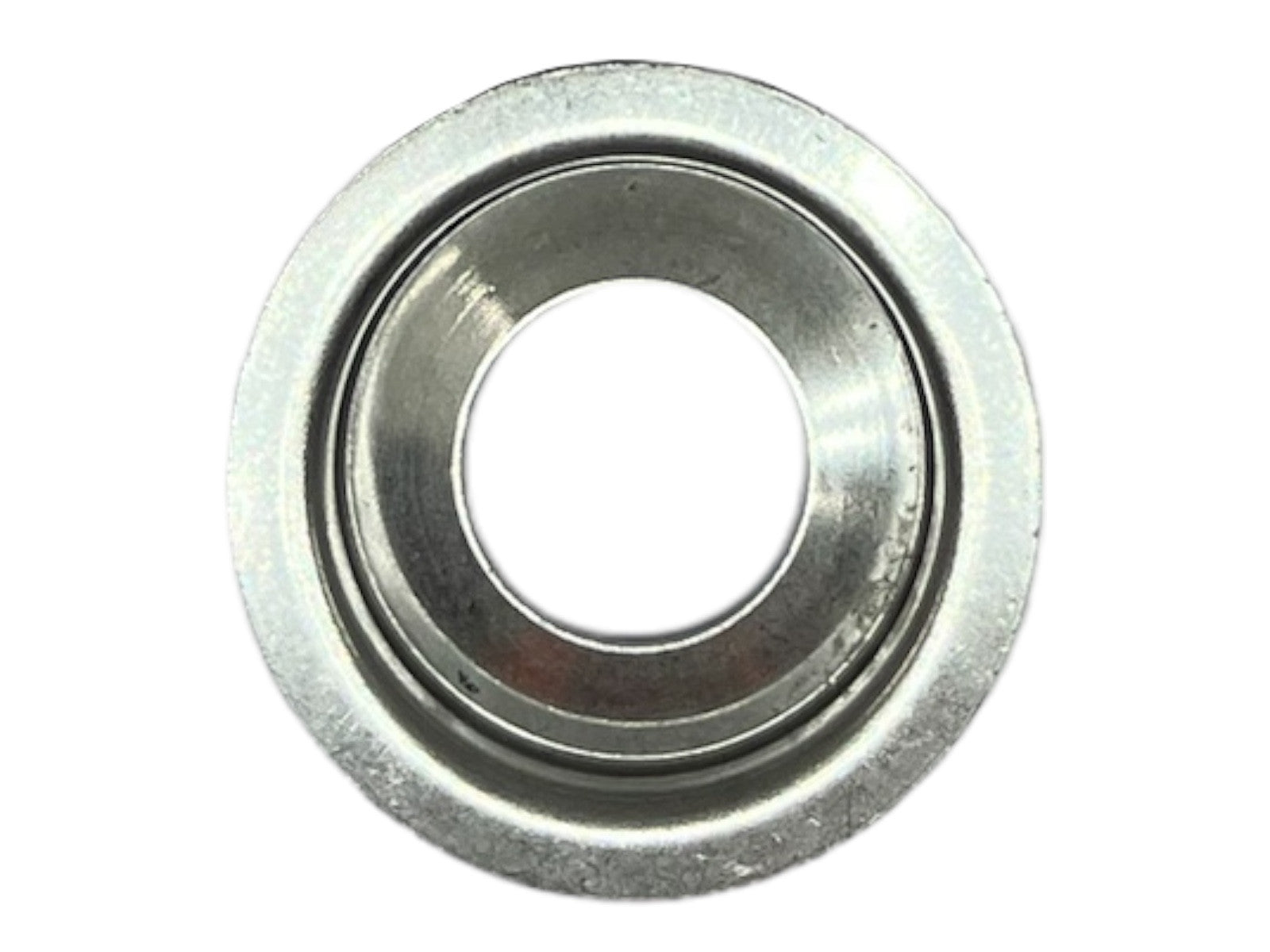

MH-05-0012 - Heat shield

Brand: TurboCentras

TurboCentras Reference: MH-05-0012

MH-05-0012 - Alternative numbers

TCP (TurboCentras part number): MH-05-0012

MH-05-0012 - Compatibility table

Heat shield MH-05-0012 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
Mitsubishi TD02MR2-035K-1.9 49130-01700 49130-01700 MN122085
Mitsubishi TD02MR2-035K-1.9 49130-01710 49130-01710 1515A137
Mitsubishi TD015R-025R04K/2.45T 49133-01010 49133-01010 --
Mitsubishi TD015R-025R04K/2.45T 49133-01020 49133-01020 --
Mitsubishi TD015R-025R04K/2.45T 49133-01030 49133-01030 --
Mitsubishi TD015R-025R04K/2.45T 49133-01110 49133-01110 --
Mitsubishi TD015R-025R04K/2.45T 49133-01120 49133-01120 --
Mitsubishi TD015R-025R04K/2.45T 49133-01130 49133-01130 --
Mitsubishi TD015R-04K/2.45T 49133-01210 49133-01210 218002
Mitsubishi TD015R-04K-2.45T 49133-01220 49133-01220 MN115461
Mitsubishi TD015R-025R04K/2.45T 49133-01230 49133-01230 --
Mitsubishi TD02L11-07TVT-2.0 49172-03000 49172-03000 9804945280
Mitsubishi TD02L11-07TVT-2.0 49172-03100 49172-03100 9813245480
Mitsubishi TD02M2-05WDS-F1.4 90114-01020 90114-01020 28201-2A090
Mitsubishi TD02M2-05WDS-F1.6 90114-01030 90114-01030 28201-2A760

MH-05-0012 - Part Properties

D1 (OD) (D1 outer diameter mm): 43.00

D2 (ID) (D2 inner diameter mm): 20.00

D3 (s) (D3 metal thickness (s) mm): 1.00

D4 (h) (D4 Height mm): 5.50

D5 (IND) (D5 Inducer area diameter mm): 34.00

MH-05-0012
MH-05-0012
49130-01700, MN122085, 1515A137, 49130-01710, 49133-01010, 49133-01020, 49133-01030, 49133-01110, 49133-01120, 49133-01130, 218002, 49133-01210, 49133-01220, MN115461, 49133-01230, 49172-03000, 9804945280, 49172-03100, 9813245480, 28201-2A090, 90114-01020, 28201-2A760, 90114-01030

Data updated: 2024-06-06 15:34:09
