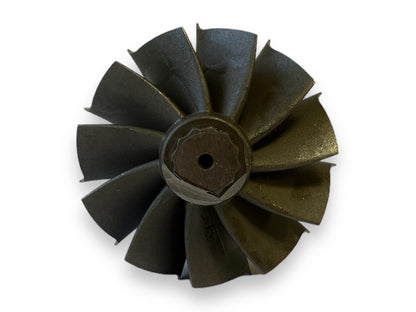

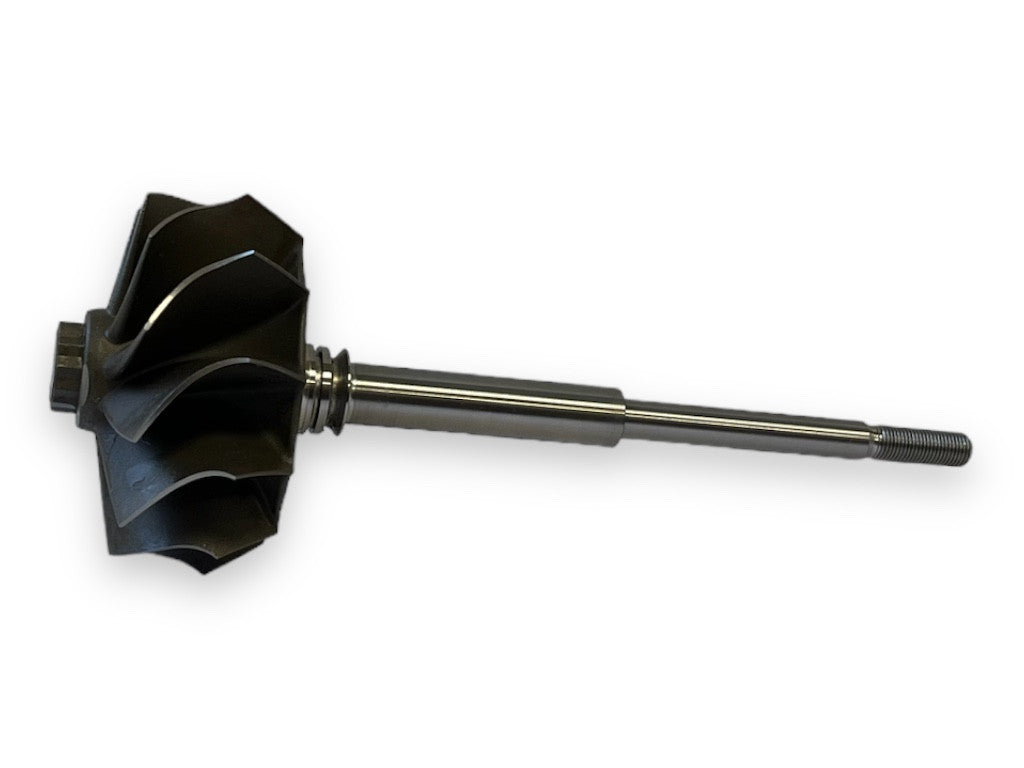

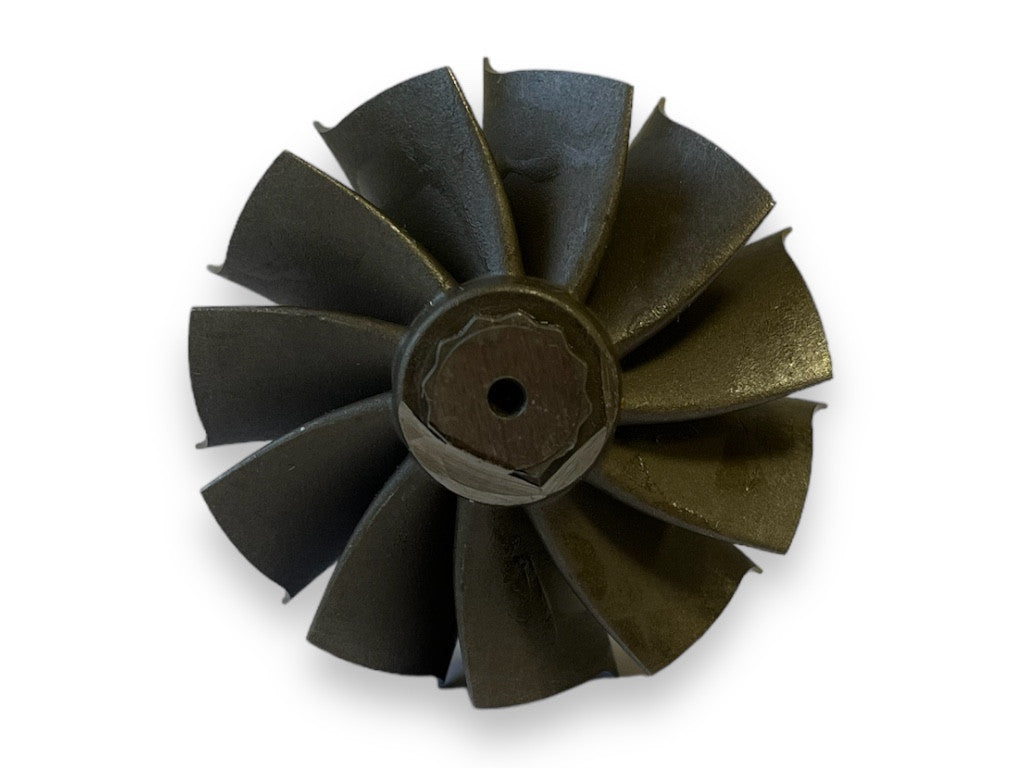

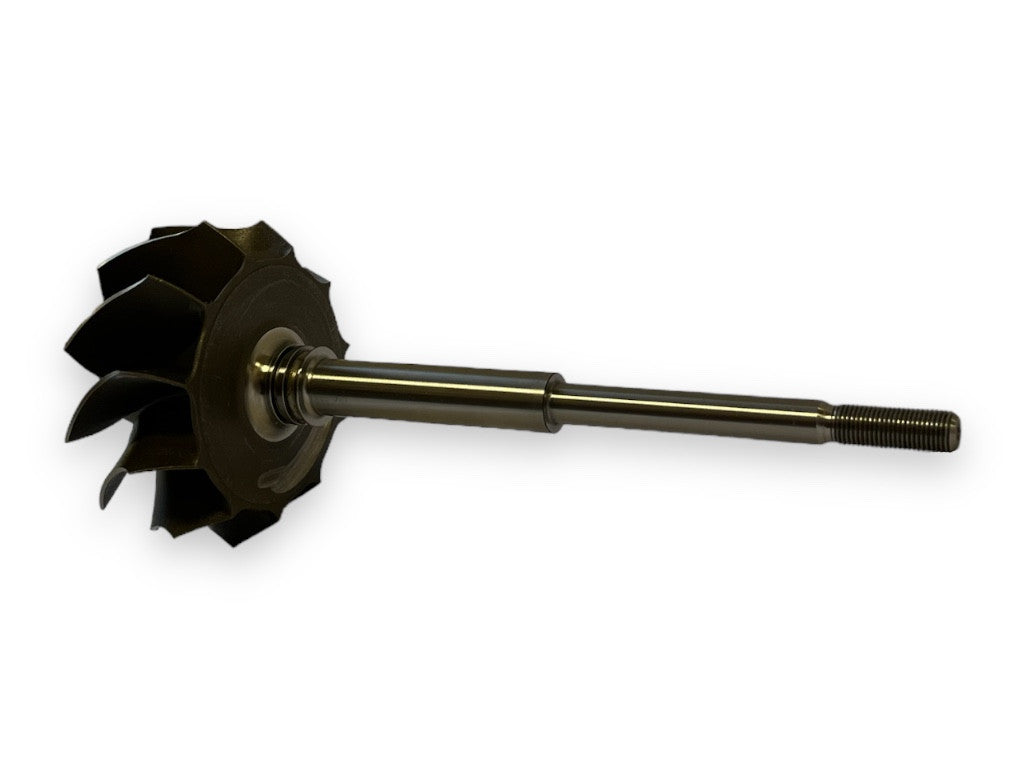

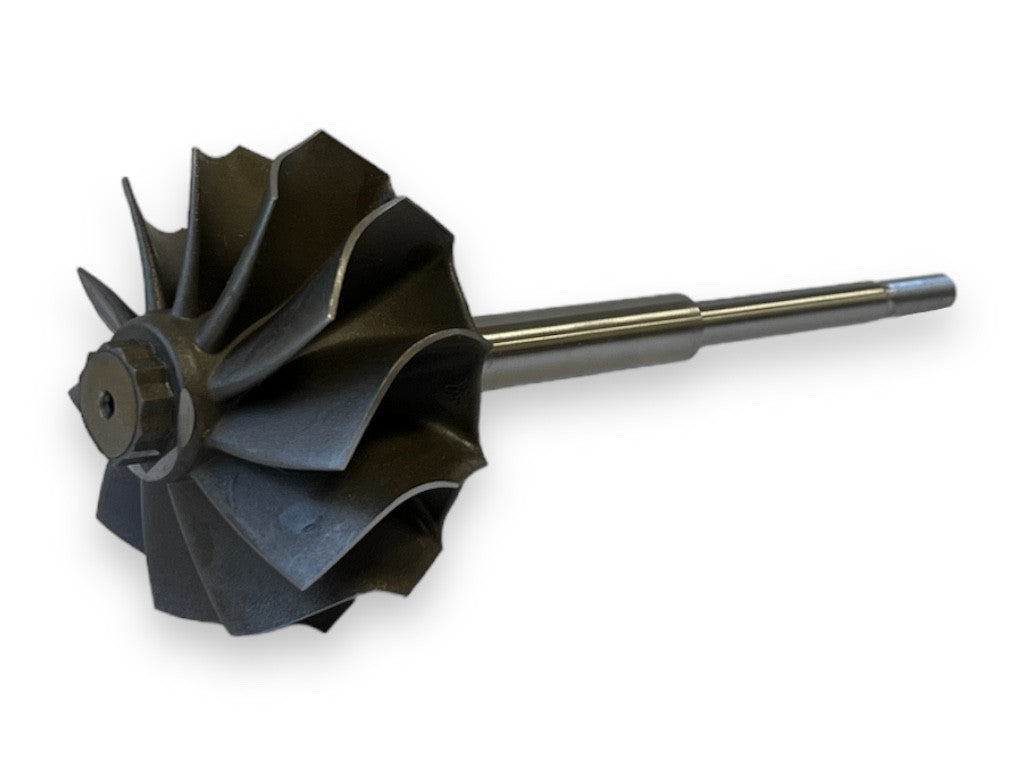

Shaft and wheel IH-02-0046

Shaft and wheel IH-02-0046

€55,78 EUR
€55,78 EUR
Znižanje Razprodano

IH-02-0046 - Shaft and wheel

Brand: TurboCentras

TurboCentras Reference: IH-02-0046

IH-02-0046 - Alternative numbers

TCP (TurboCentras part number): IH-02-0046

IH-02-0046 - Compatibility table

Shaft and wheel IH-02-0046 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
IHI RHE62W-118003P20NWBRB584CCZ MYAX E61CAD-S0022B, MYAX, V*720022, VA720022, VB720022, VC720022 119773-18010
IHI RHE62-118003P22NWBRB584CCZ MYBH 6T-609, MYBH, VA720033, VB720033, VC720033, VD720033 119775-18010
IHI RHE62W-118003P22NWBRB584CCZ MYEV E61CAD-S0086B, E61CAD-S0086G, MYEV, V*720086, VA720086 119775-18150
IHI RHG6 VB57 VA570019, VB57, VB570019 114400-3890
IHI RHE62-96001QZ27NABRL543CAZ VIAX E61CAD-S0016B, V*720016, VA720016, VA720041, VB720016, VB720041, VC720016, VC720041, VD720016, VE720016, VIAX 8943900610, 8943900611, 8943900612, 8943900613, 8943919061, 8943919062, 8943919063, 8943956820
IHI RHE62-116001QZ25NABRL543CAZ VIAY E61CAD-S0017B, V*720017, VA720017, VB720017, VC720017, VD720017, VE720017, VIAY 8943900590, 8943900591, 8943900592, 8943900593, 8943956800
IHI RHE6 VP11 VP11 Q36-543-2

IH-02-0046 - Part Properties

Blades (Shaft & Wheel blades count): 11

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Open

P.R. (Shaft & Wheel piston rings count): Single

A (Size A): 69.50

A1 (Size A1): 58.00

B (Size B): 64.20

C (Size C): 10.70

D (Size D): 11.40

E (Size E): 7.70

H (Size H): 30.00

L (Size L): 134.00

T (Size T): M7.0X0.75LH

IH-02-0046
IH-02-0046
119773-18010, E61CAD-S0022B, MYAX, V*720022, VA720022, VB720022, VC720022, 119775-18010, 6T-609, MYBH, VA720033, VB720033, VC720033, VD720033, 119775-18150, E61CAD-S0086B, E61CAD-S0086G, MYEV, V*720086, VA720086, 114400-3890, VA570019, VB57, VB570019, 8943900610, 8943900611, 8943900612, 8943900613, 8943919061, 8943919062, 8943919063, 8943956820, E61CAD-S0016B, V*720016, VA720016, VA720041, VB720016, VB720041, VC720016, VC720041, VD720016, VE720016, VIAX, 8943900590, 8943900591, 8943900592, 8943900593, 8943956800, E61CAD-S0017B, V*720017, VA720017, VB720017, VC720017, VD720017, VE720017, VIAY, Q36-543-2, VP11

Data updated: 2023-11-14 13:40:35
