Heat shield IH-05-0022
Heat shield IH-05-0022
Redna cena
€3,78 EUR
Redna cena
Znižana cena
€3,78 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

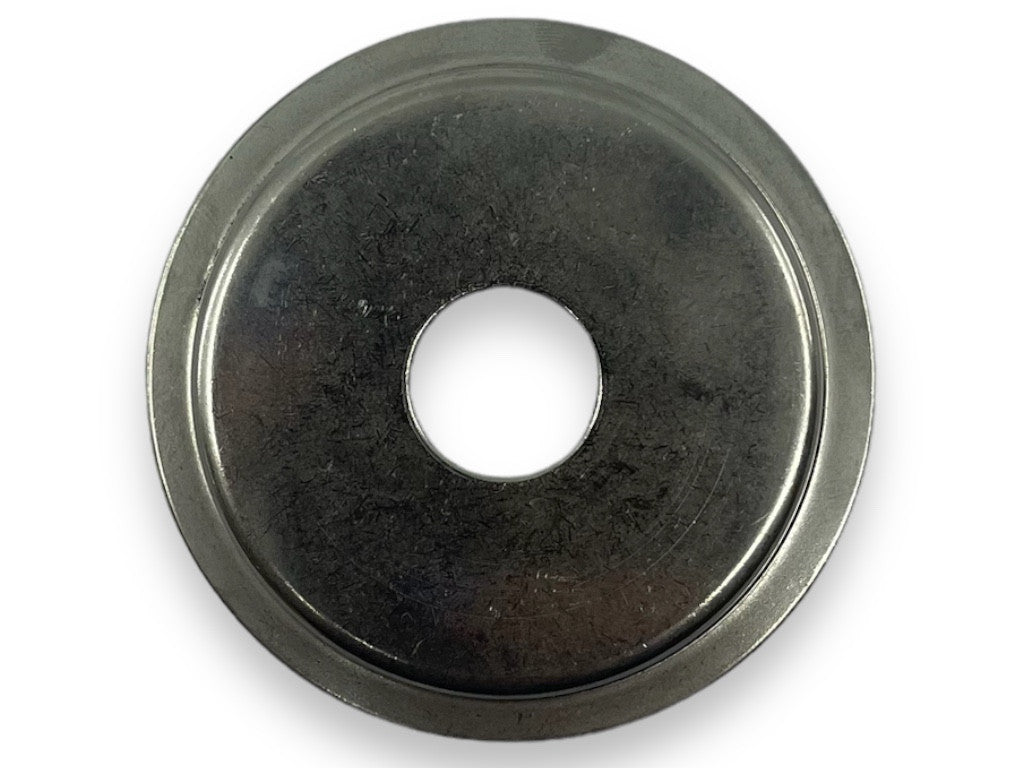

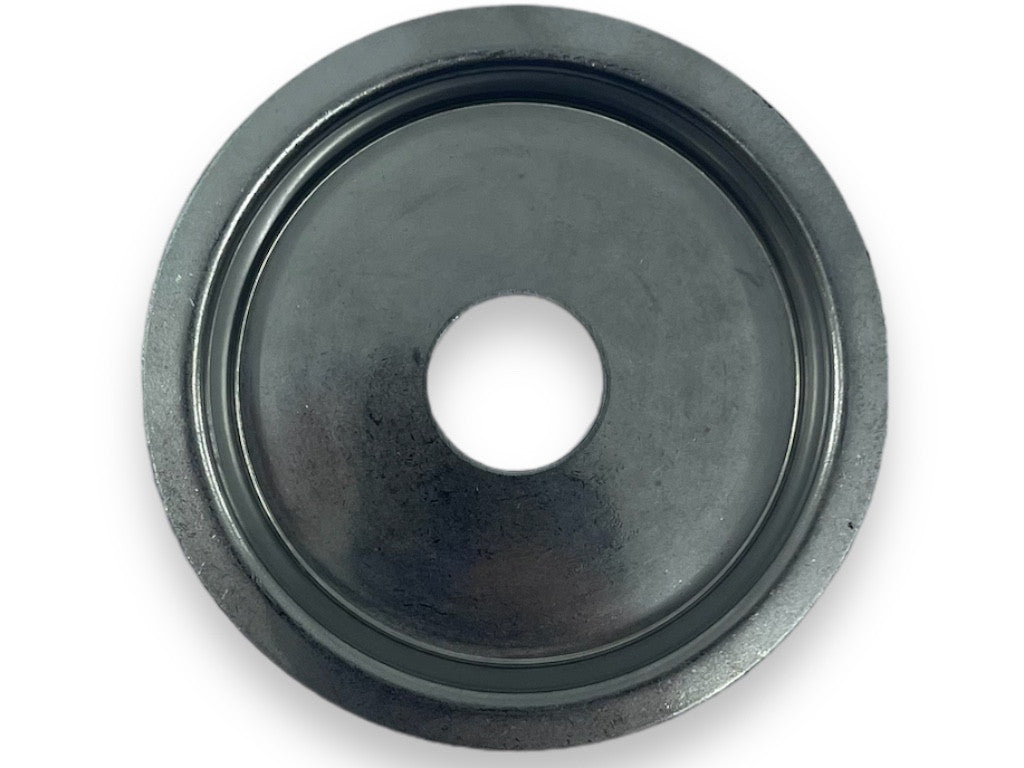

IH-05-0022 - Heat shield
Brand: TurboCentras
TurboCentras Reference: IH-05-0022
IH-05-0022 - Alternative numbers
TCP (TurboCentras part number): IH-05-0022
IH-05-0022 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHC62C-1185CQ23NFBRLL4612B | CI89 | C61CND-S0044B, C61CND-S0044G, CI89, V*240044, VA240044, VB240044 | 1144002720 |
| IHI | RHC62-1183P20NABRLL5213CBZ | CX98 | C61CAD-S0063B, C61CAD-S0063G, CX98, V*240063, VA240063 | 24100-2780A |
| IHI | RHC6 | GM-3 | 10154686, 10183934, 10226226, 125129989, 12515808, 12521577, 12522149, 6T-592, GM-1, GM-2, GM-3 | -- |
| IHI | RHC6 | GM-4 | 10154652, 12369017, 12512988, 12530336, 12530339, 1253034, 12533738, 1253374, 12552738, 12556124, 171077, GM-4 | GM-4, GM-5, GM-8 |
| IHI | RHC6 | GM-6 | 5762 990 0000, 650006, GM-6 | 10241690, 12530339, 125553949, 599TC21002000, GM-7 |
| IHI | RHC61W-118002P20NWBRL504A | MY58 | C61CND-S0076B, MY58, NH160022, V*240076, VA240076, VB240076, VC240076, VD240076 | 119171-18010 |
| IHI | RHC61W-943P18NWBRLL4715CC | MYBC | C61CND-S0083B, MYBC, V*240083, VA240083, VB240083, VC240083, VD240083 | 119195-18020, 119195-18021 |
| IHI | RHC6 | MYDA | MYDA | -- |
| IHI | RHC61W-1063P16NWBRLL4715CC | MYDH | C61CND-S0101B, C61CND-S0101G, MYDH, V*240101, VA240101, VB240101, VC240101, VD240101 | 119173-18040, 119173-18041 |
| IHI | RHC6 | MYDN | MYDN | -- |
| IHI | RHC62W-1183P20NABRLL5211CHBZ | VX53 | C61CAD-S0039B, C61CAD-S0039G, V*240039, VA240039, VB240039, VC240039, VD240039, VE240039, VF240039, VG240039, VH240039, VI240039, VX53 | 24100-2201A, 24100-2201B, 24100-2202A, 24100-2202B, 24100-2202C, 24100-2203A, S1760-E0K80, S241002203 |
| IHI | RHC62W-1183P20NABRLL5211CHBZ | VX54 | VA240040, VB240040, VC240040, VD240040, VE240040, VF240040, VG240040, VH240040, VI240040, VJ240040, VX54 | 24100-2211A, 24100-2211B, 24100-2212A, 24100-2212B, 24100-2212C, 24100-2213A, 24100-2214A, S1760-E0J20 |
| IHI | RHC62W-1183P17NABRLL5211CHBZ | VX55 | C61CAD-S0041B, V*240041, VA240041, VB240041, VC240041, VD240041, VE240041, VF240041, VG240041, VH240041, VI240041, VX55 | 24100-2261A, 24100-2261B, 24100-2262A, 24100-2262B, 24100-2262C, 24100-2263A, S1760-E0J30, S241002263 |
| IHI | RHC62W-1183P17NABRLL5211CHBZ | VX56 | VA240042, VB240042, VC240042, VD240042, VE240042, VF240042, VG240042, VH240042, VI240042, VJ240042, VX56 | 24100-2271A, 24100-2271B, 24100-2272A, 24100-2272B, 24100-2272C, 24100-2273A, 24100-2274A, S1760-E0J40 |
| IHI | RHC62W-1183P17NABRLL5211CHBZ | VX83 | C61CAD-S0056B, V*240056, VA240056, VB240056, VC240056, VD240056, VE240056, VF240056, VG240056, VX83 | 24100-2530A, 24100-2531A, 24100-2531B, 24100-2531C, 24100-2532A, 24100-2533A, S1760-E0J00 |
IH-05-0022 - Part Properties
D1 (OD) (D1 outer diameter mm): 74.50
D2 (ID) (D2 inner diameter mm): 19.30
D3 (s) (D3 metal thickness (s) mm): 1.00
D4 (h) (D4 Height mm): 13.00
D5 (IND) (D5 Inducer area diameter mm): 63.00
IH-05-0022
57629900000, 1144002720, C61CND-S0044B, C61CND-S0044G, CI89, V*240044, VA240044, VB240044, 24100-2780A, C61CAD-S0063B, C61CAD-S0063G, CX98, V*240063, VA240063, 10154686, 10183934, 10226226, 125129989, 12515808, 12521577, 12522149, 6T-592, GM-1, GM-2, GM-3, 10154652, 12369017, 12512988, 12530336, 12530339, 1253034, 12533738, 1253374, 12552738, 12556124, 171077, GM-4, GM-4, GM-5, GM-8, 10241690, 12530339, 125553949, 5762 990 0000, 599TC21002000, 650006, GM-6, GM-7, 119171-18010, C61CND-S0076B, MY58, NH160022, V*240076, VA240076, VB240076, VC240076, VD240076, 119195-18020, 119195-18021, C61CND-S0083B, MYBC, V*240083, VA240083, VB240083, VC240083, VD240083, MYDA, 119173-18040, 119173-18041, C61CND-S0101B, C61CND-S0101G, MYDH, V*240101, VA240101, VB240101, VC240101, VD240101, MYDN, 24100-2201A, 24100-2201B, 24100-2202A, 24100-2202B, 24100-2202C, 24100-2203A, C61CAD-S0039B, C61CAD-S0039G, S1760-E0K80, S241002203, V*240039, VA240039, VB240039, VC240039, VD240039, VE240039, VF240039, VG240039, VH240039, VI240039, VX53, 24100-2211A, 24100-2211B, 24100-2212A, 24100-2212B, 24100-2212C, 24100-2213A, 24100-2214A, S1760-E0J20, VA240040, VB240040, VC240040, VD240040, VE240040, VF240040, VG240040, VH240040, VI240040, VJ240040, VX54, 24100-2261A, 24100-2261B, 24100-2262A, 24100-2262B, 24100-2262C, 24100-2263A, C61CAD-S0041B, S1760-E0J30, S241002263, V*240041, VA240041, VB240041, VC240041, VD240041, VE240041, VF240041, VG240041, VH240041, VI240041, VX55, 24100-2271A, 24100-2271B, 24100-2272A, 24100-2272B, 24100-2272C, 24100-2273A, 24100-2274A, S1760-E0J40, VA240042, VB240042, VC240042, VD240042, VE240042, VF240042, VG240042, VH240042, VI240042, VJ240042, VX56, 24100-2530A, 24100-2531A, 24100-2531B, 24100-2531C, 24100-2532A, 24100-2533A, C61CAD-S0056B, S1760-E0J00, V*240056, VA240056, VB240056, VC240056, VD240056, VE240056, VF240056, VG240056, VX83
