Garrett
Turbo 454205-0001 (R)
Turbo 454205-0001 (R)
Redna cena
€280,00 EUR
Redna cena
Znižana cena
€280,00 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

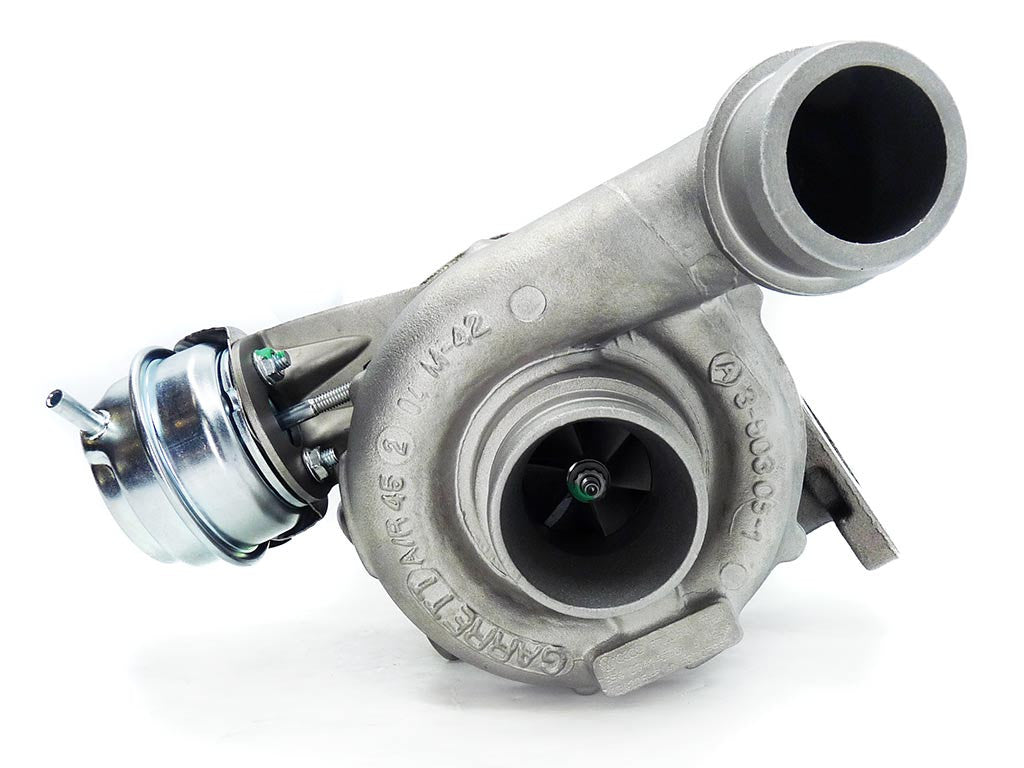

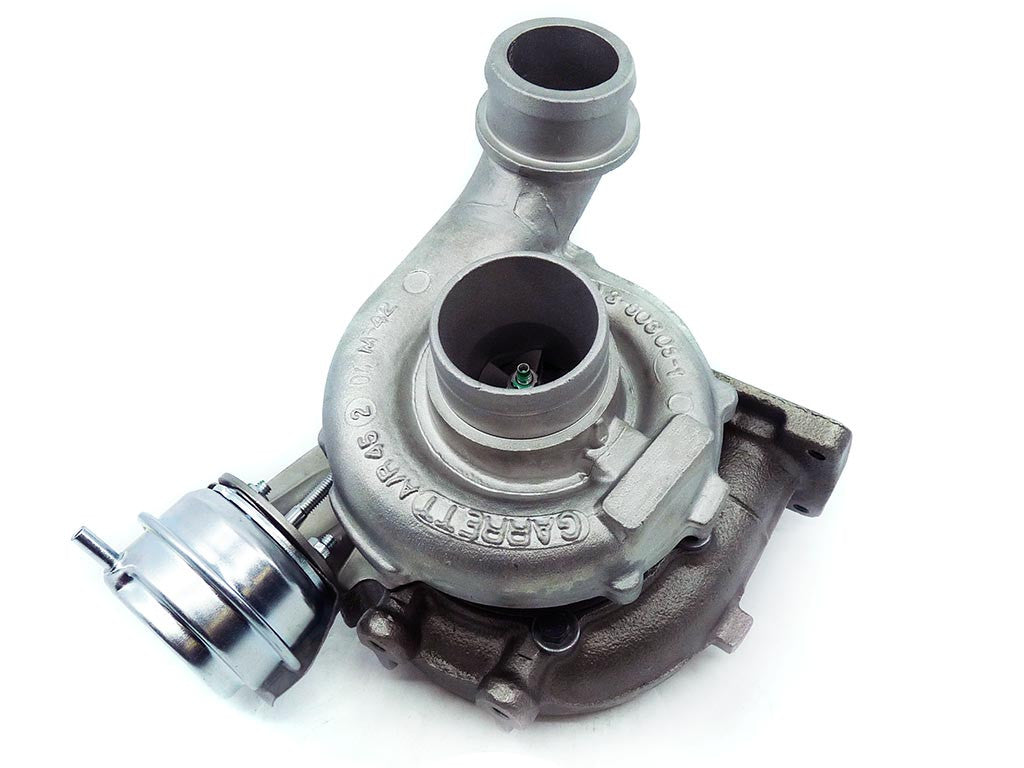

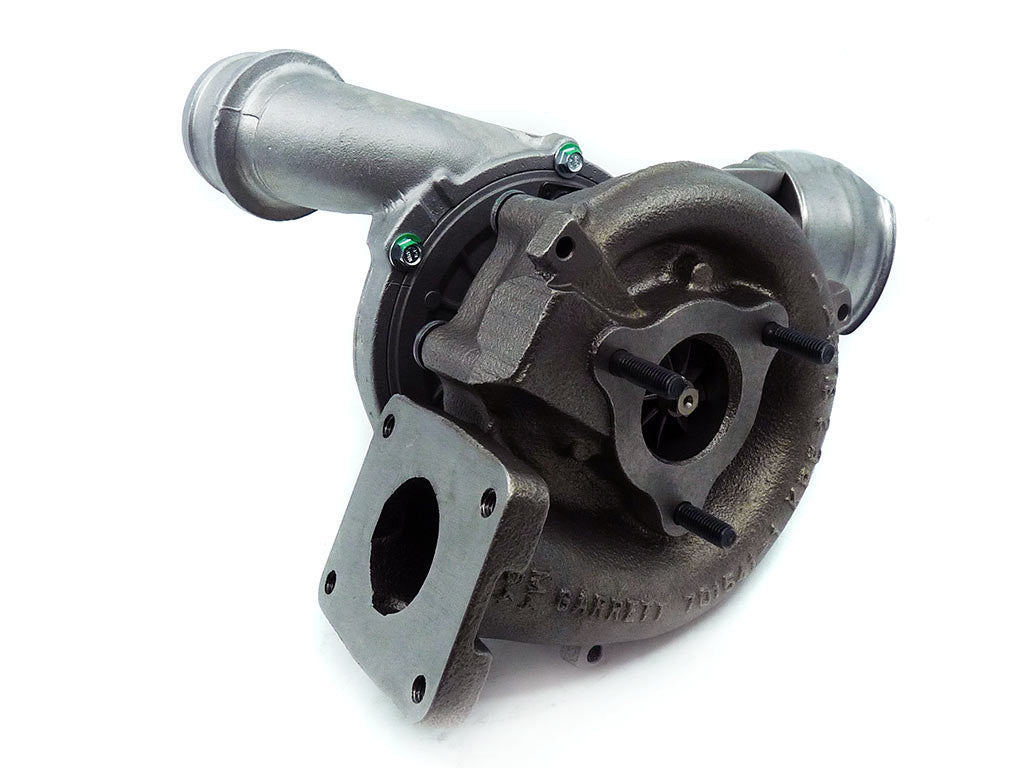

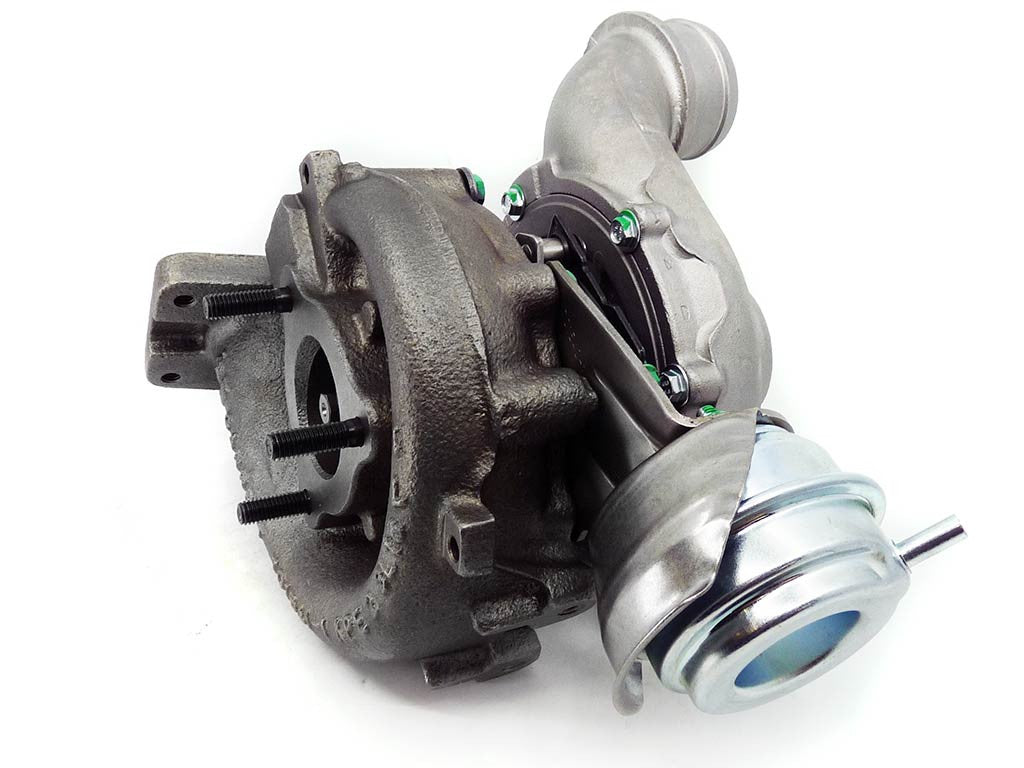

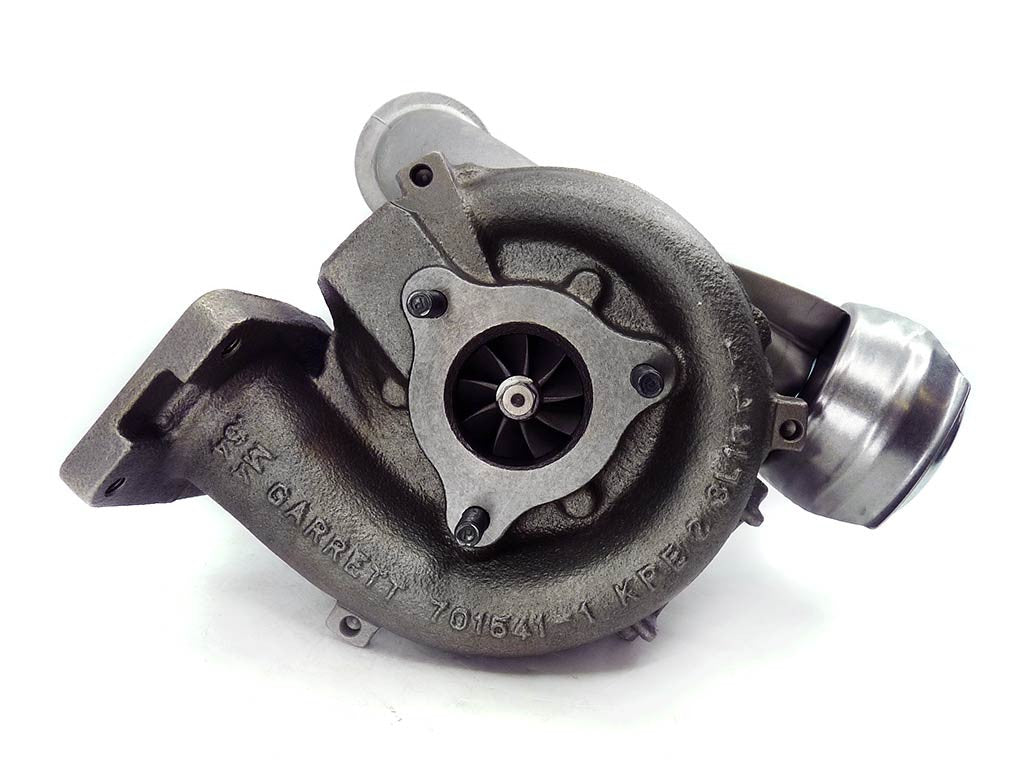

454205-0001 (074145701D) - Turbocharger
Brand: Garrett
Garrett Reference: 454205-0001
OEM Numbers: 074145701D
454205-0001 - Alternative numbers
GHT (Garrett OEM, original turbo number): 454205-0001
GHA (Garrett IAM, aftermarket turbo number): 454205-5001S
454205-0001 - Technologies and actuation
Actuation type: Vacuum (Vacuum actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
454205-0001 - Turbo replacements
Replaced by: Garrett GT2052V 454205-0006
Replaced by: Garrett GT2052V 454205-0007
454205-0001 - Turbo interchangeability
Interchangeable with: Garrett GT2052V 454205-0006
Interchangeable with: Garrett GT2052V 454205-0007
Interchangeable with: BorgWarner GT2052V 57479880004
| Turbo 454205-0001 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0033 | 1 | 436131-0003, 436131-0013, 436131-0017, 436131-0019, 436131-0021, 436322-0003, 436322-0018 | -- |
| TurboCentras | Back plate | GA-08-0018 | 1 | -- | 701335-0006 |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-323 | 1 | -- | 443768-0003 |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-50 | 1 | -- | -- |
| TurboCentras | Cartridge | GT20-241 | 1 | -- | -- |
| TurboCentras | Bearing housing | GT20-320 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GT20-90 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1034 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
074145701D, 454205-0001, 454205-5001S
Data updated: 2023-07-04 11:30:37
