Mitsubishi

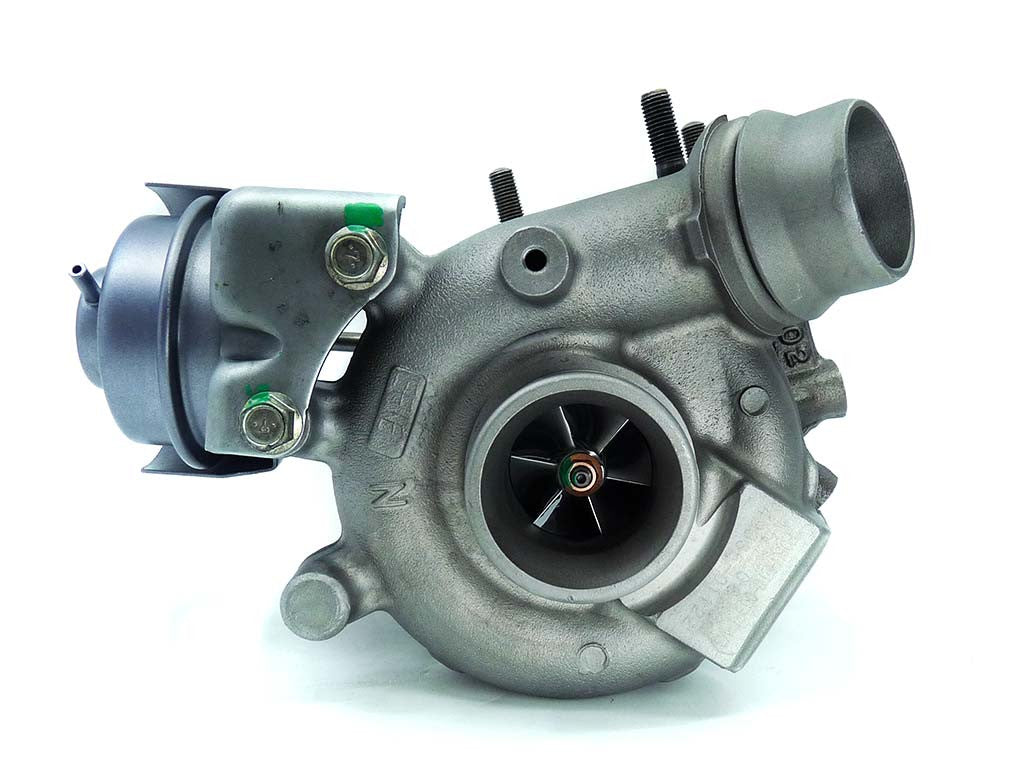

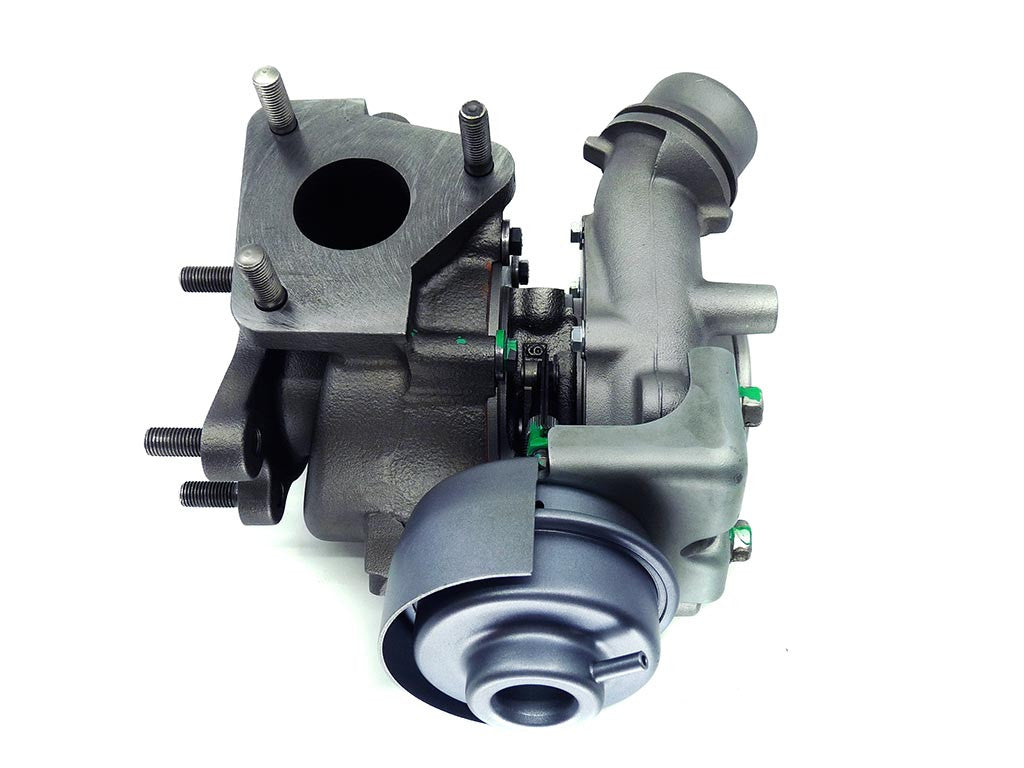

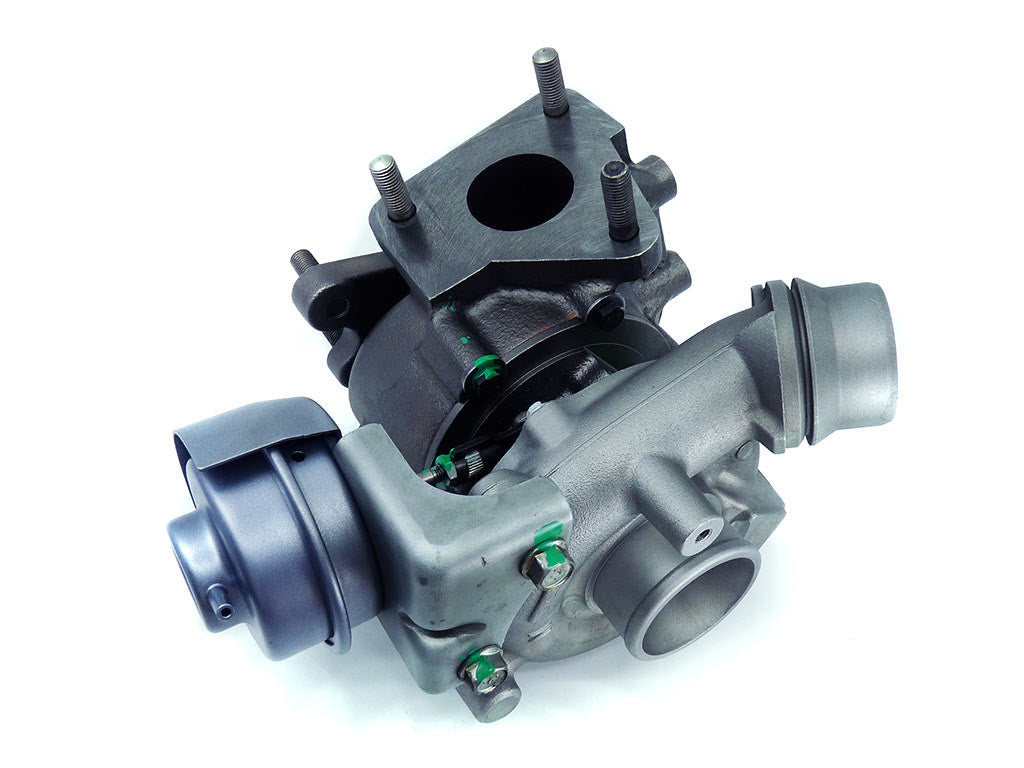

Turbo 49335-01122-R
Turbo 49335-01122-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
49335-01122 (1515A238) - Turbocharger TF035HL10-09GFT-VG
Brand: Mitsubishi
Model: TF035 - TF035HL10-09GFT-VG
Mitsubishi Reference: 49335-01122
OEM Numbers: 1515A238
49335-01122 - Alternative numbers
MHT (Mitsubishi turbo number): 49335-01122
49335-01122 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
49335-01122 - Turbo replacements
Replaced by: Mitsubishi TF035HL10-09GFT-VG 49335-01123, 1515A238
Replaced by: Mitsubishi TF035HL10-09GFT-VG 49335-01124, 1515A238
Replacement for: Mitsubishi TF035HL10-09GFT-VG 49335-01120, 1515A238
Replacement for: Mitsubishi TF035HL10-09GFT-VG 49335-01121, 1515A238
49335-01122 - Turbo interchangeability
Interchangeable with: Mitsubishi TF035HL10-09GFT-VG 49335-01120, 1515A238
Interchangeable with: Mitsubishi TF035HL10-09GFT-VG 49335-01121, 1515A238
Interchangeable with: Mitsubishi TF035HL10-09GFT-VG 49335-01123, 1515A238
Interchangeable with: Mitsubishi TF035HL10-09GFT-VG 49335-01124, 1515A238
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | MITSUBISHI PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Bearing housing | MH-01-0042 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | MH-02-0024 | 1 | -- | -- |
| TurboCentras | Compressor wheel | MH-03-0053 | 1 | -- | -- |
| TurboCentras | Repair kit | MH-04-0013 | 1 | -- | -- |
| TurboCentras | Heat shield | MH-05-0014 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | MH-06-0010 | 1 | -- | -- |
| TurboCentras | Back plate | MH-08-0005 | 1 | 49135-00044, 49135-15405 | -- |
| TurboCentras | Shaft nut | MH-21-0002 | 1 | -- | -- |
| TurboCentras | VNT centering ring | MH-27-0002 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Thrust bearing | TD04-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | TD04-131 | 1 | -- | -- |
| TurboCentras | Thrust Collar | TD04-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | TD04-144 | 2 | -- | -- |
| TurboCentras | Retaining ring | TD04-145 | 1 | -- | -- |
| TurboCentras | Oil deflector | TD04-146 | 1 | -- | -- |
| TurboCentras | Piston ring | TD04-170 | 1 | -- | -- |
| TurboCentras | Journal bearing | TF035-100 | 2 | -- | -- |
| EE Turbo | Cartridge | TF035-VG9B | 1 | -- | -- |
1515A238, 49335-01122
Data updated: 2025-10-23 15:32:39
