IHI
Turbo 03F145701G-R
Turbo 03F145701G-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

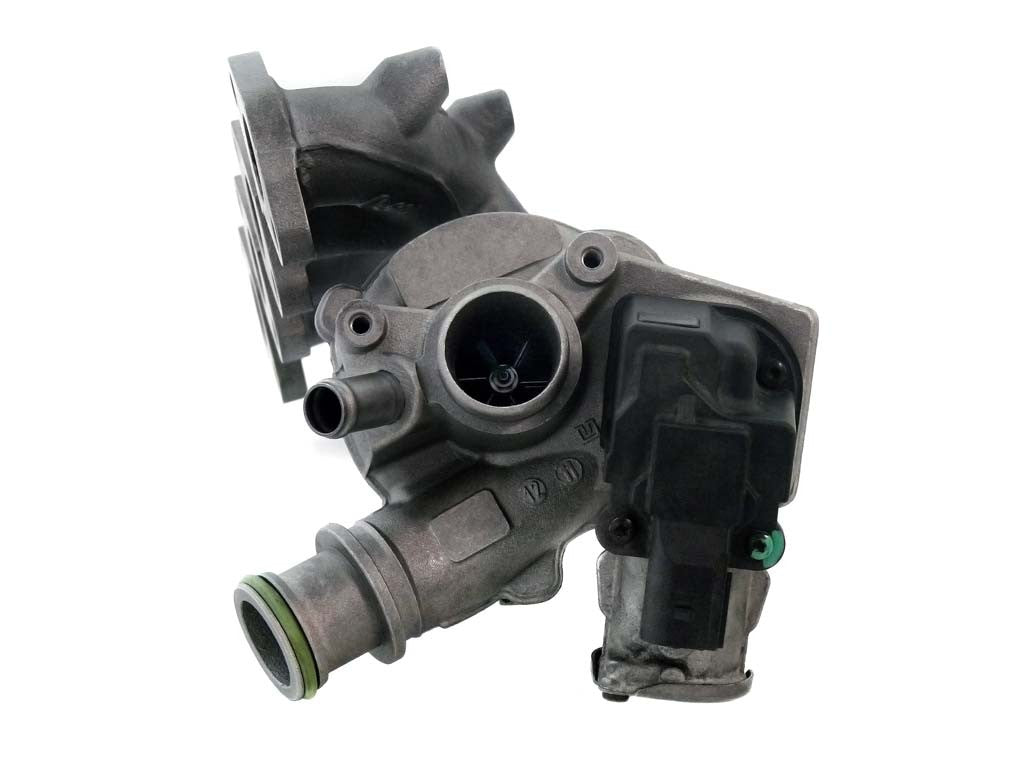

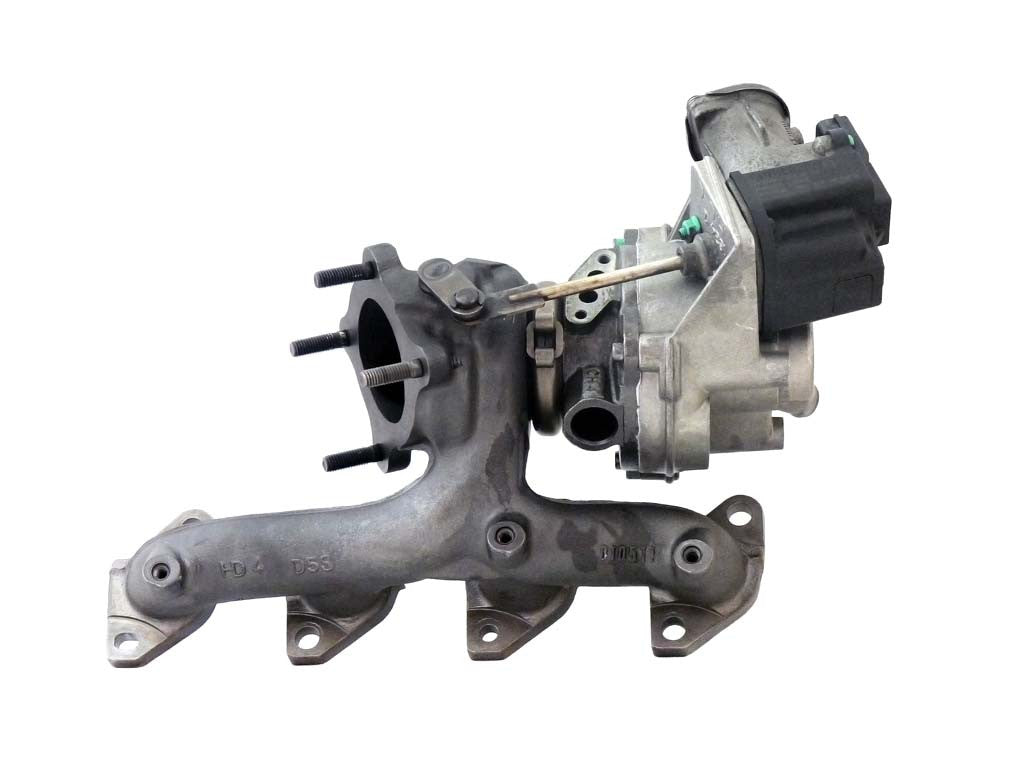

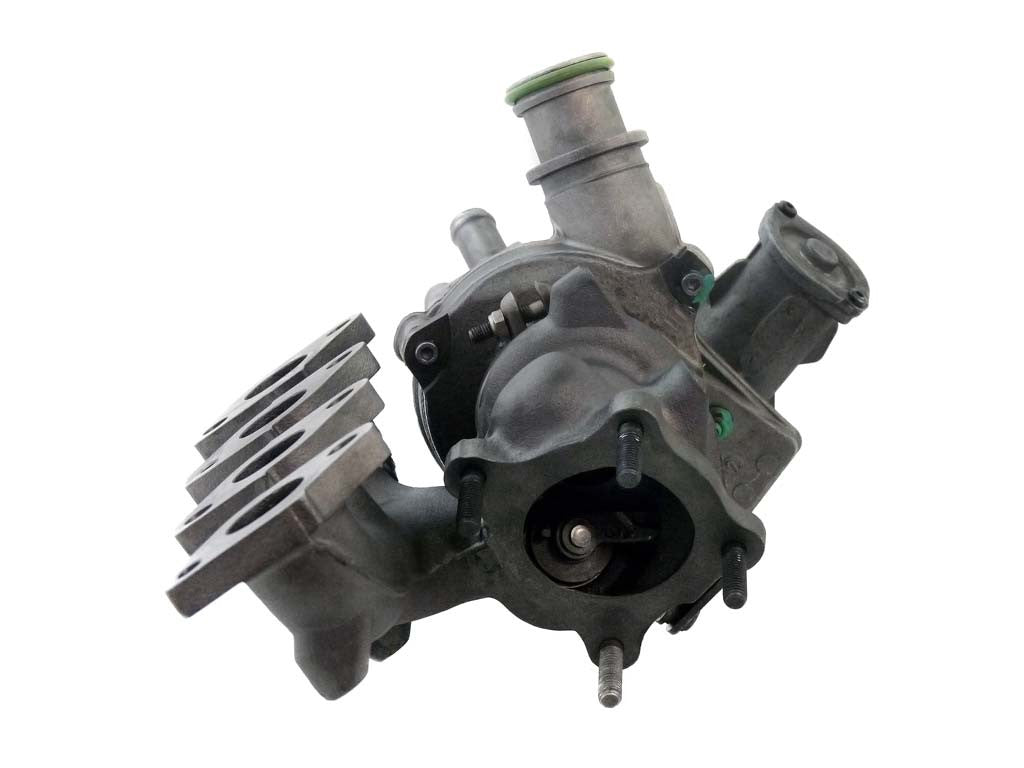

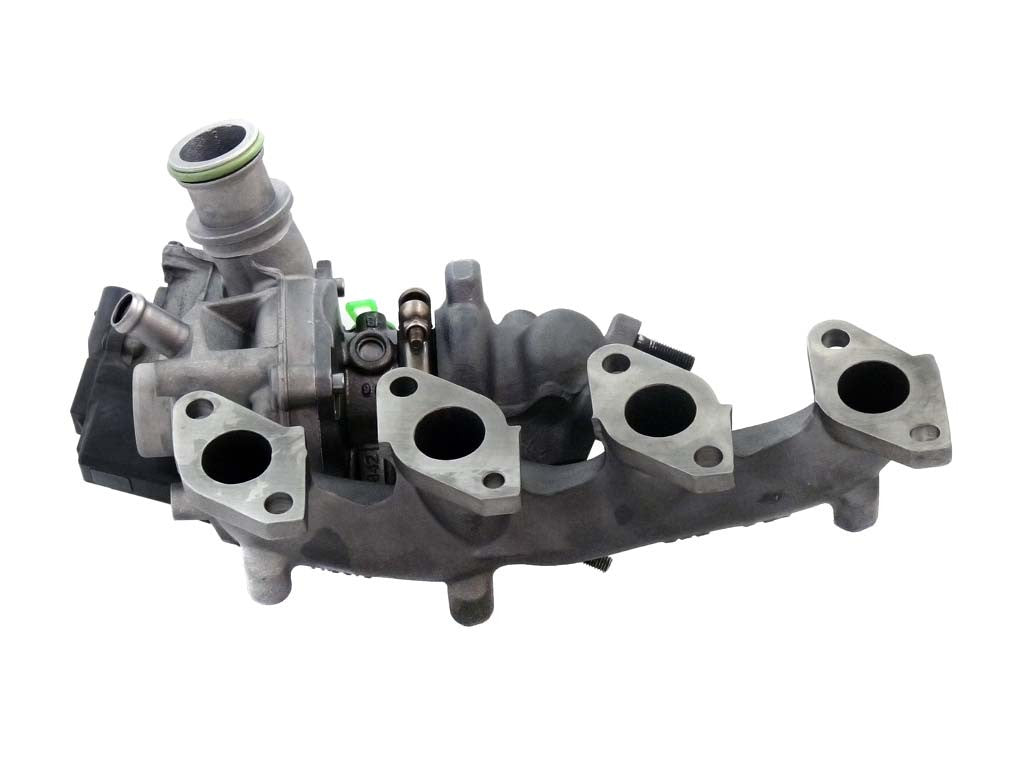

03F145701G-R (03F145701G) - Turbocharger RHF3
Brand: IHI
Model: RHF3 - RHF3
IHI Reference: 03F145701G-R
OEM Numbers: 03F145701G
03F145701G-R - Alternative numbers
IHT (IHI turbo number): 9V204
03F145701G-R - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: WGT (Wastegate Turbocharger), IMF (Integrated Manifold Turbocharger), WCT (Water cooled turbocharger)
03F145701G-R - Turbo interchangeability
Interchangeable with: IHI RHF3 03F145701C, 9V204
Interchangeable with: IHI RHF3 03F145701D, 9V204
Interchangeable with: IHI RHF3 03F145701E, 9V204
Interchangeable with: IHI RHF3 03F145701G, 9V204
Interchangeable with: IHI RHF3 03F145701M, 9V204
Interchangeable with: IHI RHF3 03F145701T, 9V204
Interchangeable with: IHI RHF3 9V204, 03F145701C, 03F145701D, 03F145701E, 03F145701G, 03F145701M, 03F145701T, F31CEG-SR006B
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | IHI PART NUMBER |
|---|---|---|---|---|---|
| Mahle | Actuator | AK-9V203/04 | 1 | 03F145725G | AK-9V203/04 |
| TurboCentras | Cartridge | IH-00-0001 | 1 | -- | -- |
| TurboCentras | Bearing housing | IH-01-0004 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | IH-02-0008 | 1 | -- | -- |
| TurboCentras | Compressor wheel | IH-03-0006 | 1 | -- | -- |
| TurboCentras | Repair kit | IH-04-0016 | 1 | -- | -- |
| TurboCentras | Heat shield | IH-05-0001 | 1 | -- | -- |
| TurboCentras | Back plate | IH-08-0003 | 1 | -- | -- |
| TurboCentras | Turbine housing | IH-09-0003 | 1 | -- | -- |
| TurboCentras | Actuator | IH-10-0011 | 1 | 03F145725G | AK-9V203/04 |
| TurboCentras | Compressor housing | IH-11-0001 | 1 | -- | -- |
| TurboCentras | Wastegate valve | IH-49-0005 | 1 | -- | -- |
03F145701G, 9V204
Data updated: 2024-10-01 17:24:01
