Garrett

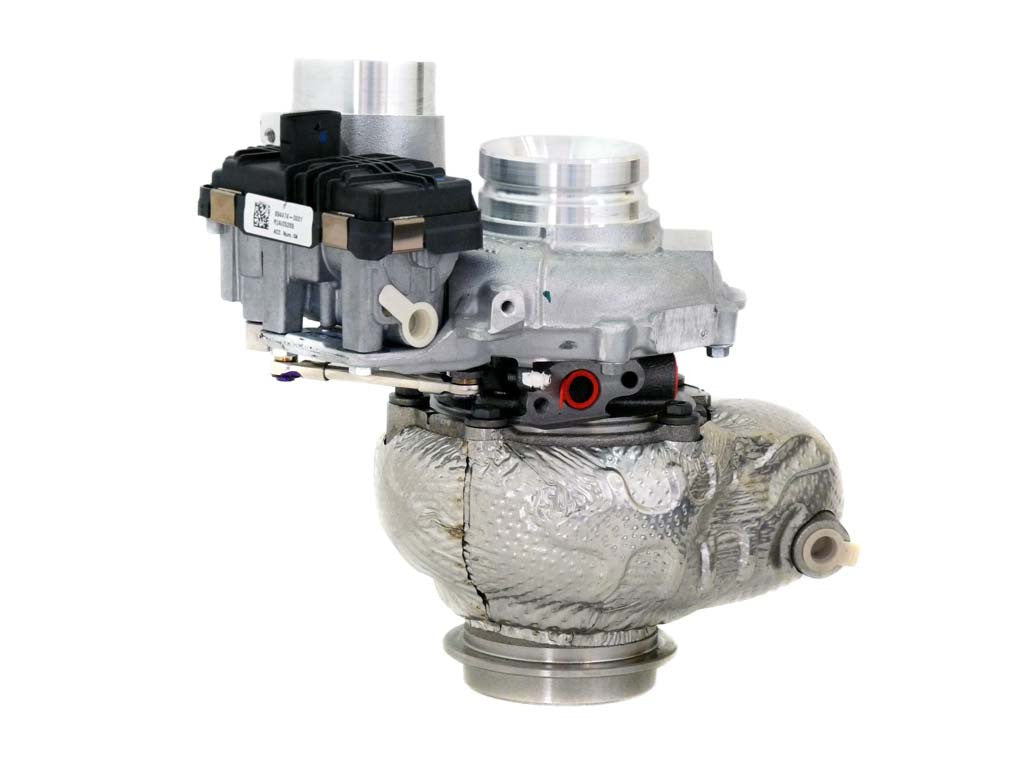

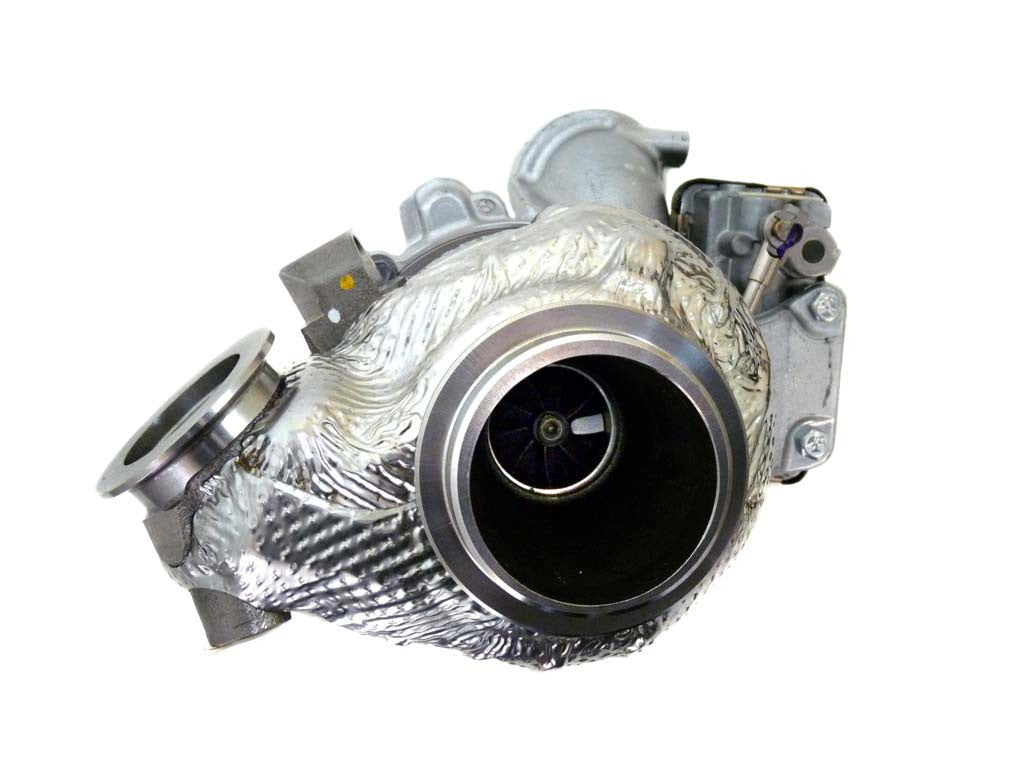

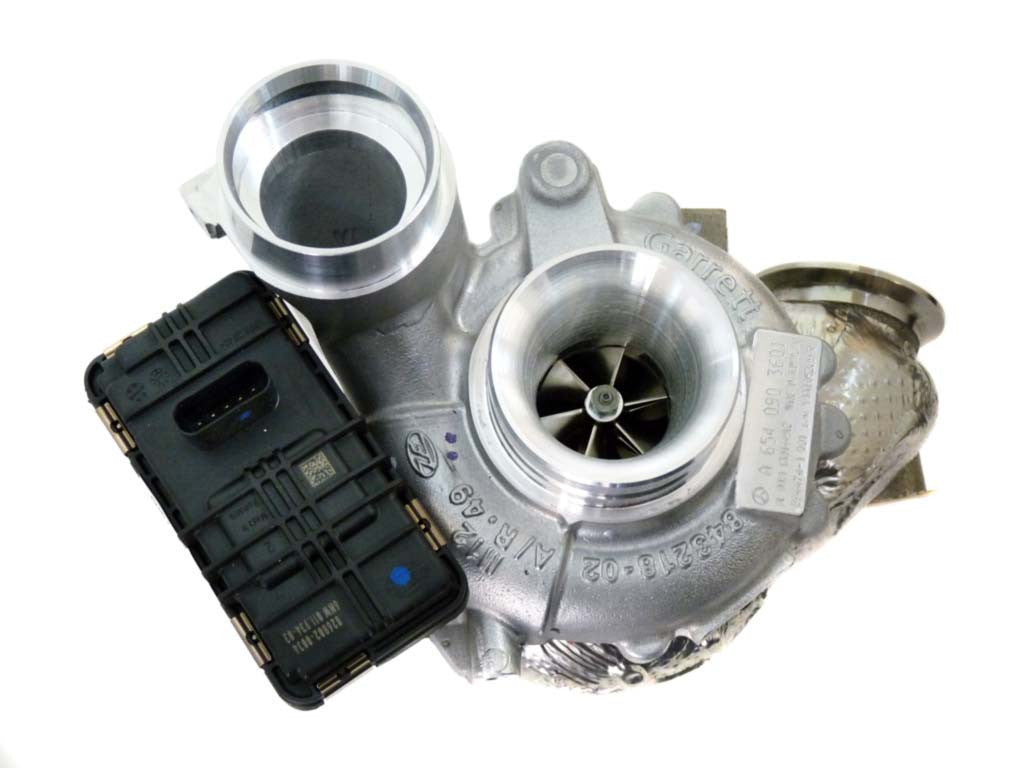

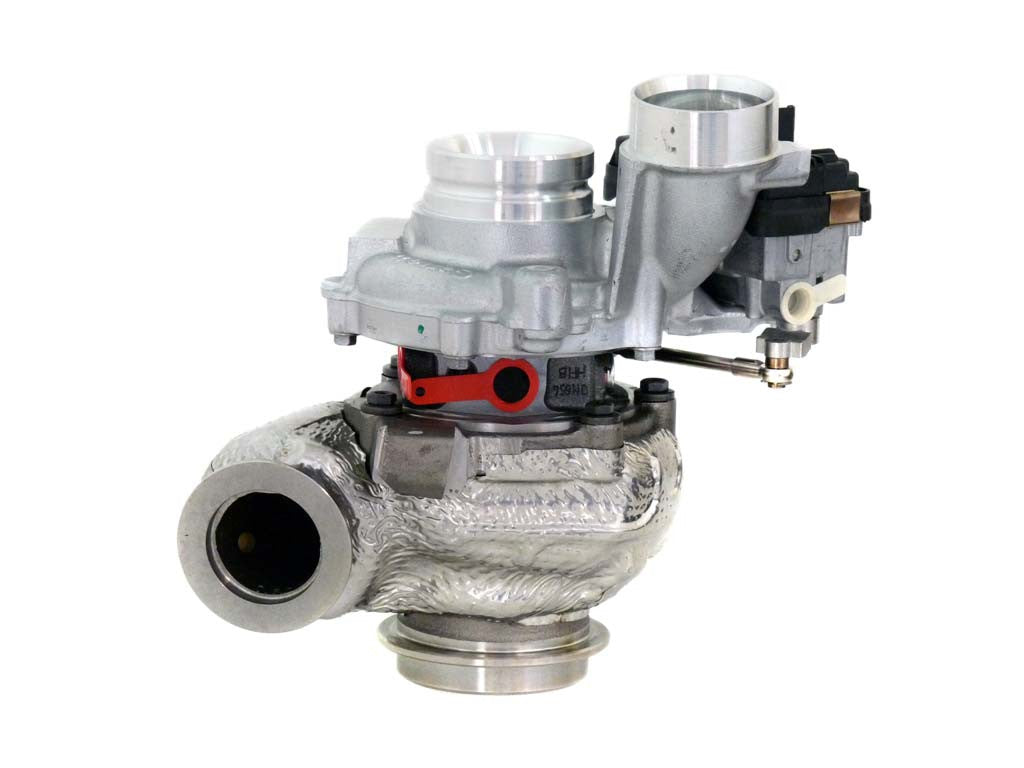

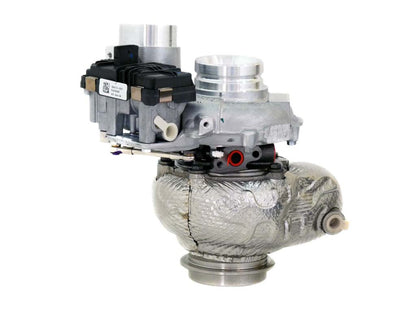

Turbo 894474-0001
Turbo 894474-0001
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
894474-0001 (A 654 090 3601, A6540903601) - Turbocharger GTD1449VZ
Brand: Garrett
Model: GT14 - GTD1449VZ
Garrett Reference: 894474-0001
OEM Numbers: A 654 090 3601, A6540903601
894474-0001 - Alternative numbers
GHT (Garrett turbo number): 894474-0001
GHT (Garrett turbo number): 894474-5001S
894474-0001 - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
894474-0001 - Turbo replacements
Replacement for: Garrett GTD1449VZ 831120-0006, 831120-5006S, A6540900800
Replacement for: Garrett GTD1449VK 831120-0007, 831120-5007S, A6540902400
Replacement for: Garrett GTD1449VK 831120-0008, 831120-5008S, A6540904500
Replacement for: Garrett GTD1449VK 831120-0010, 831120-5010S, A6540904500, A6540907300
Replacement for: Garrett GTD1449KVZ 882740-0001, 882740-1, 882740-5001S, A6540902001
Replacement for: Garrett GTD1449VK 887526-0001, 887526-5001S, A6540901901
894474-0001 - Turbo interchangeability
Interchangeable with: Garrett GTD1449VZ 831120-0006, 831120-5006S, A6540900800
Interchangeable with: Garrett GTD1449VK 831120-0007, 831120-5007S, A6540902400
Interchangeable with: Garrett GTD1449VK 831120-0008, 831120-5008S, A6540904500
Interchangeable with: Garrett GTD1449VK 831120-0010, 831120-5010S, A6540904500, A6540907300
Interchangeable with: Garrett GTD1449KVZ 882740-0001, 882740-1, 882740-5001S, A6540902001
Interchangeable with: Garrett GTD1449VK 887526-0001, 887526-5001S, A6540901901
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | GA-00-0255 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0175 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0156 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0027 | 1 | -- | -- |
| TurboCentras | Repair kit | GA-04-0005 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0028 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0075 | 1 | 831157-0003, 831157-0002 | -- |
| TurboCentras | VNT centering ring | GA-27-0001 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GA-50-0010 | 1 | -- | -- |
| EE Turbo | Cartridge | GT14-065B | 1 | -- | -- |
A6540903601, 894474-0001, 894474-5001S, A 654 090 3601, A6540903601
Data updated: 2025-09-04 16:13:28
