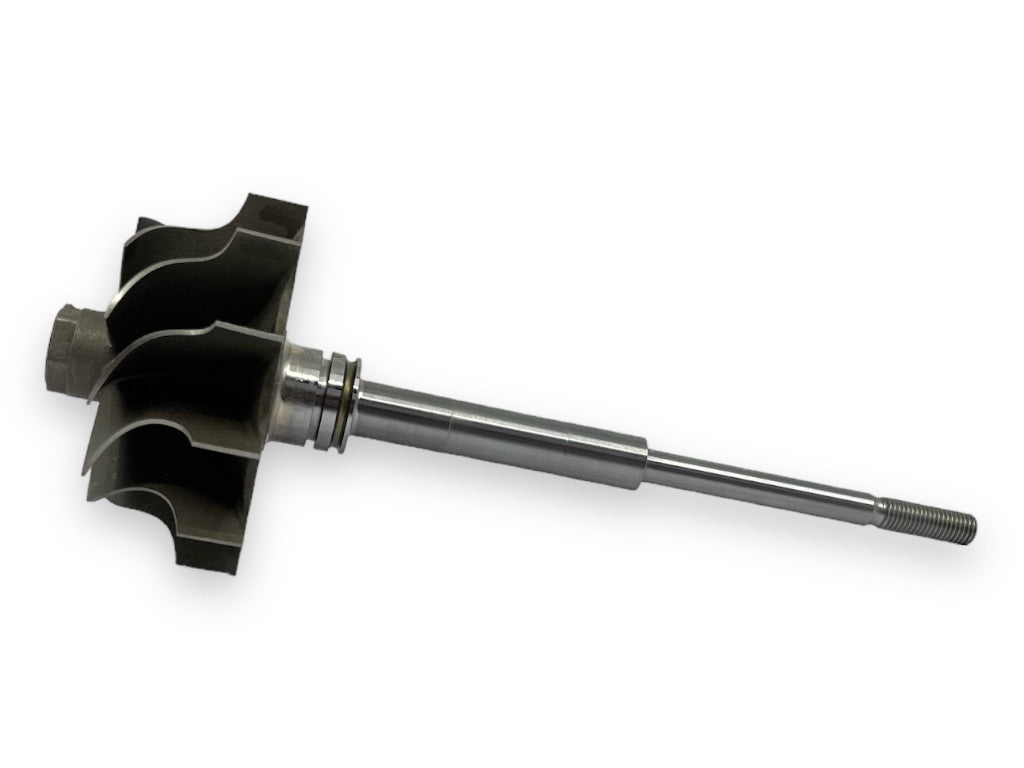

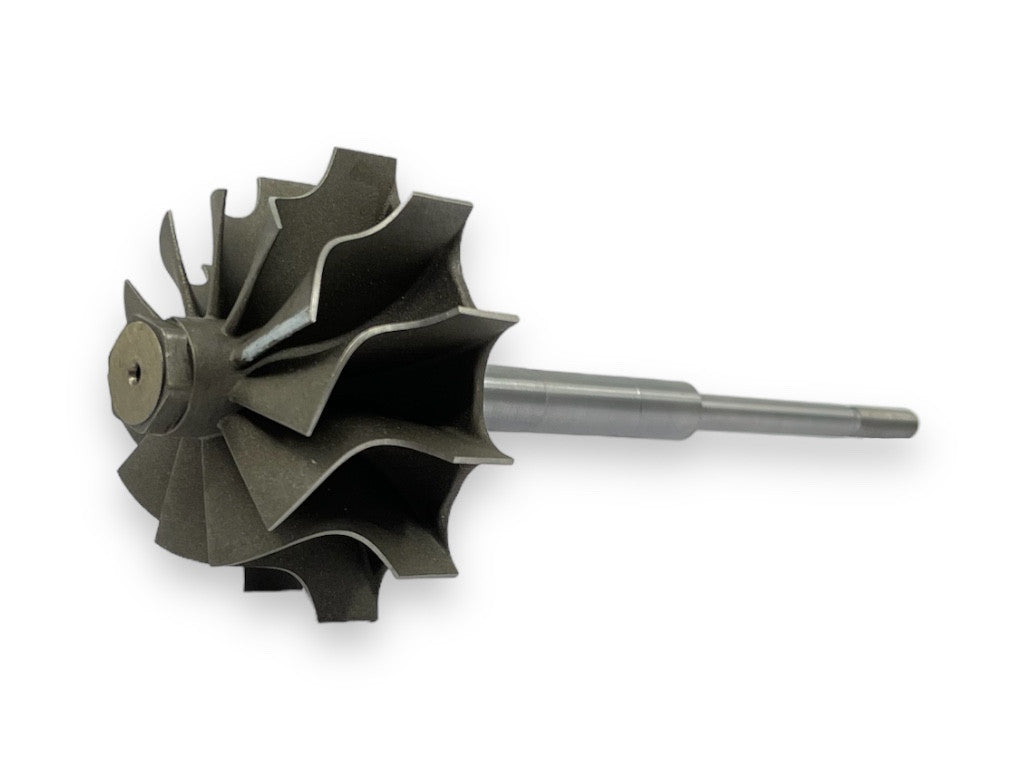

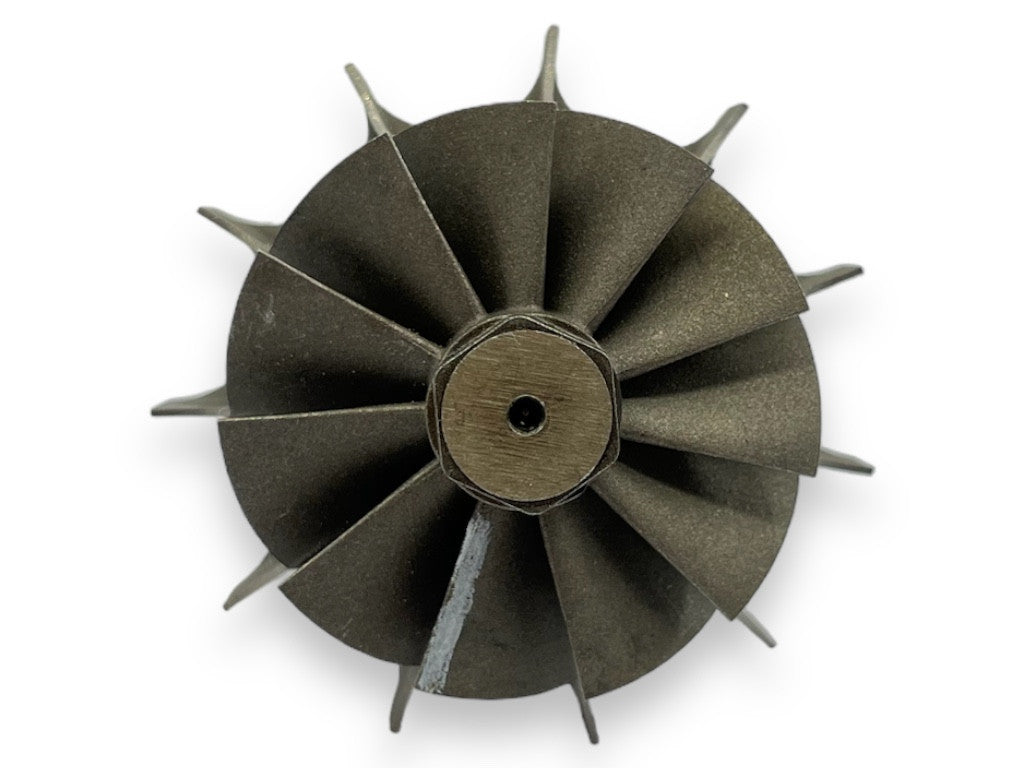

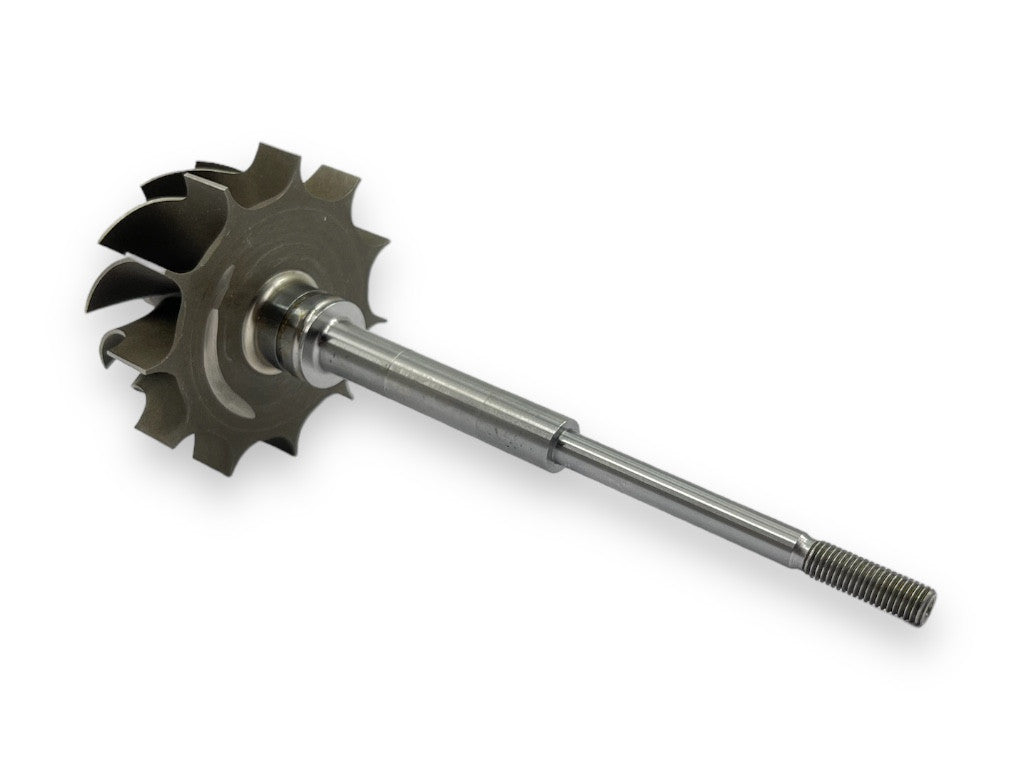

Shaft and wheel GA-02-0141
Shaft and wheel GA-02-0141
Redna cena
€48,16 EUR
Redna cena
Znižana cena
€48,16 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
GA-02-0141 (409392-0022, 409392-0027, 409392-0029, 443861-0007, 446494-0001, 451310-0003, 451310-0004, 451310-0013) - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: GA-02-0141
OEM Numbers: 409392-0022, 409392-0027, 409392-0029, 443861-0007, 446494-0001, 451310-0003, 451310-0004, 451310-0013
GA-02-0141 - Alternative numbers
TCP (TurboCentras part number): GA-02-0141
TCO (TurboCentras old part number): T3-36
GA-02-0141 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Garrett | TA3131 | 452012-0001 | 452012-0001 | -- |
| Garrett | TA3131 | 452012-0003 | 452012-0003 | -- |
| Garrett | TA3131 | 452012-0004 | 452012-0004 | -- |
| Garrett | TA3133 | 454114-0001 | 454114-0001 | -- |
| Garrett | TA3133 | 454114-0002 | 454114-0002 | -- |
| Garrett | TA3136 | 454177-0001 | 454177-0001, 454177-5001S | 99458969 |
| Garrett | TA0301 | 465228-0003 | 465228-0003 | A6170900380 |
| Garrett | TA0302 | 465318-0003 | 465318-0003, 465318-5003S | 37509, 8350206880 |
| Garrett | TA0302 | 465318-0004 | 465318-0004 | -- |
| Garrett | TA0302 | 465318-0007 | 465318-0007 | 4810558 |
| Garrett | TA0302 | 465318-0008 | 465318-0008, 465318-5008S | -- |
| Garrett | TA0302 | 465318-0010 | 465318-0010 | 4846414 |
| Garrett | TA3101 | 465354-0004 | 465354-0004 | 4008871 |
| Garrett | TA3101 | 465354-0005 | 465354-0005 | -- |
| Garrett | TA3101 | 465354-0014 | 465354-0014 | -- |
| Garrett | TA0318 | 465379-0001 | 465379-0001 | 4848601 |
| Garrett | TA0318 | 465379-0002 | 465379-0002 | -- |
| Garrett | TA0318 | 465379-0003 | 465379-0003, 465379-5003S | 4848601 |
| Garrett | TA0318 | 465379-0004 | 465379-0004 | 98412430 |
| Garrett | TA3130 | 465493-0001 | 465493-0001 | 9018534 |
| Garrett | TA3130 | 465493-0002 | 465493-0002, 465493-5002S | 1361324 |
| Garrett | TA3130 | 465493-0003 | 465493-0003, 465493-5003S | 0.007.0921.4, 70921.4 |
| Garrett | TB0305 | 465518-0001 | 465518-0001 | -- |
| Garrett | TB0305 | 465518-0002 | 465518-0002 | 10017945 |
| Garrett | TB3102 | 465606-0001 | 465606-0001 | -- |
| Garrett | TB3102 | 465606-0002 | 465606-0002 | -- |
| Garrett | TA0303 | 465632-0002 | 465632-0002 | -- |
| Garrett | TA0303 | 465632-0003 | 465632-0003 | -- |
| Garrett | TA0303 | 465632-0005 | 465632-0005, 465632-5005S | -- |
| Garrett | TA0303 | 465632-0006 | 465632-0006 | 98424853 |
| Garrett | TA0303 | 465632-0007 | 465632-0007, 465632-5007S | 98444659 |
| Garrett | TA3103 | 465636-0114 | 465636-0114 | -- |
| Garrett | TA3103 | 465636-0117 | 465636-0117 | -- |
| Garrett | TA3103 | 465636-0204 | 465636-0204, 465636-5204S | 6207818120 |
| Garrett | TA3103 | 465636-0205 | 465636-0205, 465636-5205S | -- |
| Garrett | TA3103 | 465636-0206 | 465636-0206, 465636-5206S | 6205818110 |
| Garrett | TA3103 | 465636-0209 | 465636-0209 | 6205-81-8120 |
| Garrett | TA3103 | 465636-0210 | 465636-0210 | 6207-81-8120 |
| Garrett | TA3103 | 465636-0212 | 465636-0212 | 6207-81-8230 |
| Garrett | TA3103 | 465636-0214 | 465636-0214 | 6207-81-8240 |
| Garrett | TA3103 | 465636-0215 | 465636-0215 | -- |
| Garrett | TA3103 | 465636-0216 | 465636-0216, 465636-5216S | 6205828100 |
| Garrett | TA3103 | 465636-0217 | 465636-0217, 465636-5217S | 6207818240 |
| Garrett | TA3104 | 465698-0001 | 465698-0001 | -- |
| Garrett | TA3104 | 465698-0002 | 465698-0002 | -- |
| Garrett | TA3104 | 465698-0003 | 465698-0003 | -- |
| Garrett | TA3104 | 465698-0004 | 465698-0004 | -- |
| Garrett | TA3104 | 465698-0005 | 465698-0005 | 403095324 |
| Garrett | TA3108 | 465752-0001 | 465752-0001 | -- |
| Garrett | TA3108 | 465752-0002 | 465752-0002, 465752-5002S | -- |
| Garrett | TA3126 | 465753-0001 | 465753-0001 | -- |
| Garrett | TA0305 | 465764-0001 | 465764-0001 | 7.700.705.349 |
| Garrett | TA0305 | 465764-0002 | 465764-0002, 465764-5002S | 7700709838 |
| Garrett | TA0305 | 465764-0003 | 465764-0003 | 7.700.717.714 |
| Garrett | TA3106 | 465776-0006 | 465776-0006 | -- |
| Garrett | TA3106 | 465776-0009 | 465776-0009 | 4881547 |
| Garrett | TA3107 | 465778-0002 | 465778-0002 | 2674371 |
| Garrett | TA3107 | 465778-0003 | 465778-0003 | 2674372 |
| Garrett | TA3107 | 465778-0006 | 465778-0006 | 2674383 |
| Garrett | TA3107 | 465778-0010 | 465778-0010 | 3228752R92 |
| Garrett | TA3107 | 465778-0016 | 465778-0016, 465778-5016S | -- |
| Garrett | TA3107 | 465778-0017 | 465778-0017, 465778-5017S | -- |
| Garrett | TA3107 | 465778-0019 | 465778-0019 | -- |
| Garrett | TA3107 | 465778-0020 | 465778-0020 | -- |
| Garrett | TA3129 | 465803-0001 | 465803-0001 | -- |
| Garrett | TA3132 | 465809-0001 | 465809-0001 | -- |
| Garrett | TA3110 | 465852-0001 | 465852-0001 | -- |
| Garrett | TA3112 | 465896-0001 | 465896-0001 | 2236776KZ |
| Garrett | TA3112 | 465896-0002 | 465896-0002, 465896-5002S | 2238544KZ015043 |
| Garrett | TA3112 | 465896-0003 | 465896-0003 | -- |
| Garrett | TA3113 | 465936-0001 | 465936-0001, 465936-5001S | 1544117011 |
| Garrett | TA3113 | 465936-0002 | 465936-0002 | 14201-90000 |
| Garrett | TA3113 | 465936-0003 | 465936-0003 | -- |
| Garrett | TA03 | 466088-0001 | 466088-0001, 466088-5001S | 75145703 |
| Garrett | TA03 | 466088-0002 | 466088-0002 | -- |
| Garrett | TA0309 | 466184-0001 | 466184-0001 | 113107 |
| Garrett | TB3402 | 466185-0001 | 466185-0001 | -- |
| Garrett | TB3402 | 466185-0003 | 466185-0003 | -- |
| Garrett | TB3402 | 466185-0004 | 466185-0004 | -- |
| Garrett | TB3402 | 466185-0005 | 466185-0005, 466185-5005S | 24100-2451E |
| Garrett | TA3164 | 466192-0013 | 466192-0013, 466192-5013S | 3640962299, 374 096 01 99 KZ |
| Garrett | TB3104 | 466198-0001 | 466198-0001 | 403095323 |
| Garrett | TA0308 | 466232-0001 | 466232-0001 | 5000136930 |
| Garrett | TA0310 | 466246-0001 | 466246-0001 | 20963799 |
| Garrett | TA3117 | 466346-0001 | 466346-0001 | -- |
| Garrett | TA0314 | 466424-0001 | 466424-0001 | A0020964399 |
| Garrett | TA3123 | 466674-0001 | 466674-0001, 466674-5001S | -- |
| Garrett | TA3123 | 466674-0002 | 466674-0002 | -- |
| Garrett | TA3123 | 466674-0003 | 466674-0003, 466674-5003S | -- |
| Garrett | TA31 | 466674-0005 | 466674-0005, 466674-5005S | -- |
| Garrett | TA3123 | 466674-0007 | 466674-0007, 466674-5007S | 2674A147 |
| Garrett | TA3118 | 466698-0001 | 466698-0001 | 4817756 |
| Garrett | TA3118 | 466698-0002 | 466698-0002 | -- |
| Garrett | TA3118 | 466698-0003 | 466698-0003 | -- |
| Garrett | TA3118 | 466698-0004 | 466698-0004, 466698-5004S | 4817756 |
| Garrett | TA3118 | 466698-0005 | 466698-0005 | 4814851 |
| Garrett | TA3118 | 466698-0006 | 466698-0006 | 4828239 |
| Garrett | TA3118 | 466698-0007 | 466698-0007 | 98472953 |
| Garrett | TA3118 | 466698-0008 | 466698-0008 | -- |
| Garrett | TA3119 | 466746-0001 | 466746-0001 | -- |
| Garrett | TA0315 | 466746-0002 | 466746-0002 | -- |
| Garrett | TA3119 | 466746-0003 | 466746-0003 | 82853070 |
| Garrett | TA3119 | 466746-0004 | 466746-0004, 466746-5004S | 83959435 |
| Garrett | TA3119 | 466746-0005 | 466746-0005 | E6NN6K682BA |
| Garrett | TA0315 | 466746-0006 | 466746-0006 | -- |
| Garrett | TA3119 | 466746-0009 | 466746-0009 | -- |
| Garrett | TB0349 | 466794-0001 | 466794-0001, 466794-5001S | 1328579 |
| Garrett | TB0349 | 466794-0002 | 466794-0002 | 1328579 |
| Garrett | TA0316 | 466868-0001 | 466868-0001 | 4831083 |
| Garrett | TA0316 | 466868-0002 | 466868-0002 | 4820098 |
| Garrett | TB0364 | 466972-0001 | 466972-0001 | -- |
| Garrett | TB3404 | 471182-0001 | 471182-0001 | A3960408 |
| Garrett | TB3404 | 471182-0005 | 471182-0005 | -- |
| Garrett | TB3404 | 471182-0007 | 471182-0007 | A3960404 |
| Garrett | TB3404 | 471182-0008 | 471182-0008 | -- |
| Garrett | TB3404 | 471182-0010 | 471182-0010 | -- |
| Garrett | TB3405 | 700793-0001 | 700793-0001 | A3960407 |
| Garrett | TB3405 | 700793-0002 | 700793-0002 | 3802290 |
| Garrett | TBP444 | 702646-0004 | 702646-0004, 702646-5004S | A3960503 |
| Garrett | TA3103 | 709784-0001 | 709784-0001, 709784-5001S | 65.09100-7044 |
| Garrett | TB3108 | 717360-0005 | 717360-0005, 717360-5005S | G02001118020B135 |
GA-02-0141 - Part Properties
Blades (Shaft & Wheel blades count): 11
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 65.00
A1 (Size A1): 65.00
B (Size B): 49.20
C (Size C): 10.40
D (Size D): 10.16
E (Size E): 6.35
H (Size H): 27.00
L (Size L): 134.00
T (Size T): 1/4X28UNF-LH
409392-0022, 409392-0027, 409392-0029, 443861-0007, 446494-0001, 451310-0003, 451310-0004, 451310-0013, GA-02-0141, T3-36
3740960199KZ, 452012-0001, 452012-0003, 452012-0004, 454114-0001, 454114-0002, 454177-0001, 454177-5001S, 99458969, 465228-0003, A6170900380, 37509, 465318-0003, 465318-5003S, 8350206880, 465318-0004, 465318-0007, 4810558, 465318-0008, 465318-5008S, 465318-0010, 4846414, 4008871, 465354-0004, 465354-0005, 465354-0014, 465379-0001, 4848601, 465379-0002, 465379-0003, 465379-5003S, 4848601, 465379-0004, 98412430, 465493-0001, 9018534, 1361324, 465493-0002, 465493-5002S, 0.007.0921.4, 465493-0003, 465493-5003S, 70921.4, 465518-0001, 10017945, 465518-0002, 465606-0001, 465606-0002, 465632-0002, 465632-0003, 465632-0005, 465632-5005S, 465632-0006, 98424853, 465632-0007, 465632-5007S, 98444659, 465636-0114, 465636-0117, 465636-0204, 465636-5204S, 6207818120, 465636-0205, 465636-5205S, 465636-0206, 465636-5206S, 6205818110, 465636-0209, 6205-81-8120, 465636-0210, 6207-81-8120, 465636-0212, 6207-81-8230, 465636-0214, 6207-81-8240, 465636-0215, 465636-0216, 465636-5216S, 6205828100, 465636-0217, 465636-5217S, 6207818240, 465698-0001, 465698-0002, 465698-0003, 465698-0004, 403095324, 465698-0005, 465752-0001, 465752-0002, 465752-5002S, 465753-0001, 465764-0001, 7.700.705.349, 465764-0002, 465764-5002S, 7700709838, 465764-0003, 7.700.717.714, 465776-0006, 465776-0009, 4881547, 2674371, 465778-0002, 2674372, 465778-0003, 2674383, 465778-0006, 3228752R92, 465778-0010, 465778-0016, 465778-5016S, 465778-0017, 465778-5017S, 465778-0019, 465778-0020, 465803-0001, 465809-0001, 465852-0001, 2236776KZ, 465896-0001, 2238544KZ015043, 465896-0002, 465896-5002S, 465896-0003, 1544117011, 465936-0001, 465936-5001S, 14201-90000, 465936-0002, 465936-0003, 466088-0001, 466088-5001S, 75145703, 466088-0002, 113107, 466184-0001, 466185-0001, 466185-0003, 466185-0004, 24100-2451E, 466185-0005, 466185-5005S, 3640962299, 374 096 01 99 KZ, 466192-0013, 466192-5013S, 403095323, 466198-0001, 466232-0001, 5000136930, 20963799, 466246-0001, 466346-0001, 466424-0001, A0020964399, 466674-0001, 466674-5001S, 466674-0002, 466674-0003, 466674-5003S, 466674-0005, 466674-5005S, 2674A147, 466674-0007, 466674-5007S, 466698-0001, 4817756, 466698-0002, 466698-0003, 466698-0004, 466698-5004S, 4817756, 466698-0005, 4814851, 466698-0006, 4828239, 466698-0007, 98472953, 466698-0008, 466746-0001, 466746-0002, 466746-0003, 82853070, 466746-0004, 466746-5004S, 83959435, 466746-0005, E6NN6K682BA, 466746-0006, 466746-0009, 1328579, 466794-0001, 466794-5001S, 1328579, 466794-0002, 466868-0001, 4831083, 466868-0002, 4820098, 466972-0001, 471182-0001, A3960408, 471182-0005, 471182-0007, A3960404, 471182-0008, 471182-0010, 700793-0001, A3960407, 3802290, 700793-0002, 702646-0004, 702646-5004S, A3960503, 65.09100-7044, 709784-0001, 709784-5001S, 717360-0005, 717360-5005S, G02001118020B135
Data updated: 2025-02-12 11:38:08
