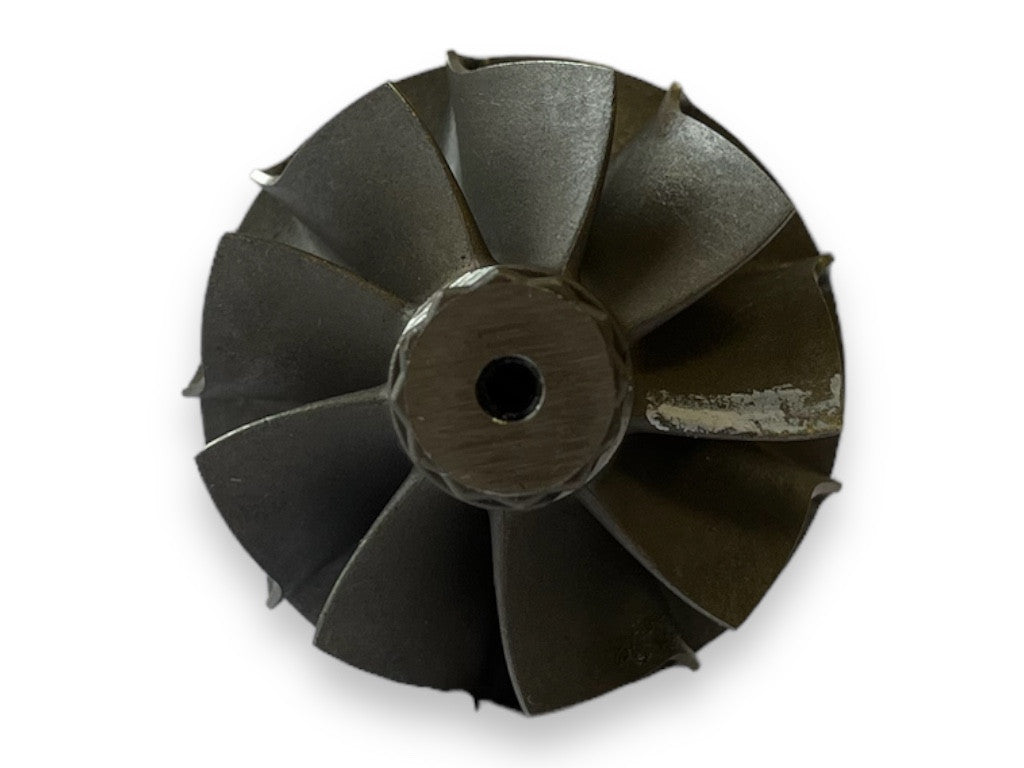

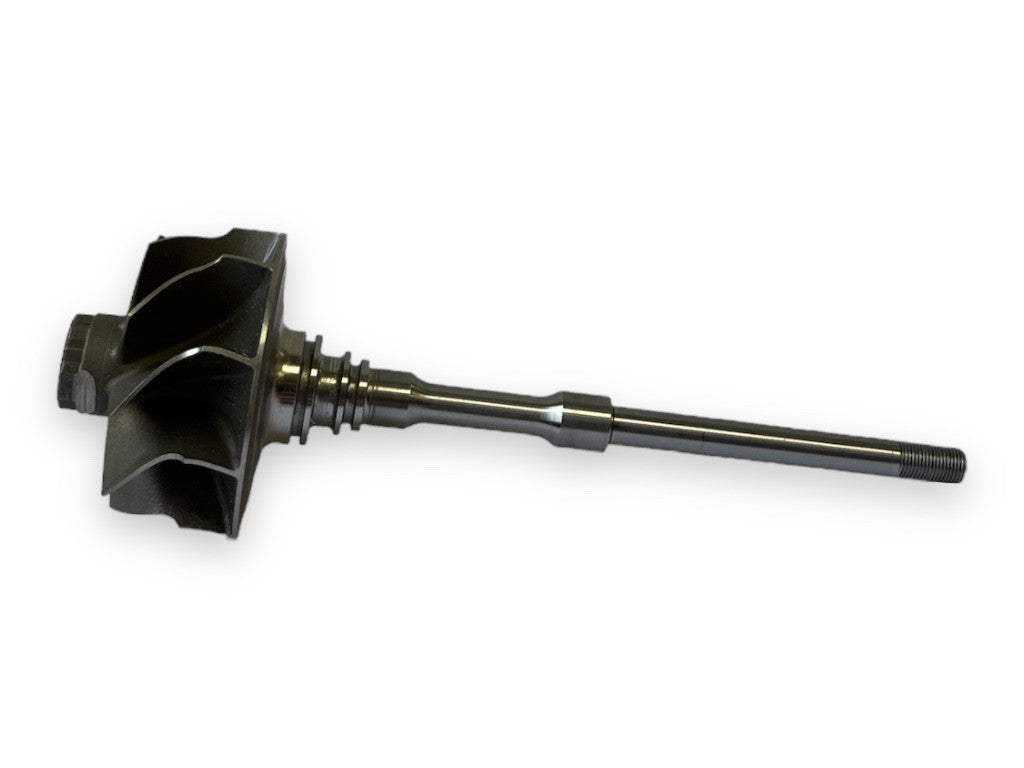

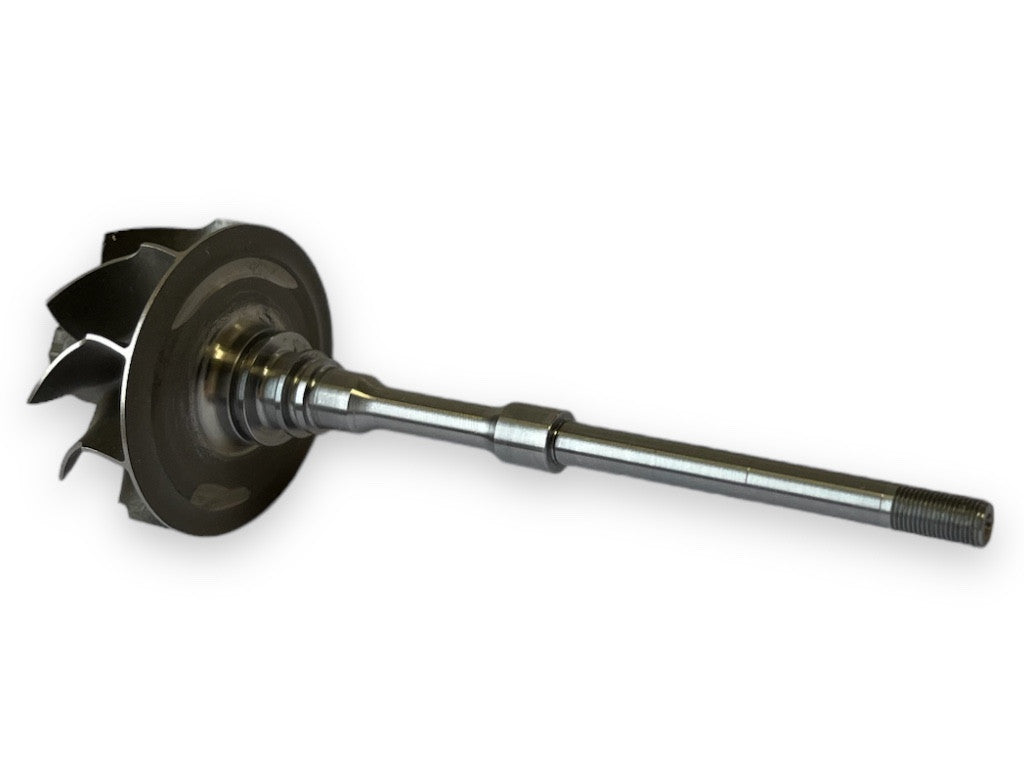

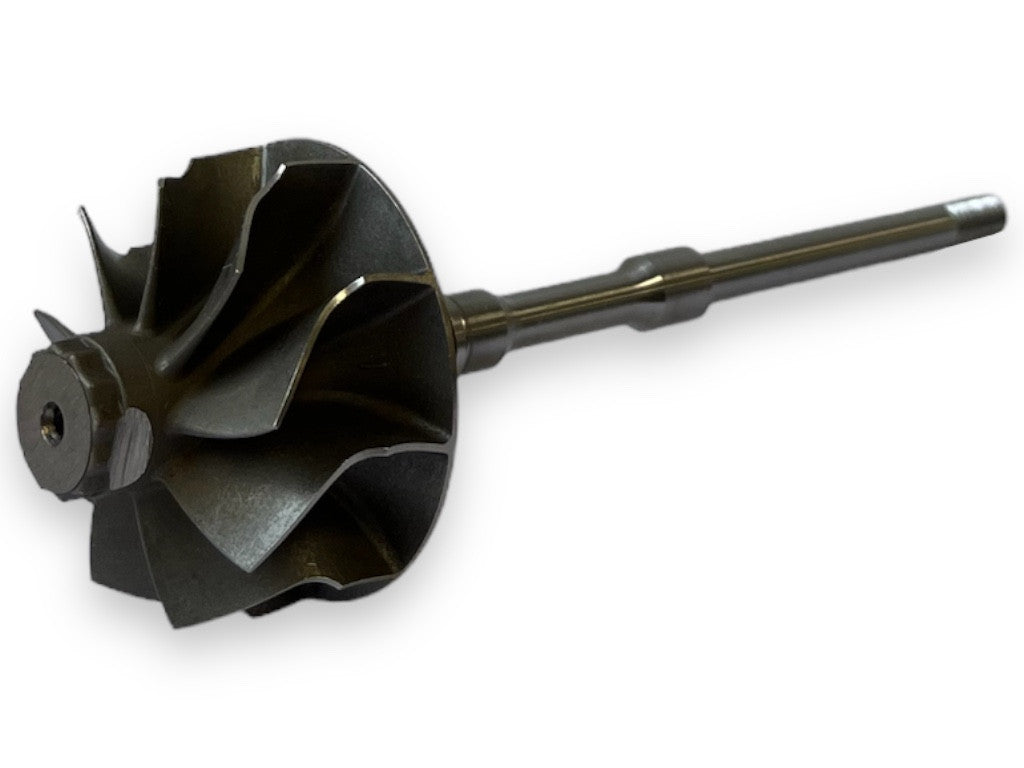

Shaft and wheel IH-02-0042
Shaft and wheel IH-02-0042
Redna cena
€23,78 EUR
Redna cena
Znižana cena
€23,78 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
IH-02-0042 - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: IH-02-0042
IH-02-0042 - Alternative numbers
TCP (TurboCentras part number): IH-02-0042
TCO (TurboCentras old part number): RHV4-36
IH-02-0042 - Part Properties
Blades (Shaft & Wheel blades count): 9
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Slender
Back (Shaft & Wheel back type): Full
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 38.95
A1 (Size A1): 38.95
B (Size B): 35.50
C (Size C): 7.38
D (Size D): 7.40
E (Size E): 5.10
H (Size H): 20.00
L (Size L): 95.00
T (Size T): M.5.0X0.5LH
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| IHI | RHV4-T39 | 851237906 | -- |
| IHI | RHV4-T39 | 851312202 | -- |
| IHI | RHV4-T39 | 851820401 | -- |
| IHI | RHV4-T39 | 9VB03 | 11658573107, 8573107, 8573107-03, 8573107.03 |
| IHI | RHV4-T39 | 9VB03 | 11658573108, 8573108, 8573108-03, 8573108.03 |
| IHI | RHV4-T39 | 9B021, V41VEG-SR068 | 11653465487, 1165346548704, 11653465488, 1165346548804, 17201-YV020, 3465487, 3465487 04, 3465487.04, 346548704, 3465488, 3465488.04, 346548804, RHV4-T39 |
| IHI | RHV4 | 9V102, AL-0058, V41VEY-SR025B | -- |
| IHI | RHV4-T39 | 9VB01, V41VEG-SR022B | 11657812321, 1165781232102, 1165781232103, 11658506722, 11658513122, 1165851312202, 11658513123, 11658513124, 11658518204, 1165851820401, 1165851820402, 11658518205, 1165851820502, 7812321, 7812321.03, 781232102, 781232103, 8506722, 8513122, 8513123, 8513124, 8518204, 8518204.02, 851820402, 8518205, 8518205.02, 851820502 |
| IHI | RHV4-T39 | 9VB02, V41VEG-SR066B | 11658512379, 1165851237902, 1165851237903, 1165851237907, 11658512454, 8512379.02, 8512379.03, 8512379.04, 8512379.05, 8512379.07, 851237902, 851237903, 851237907, 8512454 |
| IHI | RHV4 | 9V102, AL-0058 | A6510900886 |
| IHI | RHV4 | 9V102, AL-0058 | A6510900886 |
| IHI | RHV4 | 9V102, AL-0058 | A6510901780 |
| IHI | RHV4 | 9V102, AL-0058 | A6510903400 |
IH-02-0042 - Used in turbocharges
346548704, 851237906, 851312202, 851820401, 11658573107, 8573107, 8573107-03, 8573107.03, 9VB03, 11658573108, 8573108, 8573108-03, 8573108.03, 11653465487, 1165346548704, 11653465488, 1165346548804, 17201-YV020, 3465487, 3465487 04, 3465487.04, 3465488, 3465488.04, 346548804, 9B021, RHV4-T39, V41VEG-SR068, 9V102, AL-0058, V41VEY-SR025B, 11657812321, 1165781232102, 1165781232103, 11658506722, 11658513122, 1165851312202, 11658513123, 11658513124, 11658518204, 1165851820401, 1165851820402, 11658518205, 1165851820502, 7812321, 7812321.03, 781232102, 781232103, 8506722, 8513122, 8513123, 8513124, 8518204, 8518204.02, 851820402, 8518205, 8518205.02, 851820502, 9VB01, V41VEG-SR022B, 11658512379, 1165851237902, 1165851237903, 1165851237907, 11658512454, 8512379.02, 8512379.03, 8512379.04, 8512379.05, 8512379.07, 851237902, 851237903, 851237907, 8512454, 9VB02, V41VEG-SR066B, A6510900886, A6510901780, A6510903400Data updated: 2025-09-05 10:54:05
