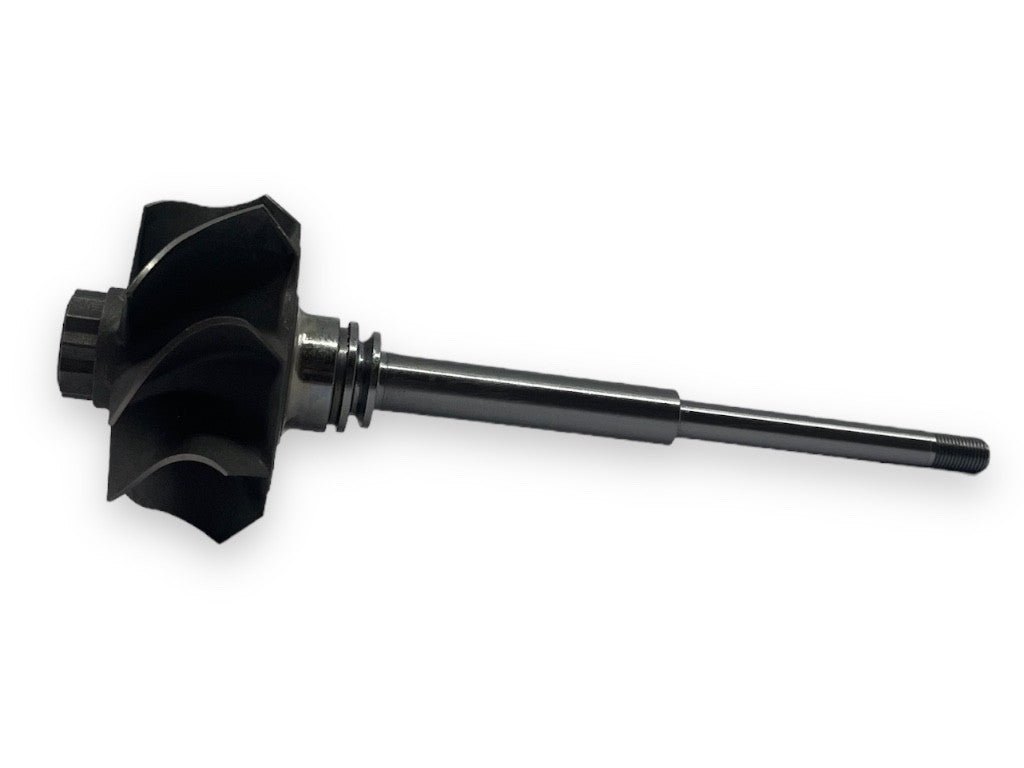

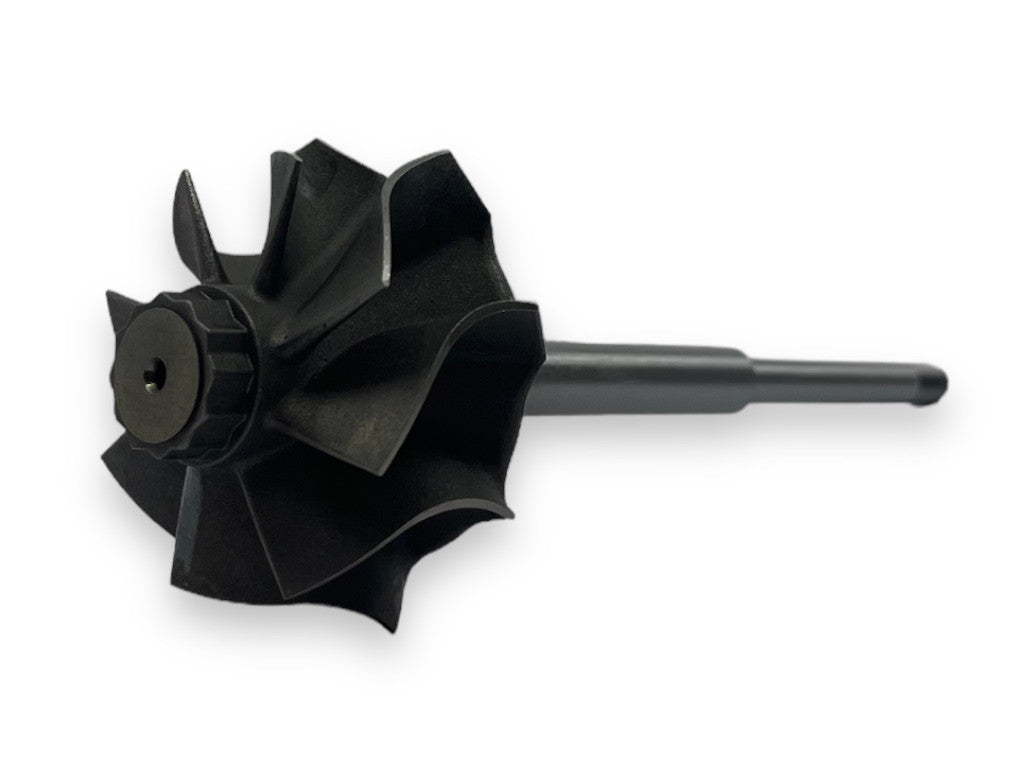

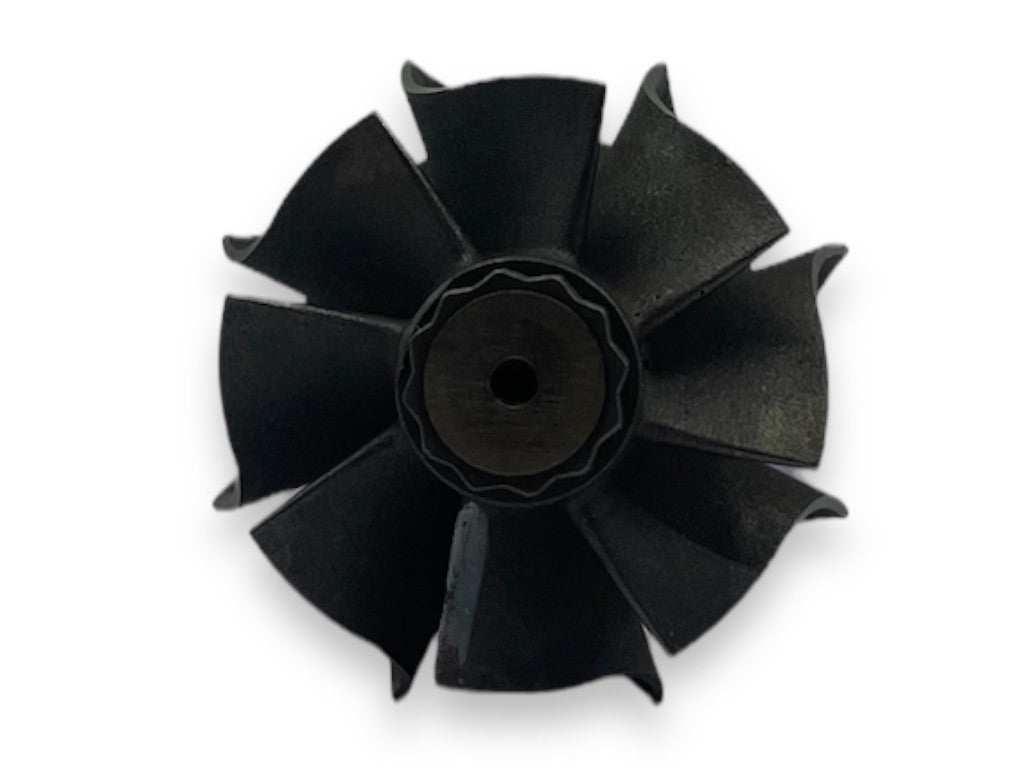

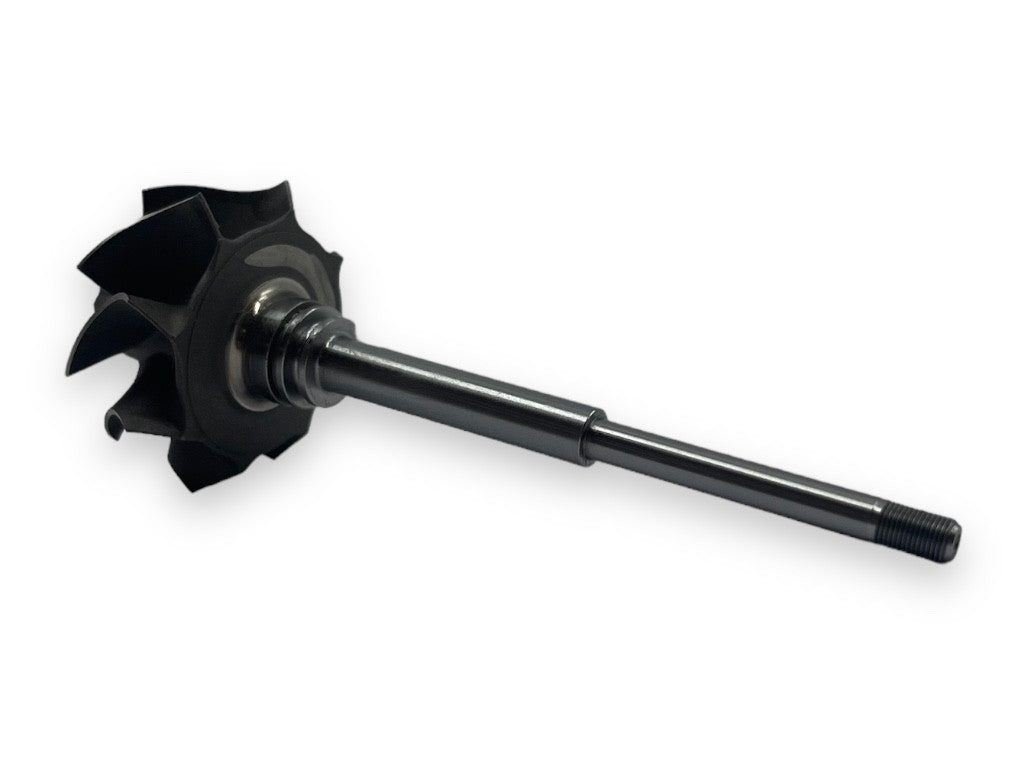

IH-02-0018 - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: IH-02-0018
IH-02-0018 - Alternative numbers
TCP (TurboCentras part number): IH-02-0018
TCO (TurboCentras old part number): RHF4-39
IH-02-0018 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHF4 | VB10 | VB10 | -- |
| IHI | RHF4H-64006P10.5NHBRLL342CCZ | VB11 | VA420061, VB11, VB420061, VC420061, VD420061, VE420061, VF420061 | 17201-27060 |
| IHI | RHF4 | VB6 | VB6 | -- |
| IHI | RHF4H-64006P12NHBRL362CCZ | VIBR | 4T-504, F41CAD-S0014B, F41CAD-S0014G, V*420014, VA420014, VB420014, VC420014, VD420014, VE420014, VF420014, VG420014, VIBR | 8971397241, 8971397242, 8971397243 |
| IHI | RHF4 | VICL | VICL | -- |
| IHI | RHF4H-64006P12NHBRL362CCZ | VICQ | F41CAD-S0028B, F41CAD-S0028G, VA420028, VB420028, VC420028, VD420028, VE420028, VF420028, VH420028, VICQ | 8971923310, 8971923311, 8971923312, 8971923314 |
| IHI | RHF4H-64006P16NHBRL362CC | VICT | F41CND-S0041B, F41CND-S0041G, VA420041, VB420041, VC420041, VD420041, VE420041, VICT | 8972128422, 8972128423 |
| IHI | RHF4 | VIDA | VIDA | -- |
| IHI | RHF4H-64006P10.5NHBRL382CDZ | VIDX | F41CAD-S0074B, F41CAD-S0074G, V*420074, VA420074, VB420074, VC420074, VIDX | 8973295880, 8973295881 |
| IHI | RHF4H-64006P12NHBRL3930CEZ | VIDZ | 4T-505, F41CAD-S0076B, F41CAD-S0076G, V*420076, VA420076, VB420076, VC420076, VIDZ, VP63 | 1118010-PA11, 8973311850, 8973311851 |
| IHI | RHF4 | VIEF | VIEF | -- |
| IHI | RHF4H-64006PZ10.5NHBRL363CCZ | VN2 | 4T-509, F41CAD-S0051B, F41CAD-S0051G, VA420051, VB420051, VC420051, VD420051, VE420051, VN2 | 14411-8H800, 14411-8H80B, 14411-8H80C |
| IHI | RHF4H | VN3 | VA420058, VA420115, VB420058, VD420058, VN3 | 14411-VK500, 14411-VK50B |
| IHI | RHF4H-64006P14NHBRL377CCZ | VN4 | F41CAT-S0125B, VA420119, VA420125, VB420119, VC420119, VN4 | 14411-MB40A, 14411-MB40B, 14411-MB40C, 14411-VM01A |
| IHI | RHF4H-64006P12NHBRL3930CEZ | VP23 | VA420090, VP23 | -- |
| IHI | RHG6-91004Q19NHBRSB524CAZ | VP42 | VA570084, VB570084, VP42 | -- |
IH-02-0018 - Part Properties
Blades (Shaft & Wheel blades count): 8
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 44.40
A1 (Size A1): 36.00
B (Size B): 37.60
C (Size C): 5.00
D (Size D): 7.40
E (Size E): 5.10
H (Size H): 20.00
L (Size L): 92.50
T (Size T): M5.0X0.5LH
IH-02-0018, RHF4-39
VB10, 17201-27060, VA420061, VB11, VB420061, VC420061, VD420061, VE420061, VF420061, VB6, 4T-504, 8971397241, 8971397242, 8971397243, F41CAD-S0014B, F41CAD-S0014G, V*420014, VA420014, VB420014, VC420014, VD420014, VE420014, VF420014, VG420014, VIBR, VICL, 8971923310, 8971923311, 8971923312, 8971923314, F41CAD-S0028B, F41CAD-S0028G, VA420028, VB420028, VC420028, VD420028, VE420028, VF420028, VH420028, VICQ, 8972128422, 8972128423, F41CND-S0041B, F41CND-S0041G, VA420041, VB420041, VC420041, VD420041, VE420041, VICT, VIDA, 8973295880, 8973295881, F41CAD-S0074B, F41CAD-S0074G, V*420074, VA420074, VB420074, VC420074, VIDX, 1118010-PA11, 4T-505, 8973311850, 8973311851, F41CAD-S0076B, F41CAD-S0076G, V*420076, VA420076, VB420076, VC420076, VIDZ, VP63, VIEF, 14411-8H800, 14411-8H80B, 14411-8H80C, 4T-509, F41CAD-S0051B, F41CAD-S0051G, VA420051, VB420051, VC420051, VD420051, VE420051, VN2, 14411-VK500, 14411-VK50B, VA420058, VA420115, VB420058, VD420058, VN3, 14411-MB40A, 14411-MB40B, 14411-MB40C, 14411-VM01A, F41CAT-S0125B, VA420119, VA420125, VB420119, VC420119, VN4, VA420090, VP23, VA570084, VB570084, VP42
Data updated: 2025-02-12 17:57:35
