TurboCentras

Shaft and wheel BW-02-0030

Shaft and wheel BW-02-0030

€22,84 EUR
€22,84 EUR
Znižanje Razprodano

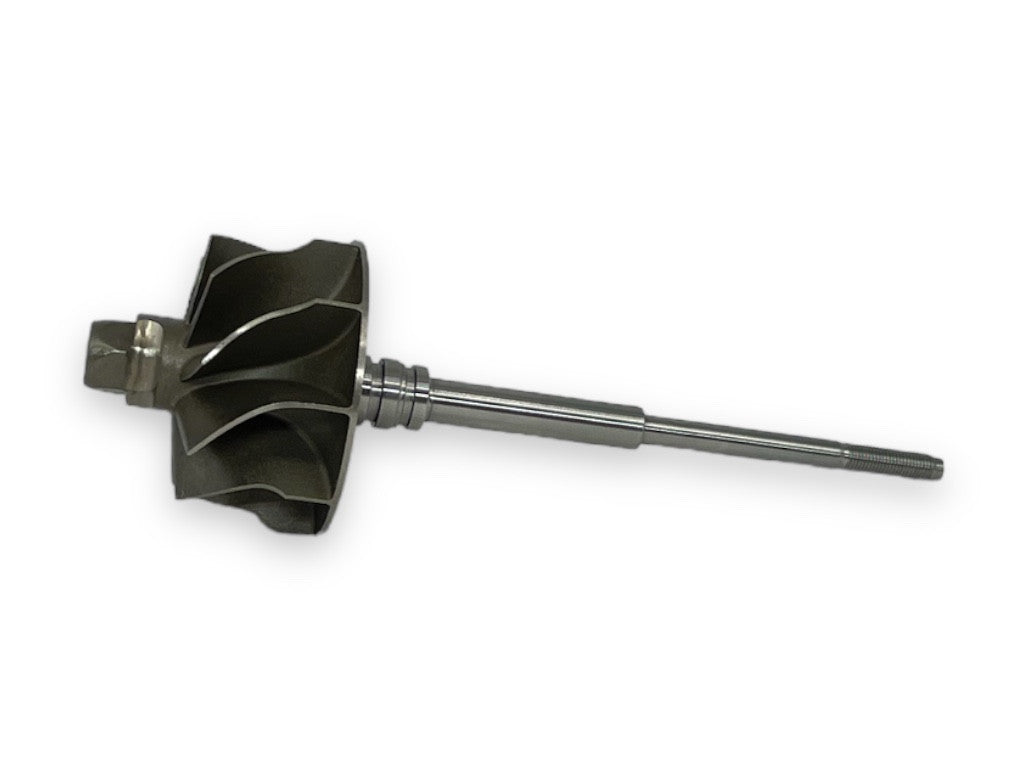

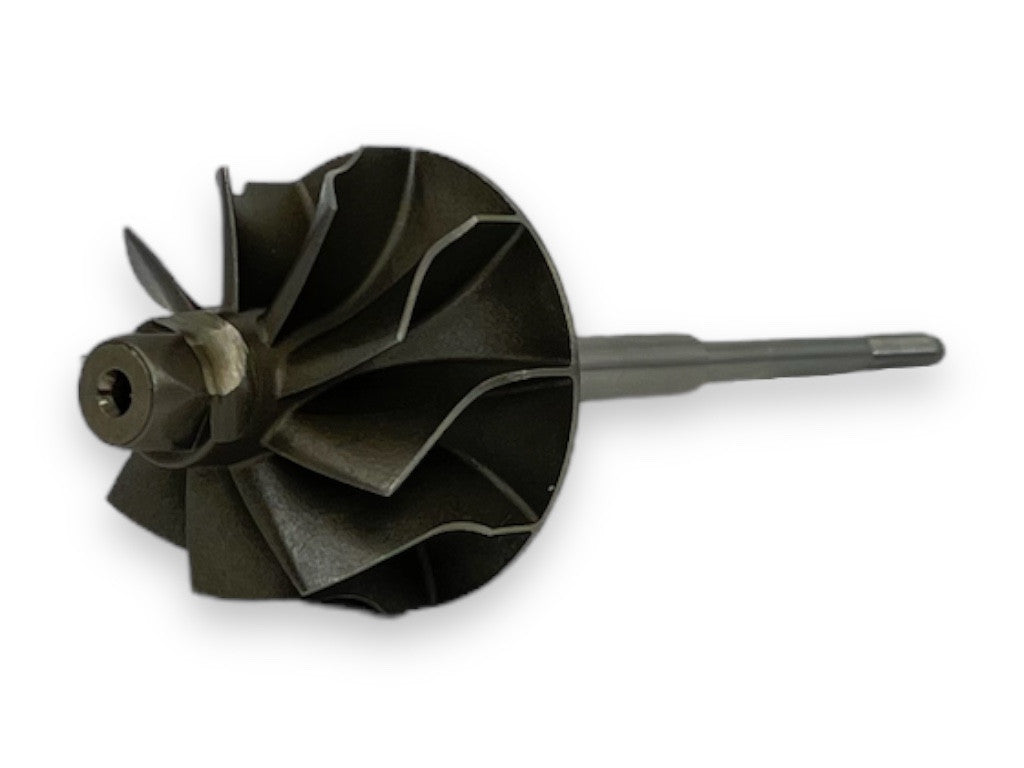

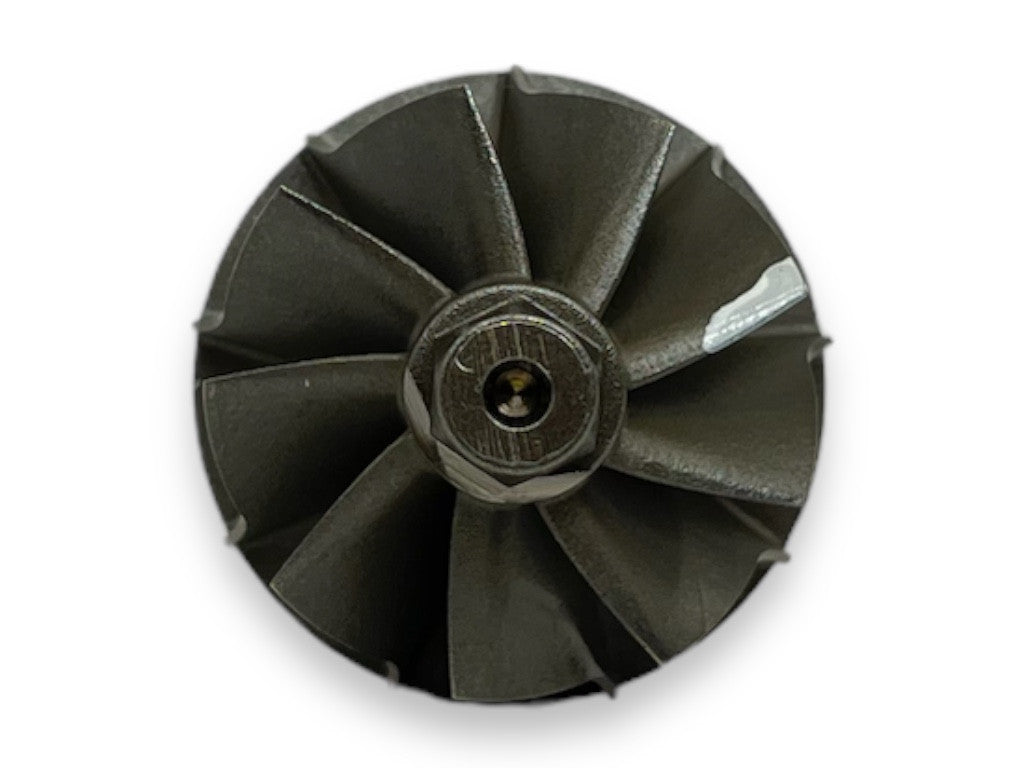

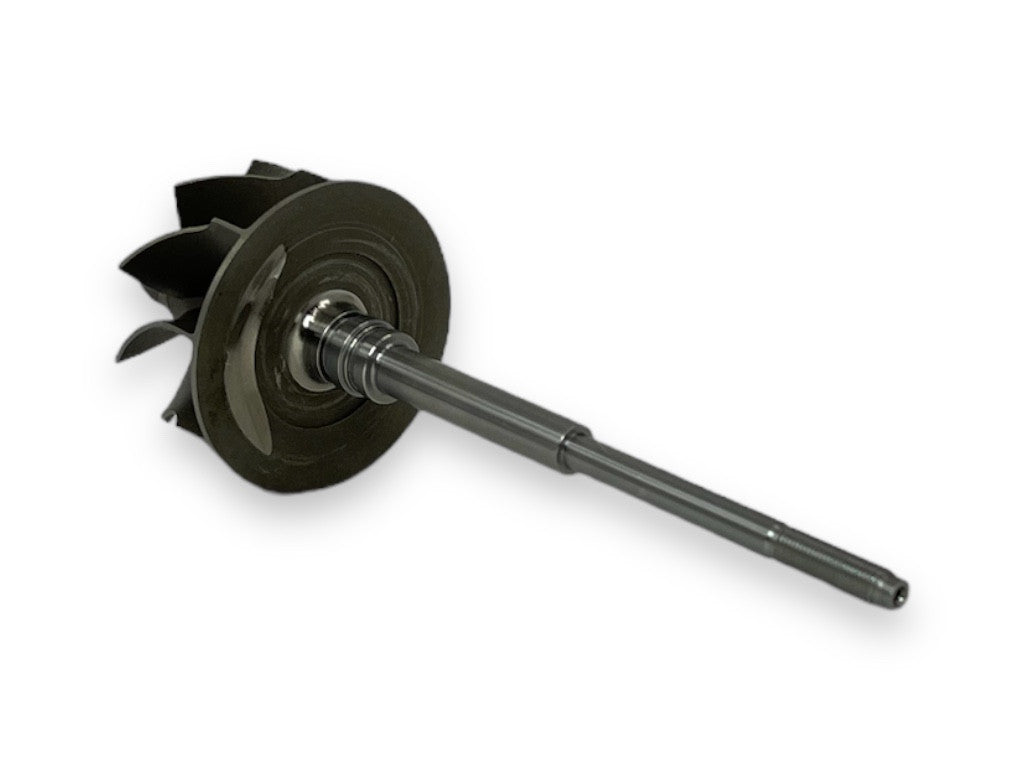

BW-02-0030 - Shaft and wheel

Brand: TurboCentras

TurboCentras Reference: BW-02-0030

BW-02-0030 - Alternative numbers

TCP (TurboCentras part number): BW-02-0030

TCO (TurboCentras old part number): KP39-36

BW-02-0030 - Compatibility table

Shaft and wheel BW-02-0030 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
BorgWarner KP39-1875CCB426.18BVAXC 54399700005 5439 970 0005 038253010L, 038253019H, 038253056D, 3M219G438AA
BorgWarner KP39-1875CCB426.18BVAXC 54399700012 5439 970 0012 038253010Q, 038253016S, 038253056F
BorgWarner BV39-1875CCB426.18BVAXC 54399700016 5439 970 0016, 5439 988 0016 038253010, 038253014
BorgWarner BV39-1875CCB426.18BVAXC 54399700023 5439 970 0023, 5439 988 0023 038253010E, 038253010T, 038253014C
BorgWarner BV39-1875CCB426.18BVAXC 54399700023-R 5439 970 0023, 5439 988 0023 038253010E, 038253010T, 038253014C
BorgWarner BV39-1875CCB426.18BVAXC 54399700047 5439 970 0047, 5439 988 0047, 5439 990 0047 038253010F, 038253014R, 038253056, 03G253010B, 03G253010G, 03G253014C, 4M219G438BA
BorgWarner BV39-1874DCB426.18BVAXC 54399700053 5439 970 0053 038253014P
BorgWarner BV39-1874DCB426.18BVAXC 54399700055 5439 970 0055 038253016A
BorgWarner BV39-1874DCB426.18BVAXC 54399700059 5439 970 0059, 5439 988 0059, 5439 990 0059 03G253010E, 03G253016D
BorgWarner BV39-1874DCB426.18BVAXC 54399700060 5439 970 0060, 5439 988 0060 03G253010F, 03G253016E
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700061 5439 970 0061 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700062 5439 970 0062 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700063 5439 970 0063 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700064 5439 970 0064 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037
BorgWarner BV39-1875CCB426.18BVAXC 54399700083 5439 970 0083 038253056H
BorgWarner KP39 54399700107 5439 970 0107, 5439 988 0107 28230-2F300, 28231-2F300
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700110 5439 970 0110, 5439 988 0110 6H4Q-6K682-HG, 6H4Q6K682HG, LR021046
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700111 5439 970 0111, 5439 988 0111 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700112 5439 970 0112, 5439 988 0112 6H3Q6K682FF, LR021044
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700113 5439 970 0113, 5439 988 0113 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043
BorgWarner BV39-1875CCB426.18BVAXC 54399880023 5439 970 0023, 5439 988 0023 038253010E, 038253010T, 038253014C

BW-02-0030 - Part Properties

Blades (Shaft & Wheel blades count): 9

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Full

P.R. (Shaft & Wheel piston rings count): Single

A (Size A): 38.50

A1 (Size A1): 38.50

B (Size B): 34.50

C (Size C): 6.70

D (Size D): 6.00

E (Size E): 4.10

H (Size H): 20.82

L (Size L): 83.00

T (Size T): M4.0X0.5LH

BW-02-0030
BW-02-0030, KP39-36
54399880023, 54399700023, 54399880113, 54399700113, 54399880112, 54399700112, 54399880111, 54399700111, 54399880110, 54399700110, 54399880107, 54399700107, 54399700083, 54399700064, 54399700063, 54399700062, 6H4Q6K682HF, 54399700061, 54399880060, 54399700060, 54399900059, 54399880059, 54399700059, 54399700055, 54399700053, 54399900047, 54399880047, 54399700047, 54399880023, 54399700023, 54399880023, 54399700023, 54399880016, 54399700016, 54399700012, 54399700005, 038253010L, 038253019H, 038253056D, 3M219G438AA, 5439 970 0005, 038253010Q, 038253016S, 038253056F, 5439 970 0012, 038253010, 038253014, 5439 970 0016, 5439 988 0016, 038253010E, 038253010T, 038253014C, 5439 970 0023, 5439 988 0023, 038253010E, 038253010T, 038253014C, 5439 970 0023, 5439 988 0023, 038253010F, 038253014R, 038253056, 03G253010B, 03G253010G, 03G253014C, 4M219G438BA, 5439 970 0047, 5439 988 0047, 5439 990 0047, 038253014P, 5439 970 0053, 038253016A, 5439 970 0055, 03G253010E, 03G253016D, 5439 970 0059, 5439 988 0059, 5439 990 0059, 03G253010F, 03G253016E, 5439 970 0060, 5439 988 0060, 5439 970 0061, 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527, 5439 970 0062, 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526, 5439 970 0063, 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038, 5439 970 0064, 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037, 038253056H, 5439 970 0083, 28230-2F300, 28231-2F300, 5439 970 0107, 5439 988 0107, 5439 970 0110, 5439 988 0110, 6H4Q-6K682-HG, 6H4Q6K682HG, LR021046, 5439 970 0111, 5439 988 0111, 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045, 5439 970 0112, 5439 988 0112, 6H3Q6K682FF, LR021044, 5439 970 0113, 5439 988 0113, 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043, 038253010E, 038253010T, 038253014C, 5439 970 0023, 5439 988 0023

Data updated: 2025-02-14 09:27:48
