Garrett

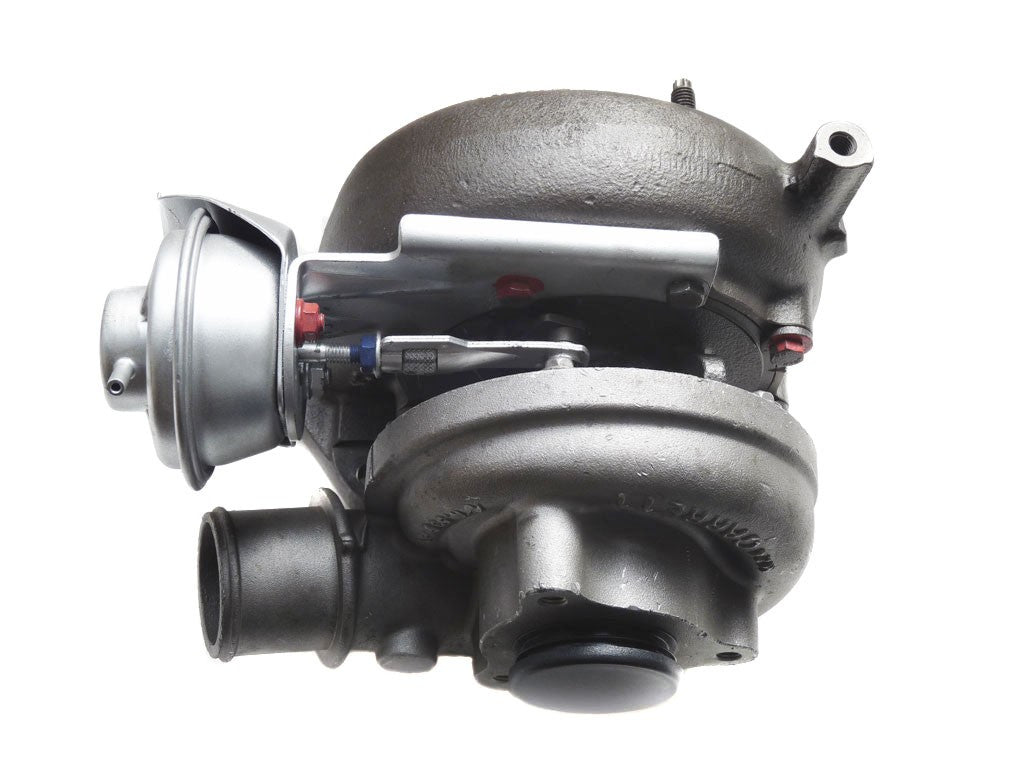

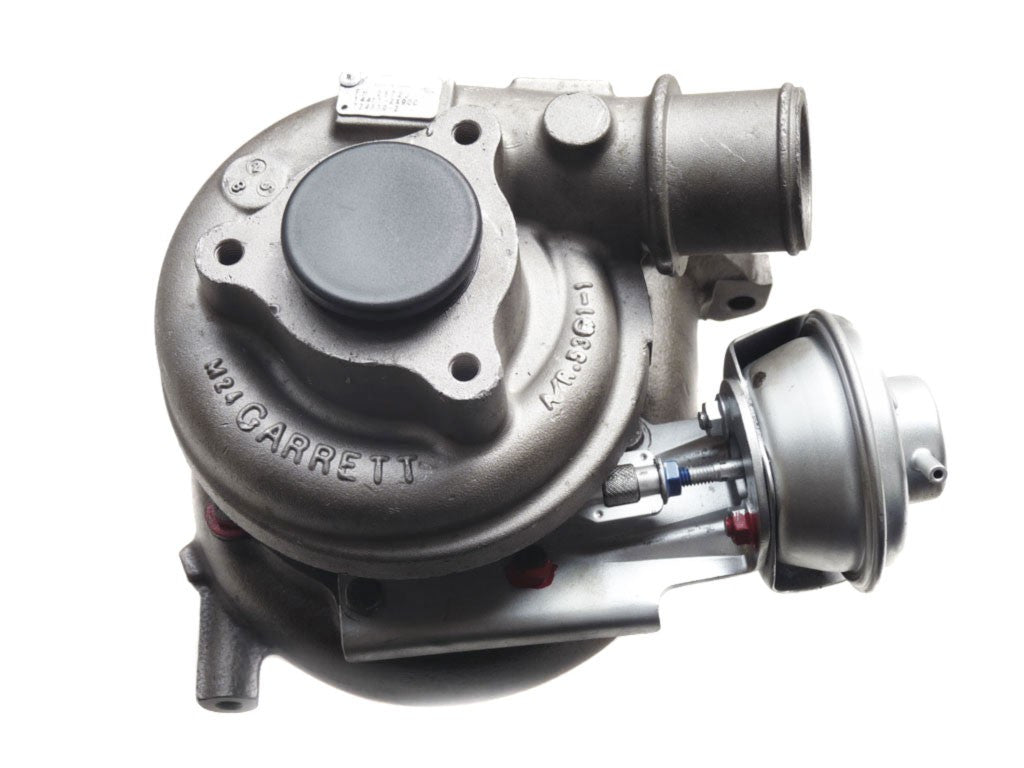

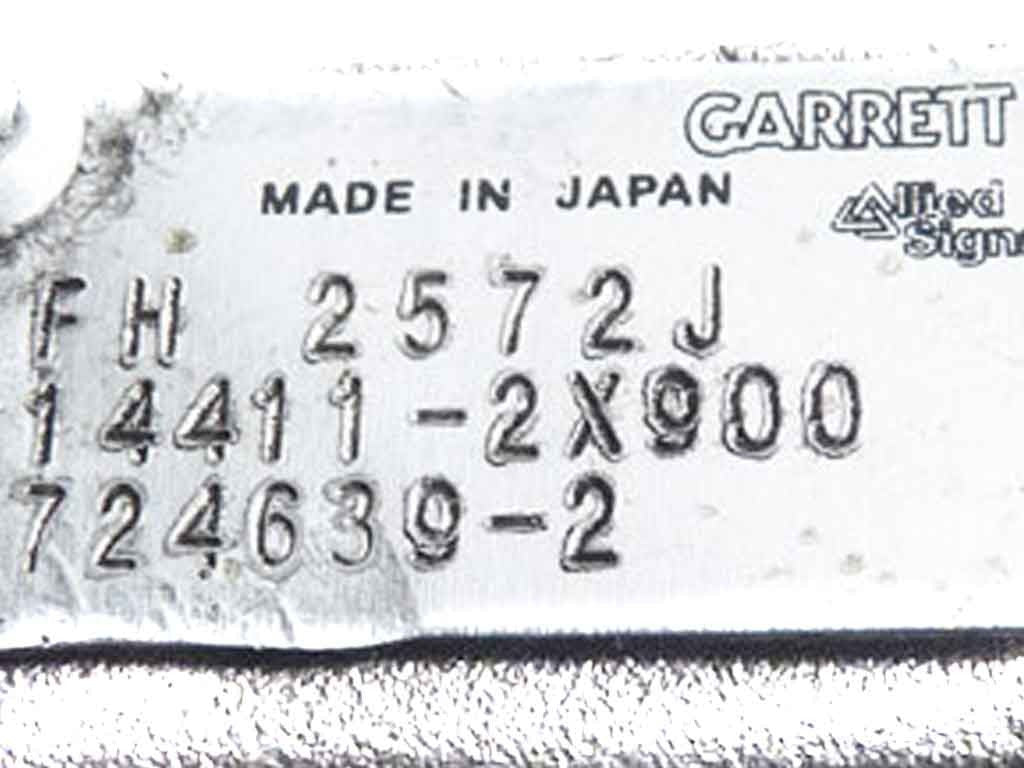

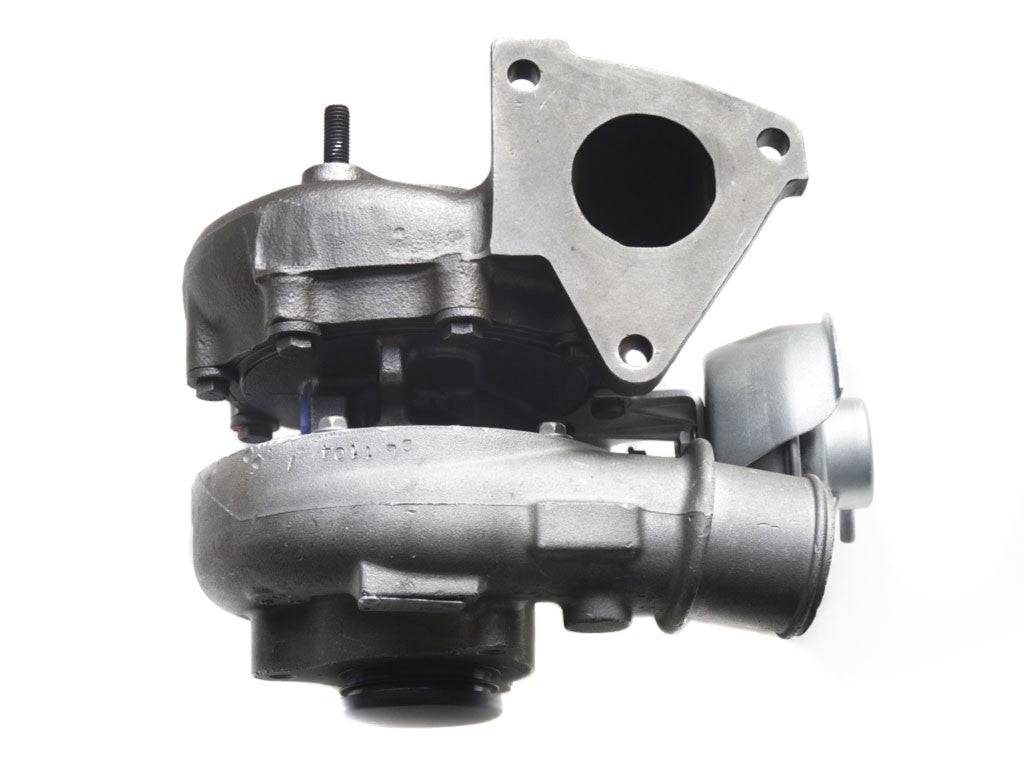

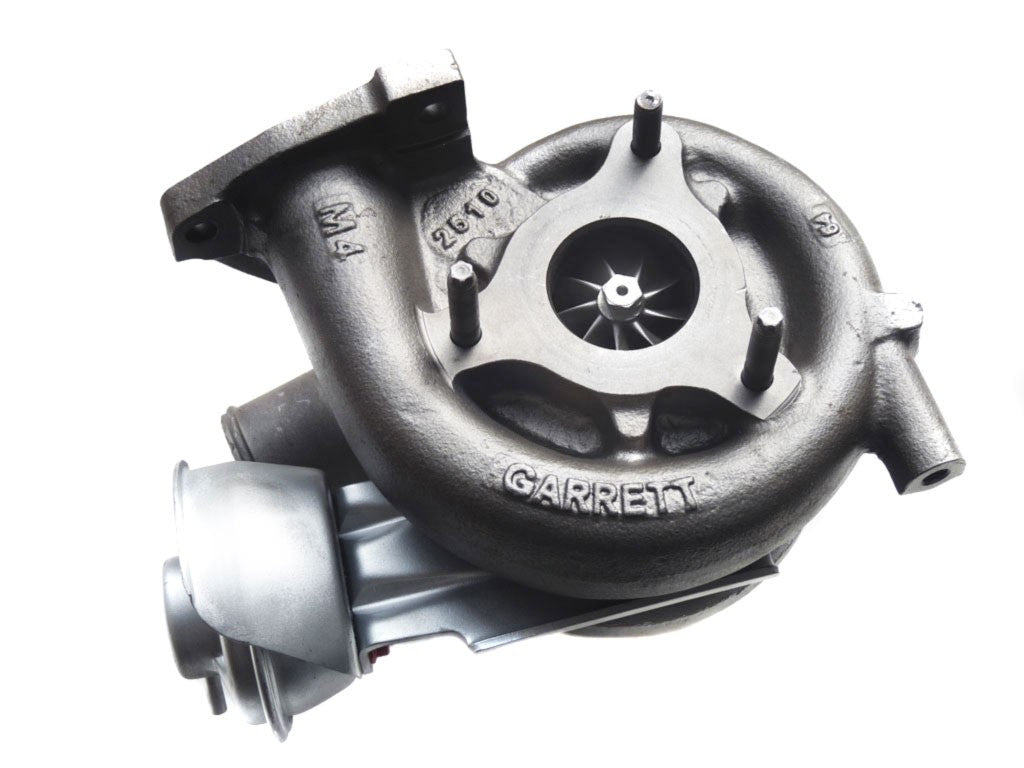

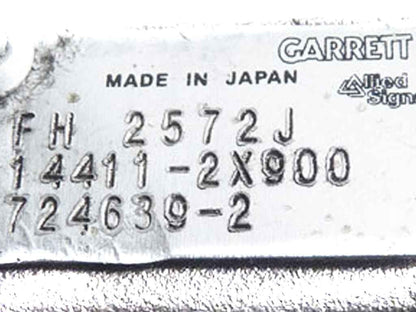

Turbo 724639-0002 (R)
Turbo 724639-0002 (R)
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
724639-0002 (144112X900) - Turbocharger
Brand: Garrett
Garrett Reference: 724639-0002
OEM Numbers: 144112X900
724639-0002 - Alternative numbers
GHO (Garrett original part number): 724639-0002
GHA (Garrett aftermarket part number): 724639-5002S
724639-0002 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
724639-0002 - Turbo replacements
Replaced by: Garrett GTA2052V 724639-0007
724639-0002 - Turbo interchangeability
Interchangeable with: Garrett GT2052V 705954-0008
Interchangeable with: Garrett GT2052V 705954-0009
Interchangeable with: Garrett GT2052V 705954-0011
Interchangeable with: Garrett GT2052V 705954-0013
Interchangeable with: Garrett GT2052V 705954-0015
Interchangeable with: Garrett GT2052V 723739-0002
Interchangeable with: Garrett GT2052V 724639-0001
Interchangeable with: Garrett GT2052V 724639-0003
Interchangeable with: Garrett GT2052V 724639-0004
Interchangeable with: Garrett GTA2052V 724639-0006
Interchangeable with: Garrett GTA2052V 724639-0007
| Turbo 724639-0002 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT15-06 | 1 | -- | 436131-0005, 702492-0001, 702492-0004 |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-323 | 1 | -- | 443768-0003 |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-50 | 1 | -- | -- |
| TurboCentras | Back plate | GT15-67 | 1 | -- | 701335-0001 |
| TurboCentras | Cartridge | GT20-222 | 1 | -- | 702793-0024 |
| TurboCentras | Bearing housing | GT20-305 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT20-36 | 1 | -- | 434883-0003, 434883-0017, 434883-0030 |
| TurboCentras | Nozzle ring assy. | GT20-92 | 1 | -- | -- |
| TurboCentras | VNT Nozzle ring | GT20-92-1 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2 | 1 | -- | -- |
144112X900, 724639-0002, 724639-5002S
Data updated: 2022-03-01 17:27:23
