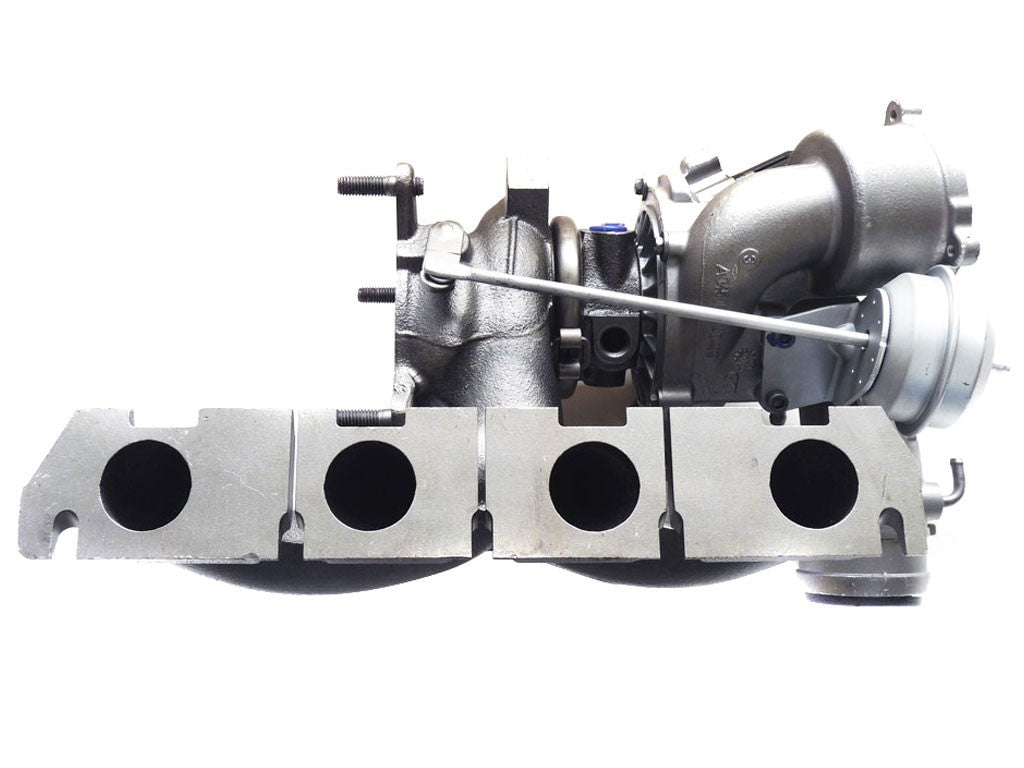

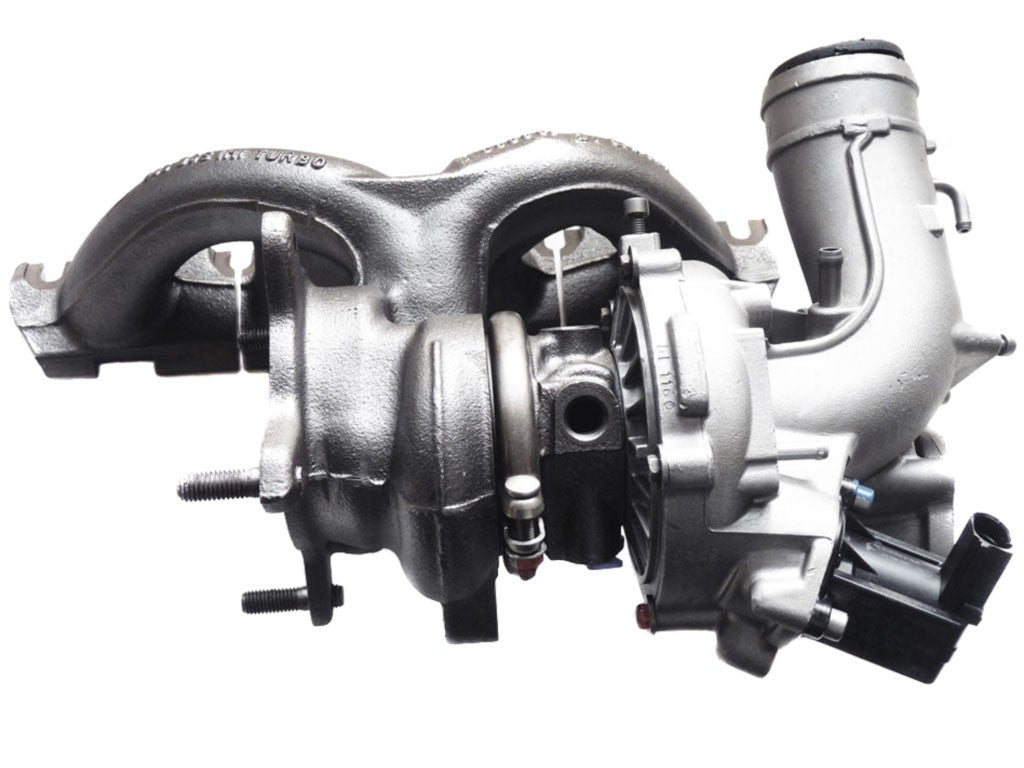

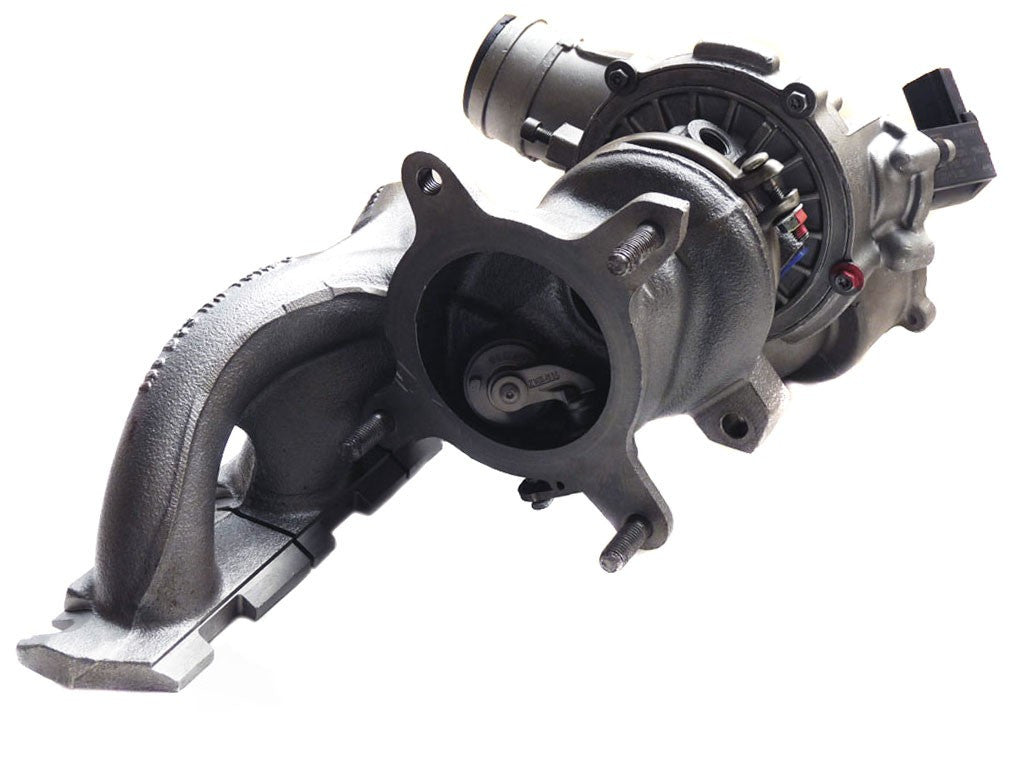

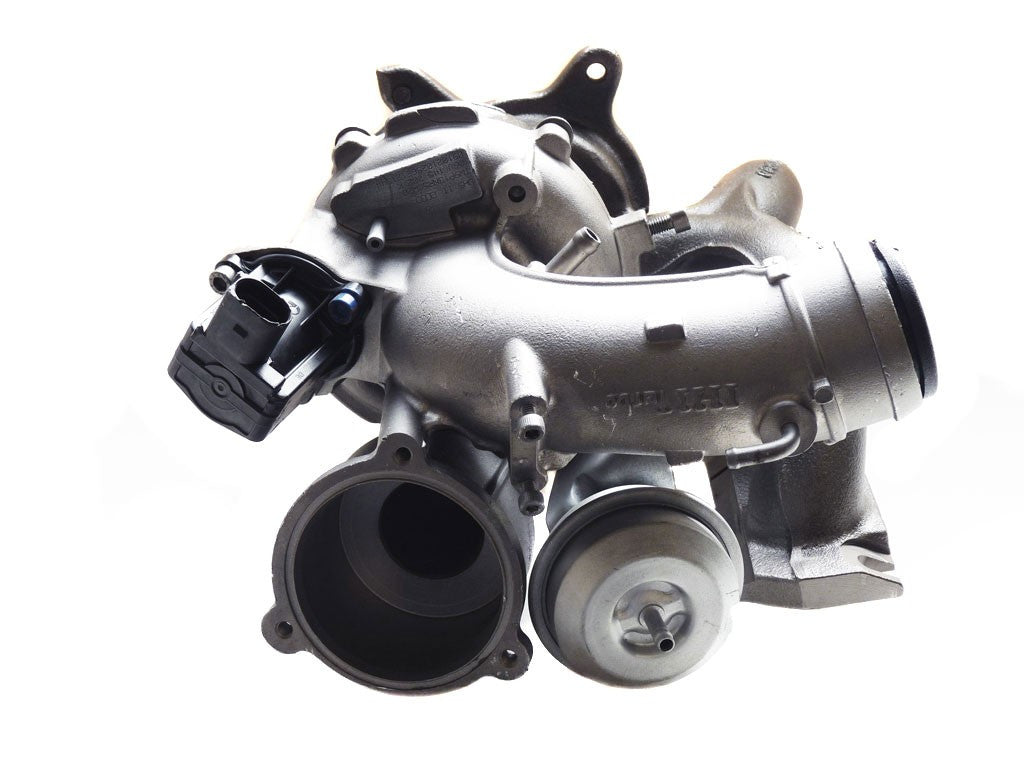

Turbo 9VA15-R
Turbo 9VA15-R
Redna cena
€350,00 EUR
Redna cena
Znižana cena
€350,00 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
9VA15 (06J145713A, 06J145713D, 06J145713F) - Turbocharger RHF5
Brand: IHI
Model: RHF5 - RHF5
IHI Reference: 9VA15
OEM Numbers: 06J145713A, 06J145713D, 06J145713F
9VA15 - Alternative numbers
IHT (IHI turbo number): 9VA15
IHT (IHI turbo number): F51CAY-SR038B
9VA15 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger), IMF (Integrated Manifold Turbocharger), WCT (Water cooled turbocharger)
9VA15 - Turbo interchangeability
Interchangeable with: IHI RHF5 06J145713A, 9VA15
Interchangeable with: IHI RHF5 06J145713D, 9VA15
Interchangeable with: IHI RHF5 06J145713F, 9VA15
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | IHI PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | IH-00-0034 | 1 | -- | -- |
| TurboCentras | Bearing housing | IH-01-0032 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | IH-02-0033 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | IH-02-0037 | 1 | -- | -- |
| TurboCentras | Compressor wheel | IH-03-0015 | 1 | -- | -- |
| TurboCentras | Compressor wheel | IH-03-0028 | 1 | -- | -- |
| TurboCentras | Repair kit | IH-04-0011 | 1 | -- | -- |
| TurboCentras | Heat shield | IH-05-0019 | 1 | -- | -- |
| TurboCentras | Back plate | IH-08-0020 | 1 | -- | -- |
| TurboCentras | Shaft nut | IH-21-0005 | 1 | -- | -- |
| TurboCentras | Thrust washer | RHF4-146 | 1 | -- | -- |
| TurboCentras | Journal bearing | RHF5-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | RHF5-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | RHF5-130 | 1 | -- | -- |
| TurboCentras | Retaining ring | RHF5-145 | 1 | -- | -- |
| TurboCentras | Piston ring | RHF5-160 | 1 | -- | -- |
| TurboCentras | Piston ring | RHF5-170 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0002 | 3 | -- | -- |
| TurboCentras | Screw | SC-96-0008 | 4 | -- | -- |
06J145713A, 06J145713D, 06J145713F, 9VA15, F51CAY-SR038B
Data updated: 2024-10-01 13:42:20
