Garrett
Turbo 830323-0002
Turbo 830323-0002
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

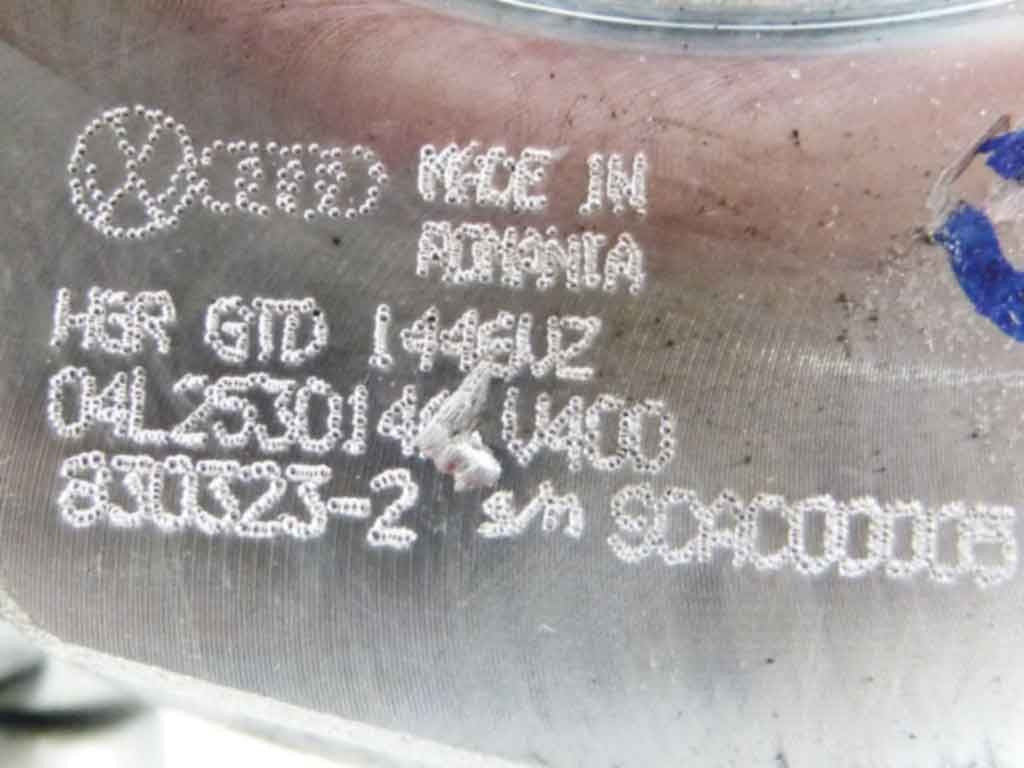

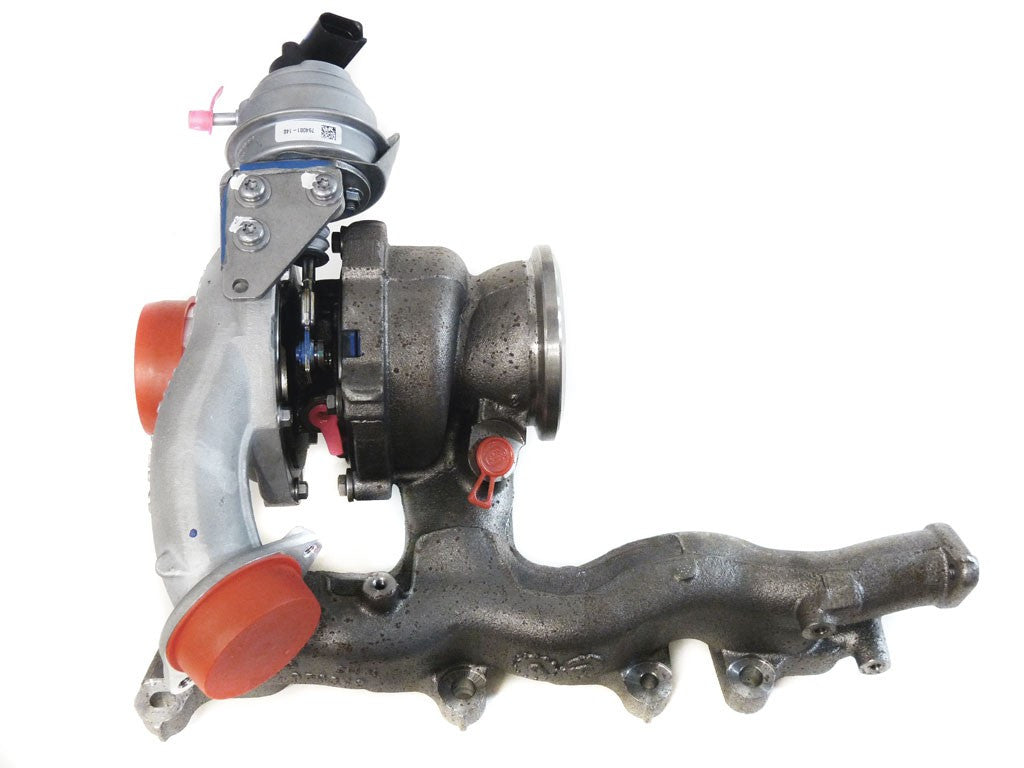

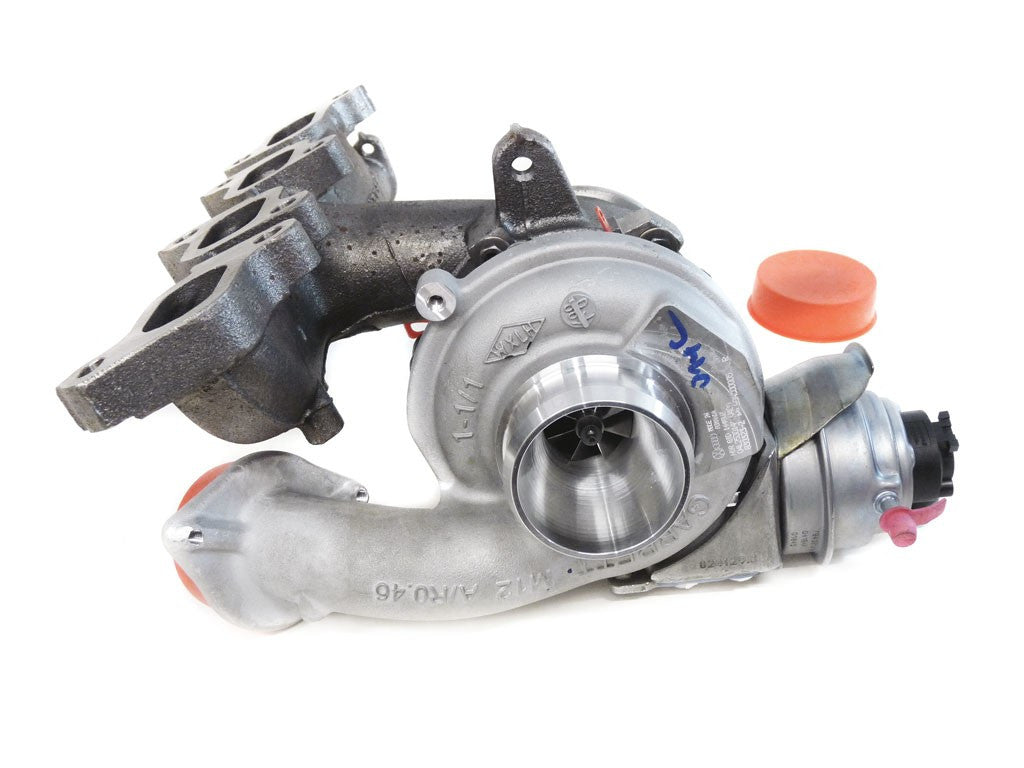

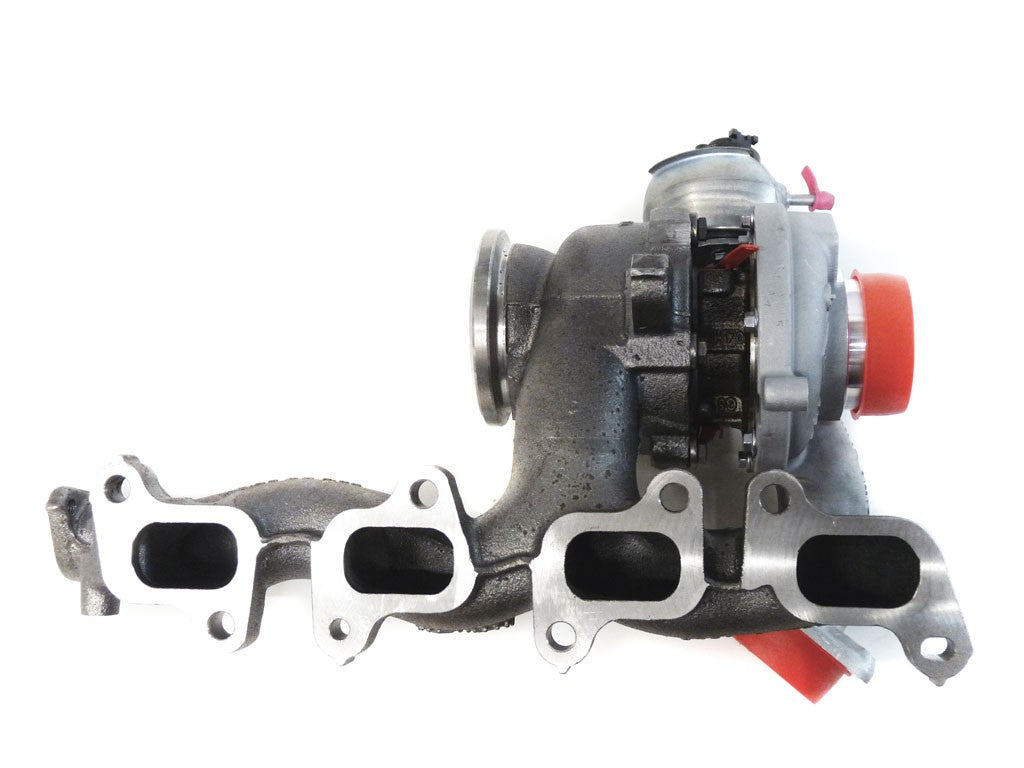

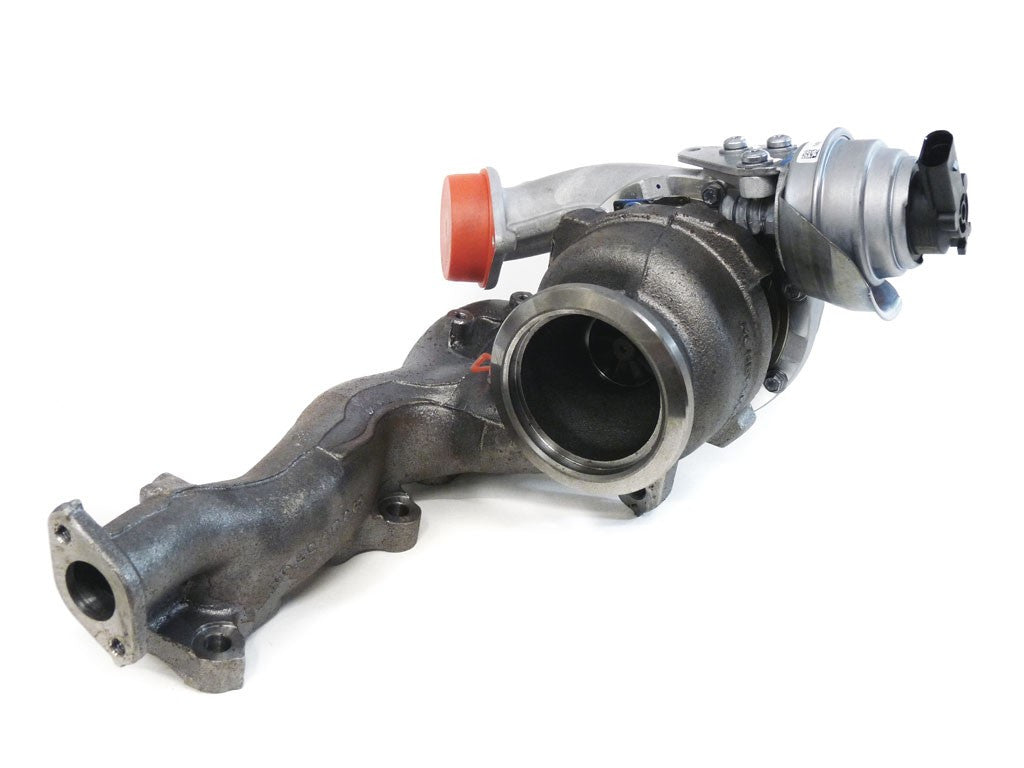

830323-0002 (04L253014C-V400, 04L253014CV400) - Turbocharger GTD1446VZ
Brand: Garrett
Model: GT14 - GTD1446VZ
Garrett Reference: 830323-0002
OEM Numbers: 04L253014C-V400, 04L253014CV400
830323-0002 - Alternative numbers
GHT (Garrett turbo number): 830323-0002
830323-0002 - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
830323-0002 - Turbo replacements
Replaced by: Garrett GTD1446VZM 830323-0003
Replaced by: Garrett GTD1446VZM 830323-0006
Replaced by: Garrett GTD1446VZM 830323-0006-R
Replaced by: Garrett GTD1446VZM 873767-0001
830323-0002 - Turbo interchangeability
Interchangeable with: Garrett GTD1446VZM 830323-0003
Interchangeable with: Garrett GTD1446VZM 830323-0006
Interchangeable with: Garrett GTD1446VZM 830323-0006-R
Interchangeable with: Garrett GTD1446VZM 873767-0001
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Shaft nut | GA-21-0001 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT12-103 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT12-131 | 1 | -- | -- |
| TurboCentras | VNT centering ring | GT12-149 | 1 | -- | -- |
| TurboCentras | Piston ring | GT12-160 | 2 | -- | -- |
04L253014C-V400, 04L253014CV400, 830323-0002
Data updated: 2024-05-17 11:45:28
