BorgWarner

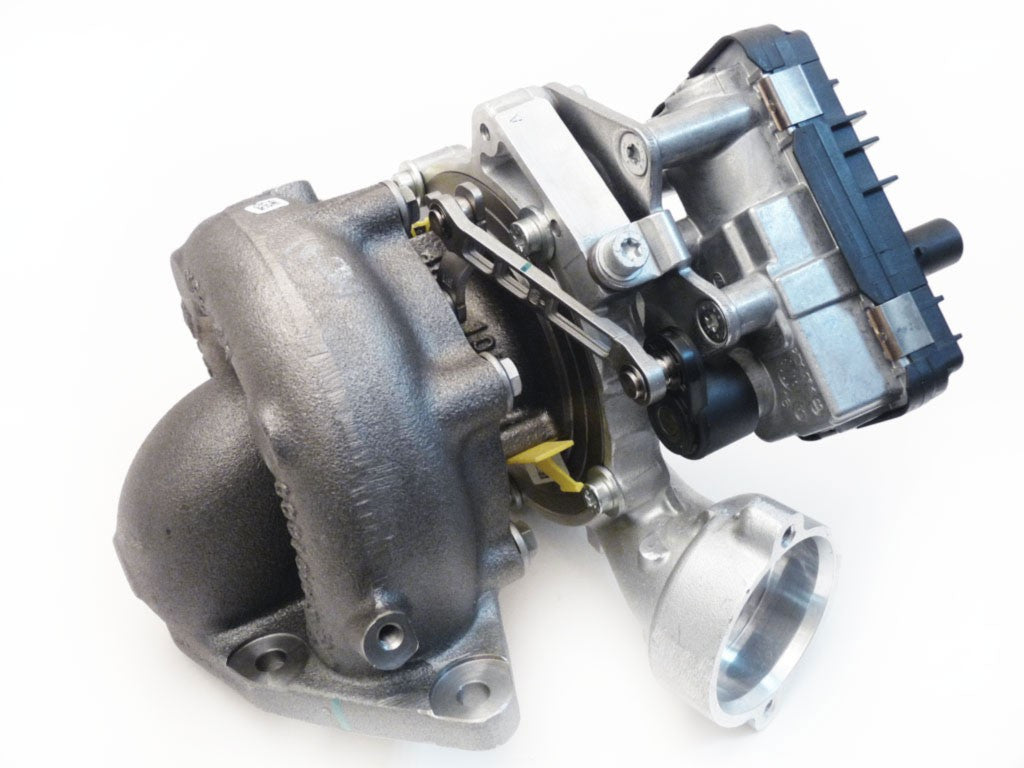

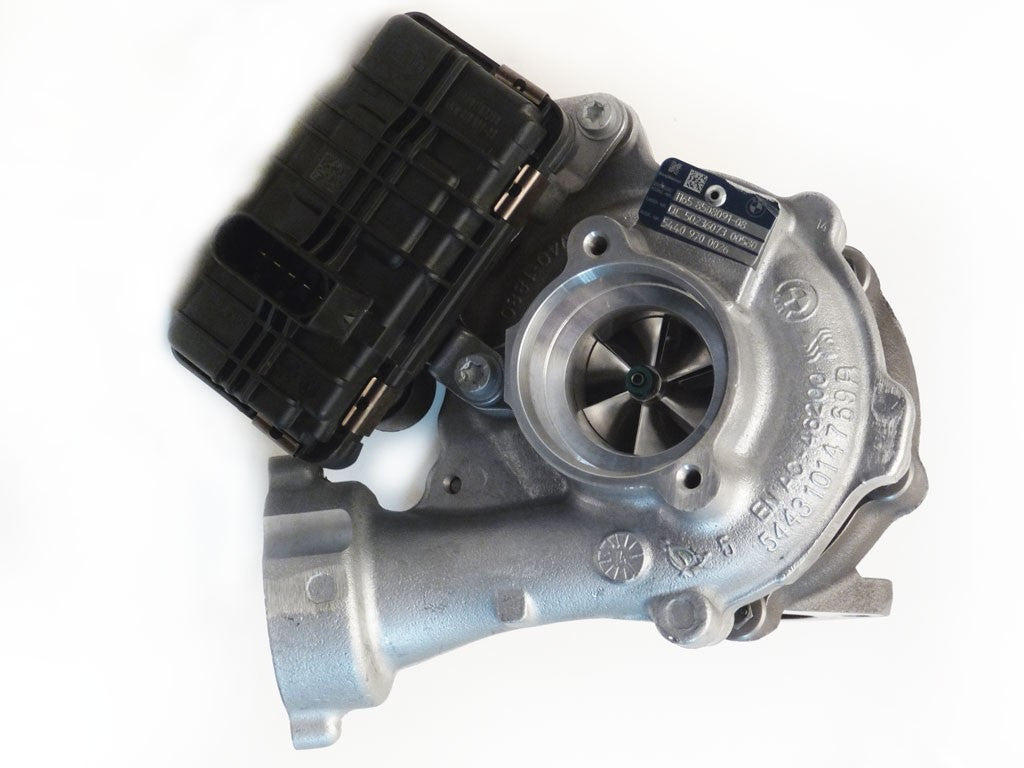

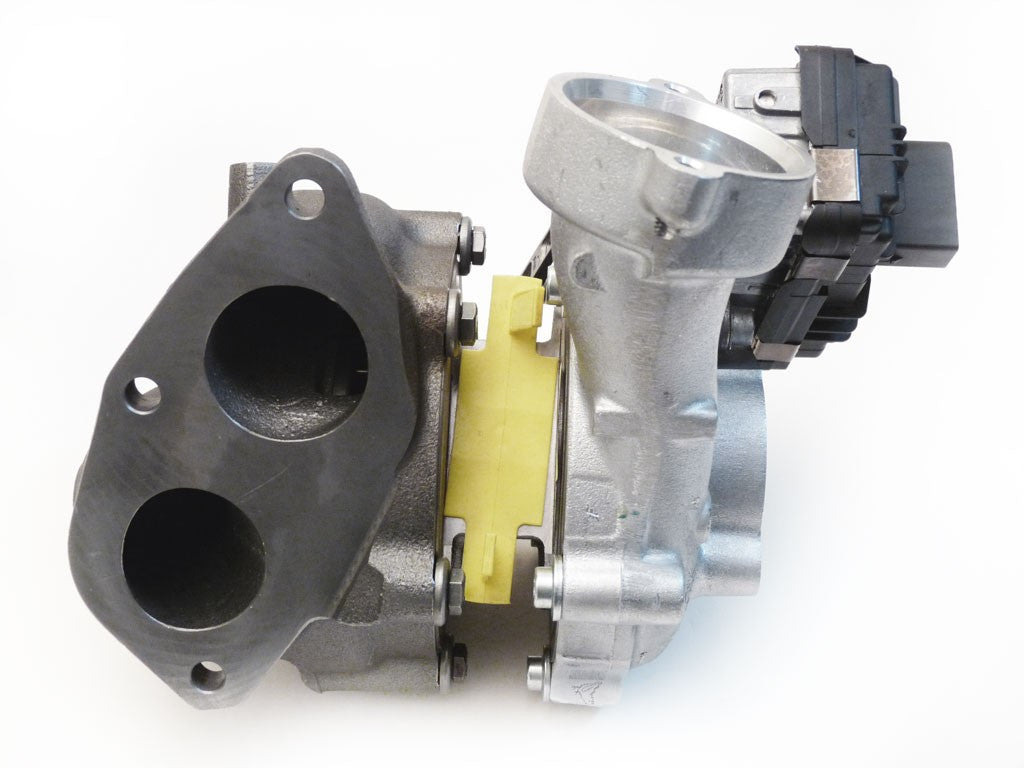

Turbo 54409700026
Turbo 54409700026
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
54409700026 (1165 8508091 08, 1165 8510943 08, 11658508091) - Turbocharger BV40
Brand: BorgWarner
Model: BV40-R2S - BV40
BorgWarner Reference: 54409700026
OEM Numbers: 1165 8508091 08, 1165 8510943 08, 11658508091, 1165850809108, 1165851094308, 8508091
54409700026 - Alternative numbers

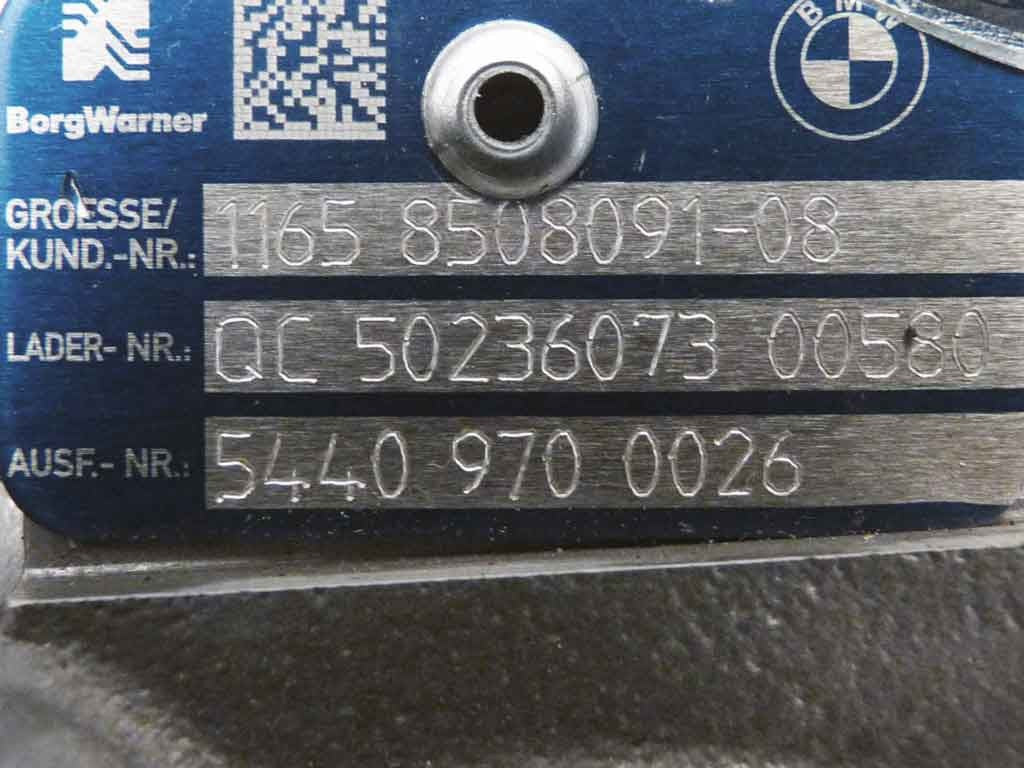

BWT (BorgWarner turbo number): 5440 970 0026
BWT (BorgWarner turbo number): 5440 998 0026
54409700026 - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
54409700026 - Turbo replacements
Replacement for: BorgWarner BV40 54409700010, 11658508091, 5440 970 0010, 8508091
Replacement for: BorgWarner BV40 54409700013, 11658508091, 5440 970 0013, 8508091
Replacement for: BorgWarner BV40 54409700019, 11658508091, 5440 970 0019, 8508091
Replacement for: BorgWarner BV40 54409710013, 11658510943, 5440 971 0013, 8510943
Replacement for: BorgWarner BV40 54409710019, 11658510943, 5440 971 0019, 8510943
54409700026 - Turbo interchangeability
Interchangeable with: BorgWarner BV40 54409700010, 11658508091, 5440 970 0010, 8508091
Interchangeable with: BorgWarner BV40 54409700013, 11658508091, 5440 970 0013, 8508091
Interchangeable with: BorgWarner BV40 54409700019, 11658508091, 5440 970 0019, 8508091
Interchangeable with: BorgWarner BV40 54409710013, 11658510943, 5440 971 0013, 8510943
Interchangeable with: BorgWarner BV40 54409710019, 11658510943, 5440 971 0019, 8510943
Interchangeable with: BorgWarner BV40 54409710026, 11658510943, 5440 971 0026, 5440 998 0026, 8510943
Interchangeable with: BorgWarner BV40 54409980026, 11658508091, 11658510943, 5440 970 0026, 5440 971 0026, 5440 998 0026, 8508091, 8510943
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| Hella | Actuator | 6NW010099-051 | 1 | -- | 5900 110 7383, 5900 110 7236 |
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0003 | 1 | 1640-120-5001, 1640-120-5009, 5440-120-5000, 5440-120-8501 | -- |
| TurboCentras | Compressor wheel | BW-03-0005 | 1 | 5443-123-2216 | -- |
| TurboCentras | Repair kit | BW-04-0002 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0006 | 1 | -- | -- |
| TurboCentras | Back plate | BW-08-0010 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-51-0001 | 1 | 1940-159-0804, 1940-159-0903 | -- |
| TurboCentras | Heat shield | BW-52-0001 | 1 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-133 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | Piston ring | KP35-163 | 4 | -- | -- |
| TurboCentras | Gasket kit | TC-62-0006 | 1 | -- | -- |
54409980026, 54409700026, 1165851094308, 1165850809108, 1165 8508091 08, 1165 8510943 08, 11658508091, 1165850809108, 1165851094308, 5440 970 0026, 5440 998 0026, 8508091
Data updated: 2024-10-22 10:39:18
