BorgWarner
Turbo 54359980060 54359700060
Turbo 54359980060 54359700060
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
54359980060 (11657823255, 11657823256, 7823255) - Turbocharger
Brand: BorgWarner
BorgWarner Reference: 54359980060
OEM Numbers: 11657823255, 11657823256, 7823255, 7823256
54359980060 - Alternative numbers

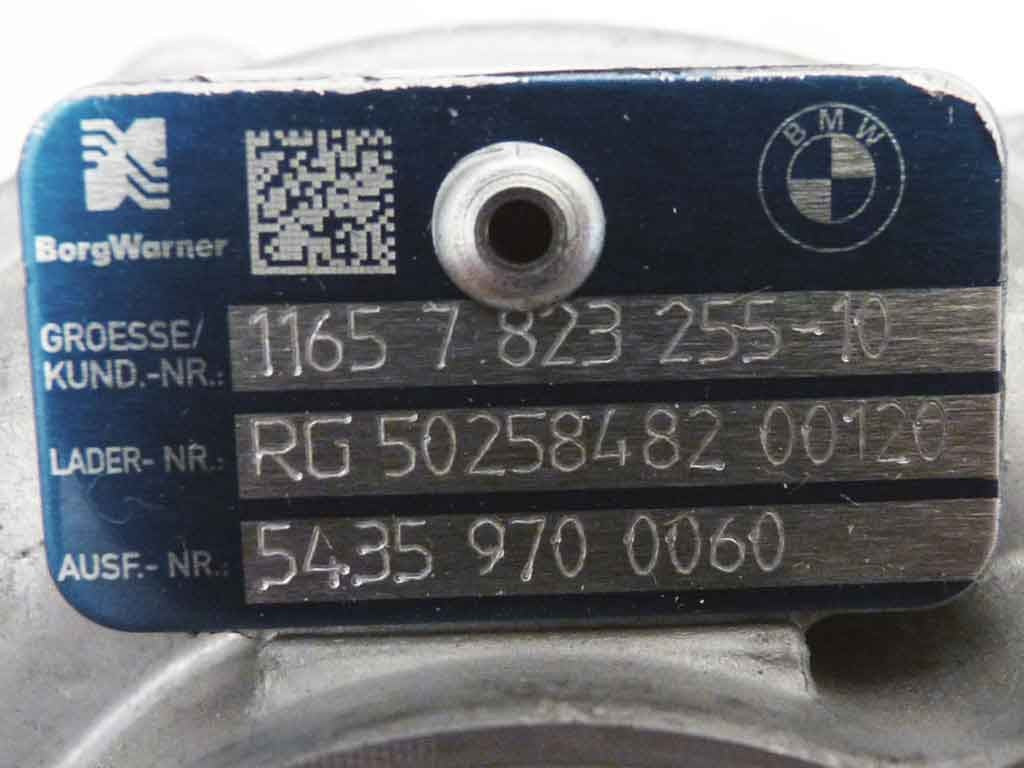

BWT (BorgWarner original turbo number): 5435 970 0060
BWT (BorgWarner original turbo number): 5435 971 0060
BWS (BorgWarner service turbo number): 5435 998 0060
54359980060 - Technologies and actuation
Actuation type: E-actuator (Electric actuator)
Turbocharger technology: VTG (Variable Turbine Geometry), R2S (Regulated Two-Stage Turbocharging), HP (High pressure)
54359980060 - Turbo replacements
Replacement for: BorgWarner BV35 54359700038
Replacement for: BorgWarner BV35 54359700043
Replacement for: BorgWarner BV35 54359700045
Replacement for: BorgWarner BV35 54359700053
Replacement for: BorgWarner BV35 54359700057
54359980060 - Turbo interchangeability
Interchangeable with: BorgWarner BV35 54359700038
Interchangeable with: BorgWarner BV35 54359700043
Interchangeable with: BorgWarner BV35 54359700045
Interchangeable with: BorgWarner BV35 54359700053
Interchangeable with: BorgWarner BV35 54359700057
| Turbo 54359980060 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
| Hella | Actuator | 6NW358140-011 | 1 | -- | 5900 110 7386 |
| TurboCentras | Heat shield primary | BW-51-0004 | 1 | -- | 1935 159 0801, 1935 159 0803, 1935 159 0900 |
| TurboCentras | Heat shield secondary | BW-52-0004 | 1 | -- | 1935 165 2000, 1935 165 2004 |
| E&E Turbo | Cartridge | KP35-010B | 1 | -- | -- |
| TurboCentras | Compressor wheel | KP35-06B | 1 | -- | 1641 123 2000 |
| TurboCentras | Journal bearing | KP35-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-132 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-133 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | KP35-163 | 4 | -- | -- |
| TurboCentras | Shaft nut | KP35-180 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | KP35-200 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | KP35-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | KP35-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | KP35-203 | 1 | -- | -- |
| TurboCentras | Cartridge | KP35-216 | 1 | -- | -- |
| TurboCentras | Bearing housing | KP35-306 | 1 | -- | -- |
| TurboCentras | Heat shield | KP35-323 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | KP35-39 | 1 | -- | -- |
| TurboCentras | Repair kit | KP35-51 | 1 | -- | -- |
| TurboCentras | Back plate | KP35-65 | 1 | -- | -- |
| TurboCentras | Bolt | M3X12 | 2 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Bolt | M6X12PV | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
54359980060, 54359710060, 54359700060, 11657823255, 11657823256, 5435 970 0060, 5435 971 0060, 5435 998 0060, 7823255, 7823256
Data updated: 2023-01-31 12:08:44
