Garrett
Turbo 760699-0004-R
Turbo 760699-0004-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

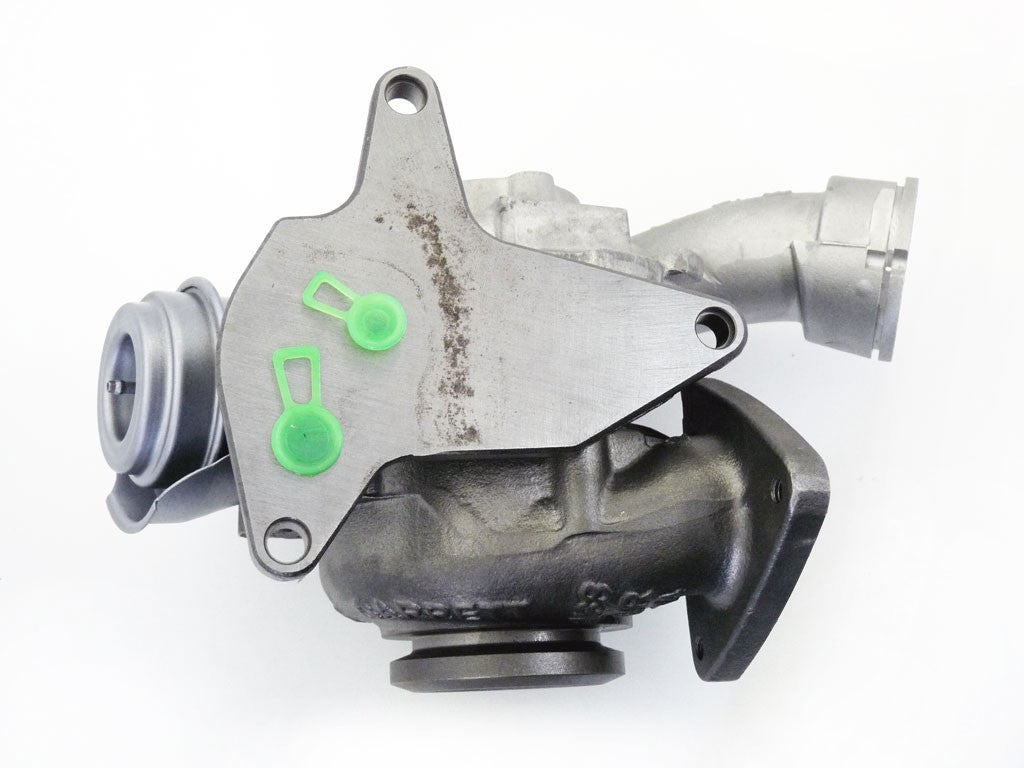

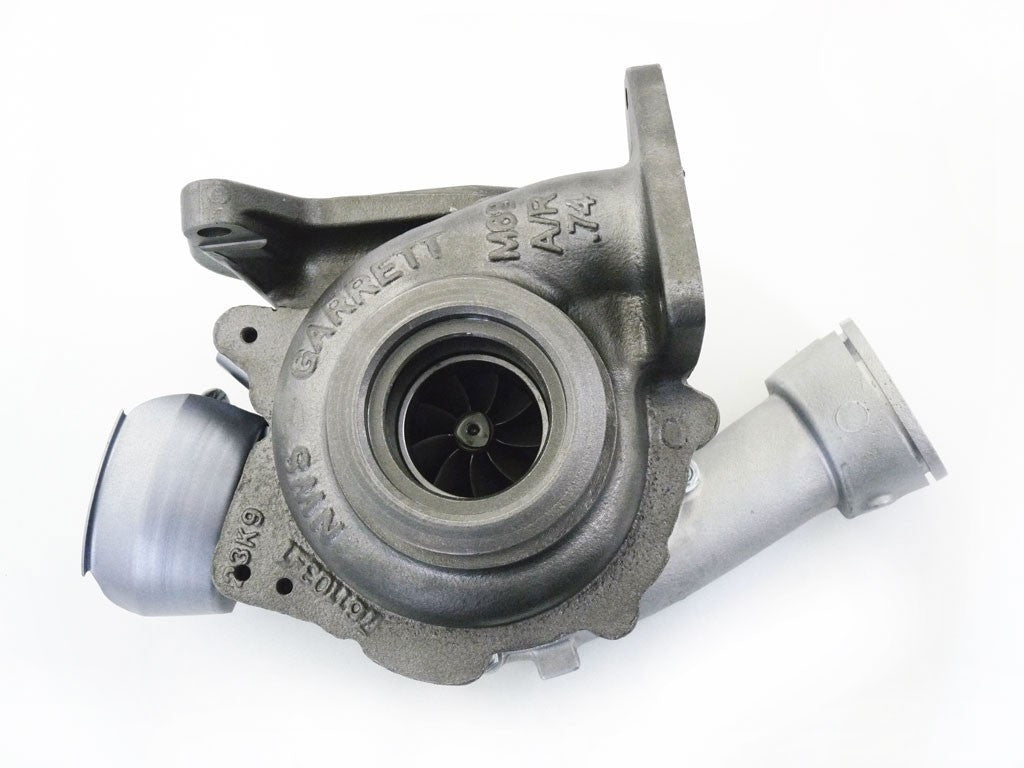

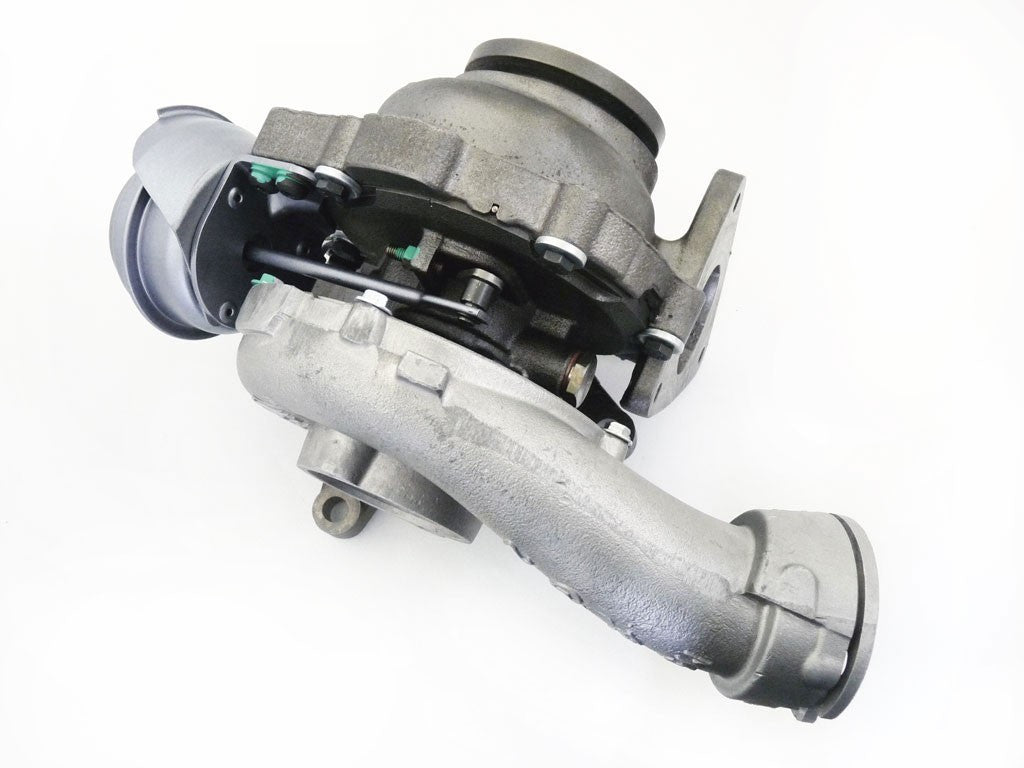

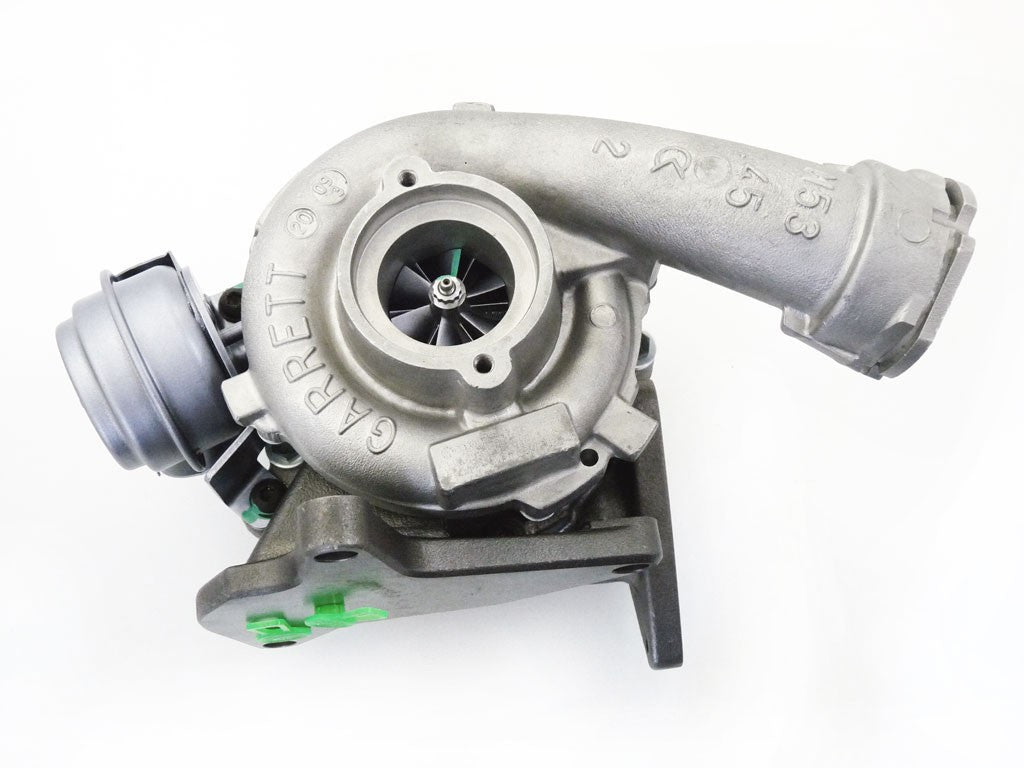

760699-0004 (070145701N, 1070145701N) - Turbocharger GTB1752V
Brand: Garrett
Model: GT17 - GTB1752V
Garrett Reference: 760699-0004

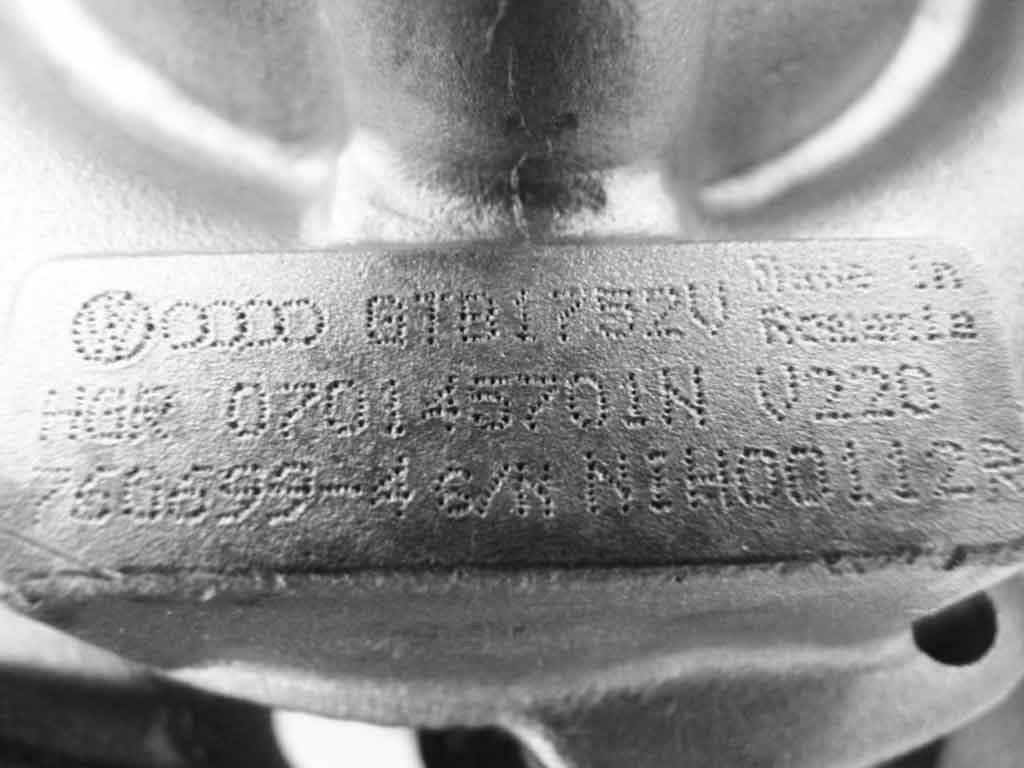

OEM Numbers: 070145701N, 1070145701N
760699-0004 - Alternative numbers
GHT (Garrett turbo number): 760699-0004
GHT (Garrett turbo number): 760699-5004S
GHT (Garrett turbo number): 760699-9004W
EET (EE turbo number): Turbo-G048
760699-0004 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
760699-0004 - Turbo replacements
Replaced by: Garrett GTB1752V 760699-0006, 760699-5006S, Turbo-G048
760699-0004 - Turbo interchangeability
Interchangeable with: Garrett GTB1752V 760699-0002, 070145701N, 070145701NV204, 760699-5002S
Interchangeable with: Garrett GTB1752V 760699-0003, 070145701N, 070145701NV210, 760699-5003S
Interchangeable with: Garrett GTB1752V 760699-0006, 760699-5006S, Turbo-G048
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0122 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0009 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0005 | 1 | 739921-0022, 739921-0046 | -- |
| TurboCentras | Compressor wheel | GA-03-0055 | 1 | 735475-0002, 784363-0002 | -- |
| TurboCentras | Repair kit | GA-04-0016 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0015 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GA-07-0004 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0026 | 1 | -- | -- |
| TurboCentras | Turbine housing | GA-09-0027 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0033 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1039 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
070145701N, 1070145701N, 760699-0004, 760699-5004S, 760699-9004W, Turbo-G048
Data updated: 2025-03-03 11:40:56
