Garrett

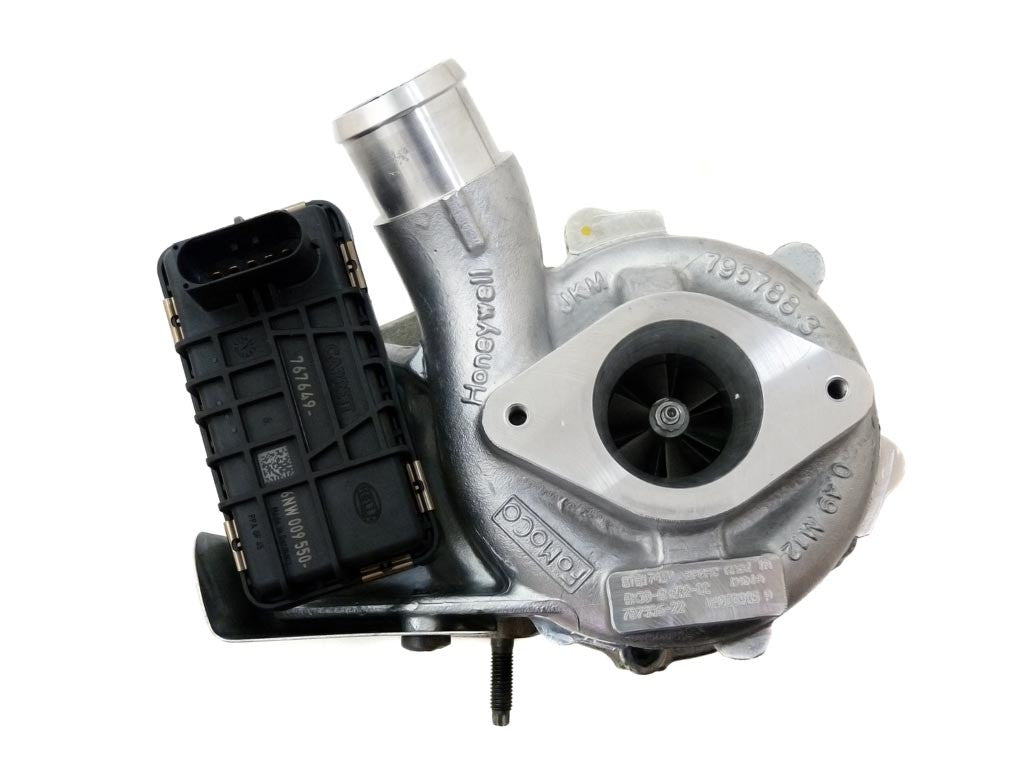

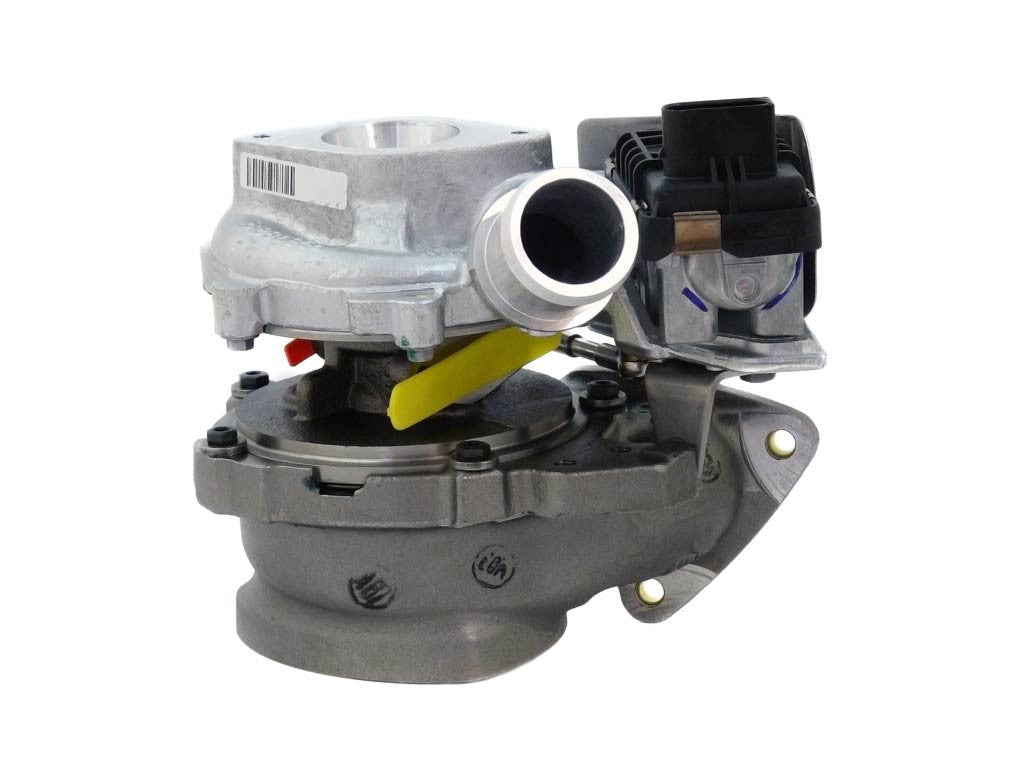

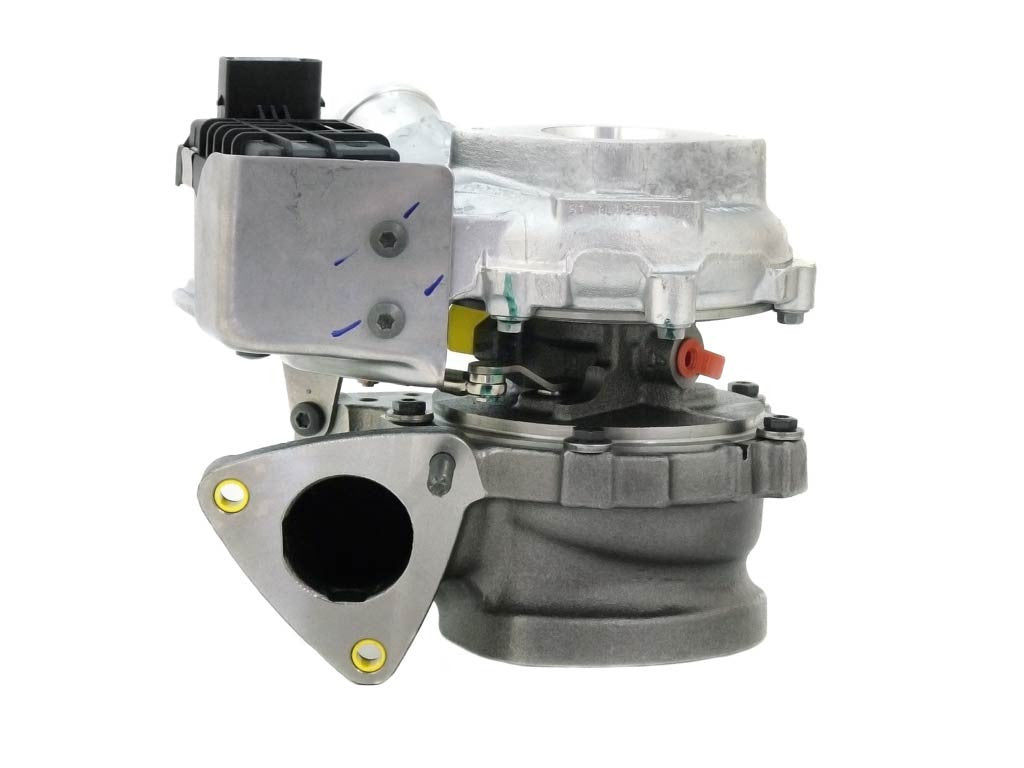

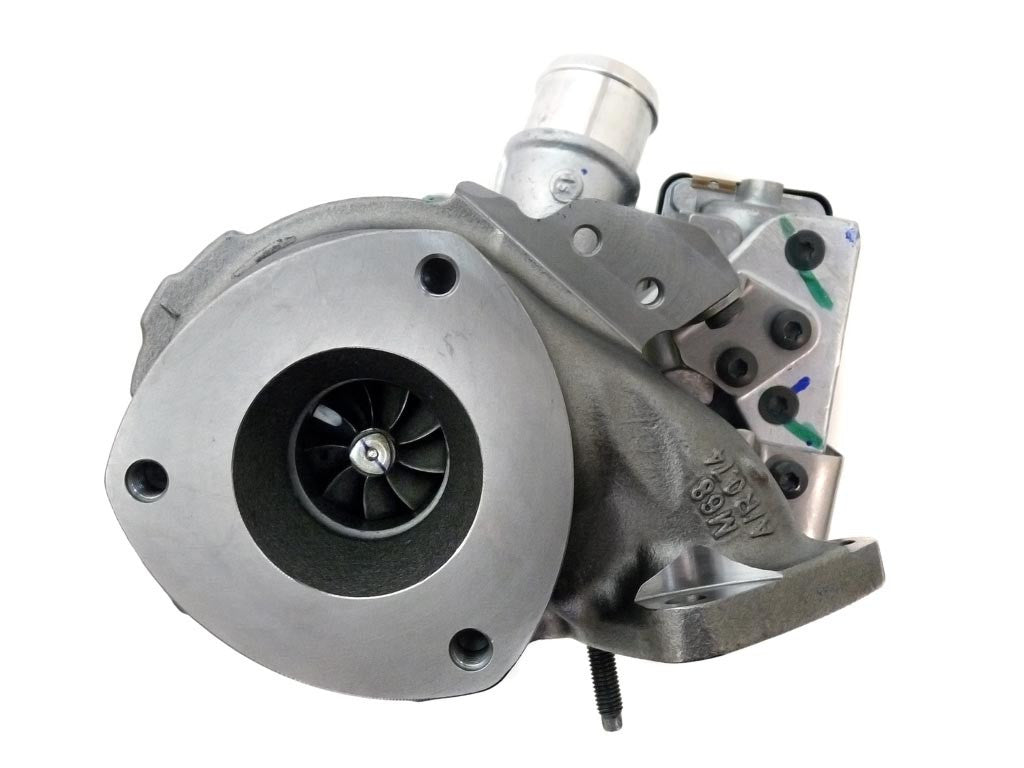

Turbo 854800-0001
Turbo 854800-0001
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
854800-0001 (BK3Q-6K682-PC, BK3Q6K682PC) - Turbocharger GTB1749V
Brand: Garrett
Model: GT17 - GTB1749V
Garrett Reference: 854800-0001
OEM Numbers: BK3Q-6K682-PC, BK3Q6K682PC
854800-0001 - Alternative numbers
GHT (Garrett turbo number): 854800-0001
GHT (Garrett turbo number): 854800-5001W
GHT (Garrett turbo number): 854800-9001W
854800-0001 - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
854800-0001 - Turbo replacements
Replacement for: Garrett GTB1749V 787556-0016, 787556-5016S, BK3Q-6K682-PC, BK3Q6K682PC
Replacement for: Garrett GTB1749V 787556-0017, 787556-5017S, BK3Q-6K682-CB, BK3Q6K682CB
Replacement for: Garrett GTB1749V 787556-0017-R, 787556-0017, 787556-9017S, BK3Q-6K682-CB, BK3Q6K682CB
Replacement for: Garrett GTB1749V 787556-0022, 787556-5022S, BK3Q-6K682-CC, BK3Q6K682CC
854800-0001 - Turbo interchangeability
Interchangeable with: BMTS BM 40006917, 1719695, 1760759, 1863278, 1899517, BK3Q-6K682-PB, BK3Q-6K682-PC, BK3Q6K682CB, BK3Q6K682CC, BK3Q6K682PB, BK3Q6K682PC, RMBK3Q6K682CB
Interchangeable with: Garrett GTB1749V 787556-0016, 787556-5016S, BK3Q-6K682-PC, BK3Q6K682PC
Interchangeable with: Garrett GTB1749V 787556-0017, 787556-5017S, BK3Q-6K682-CB, BK3Q6K682CB
Interchangeable with: Garrett GTB1749V 787556-0017-R, 787556-0017, 787556-9017S, BK3Q-6K682-CB, BK3Q6K682CB
Interchangeable with: Garrett GTB1749V 787556-0022, 787556-5022S, BK3Q-6K682-CC, BK3Q6K682CC
Interchangeable with: Master Power MP215GV 805801, 1717628, 1719695, 1760759, 1899517, BK3Q6K682CB, BK3Q6K682CC, BK3Q6K682PB, BK3Q6K682PC
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| Hella | Actuator | 6NW009550-271 | 1 | -- | 767649-0088 |
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0129 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0072 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0079 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0057 | 1 | 735492-0003, 784361-0003 | -- |
| TurboCentras | Repair kit | GA-04-0016 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0015 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0027 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GA-07-0011 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0046 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT17-060 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
854800-0001, 854800-5001W, 854800-9001W, BK3Q-6K682-PC, BK3Q6K682PC
Data updated: 2025-06-10 17:46:27
