BorgWarner

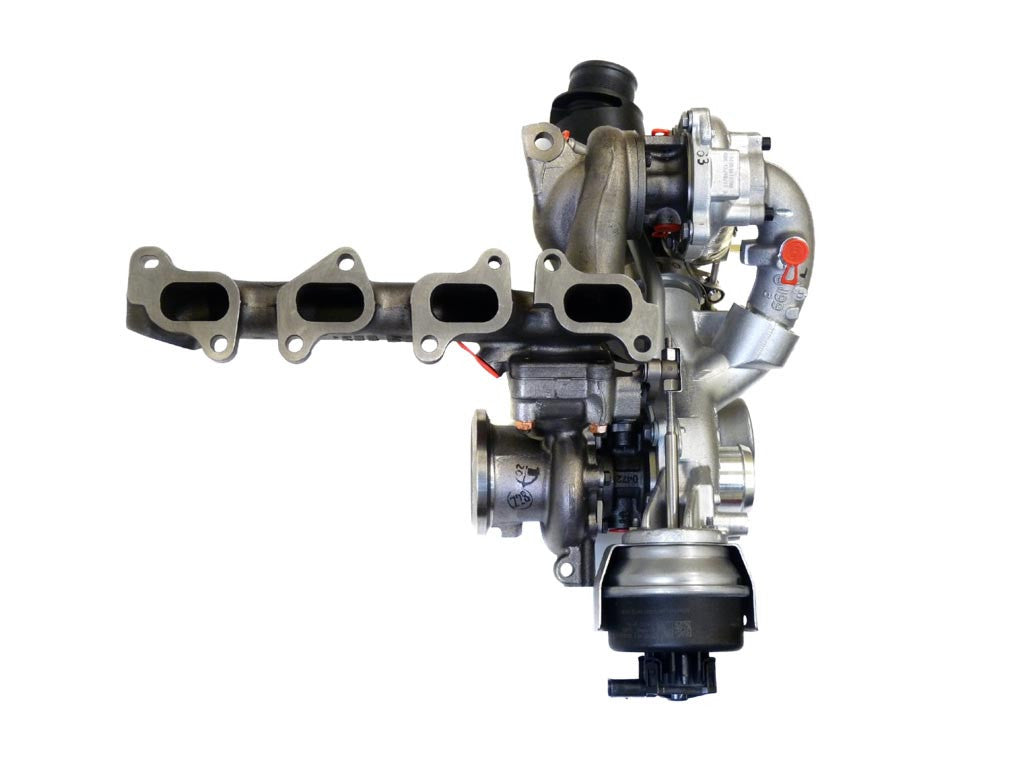

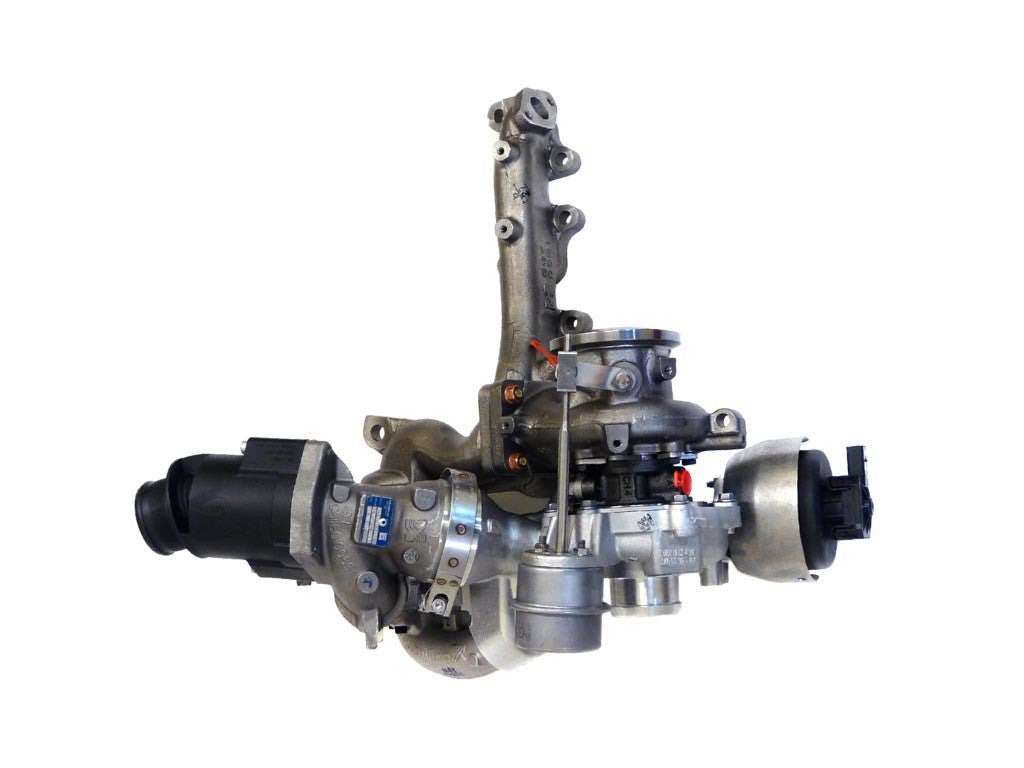

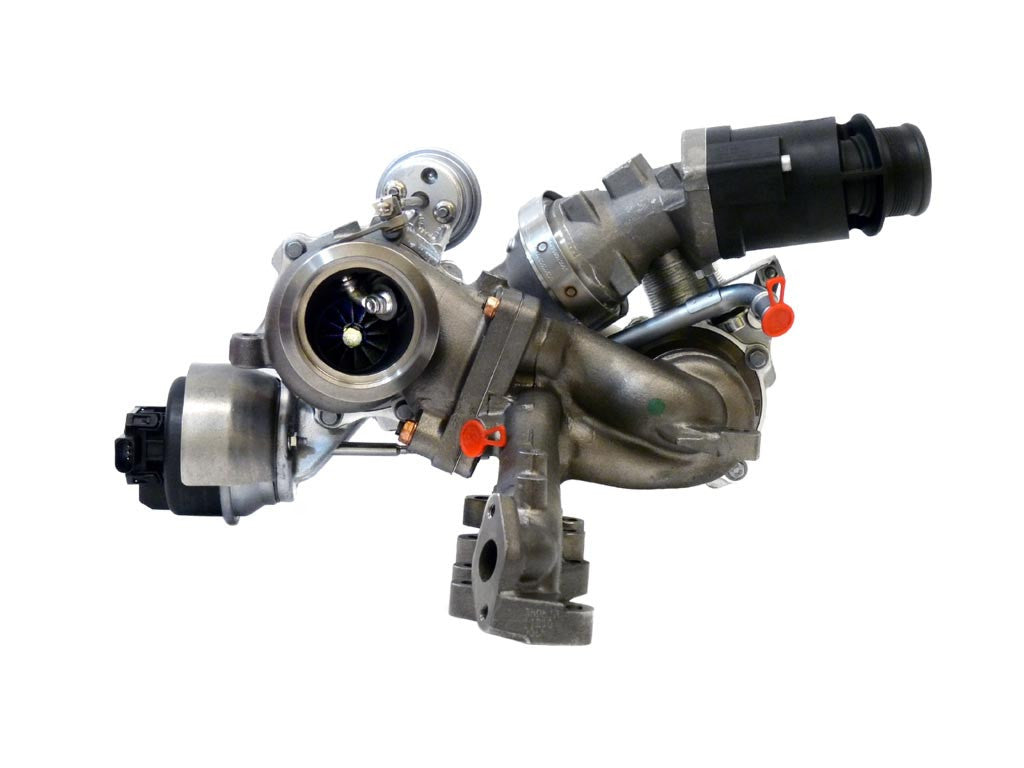

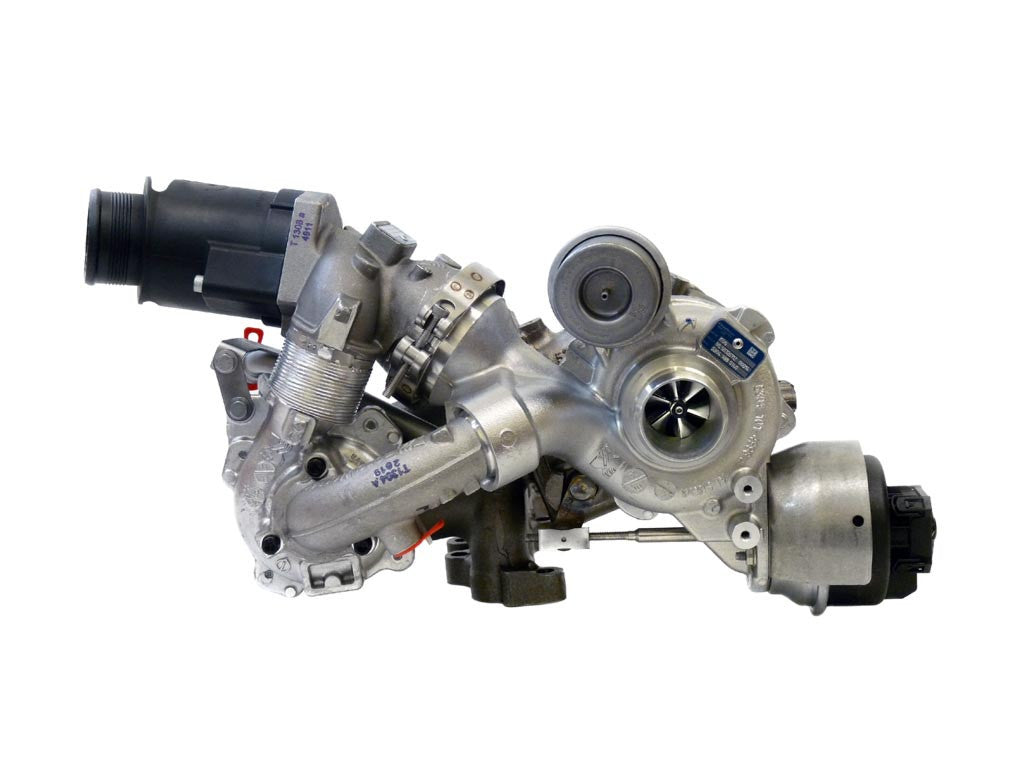

Turbo 10009700102 10009930102
Turbo 10009700102 10009930102
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
10009700102 (03L145715G) - Multiple turbocharger
Brand: BorgWarner
BorgWarner Reference: 10009700102
OEM Numbers: 03L145715G
10009700102 - Alternative numbers
BWT (BorgWarner original turbo number): 1000 970 0102
BWS (BorgWarner service turbo number): 1000 988 0102
BWS (BorgWarner service turbo number): 1000 993 0102
10009700102 - Technologies and actuation
Turbocharger technology: R2S (Regulated Two-Stage Turbocharging), HP (High pressure)
10009700102 - Turbo replacements
Replacement for: BorgWarner KP35-R2S + K04 10009700026
Replacement for: BorgWarner KP35-R2S + K04 10009700029
Replacement for: BorgWarner KP35-R2S + K04 10009700065
Replacement for: BorgWarner KP35-R2S + K04 10009700066
10009700102 - Turbo interchangeability
Interchangeable with: BorgWarner KP35-R2S + K04 10009700026
Interchangeable with: BorgWarner KP35-R2S + K04 10009700029
Interchangeable with: BorgWarner KP35-R2S + K04 10009700065
Interchangeable with: BorgWarner KP35-R2S + K04 10009700066
| Turbo 10009700102 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 6 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0024 | 1 | -- | -- |
| TurboCentras | Back plate | BW-08-0007 | 1 | -- | -- |
| TurboCentras | Bearing housing | K03-314 | 1 | -- | 5304 150 0004 |
| TurboCentras | Journal bearing | KP35-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-132 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-133 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-163 | 4 | -- | -- |
| TurboCentras | Shaft nut | KP35-180 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-200 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-201 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-202 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-203 | 1 | -- | -- |
| TurboCentras | Cartridge | KP35-218 | 1 | -- | -- |
| TurboCentras | Bearing housing | KP35-307 | 1 | -- | -- |
| TurboCentras | Heat shield | KP35-322 | 1 | -- | -- |
| TurboCentras | Repair kit | KP35-51 | 1 | -- | -- |
| E&E Turbo | Cartridge | R2S-000-HB | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
10009930102, 10009880102, 10009700102, 03L145715G, 1000 970 0102, 1000 988 0102, 1000 993 0102
Data updated: 2023-07-04 08:39:00
