Garrett

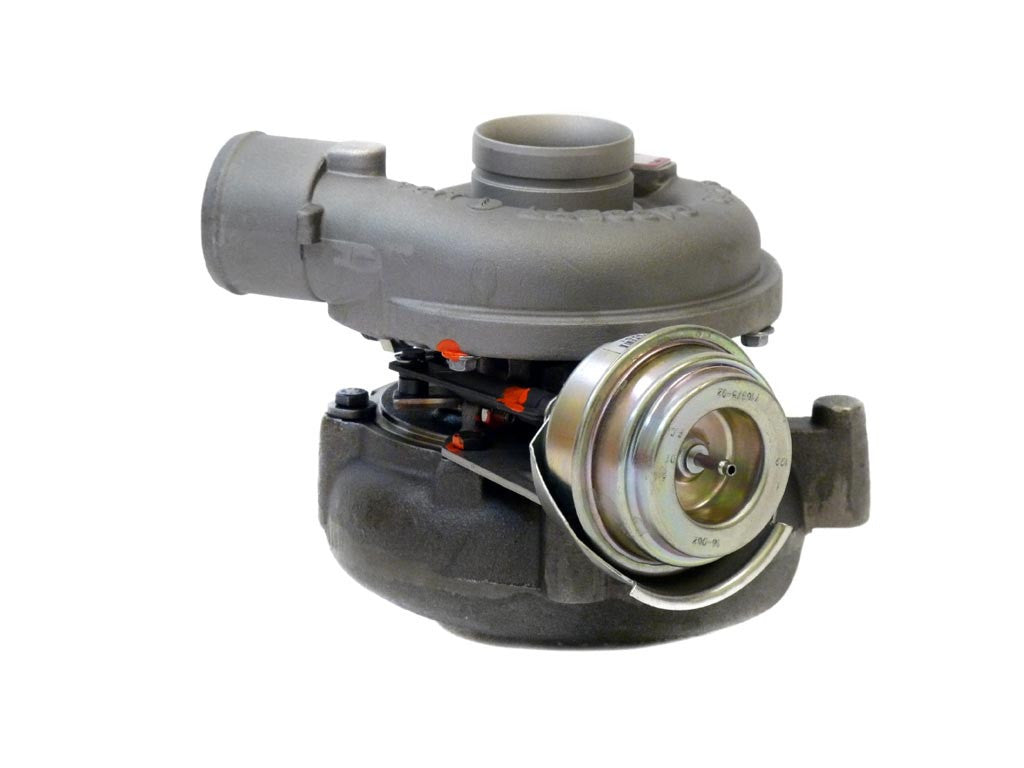

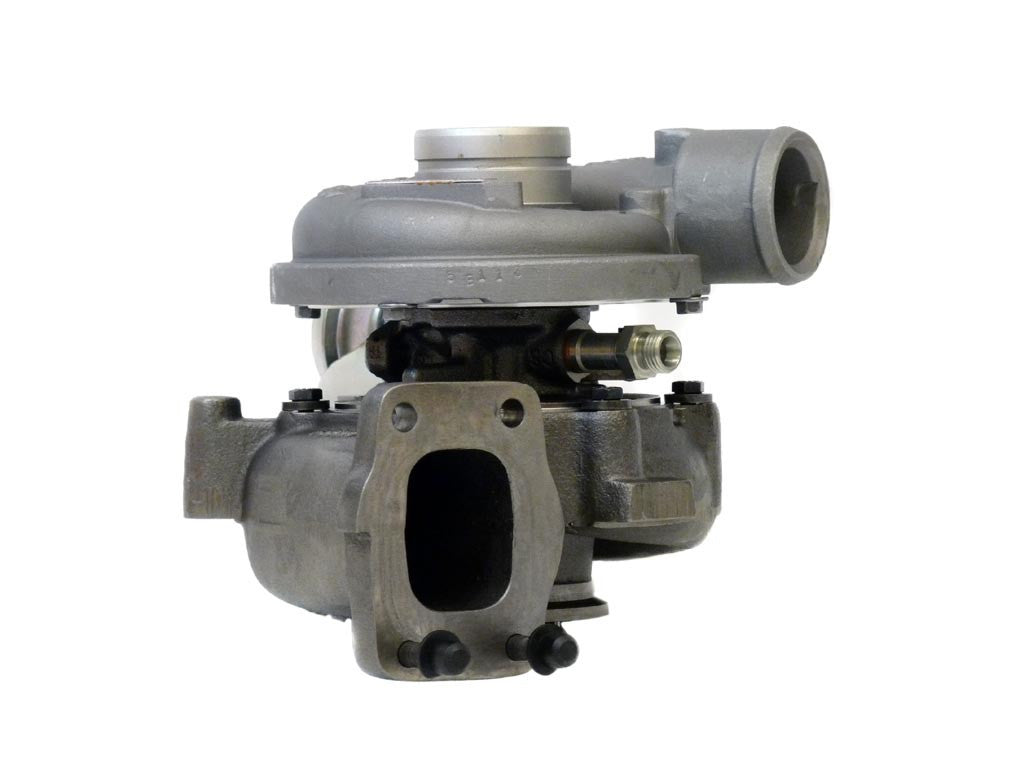

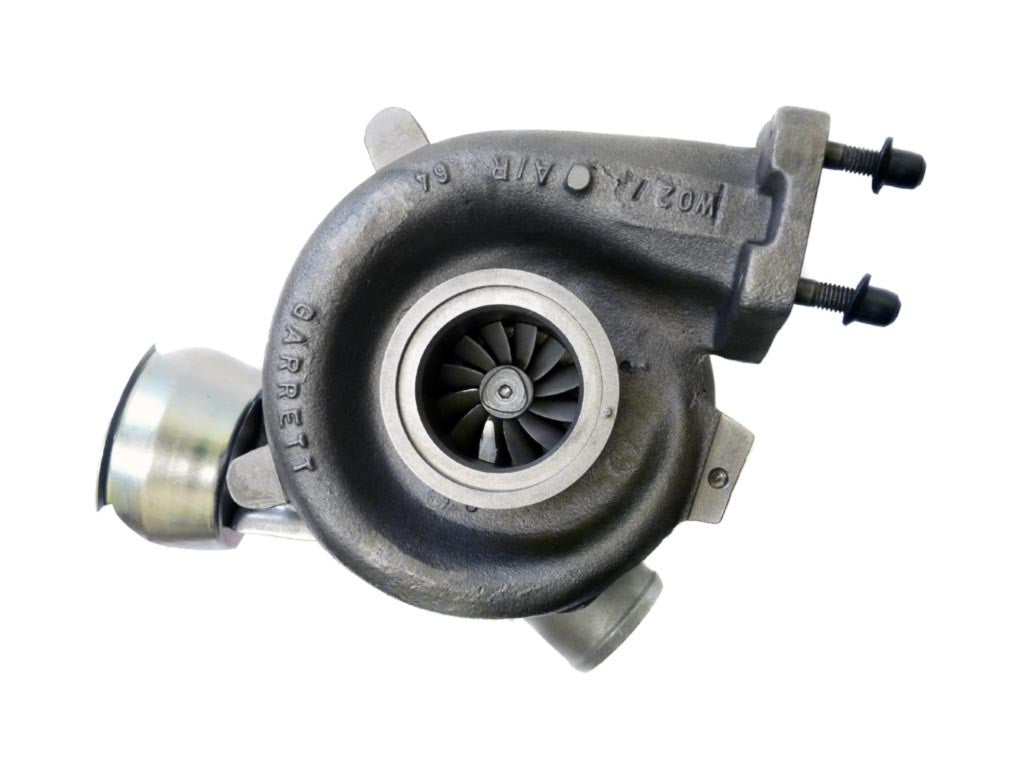

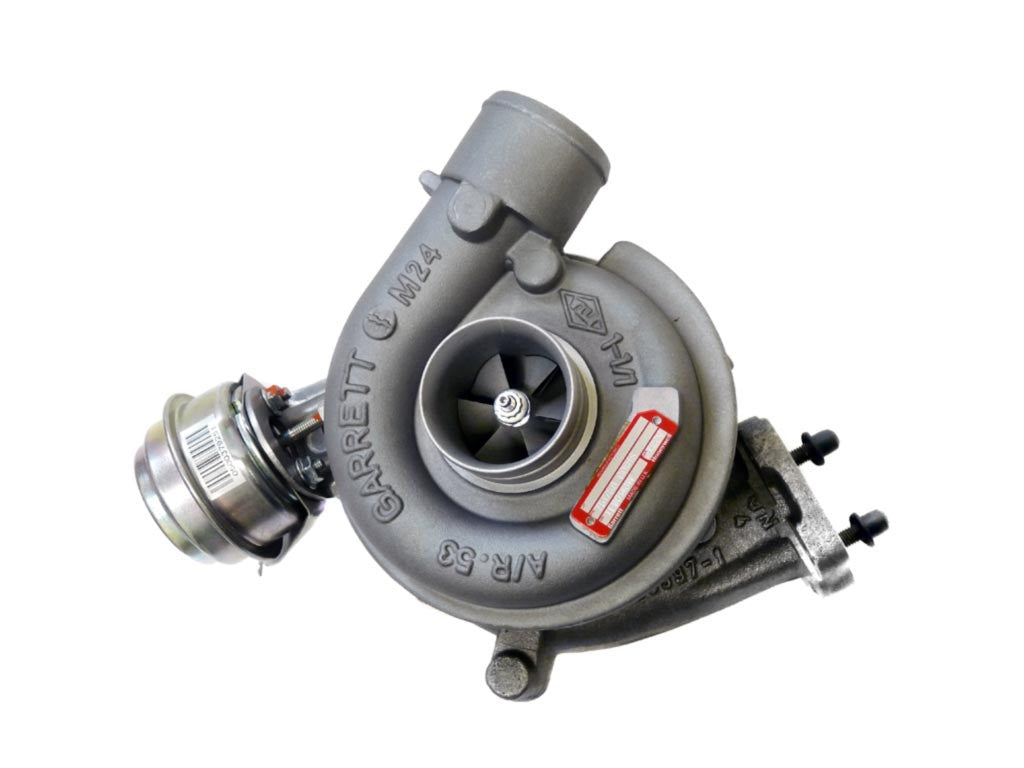

Turbo 751758-0002 751758-9002S
Turbo 751758-0002 751758-9002S
Redna cena
€290,00 EUR
Redna cena
Znižana cena
€290,00 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
751758-0002 (500379251) - Turbocharger
Brand: Garrett
Garrett Reference: 751758-0002
OEM Numbers: 500379251
751758-0002 - Alternative numbers
GHO (Garrett original part number): 751758-0002
GHA (Garrett aftermarket part number): 751758-5002S
GHR (Garrett remanufactured part number): 751758-9002S
751758-0002 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
751758-0002 - Turbo replacements
Replacement for: Garrett GT2256V 707114-0001
Replacement for: Garrett GT2256V 751758-0001
751758-0002 - Turbo interchangeability
Interchangeable with: Garrett GT2256V 707114-0001
Interchangeable with: Garrett GT2256V 751758-0001
| Turbo 751758-0002 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-323 | 1 | -- | 443768-0003 |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-50 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-52 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT22-00 | 1 | -- | 436563-0001 |
| TurboCentras | Cartridge | GT22-218 | 1 | -- | -- |
| TurboCentras | Bearing housing | GT22-307 | 1 | -- | -- |
| TurboCentras | Back plate | GT22-61 | 1 | -- | 434820-0003 |
| TurboCentras | Shaft and wheel | GT25-37 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 1 | -- | -- |
| TurboCentras | Bolt | M5X8 | 1 | -- | -- |
| TurboCentras | Bolt | M6 | 1 | -- | -- |
| TurboCentras | Bolt | M6X10 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
500379251, 751758-0002, 751758-5002S, 751758-9002S
Data updated: 2022-07-12 15:54:22
