Mitsubishi

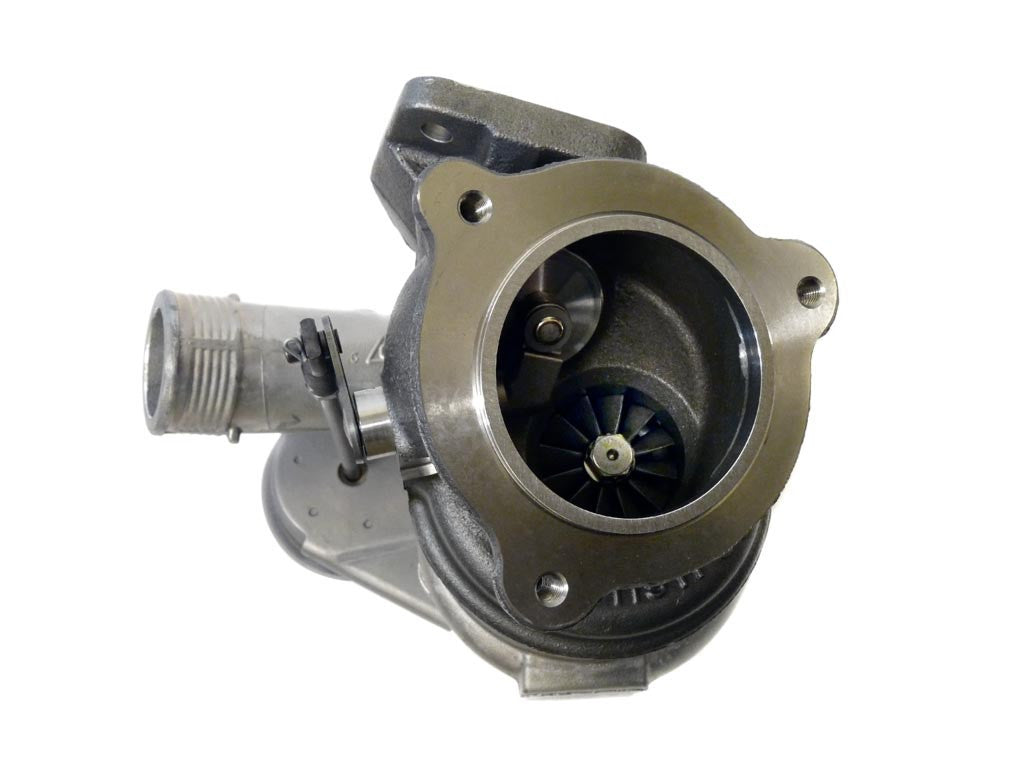

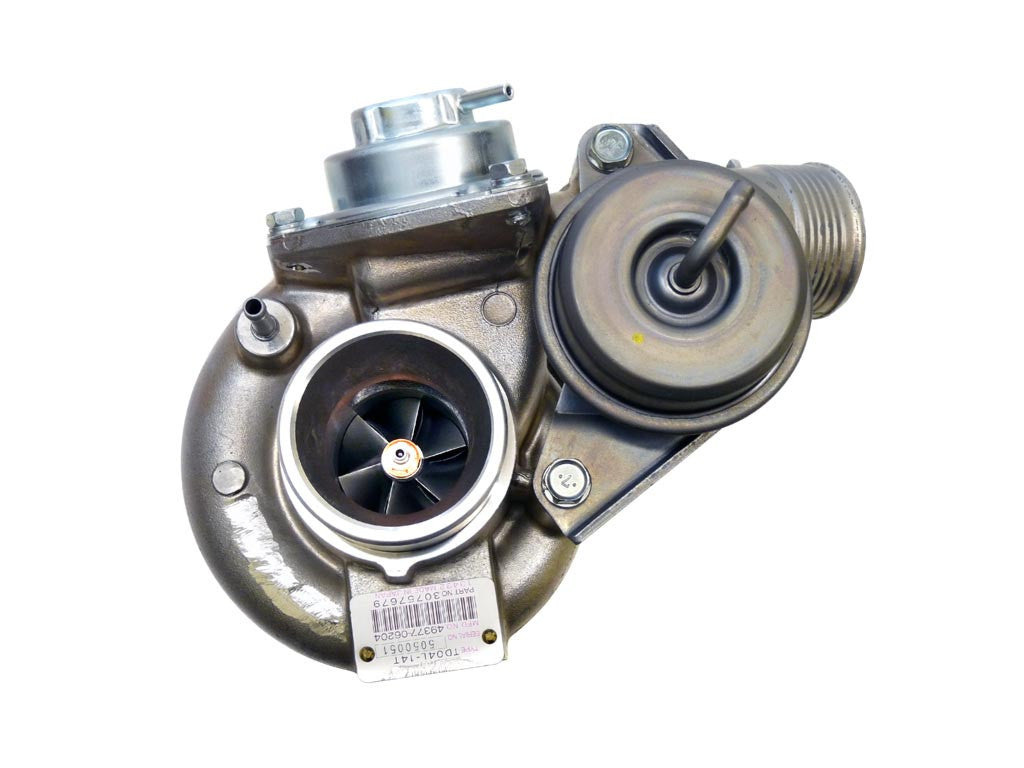

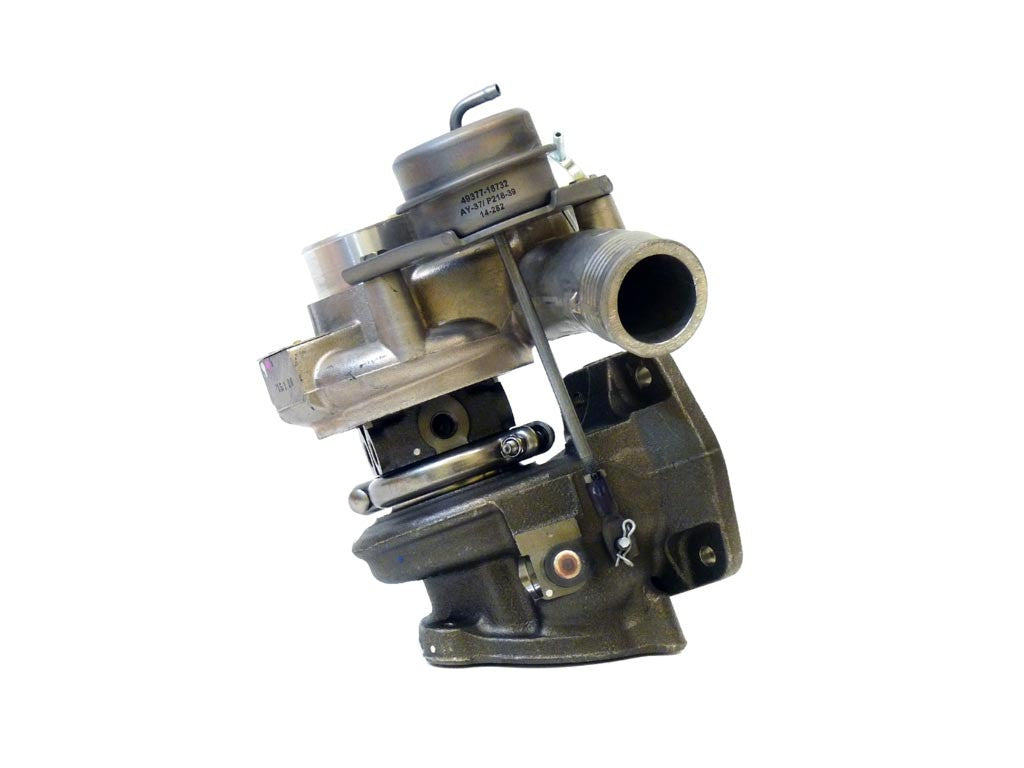

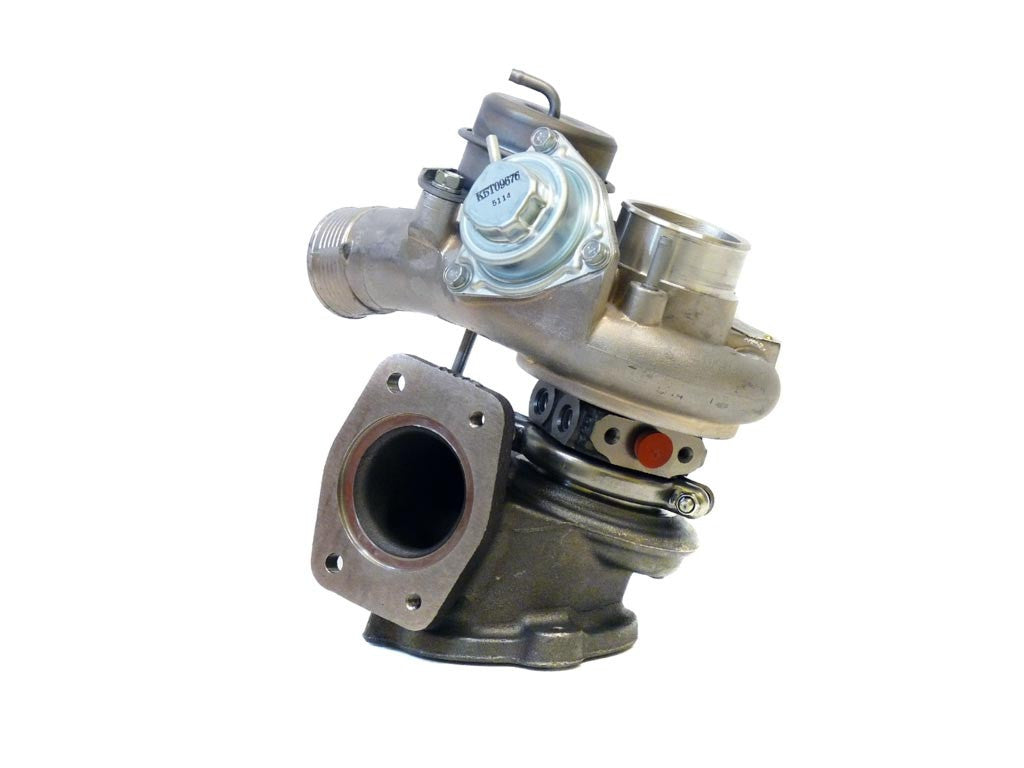

Turbo 49377-06204
Turbo 49377-06204
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
49377-06204 (30757679, 31361501) - Turbocharger
Brand: Mitsubishi
Mitsubishi Reference: 49377-06204
OEM Numbers: 30757679, 31361501
49377-06204 - Alternative numbers
MHO (Mitsubishi original part number): 49377-06204
49377-06204 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: WG (Wastegate)
49377-06204 - Turbo replacements
Replaced by: Mitsubishi TD04L-14T-6.0 49377-06210
Replaced by: Mitsubishi TD04L-14T-6.0 49377-06212
Replaced by: Mitsubishi TD04L-14T-6.0 49377-06213
Replaced by: Mitsubishi TD04L-14T-6.0 49377-06214
Replacement for: Mitsubishi TD04L-14T-6.0 49377-06200
Replacement for: Mitsubishi TD04L-14T-6.0 49377-06201
Replacement for: Mitsubishi TD04L-14T-6.0 49377-06202
Replacement for: Mitsubishi TD04L-14T-6.0 49377-06203
49377-06204 - Turbo interchangeability
Interchangeable with: Mitsubishi TD04L-14T-6.0 49377-06200
Interchangeable with: Mitsubishi TD04L-14T-6.0 49377-06201
Interchangeable with: Mitsubishi TD04L-14T-6.0 49377-06202
Interchangeable with: Mitsubishi TD04L-14T-6.0 49377-06203
Interchangeable with: Mitsubishi TD04L-14T-6.0 49377-06210
Interchangeable with: Mitsubishi TD04L-14T-6.0 49377-06211
Interchangeable with: Mitsubishi TD04L-14T-6.0 49377-06212
Interchangeable with: Mitsubishi TD04L-14T-6.0 49377-06213
Interchangeable with: Mitsubishi TD04L-14T-6.0 49377-06214
Interchangeable with: Master Power MP163CW 805844
| Turbo 49377-06204 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | MITSUBISHI PART NUMBER |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Journal bearing | TD04-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | TD04-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | TD04-131 | 1 | -- | -- |
| TurboCentras | Thrust Collar | TD04-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | TD04-144 | 2 | -- | -- |
| TurboCentras | Retaining ring (B) | TD04-145 | 1 | -- | -- |
| TurboCentras | Oil deflector | TD04-146 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | TD04-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | TD04-180 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | TD04-200 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | TD04-201 | 1 | -- | -- |
| TurboCentras | Cartridge | TD04-230 | 1 | -- | -- |
| TurboCentras | Bearing housing | TD04-316 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | TD04-39 | 1 | -- | 49177-30300 |
| TurboCentras | Repair kit | TD04-51 | 1 | -- | -- |
| TurboCentras | Back plate | TD04-61 | 1 | -- | -- |
| TurboCentras | Heat shield | TF035-322 | 1 | -- | -- |
30757679, 31361501, 49377-06204
Data updated: 2022-04-14 10:20:28
