Garrett
Turbo 794877-0008
Turbo 794877-0008
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

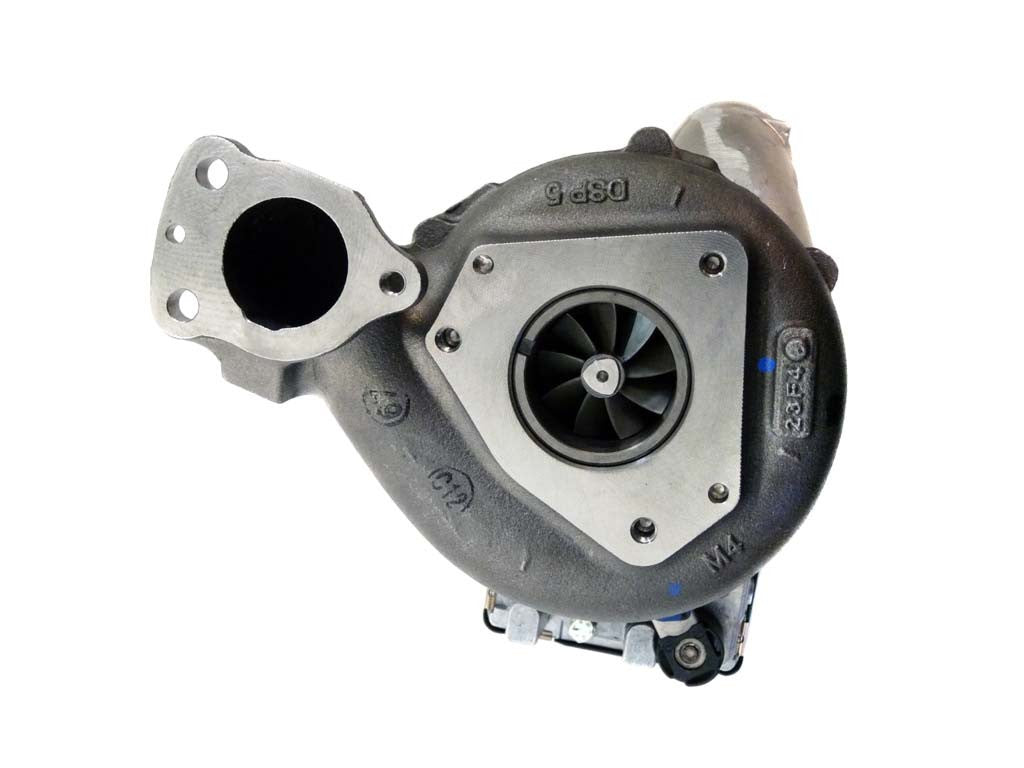

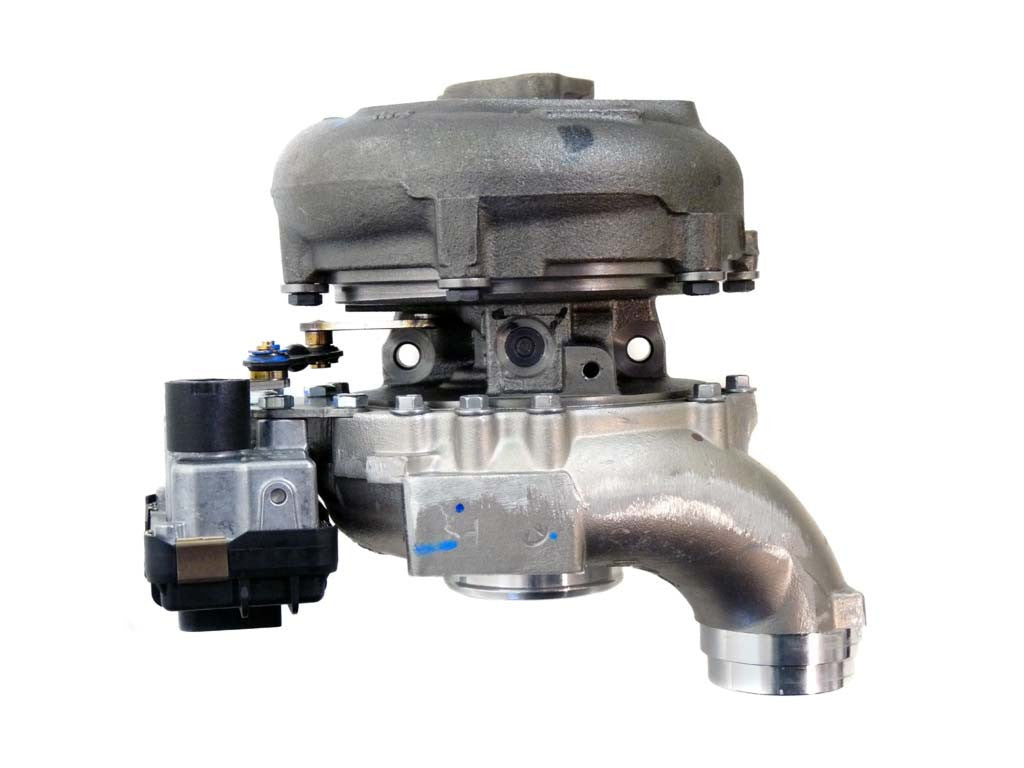

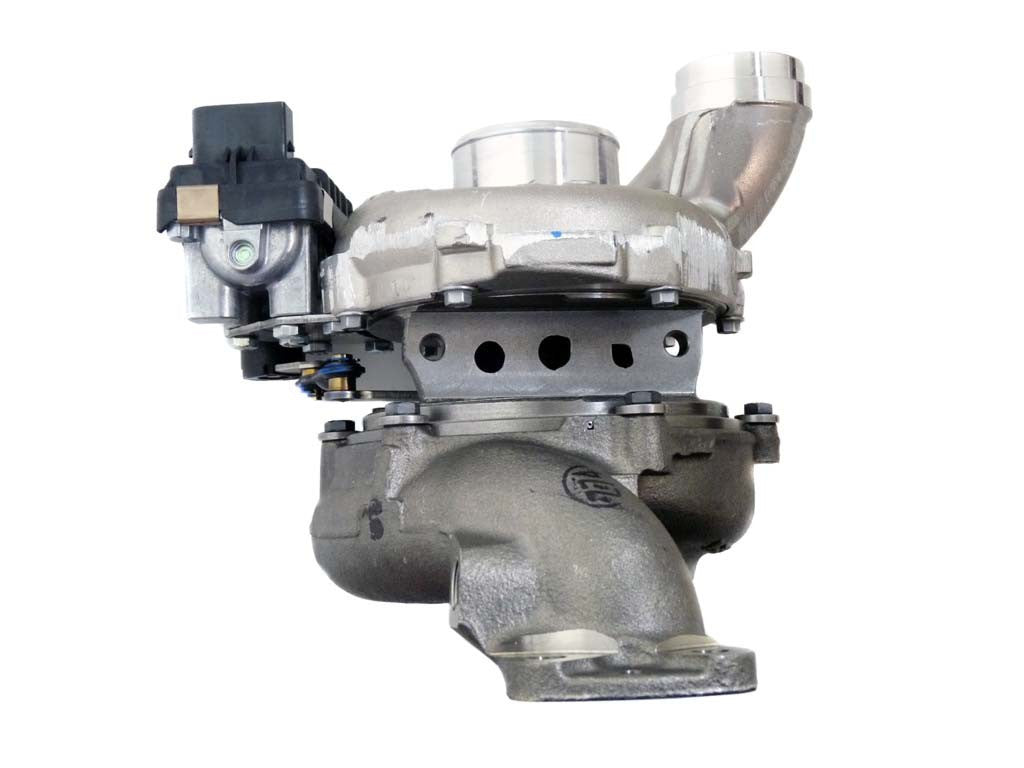

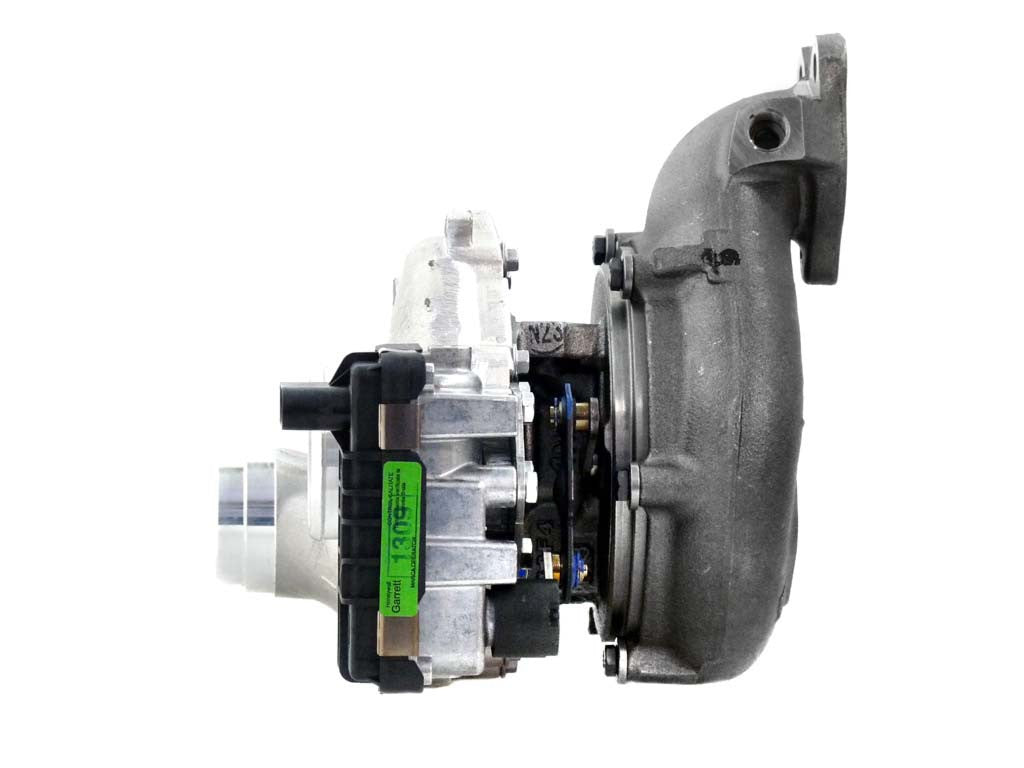

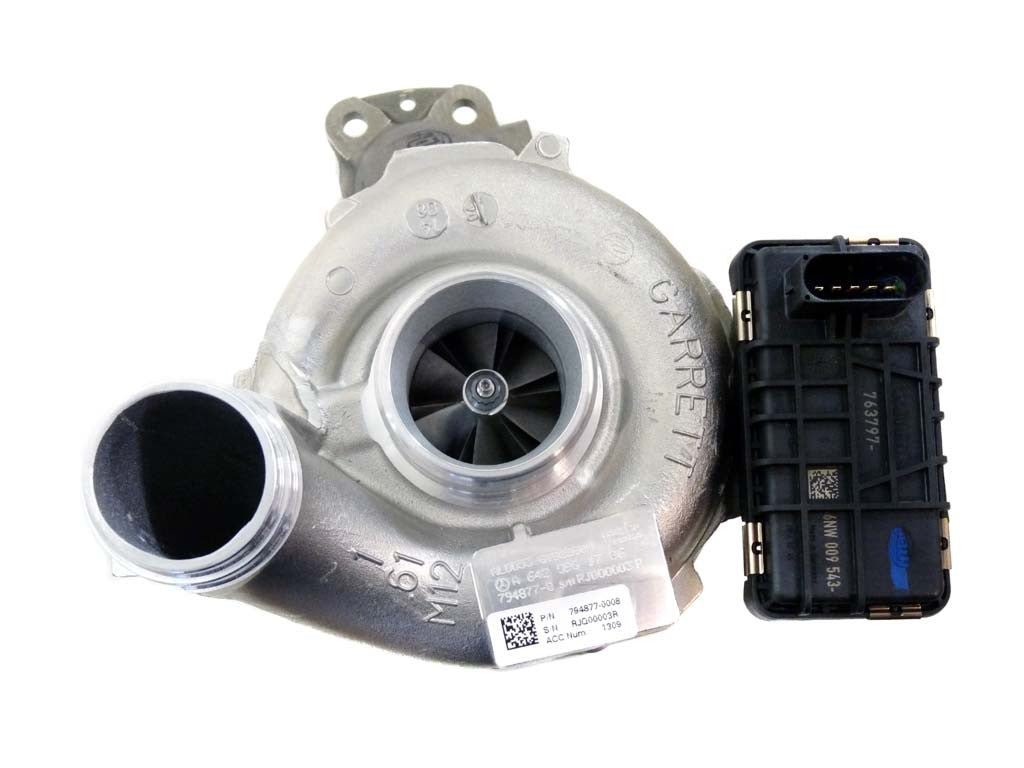

794877-0008 (A6420901786) - Turbocharger GTB2260VKLR
Brand: Garrett
Model: GT22 - GTB2260VKLR
Garrett Reference: 794877-0008
OEM Numbers: A6420901786
794877-0008 - Alternative numbers
GHT (Garrett turbo number): 794877-0008
GHT (Garrett turbo number): 794877-5008S
794877-0008 - Technologies and actuation
Actuation type: Electric (Electric actuator)
794877-0008 - Turbo replacements
Replaced by: Garrett GTB2260VKLR 794877-0009, 794877-5009S, 794877-9009S, A6420901786, A6420909580
794877-0008 - Turbo interchangeability
Interchangeable with: Garrett GTB2260VKLR 794877-0004, 6420909580, 794877-5004S, A6420909580
Interchangeable with: Garrett GTB2260VKLR 794877-0006, 6420901786, 794877-5006S, A6420901786
Interchangeable with: Garrett GTB2260VKLR 794877-0007, 6420901786, 794877-5007S, A6420901786
Interchangeable with: Garrett GTB2260VKLR 794877-0009, 794877-5009S, 794877-9009S, A6420901786, A6420909580
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | GA-00-0214 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0148 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0102 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0087 | 1 | 784369-0002, 787571-0002 | -- |
| TurboCentras | Repair kit | GA-04-0021 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0018 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0041 | 1 | 809378-0002 | -- |
| TurboCentras | Back plate | GA-08-0054 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT22-100 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT22-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT22-130 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT22-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-15 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1116 | 1 | -- | -- |
794877-0008, 794877-5008S, A6420901786
Data updated: 2024-11-22 10:29:01
