Garrett
Turbo 821866-0009
Turbo 821866-0009
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

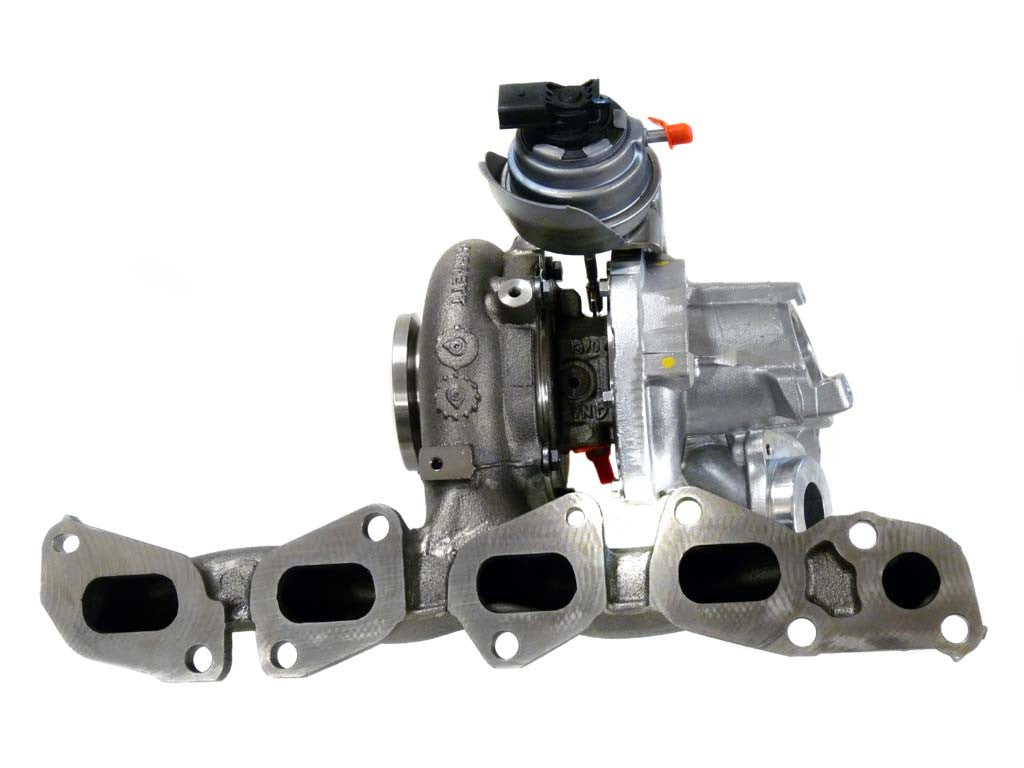

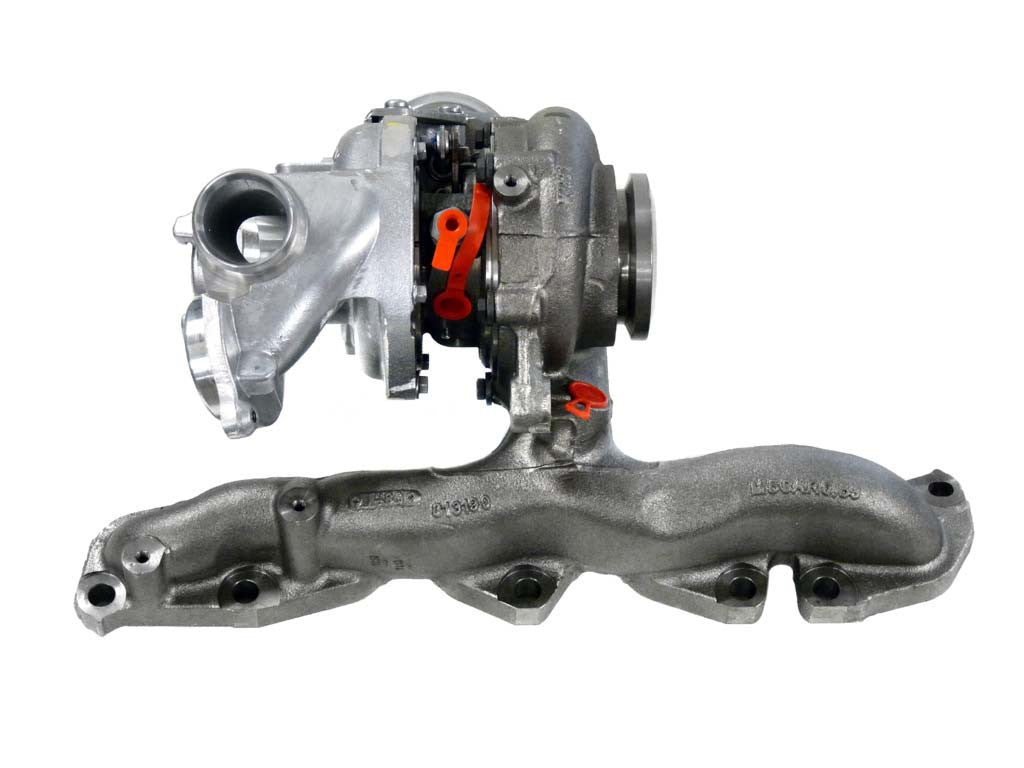

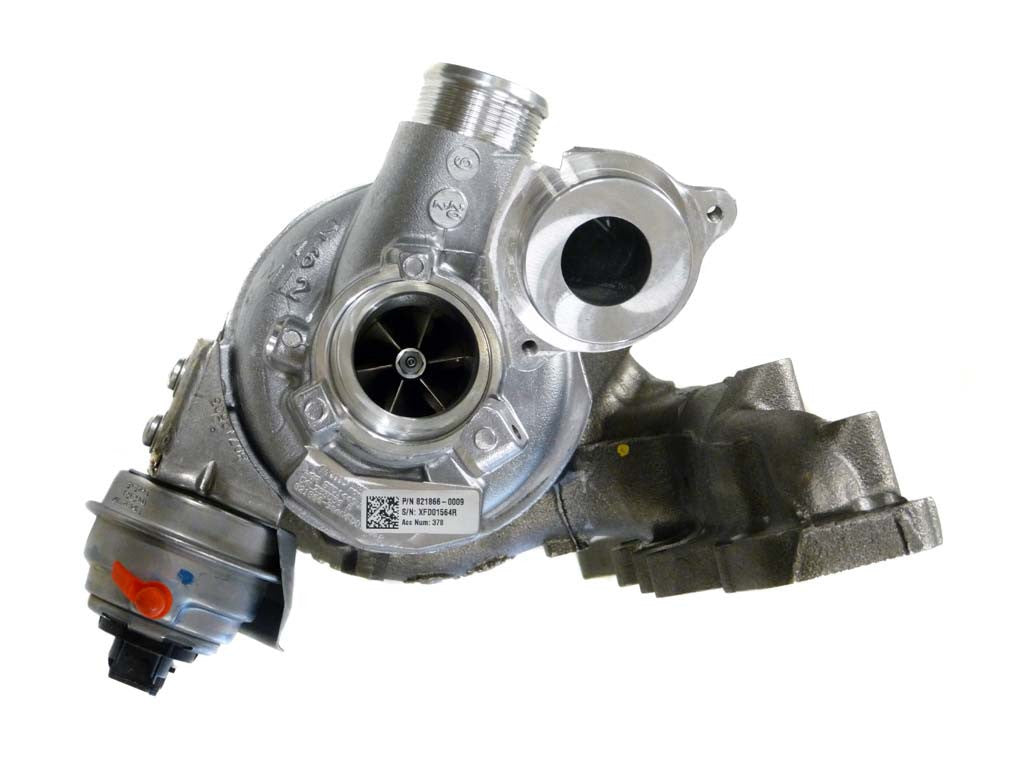

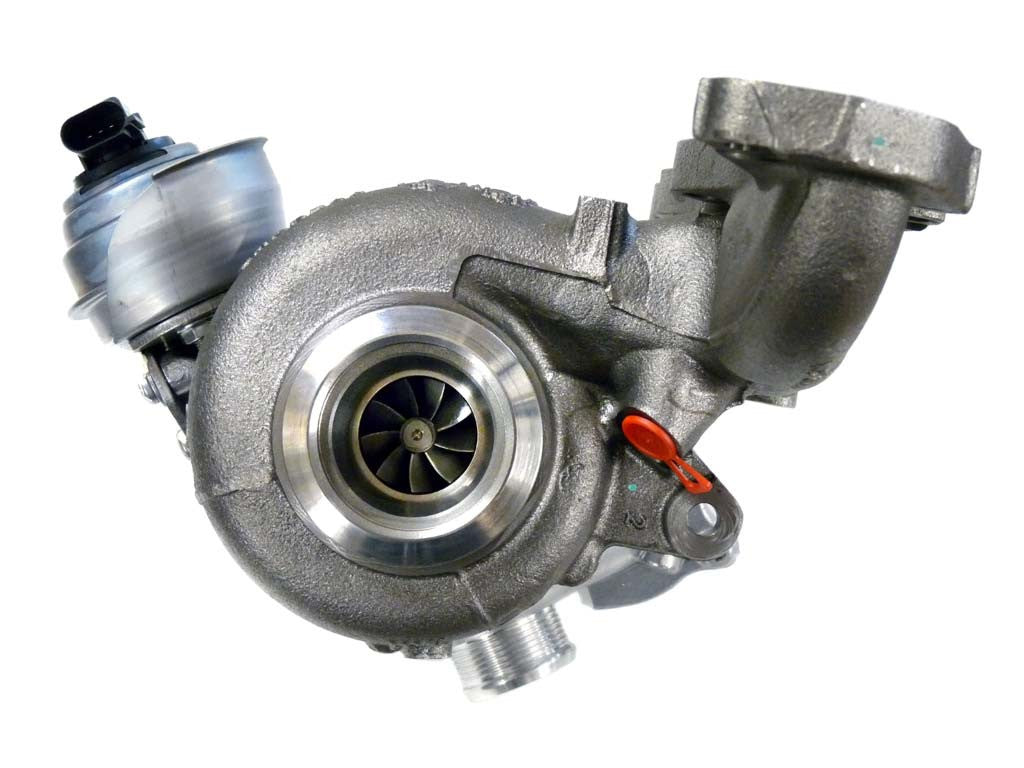

821866-0009 (04L253056P) - Turbocharger GTD1449V
Brand: Garrett
Model: GT14 - GTD1449V
Garrett Reference: 821866-0009
OEM Numbers: 04L253056P
821866-0009 - Alternative numbers
GHT (Garrett turbo number): 821866-0009
GHT (Garrett turbo number): 821866-5009S
GHT (Garrett turbo number): 821866-9009S
821866-0009 - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
821866-0009 - Turbo replacements
Replacement for: Garrett GTD1449V 821866-0002, 04L253010HV260, 821866-5002S
Replacement for: Garrett GTD1449V 821866-0003, 04L253010HV280, 821866-5003S
Replacement for: Garrett GTD1449V 821866-0004, 04L253010H, 04L253010HV310, 821866-5004S
Replacement for: Garrett GTD1449V 821866-0006, 04L253010HV310, 821866-5006S
Replacement for: Garrett GTD1449V 821866-9004, 04L253010H
821866-0009 - Turbo interchangeability
Interchangeable with: Garrett GTD1449VZ 821866-0001, 04L253010H
Interchangeable with: Garrett GTD1449V 821866-0002, 04L253010HV260, 821866-5002S
Interchangeable with: Garrett GTD1449V 821866-0003, 04L253010HV280, 821866-5003S
Interchangeable with: Garrett GTD1449V 821866-0004, 04L253010H, 04L253010HV310, 821866-5004S
Interchangeable with: Garrett GTD1449V 821866-0006, 04L253010HV310, 821866-5006S
Interchangeable with: Garrett GTD1449VZ 821866-0007, 04L253010H
Interchangeable with: Garrett GTD1449V 821866-9004, 04L253010H
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | GA-00-0283 | 1 | -- | -- |
| TurboCentras | Cartridge | GA-00-0289 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0030 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0027 | 1 | -- | -- |
| TurboCentras | Repair kit | GA-04-0010 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0001 | 1 | -- | -- |
| TurboCentras | VNT centering ring | GT12-149 | 1 | -- | -- |
| EE Turbo | Cartridge | GT14-033-C | 1 | -- | -- |
| EE Turbo | Cartridge | GT14-033B | 1 | -- | -- |
04L253056P, 821866-0009, 821866-5009S, 821866-9009S
Data updated: 2024-11-22 10:30:47
