Garrett
Turbo 830323-0003
Turbo 830323-0003
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

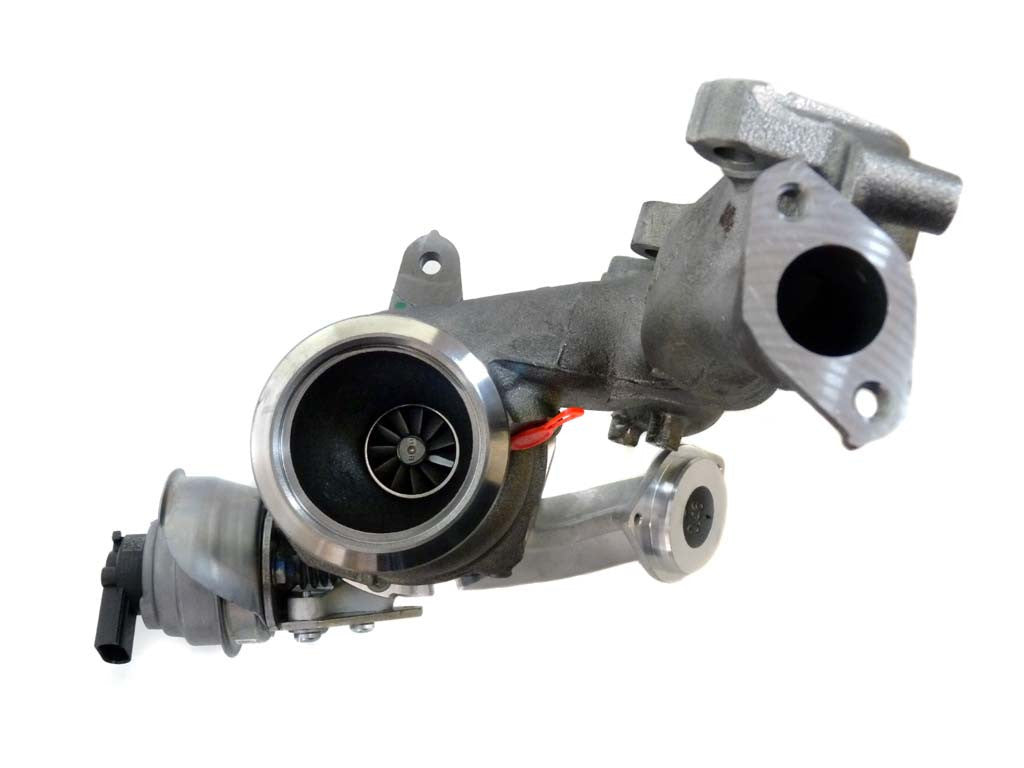

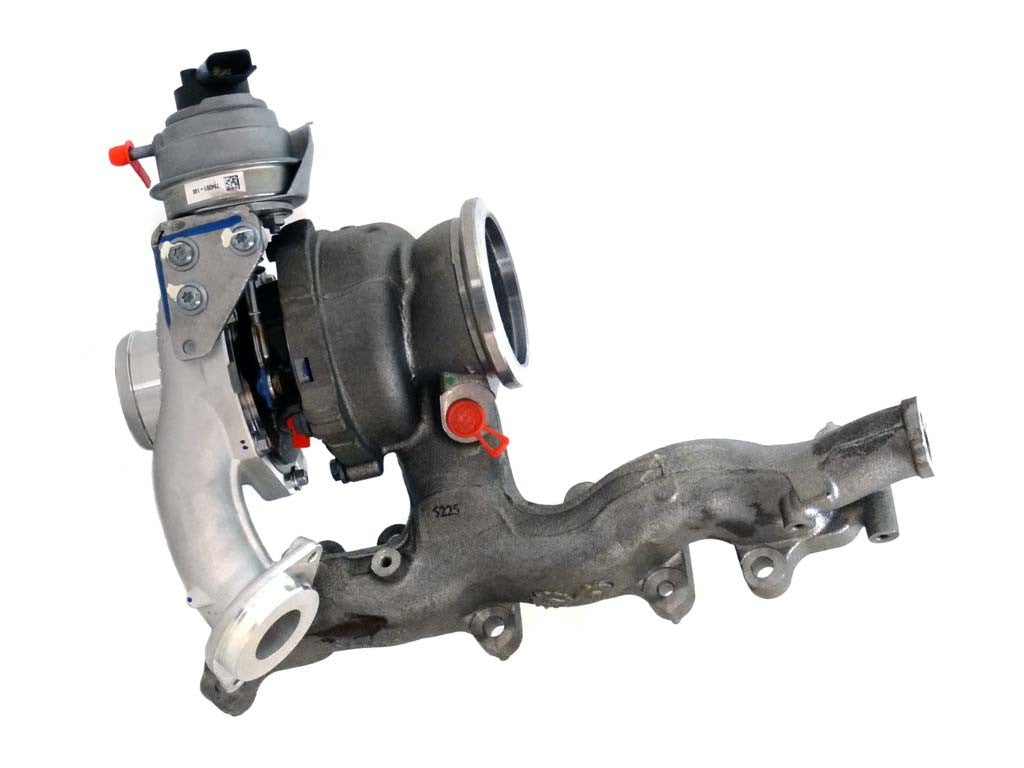

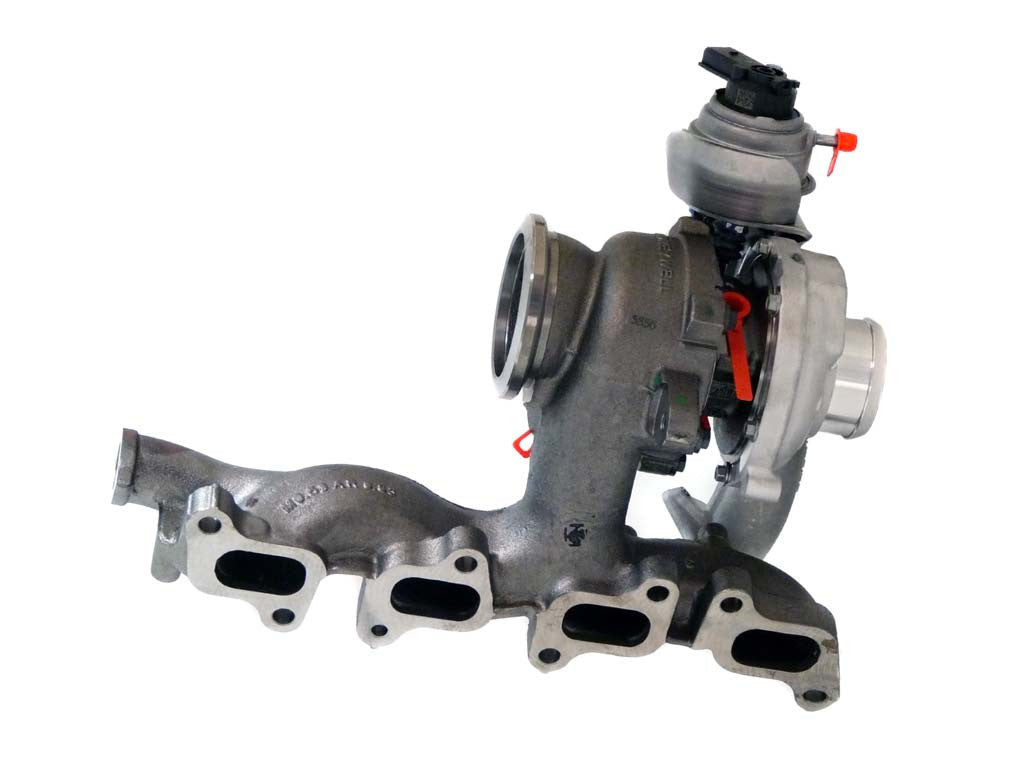

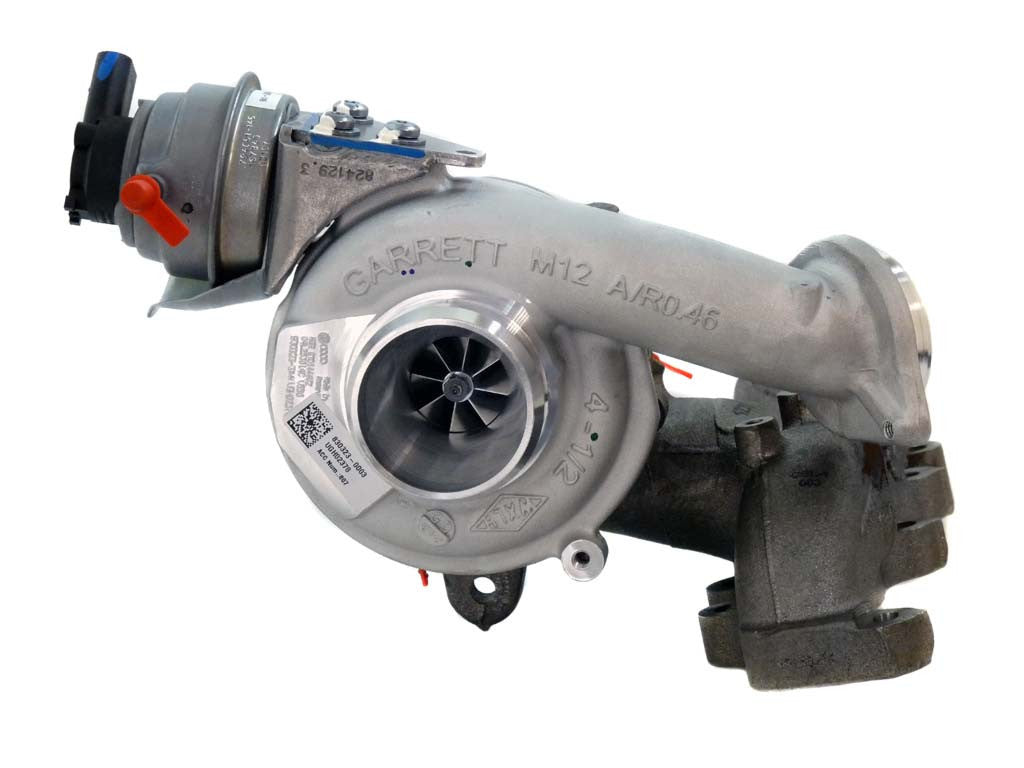

830323-0003 (04L253014C, 04L253014CV550) - Turbocharger GTD1446VZM
Brand: Garrett
Model: GT14 - GTD1446VZM
Garrett Reference: 830323-0003
OEM Numbers: 04L253014C, 04L253014CV550
830323-0003 - Alternative numbers
GHT (Garrett turbo number): 830323-0003
GHT (Garrett turbo number): 830323-5003S
830323-0003 - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
830323-0003 - Turbo replacements
Replaced by: Garrett GTD1446VZM 830323-0006, 04L253014L, 830323-5006S
Replaced by: Garrett GTD1446VZM 830323-0006-R, 04L253014L, 830323-0006, 830323-9006S
Replaced by: Garrett GTD1446VZM 873767-0001, 04L253014M, 873767-5001S
Replacement for: Garrett GTD1446VZ 830323-0002, 04L253014C-V400, 04L253014CV400
830323-0003 - Turbo interchangeability
Interchangeable with: Garrett GTD1446VZ 830323-0002, 04L253014C-V400, 04L253014CV400
Interchangeable with: Garrett GTD1446VZM 830323-0006, 04L253014L, 830323-5006S
Interchangeable with: Garrett GTD1446VZM 830323-0006-R, 04L253014L, 830323-0006, 830323-9006S
Interchangeable with: Garrett GTD1446MVZ 845888-0001, 04L253014F, 845888-5001S
Interchangeable with: Garrett GTD1446VZM 873767-0001, 04L253014M, 873767-5001S
Interchangeable with: Garrett GTD1446MVZ 873970-0001, 04L253056R, 873970-5001S
Interchangeable with: EE Turbo GTD1446VZKM Turbo-G820, 04L253014C, 04L253014CV550, 04L253014L, 04L253056R, 830323-0003, 830323-0006, 830323-5003S, 830323-5006S, 830323-9006S, 873970-0001, 873970-5001S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| Garrett | Nozzle ring assy. | 837161-0001 | 1 | 3716101B | -- |
| TurboCentras | Cartridge | GA-00-0233 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0171 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0022 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0025 | 1 | -- | -- |
| TurboCentras | Repair kit | GA-04-0005 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0001 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0073 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0055 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0001 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT12-103 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT12-131 | 1 | -- | -- |
| TurboCentras | VNT centering ring | GT12-149 | 1 | -- | -- |
| TurboCentras | Piston ring | GT12-160 | 2 | -- | -- |
| EE Turbo | Cartridge | GT14-048B | 1 | -- | -- |
04L253014C, 04L253014CV550, 830323-0003, 830323-5003S
Data updated: 2024-11-22 10:32:02
