Garrett
Turbo 781504-0014
Turbo 781504-0014
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

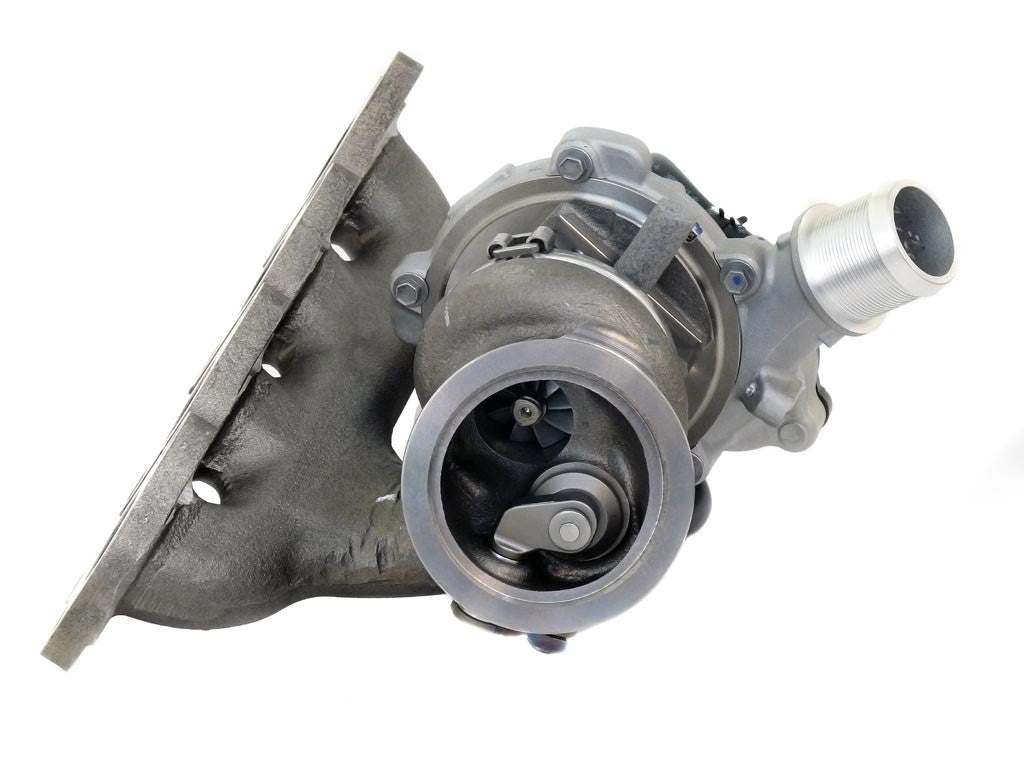

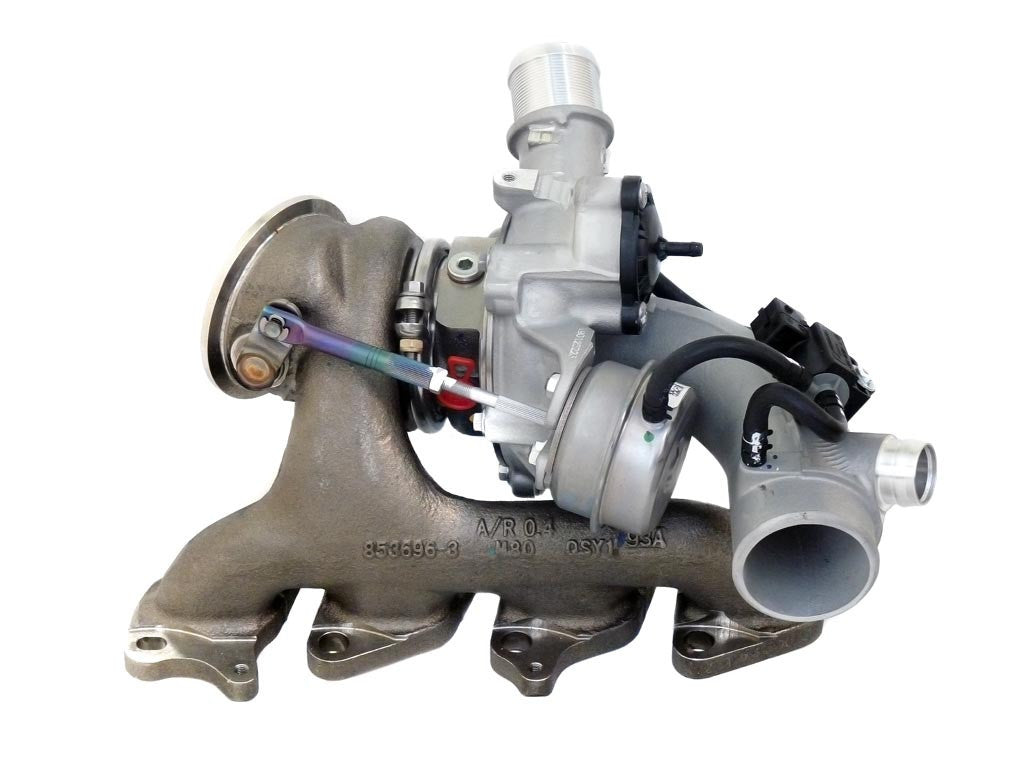

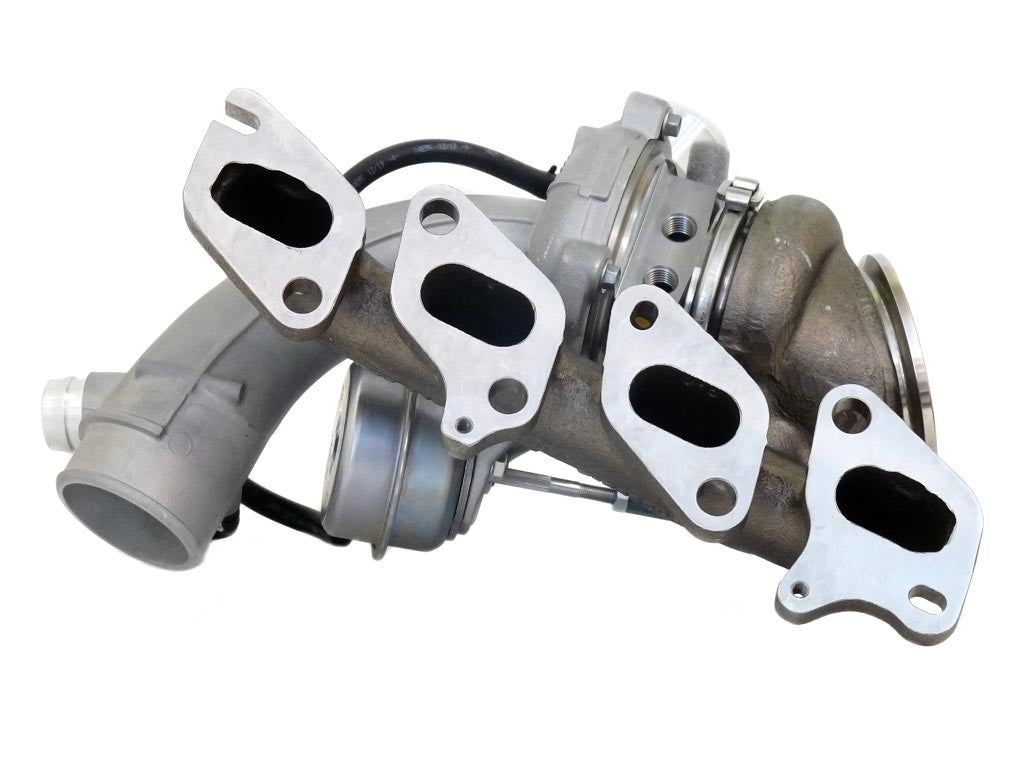

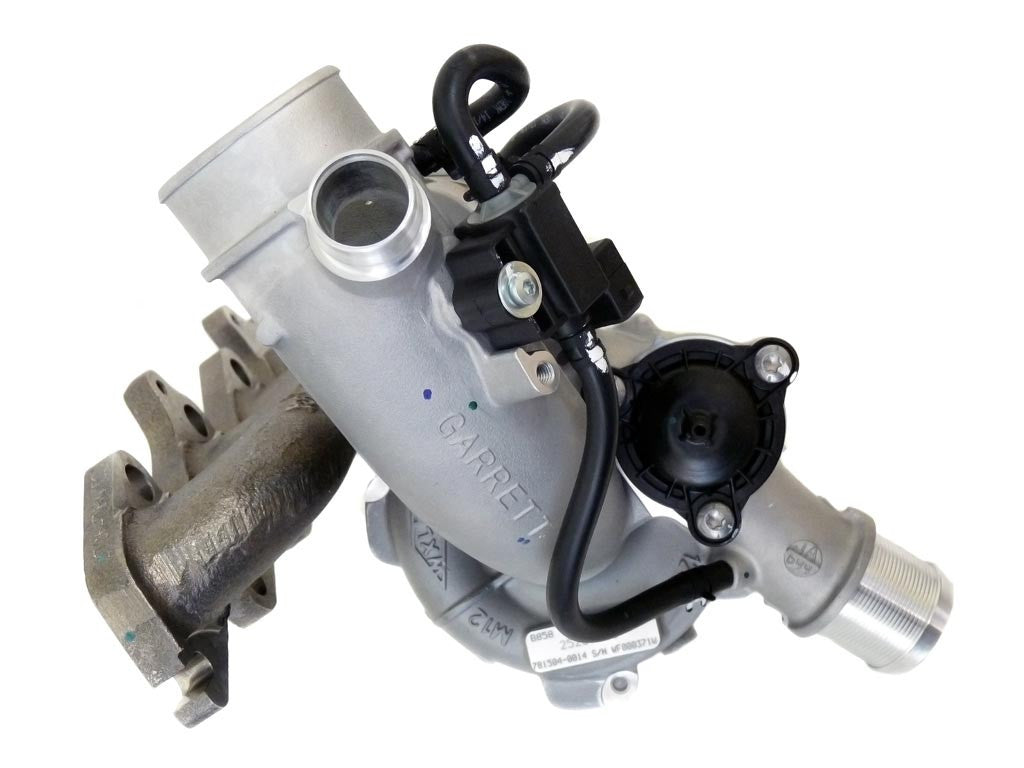

781504-0014 (25201063) - Turbocharger MGT1446MZGL
Brand: Garrett
Model: MGT14 - MGT1446MZGL
Garrett Reference: 781504-0014
OEM Numbers: 25201063
781504-0014 - Alternative numbers
GHT (Garrett turbo number): 781504-0014
GHT (Garrett turbo number): 781504-5014S
781504-0014 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger), IMF (Integrated Manifold Turbocharger)
781504-0014 - Turbo replacements
Replacement for: Garrett MGT1446MZGL 781504-0001
Replacement for: Garrett MGT1446MZGL 781504-0002
Replacement for: Garrett MGT1446MZGL 781504-0004
Replacement for: Garrett MGT1446MZGL 781504-0006
Replacement for: Garrett MGT1446MZGL 781504-0007
Replacement for: Garrett MGT1446MZGL 781504-0007-R
Replacement for: Garrett MGT1446MZGL 781504-0011
781504-0014 - Turbo interchangeability
Interchangeable with: Garrett MGT1446MZGL 781504-0001
Interchangeable with: Garrett MGT1446MZGL 781504-0002
Interchangeable with: Garrett MGT1446MZGL 781504-0004
Interchangeable with: Garrett MGT1446MZGL 781504-0006
Interchangeable with: Garrett MGT1446MZGL 781504-0007
Interchangeable with: Garrett MGT1446MZGL 781504-0007-R
Interchangeable with: Garrett MGT1446MZGL 781504-0011
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Cartridge | GA-00-0018 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0038 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0036 | 1 | 785507-0008 | -- |
| TurboCentras | Compressor wheel | GA-03-0012 | 1 | 786555-0003 | -- |
| TurboCentras | Repair kit | GA-04-0010 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0008 | 1 | -- | -- |
| TurboCentras | Turbine housing | GA-09-0003 | 1 | -- | -- |
| TurboCentras | Wastegate valve | GA-49-0004 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT12-100 | 1 | -- | -- |
| EE Turbo | Cartridge | GT14-013 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT14-130 | 1 | -- | -- |
| TurboCentras | Piston ring | GT14-160 | 3 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 3 | -- | -- |
| TurboCentras | Recirculation valve vac. | RV-GT14-1 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-8 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1085 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1085F | 1 | -- | -- |
25201063, 781504-0014, 781504-5014S
Data updated: 2024-05-17 09:56:01
