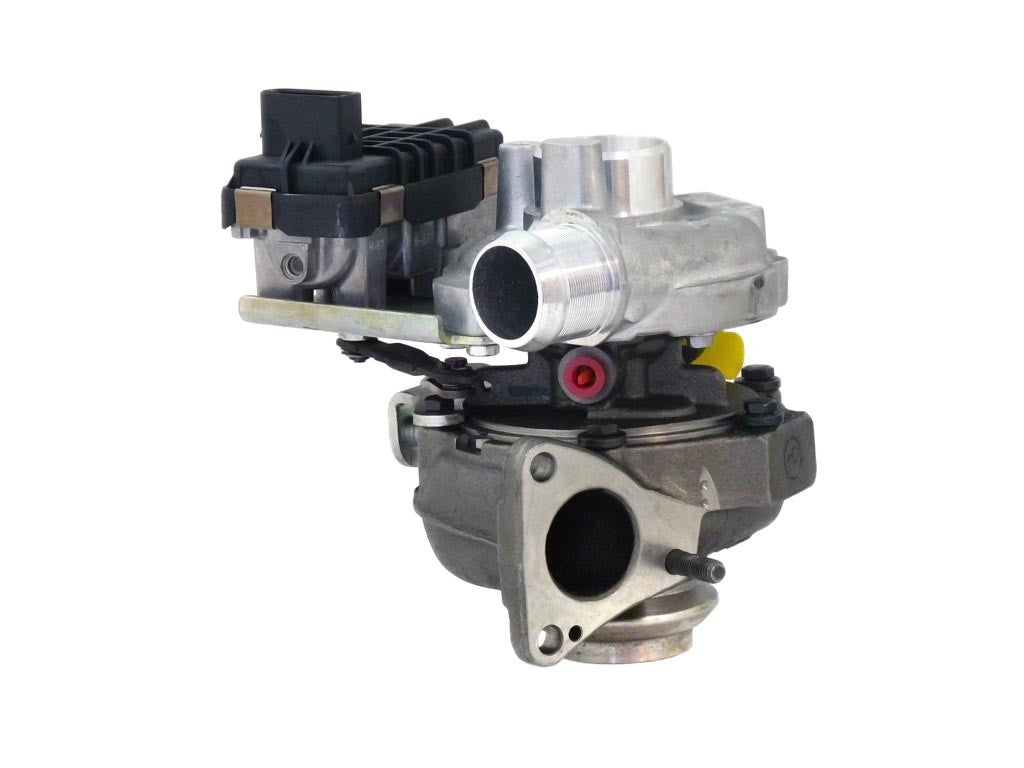

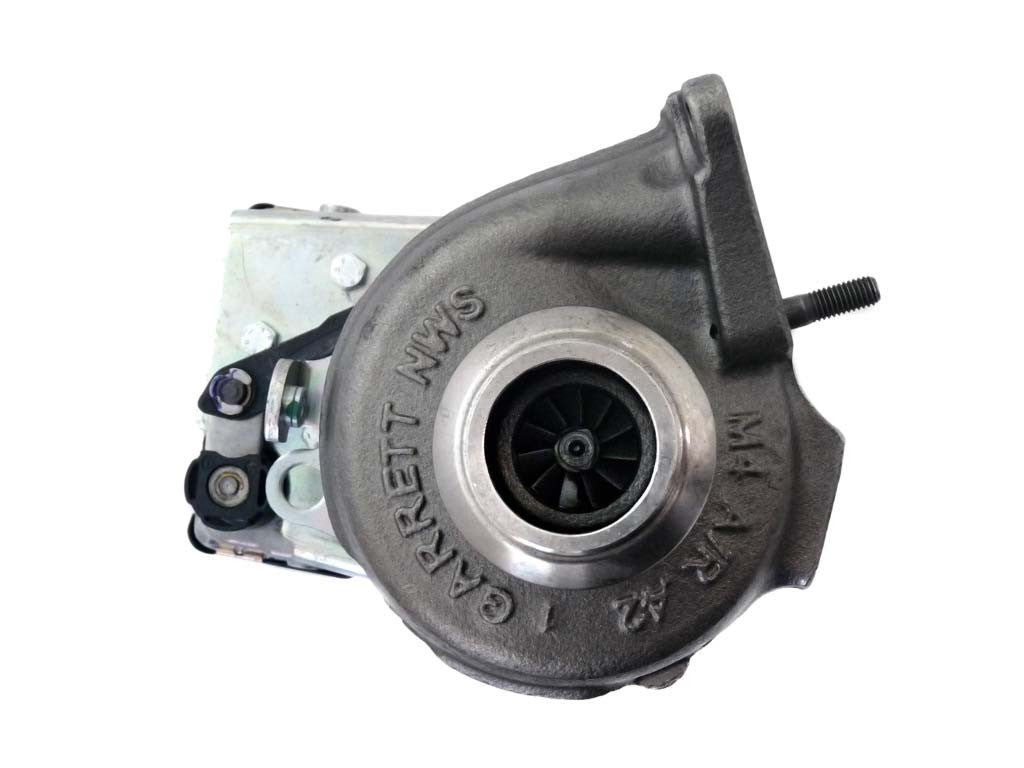

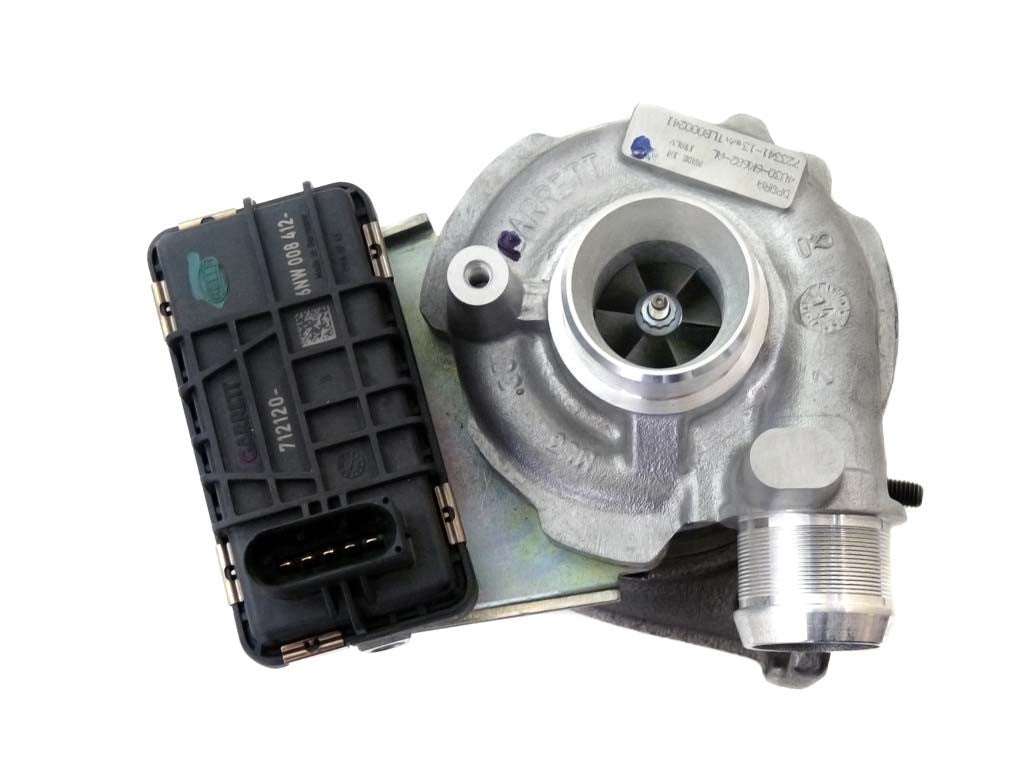

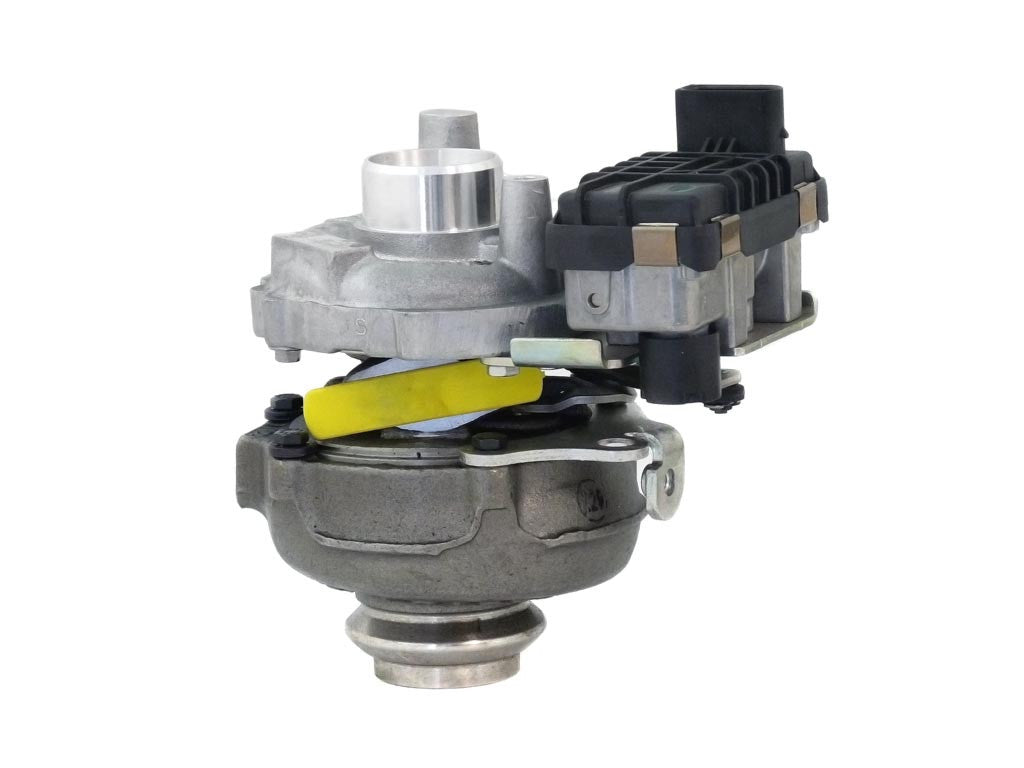

723341-0013 (0375K3, 4U3Q6K682AK) - Turbocharger GTA1544VK
Brand: Garrett
Model: GT15 - GTA1544VK
Garrett Reference: 723341-0013
OEM Numbers: 0375K3, 4U3Q6K682AK
723341-0013 - Alternative numbers
GHT (Garrett turbo number): 723341-0013
GHT (Garrett turbo number): 723341-5013S
GHT (Garrett turbo number): 723341-9013S
723341-0013 - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
723341-0013 - Turbo replacements
Replacement for: Garrett GT1544VK 723341-0011
Replacement for: Garrett GTA1544VK 723341-0012
723341-0013 - Turbo interchangeability
Interchangeable with: Garrett GT1544V 723340-0011
Interchangeable with: Garrett GTA1544VK 723340-0012
Interchangeable with: Garrett GTA1544VK 723340-0013
Interchangeable with: Garrett GT1544VK 723341-0011
Interchangeable with: Garrett GTA1544VK 723341-0012
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0075 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0061 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0155 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0052 | 1 | 704771-0002, 704771-0009 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0010 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0013 | 1 | 700593-0001 | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-100 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-121 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-131 | 1 | -- | -- |
| TurboCentras | Thrust spacer | GT15-136 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
0375K3, 4U3Q6K682AK, 723341-0013, 723341-5013S, 723341-9013S
