Garrett

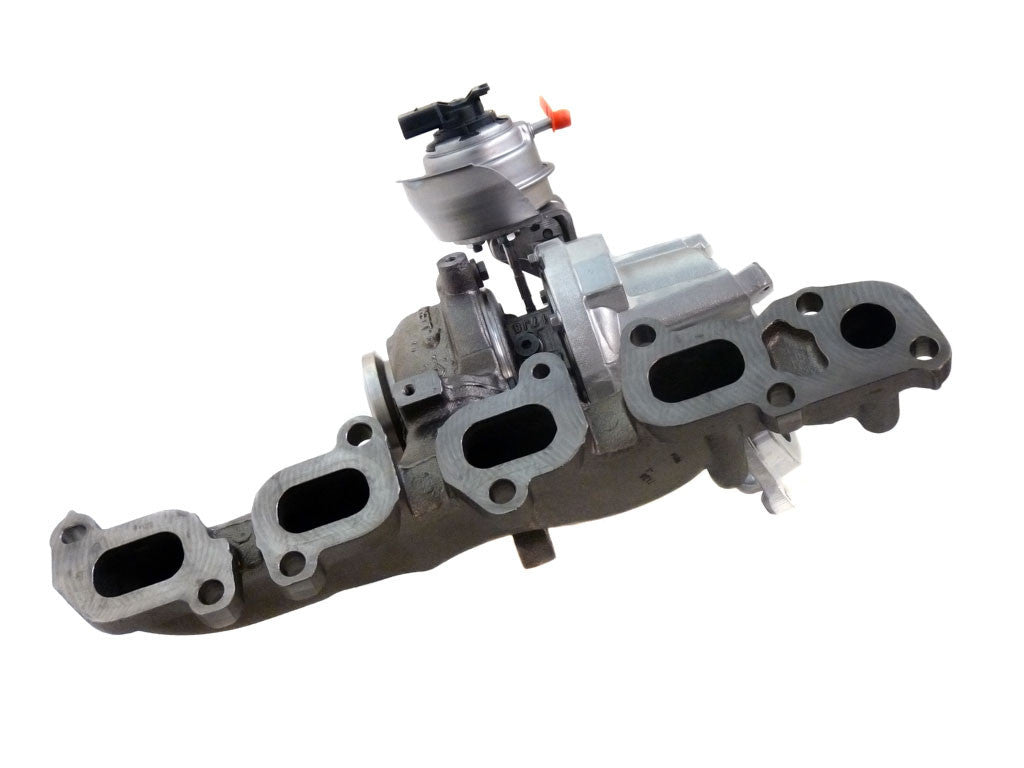

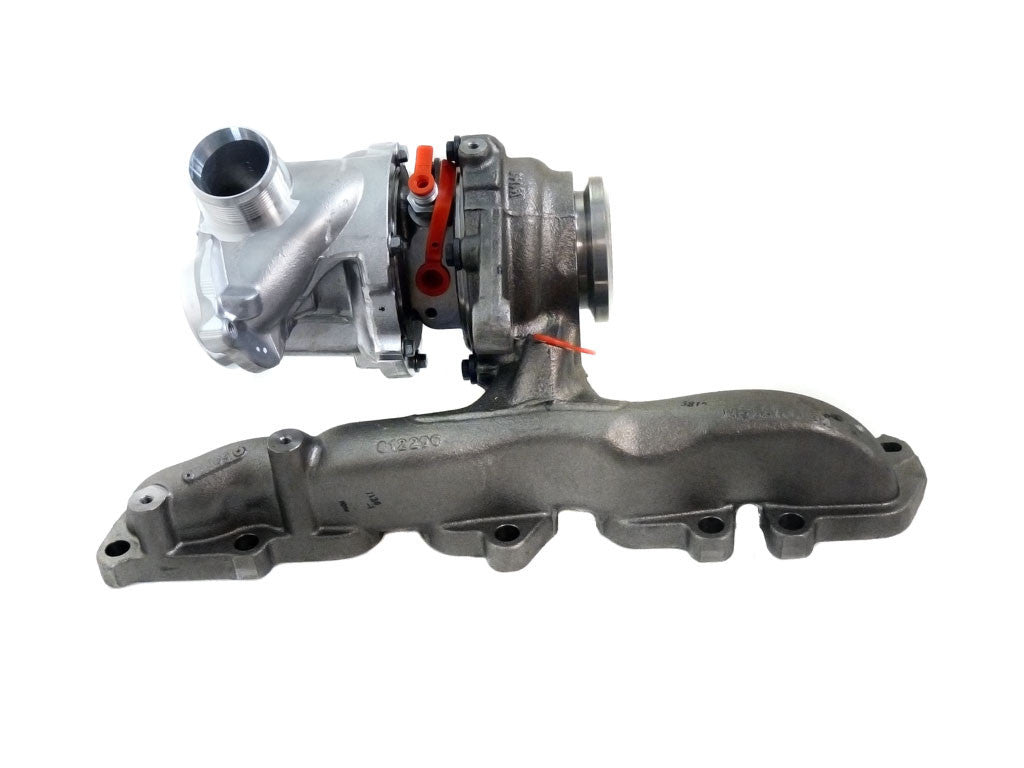

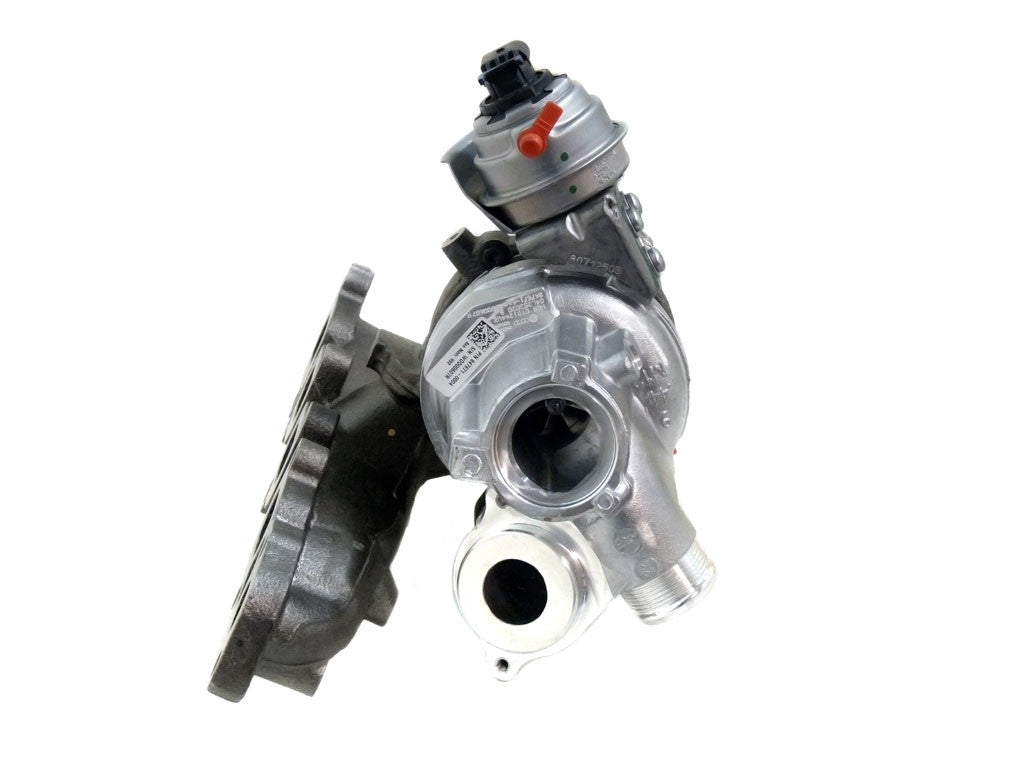

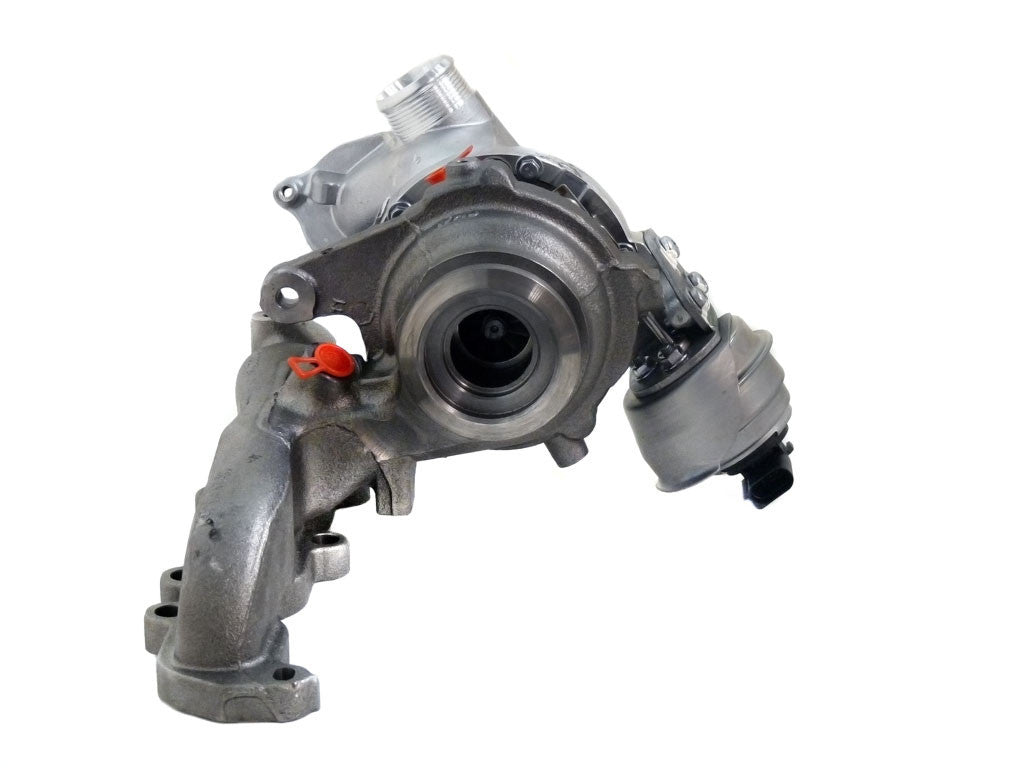

Turbo 847671-0004
Turbo 847671-0004
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
847671-0004 (04L253020A, 04L253020S) - Turbocharger GTD1244MVZ
Brand: Garrett
Model: GT12 - GTD1244MVZ
Garrett Reference: 847671-0004
OEM Numbers: 04L253020A, 04L253020S
847671-0004 - Alternative numbers
GHT (Garrett turbo number): 847671-0004
GHT (Garrett turbo number): 847671-5004S
GHT (Garrett turbo number): 847671-9004S
847671-0004 - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
847671-0004 - Turbo replacements
Replacement for: Garrett GTD1244VZ 813860-0001, 04L253016H, 813860-5001S
Replacement for: Garrett GTD1244VZ 813860-0003, 04L253016H, 04L253016H V120, 813860-5003S
Replacement for: Garrett GTD1244VZ 847671-0001, 04L253016H
Replacement for: Garrett GTD1244VZ 847671-0002, 04L253016H, 04L253020A, 847671-5002S
Replacement for: Garrett GTD1244VZ 847671-0003, 04L253020H, 847671-5003S
847671-0004 - Turbo interchangeability
Interchangeable with: BMTS BM 40007029, 04L253016H, 04L253016HV, 04L253016HX, 04L253020A, 04l253020AV, 04l253020AX, 04L253020S, 04l253020SV, 04l253020SX, 401TN100300
Interchangeable with: Garrett GTD1244VZ 813860-0001, 04L253016H, 813860-5001S
Interchangeable with: Garrett GTD1244MVKZ 813860-0002
Interchangeable with: Garrett GTD1244VZ 813860-0003, 04L253016H, 04L253016H V120, 813860-5003S
Interchangeable with: Garrett GTD1244VZ 847671-0001, 04L253016H
Interchangeable with: Garrett GTD1244VZ 847671-0002, 04L253016H, 04L253020A, 847671-5002S
Interchangeable with: Garrett GTD1244VZ 847671-0003, 04L253020H, 847671-5003S
Interchangeable with: Garrett GTD1244MVZ 847671-0004-SC, 04L253020S, 847671-0004, 847671-5004S, 847671-9004S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Actuator sensor | AS-7 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Cartridge | GA-00-0017 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0040 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0035 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0017 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0018 | 1 | -- | -- |
| TurboCentras | Repair kit | GA-04-0010 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0001 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0004 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0006 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0003 | 1 | -- | -- |
| EE Turbo | Cartridge | GT12-011B | 1 | -- | -- |
| TurboCentras | VNT centering ring | GT12-149 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT14-130 | 1 | -- | -- |
| TurboCentras | Piston ring | GT14-160 | 3 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1079 | 1 | -- | -- |
04L253020A, 04L253020S, 847671-0004, 847671-5004S, 847671-9004S
Data updated: 2024-11-22 10:32:43
