Garrett
Turbo 830323-0006-R 830323-0006 (R)
Turbo 830323-0006-R 830323-0006 (R)
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

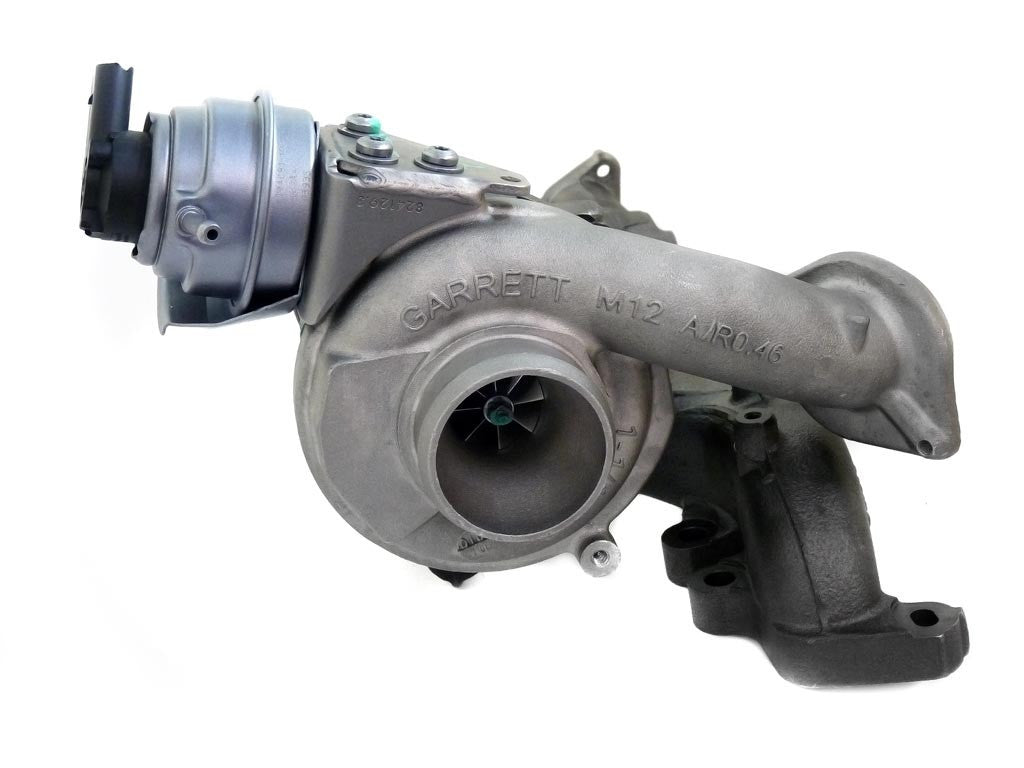

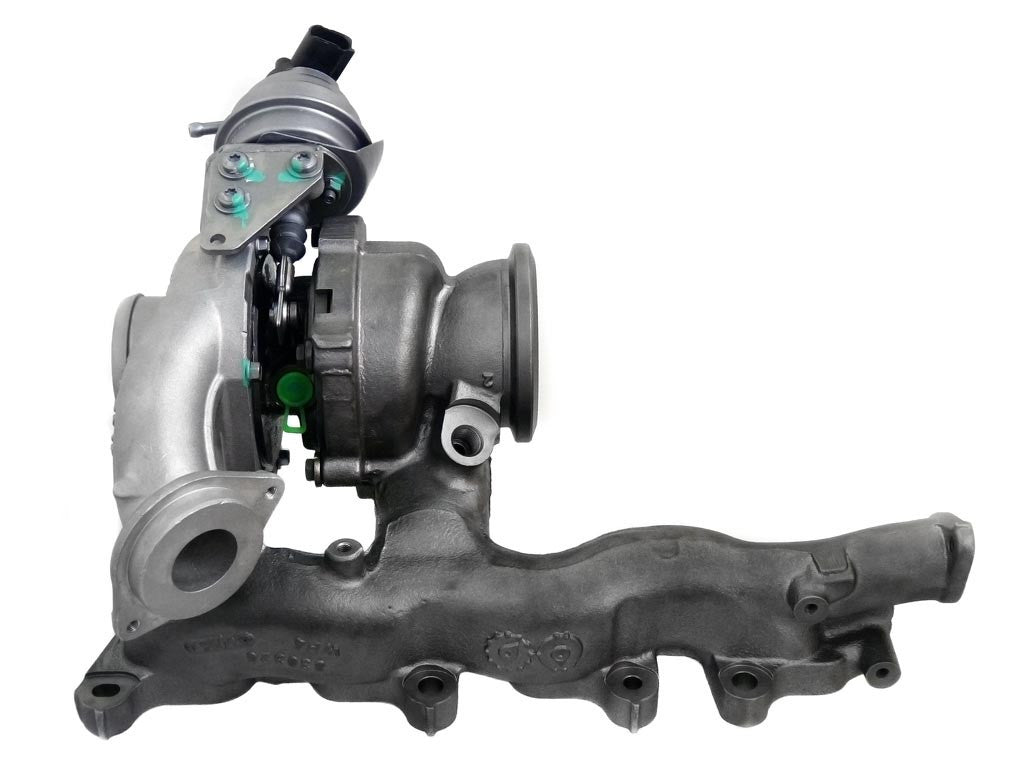

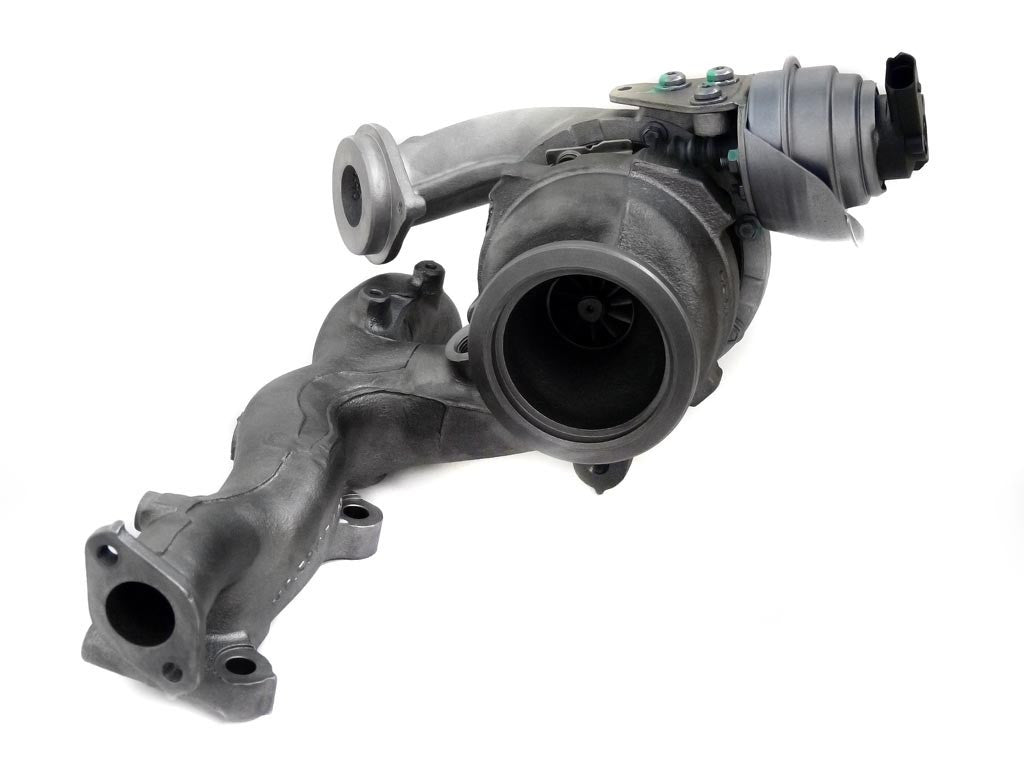

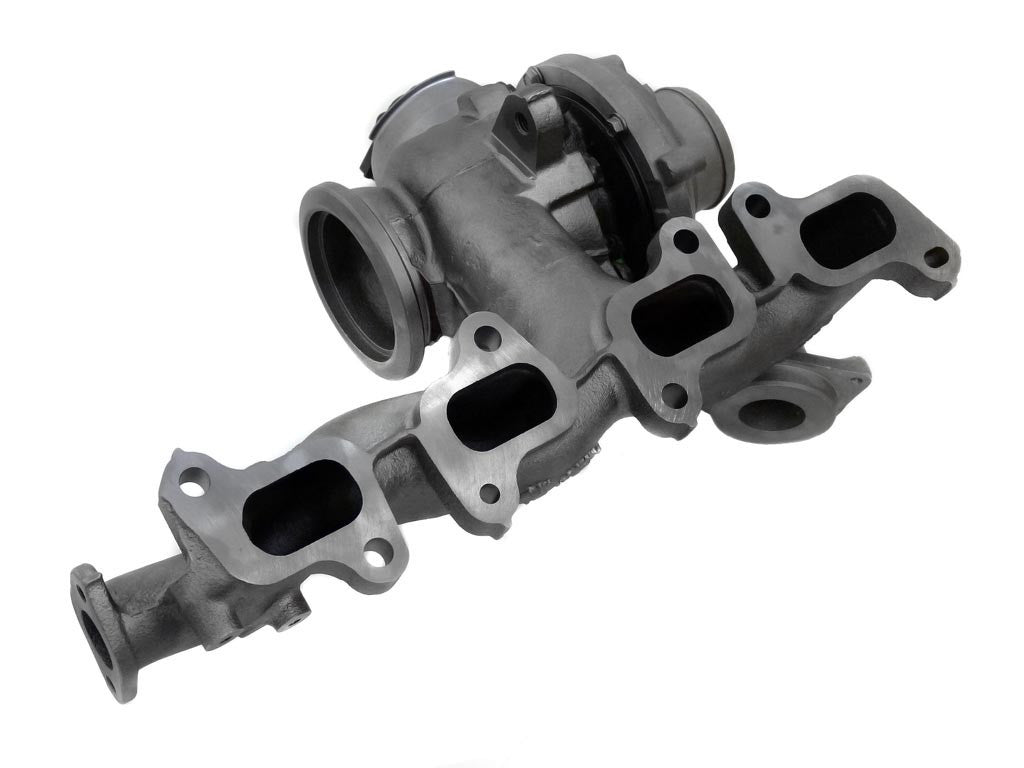

830323-0006-R (04L253014L) - Turbocharger GTD1446VZM
Brand: Garrett
Model: GT14 - GTD1446VZM
Garrett Reference: 830323-0006-R
OEM Numbers: 04L253014L
830323-0006-R - Alternative numbers
GHT (Garrett turbo number): 830323-0006
GHT (Garrett turbo number): 830323-9006S
830323-0006-R - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
830323-0006-R - Turbo replacements
Replaced by: Garrett GTD1446VZM 873767-0001
Replacement for: Garrett GTD1446VZ 830323-0002
Replacement for: Garrett GTD1446VZM 830323-0003
830323-0006-R - Turbo interchangeability
Interchangeable with: Garrett GTD1446VZ 830323-0002
Interchangeable with: Garrett GTD1446VZM 830323-0003
Interchangeable with: Garrett GTD1446VZM 830323-0006
Interchangeable with: Garrett GTD1446VZM 873767-0001
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | GA-00-0233 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0171 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0022 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0025 | 1 | -- | -- |
| TurboCentras | Repair kit | GA-04-0005 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0001 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0073 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0001 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT12-103 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT12-131 | 1 | -- | -- |
| TurboCentras | VNT centering ring | GT12-149 | 1 | -- | -- |
| TurboCentras | Piston ring | GT12-160 | 2 | -- | -- |
| EE Turbo | Cartridge | GT14-048B | 1 | -- | -- |
04L253014L, 830323-0006, 830323-9006S
Data updated: 2024-05-17 11:44:50
