Garrett
Turbo 454207-0002 (R)
Turbo 454207-0002 (R)
Redna cena
€231,40 EUR
Redna cena
Znižana cena
€231,40 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

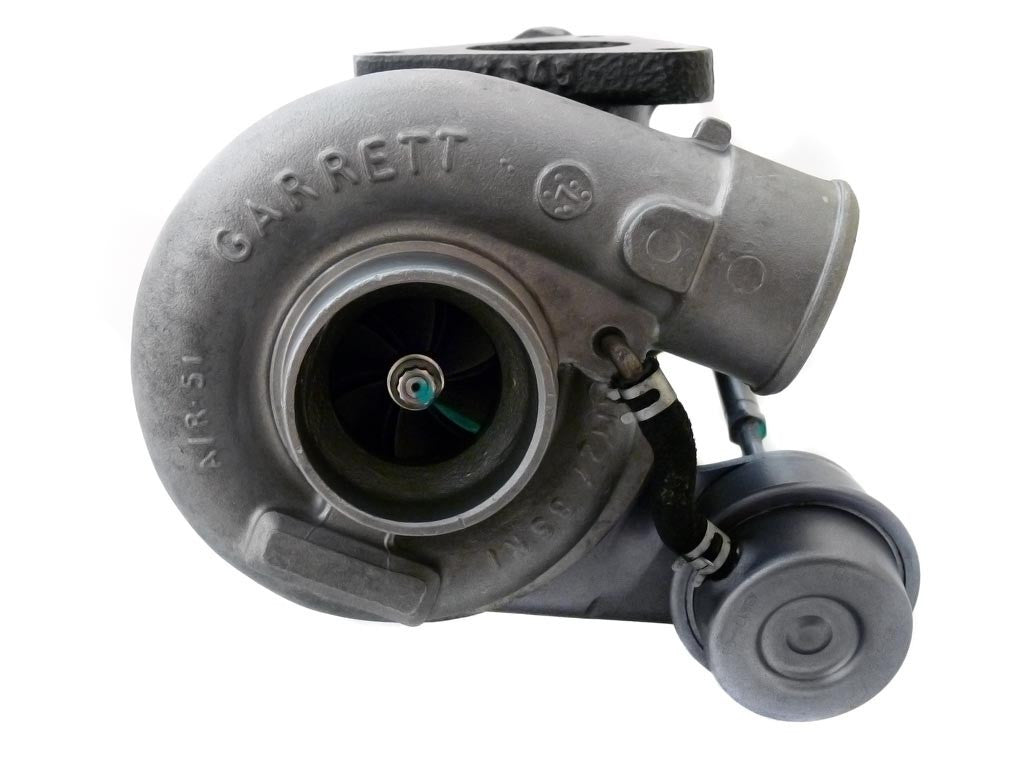

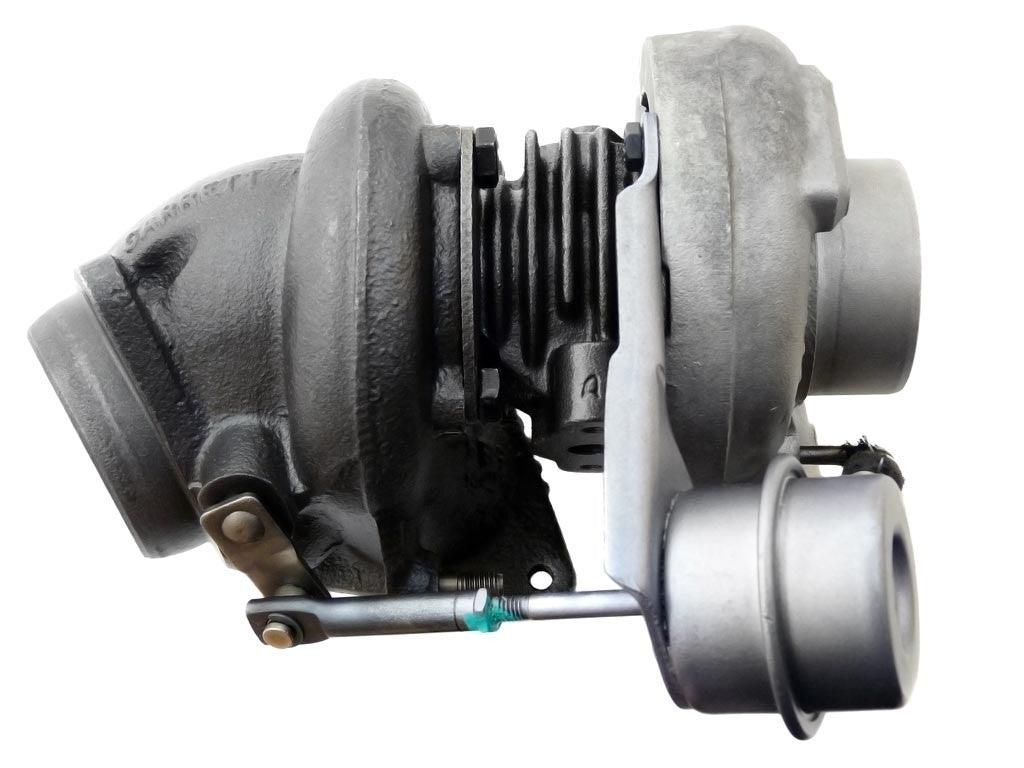

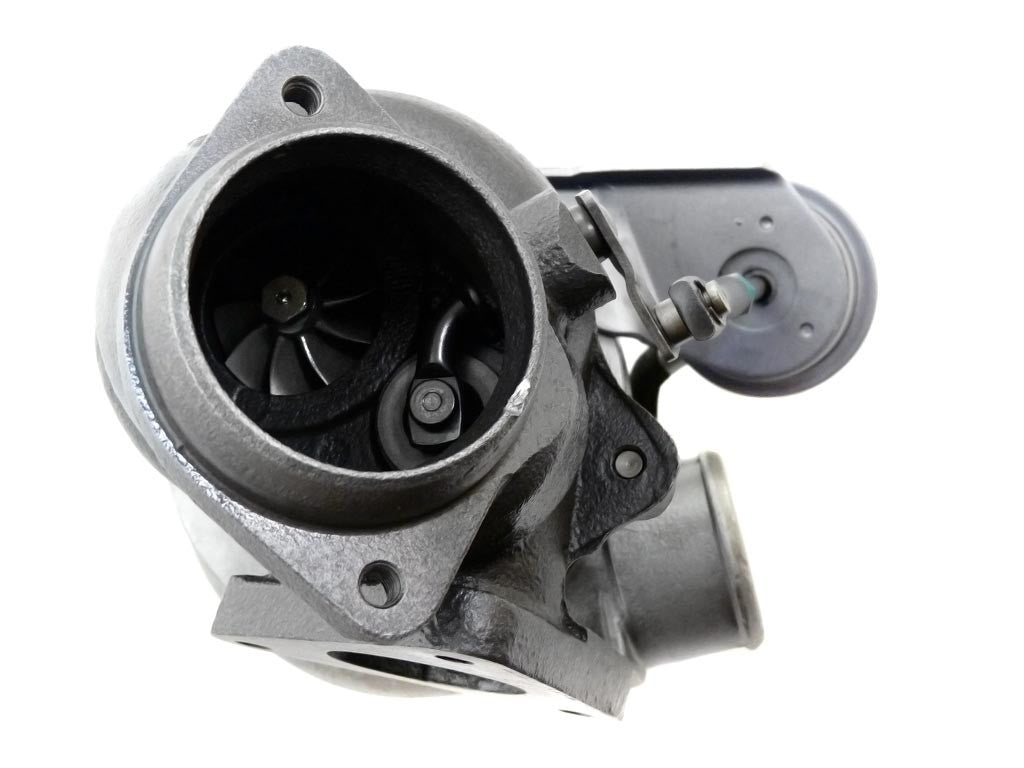

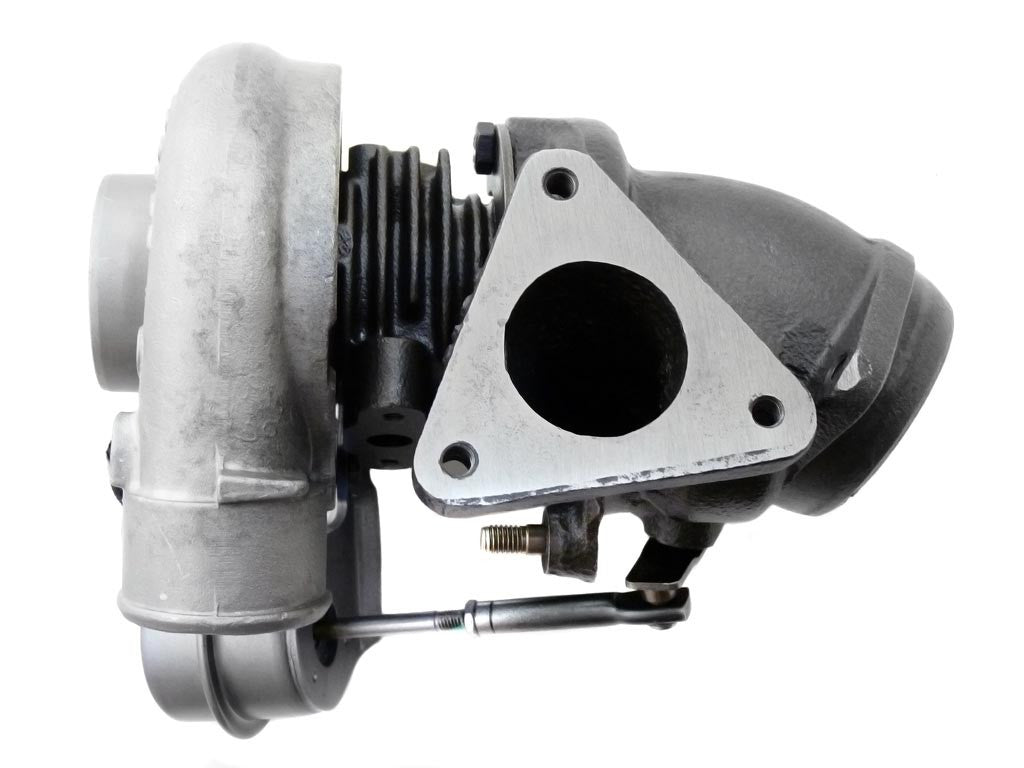

454207-0002 (6020900880, 6020901380, 6020960699) - Turbocharger GT25C
Brand: Garrett
Model: GT25 - GT25C
Garrett Reference: 454207-0002
OEM Numbers: 6020900880, 6020901380, 6020960699, 6020960899, A6020900880, A6020901380, A6020960699, A6020960899
454207-0002 - Alternative numbers
GHT (Garrett turbo number): 454207-0002
GHT (Garrett turbo number): 454207-5002S
454207-0002 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger)
454207-0002 - Turbo replacements
Replacement for: Garrett GT25C 454184-0001
Replacement for: Garrett GT25C 454207-0001
454207-0002 - Turbo interchangeability
Interchangeable with: Garrett GT25C 454184-0001
Interchangeable with: Garrett GT25C 454207-0001
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0010 | 4 | -- | -- |
| TurboCentras | Cartridge | GA-00-0227 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0156 | 1 | 435209-0010 | -- |
| TurboCentras | Shaft and wheel | GA-02-0139 | 1 | 435354-0010, 435354-0011 | -- |
| TurboCentras | Compressor wheel | GA-03-0124 | 1 | 447449-0010 | -- |
| TurboCentras | Repair kit | GA-04-0042 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0021 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0070 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0006 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0004 | 3 | -- | -- |
| TurboCentras | Screw | SC-96-0005 | 3 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| EE Turbo | Cartridge | T2-024 | 1 | -- | -- |
| TurboCentras | Journal bearing | T2-100 | 2 | -- | -- |
| TurboCentras | Journal bearing | T2-110 | 2 | -- | -- |
| TurboCentras | Thrust bearing | T2-120 | 1 | -- | -- |
| TurboCentras | Thrust bearing | T2-121 | 1 | -- | -- |
| TurboCentras | Thrust flinger | T2-130 | 1 | -- | -- |
| TurboCentras | Retaining ring | T2-143 | 3 | -- | -- |
| TurboCentras | Retaining ring | T2-145 | 1 | -- | -- |
| TurboCentras | Piston ring | T2-160 | 1 | -- | -- |
| TurboCentras | Piston ring | T2-170 | 1 | -- | -- |
454207-0002, 454207-5002S, 6020900880, 6020901380, 6020960699, 6020960899, A6020900880, A6020901380, A6020960699, A6020960899
Data updated: 2024-07-05 13:28:09
