Garrett

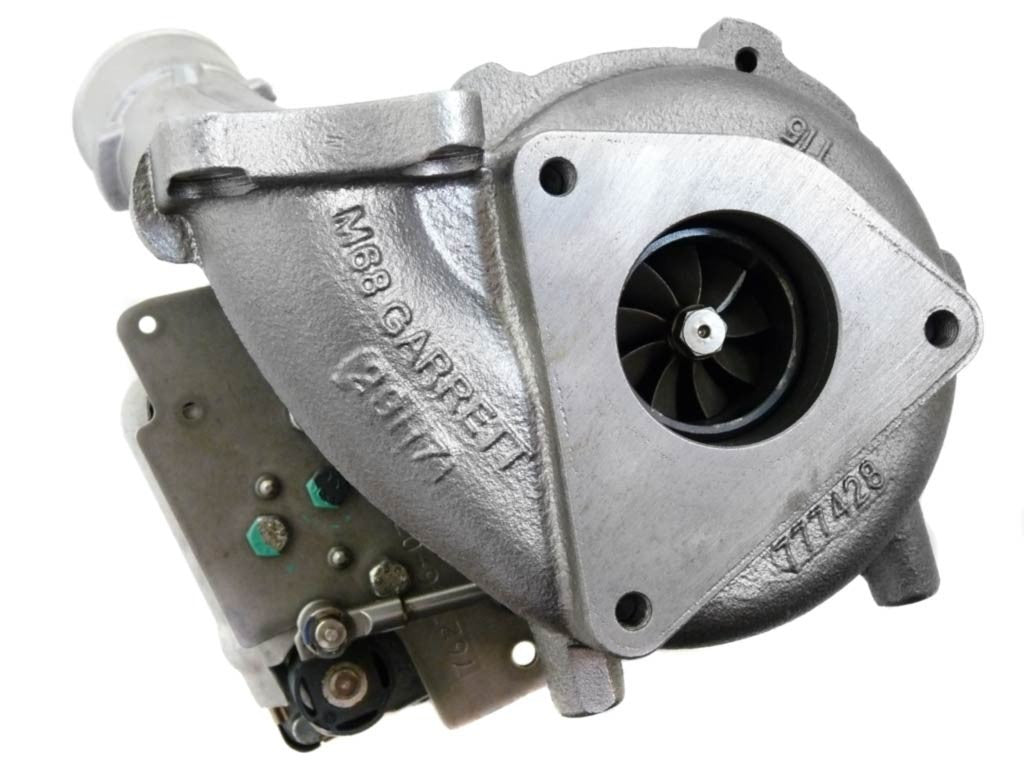

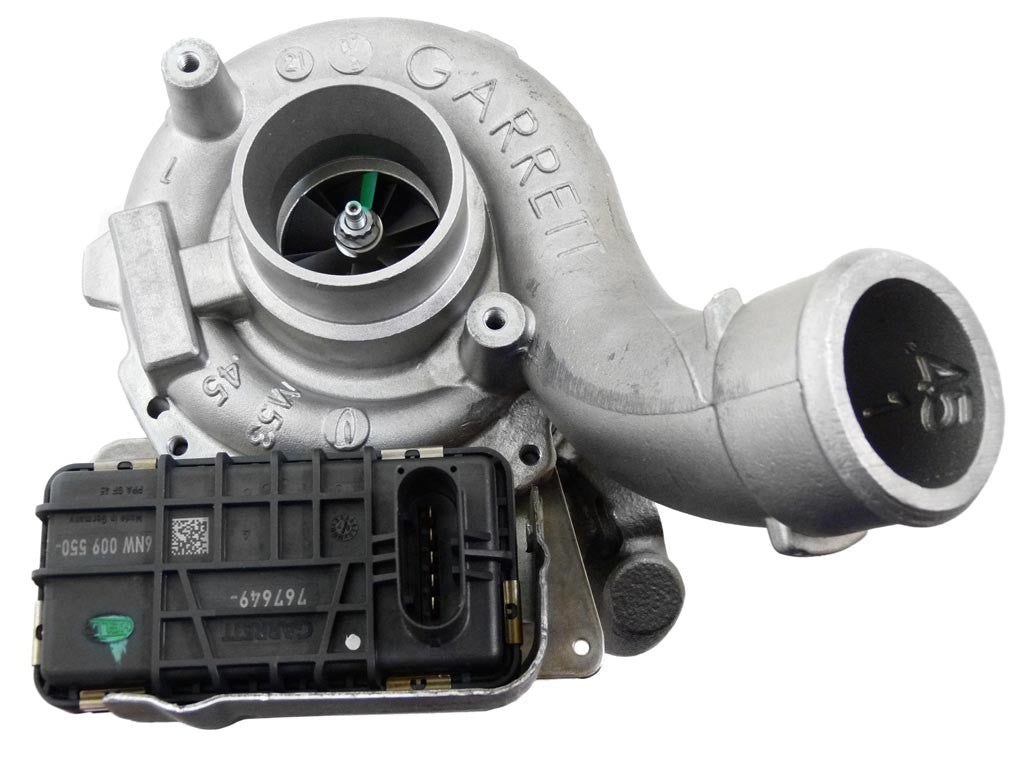

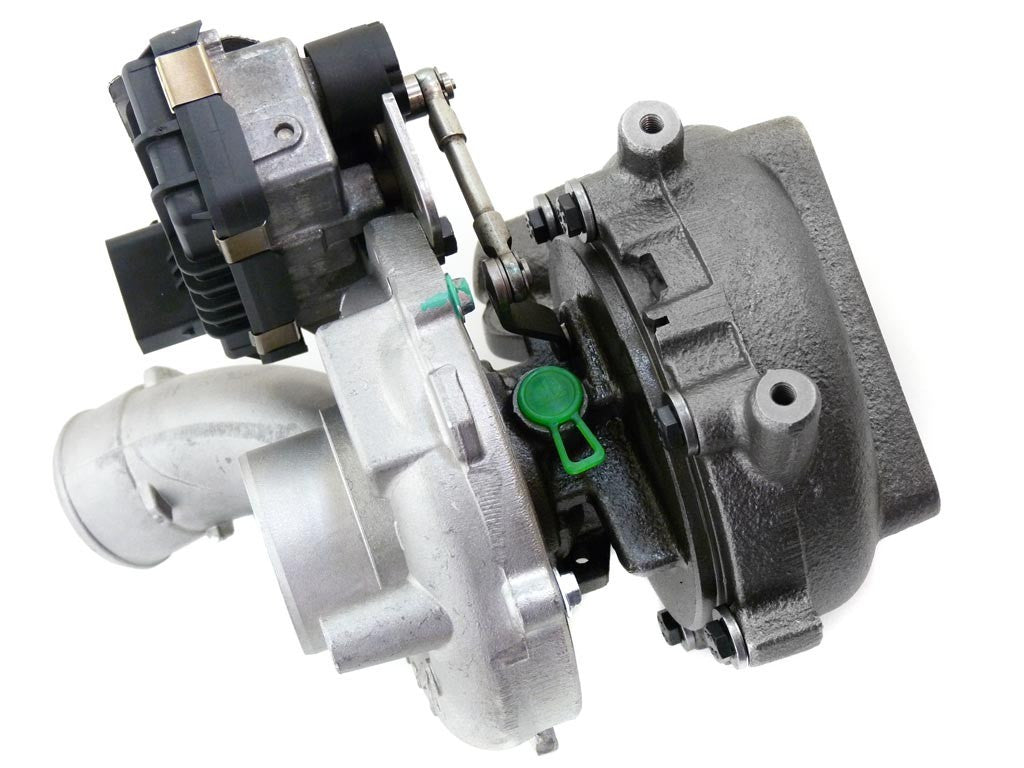

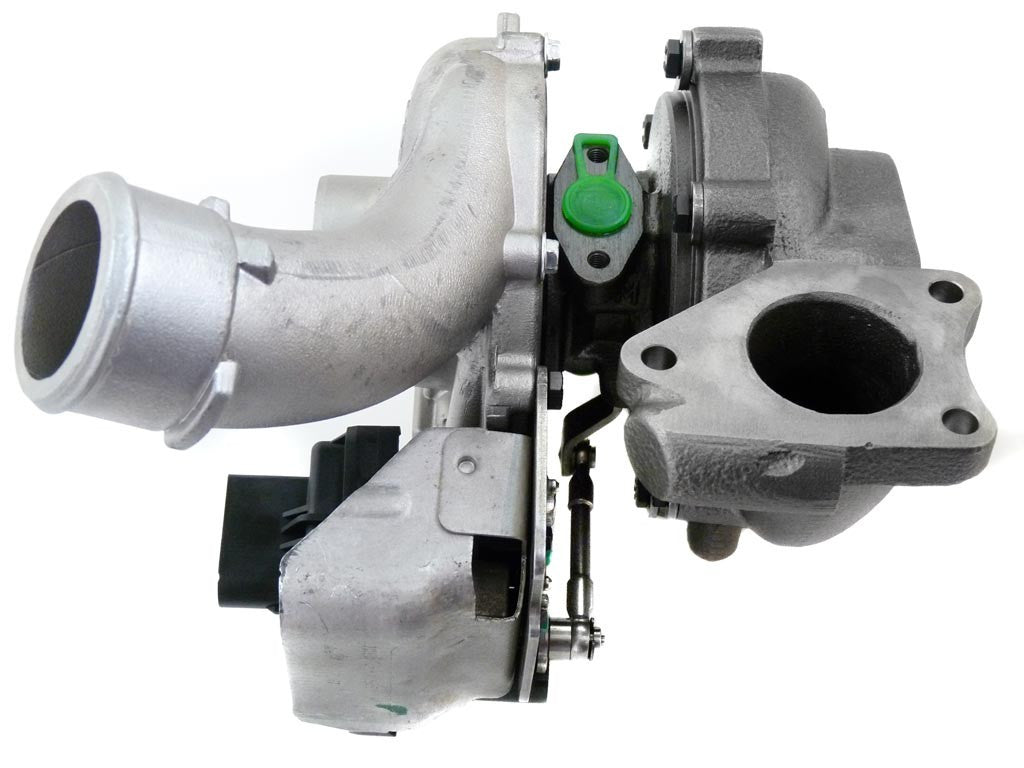

Turbo 767805-0002 (R)
Turbo 767805-0002 (R)
Redna cena
€350,00 EUR
Redna cena
Znižana cena
€350,00 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
767805-0002 (059145721B) - Turbocharger
Brand: Garrett
Garrett Reference: 767805-0002
OEM Numbers: 059145721B
767805-0002 - Alternative numbers
GHO (Garrett original part number): 767805-0002
GHA (Garrett aftermarket part number): 767805-5002S
767805-0002 - Technologies and actuation
Actuation type: SREA (Simple Rotary Electronic Actuator), Electric (Electric actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
767805-0002 - Turbo replacements
Replaced by: Garrett GTB1756VK 777159-0003
767805-0002 - Turbo interchangeability
Interchangeable with: Garrett GTB1756VK 767805-0003
Interchangeable with: Garrett GTB1756VK 767805-0004
Interchangeable with: Garrett GTB1756VK 777159-0002
Interchangeable with: Garrett GTB1756VK 777159-0003
| Turbo 767805-0002 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Cartridge | GT117-216 | 1 | -- | -- |
| TurboCentras | Bearing housing | GT117-317 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT117-43 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-326 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-53 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GT17-700 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GT17-95 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT22-08 | 1 | -- | -- |
| TurboCentras | Back plate | GT22-63 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
059145721B, 767805-0002, 767805-5002S
Data updated: 2022-08-19 17:38:36
