Garrett
Turbo 769701-0001 (R)
Turbo 769701-0001 (R)
Redna cena
€349,00 EUR
Redna cena
Znižana cena
€349,00 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

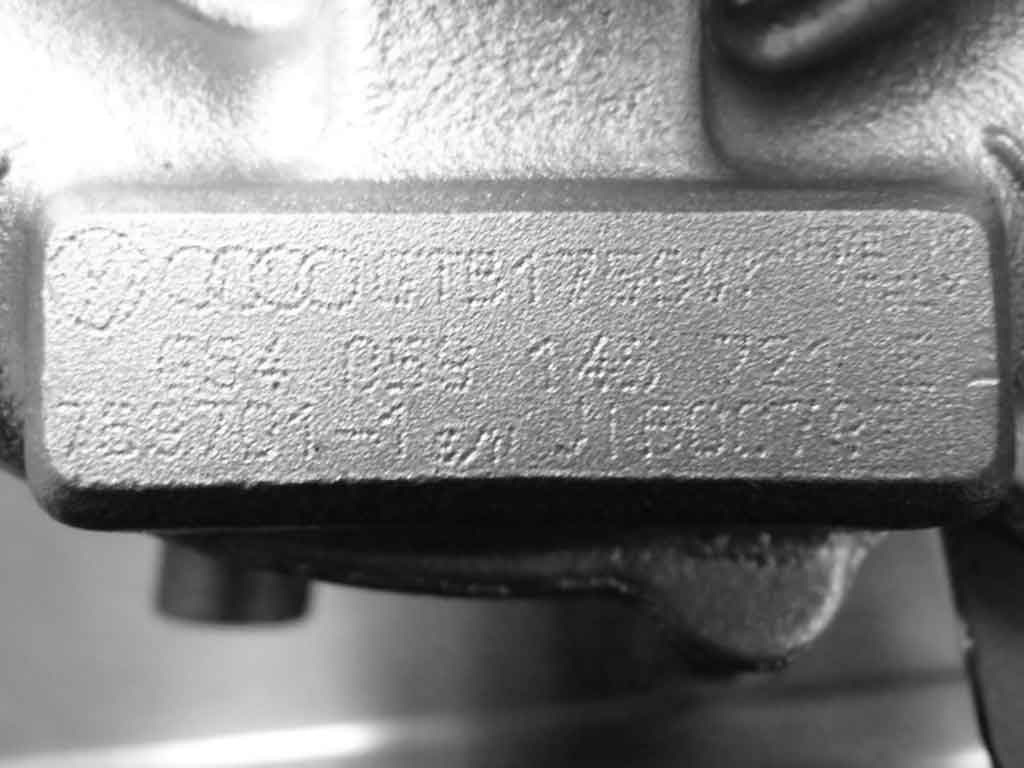

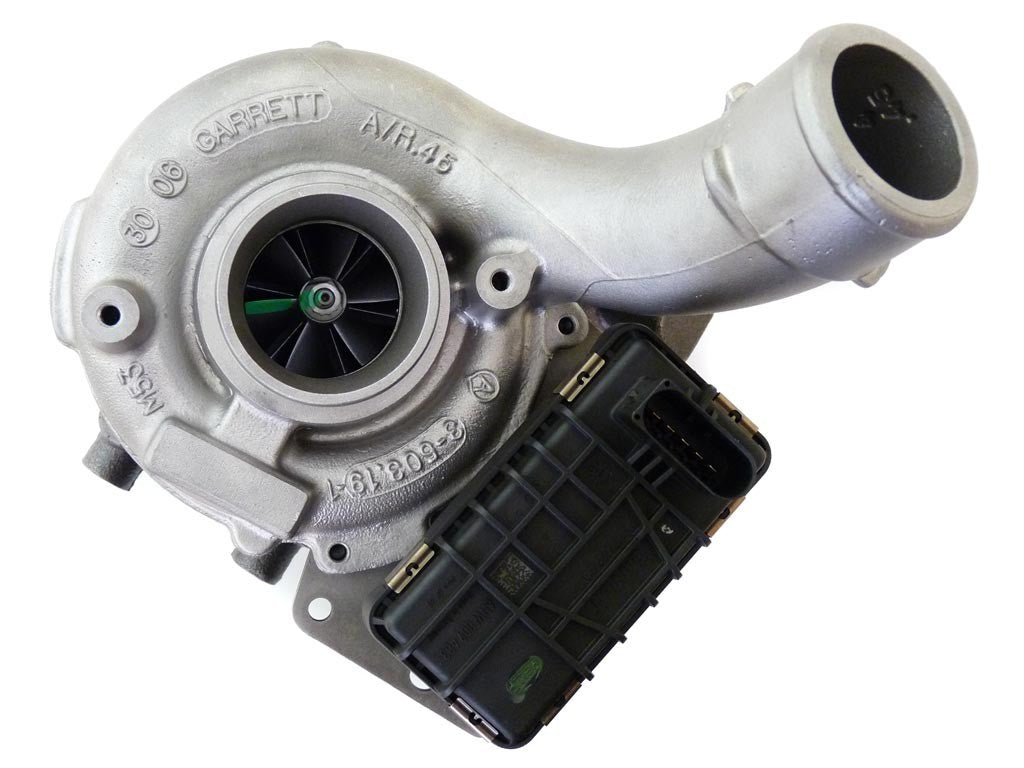

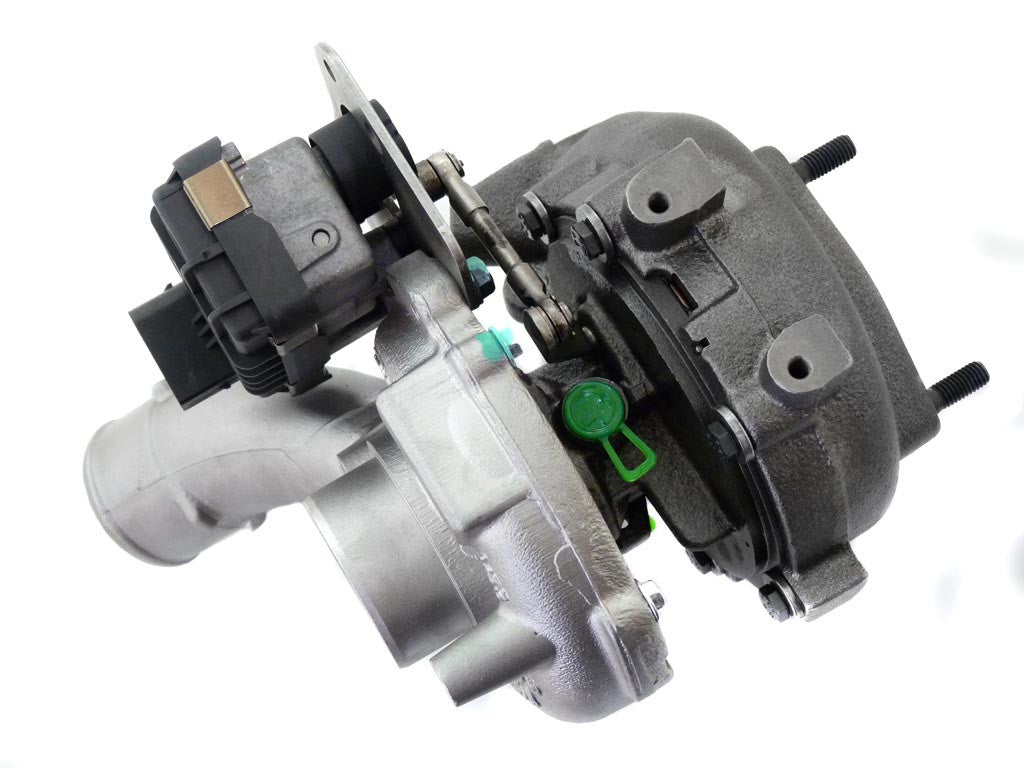

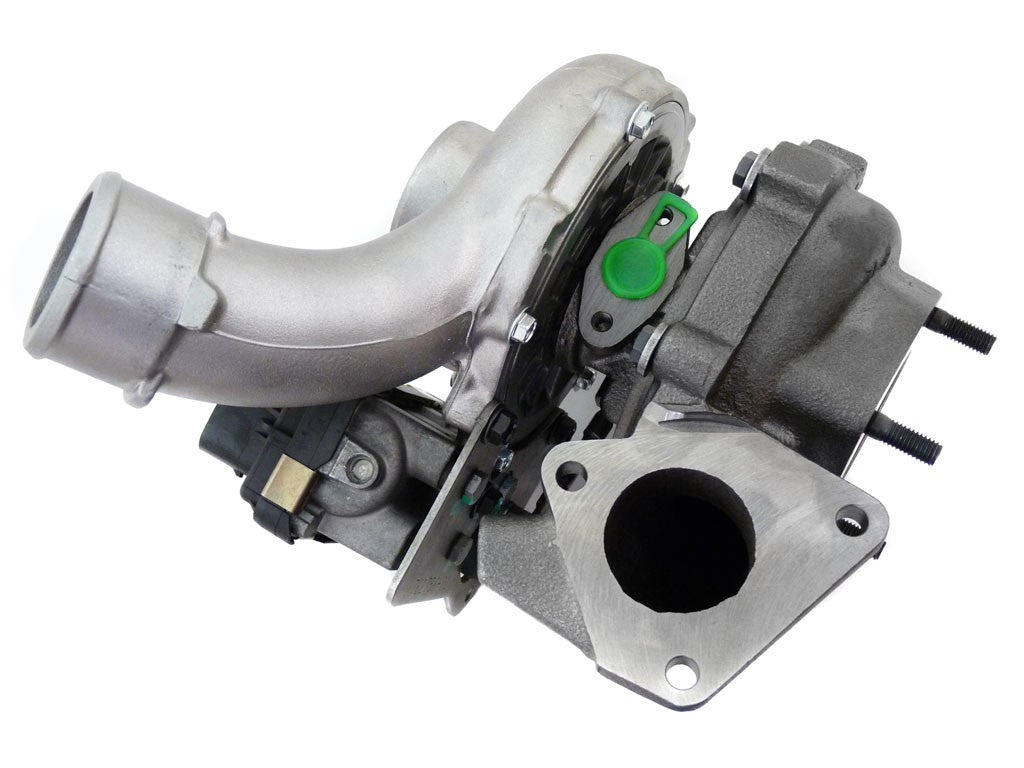

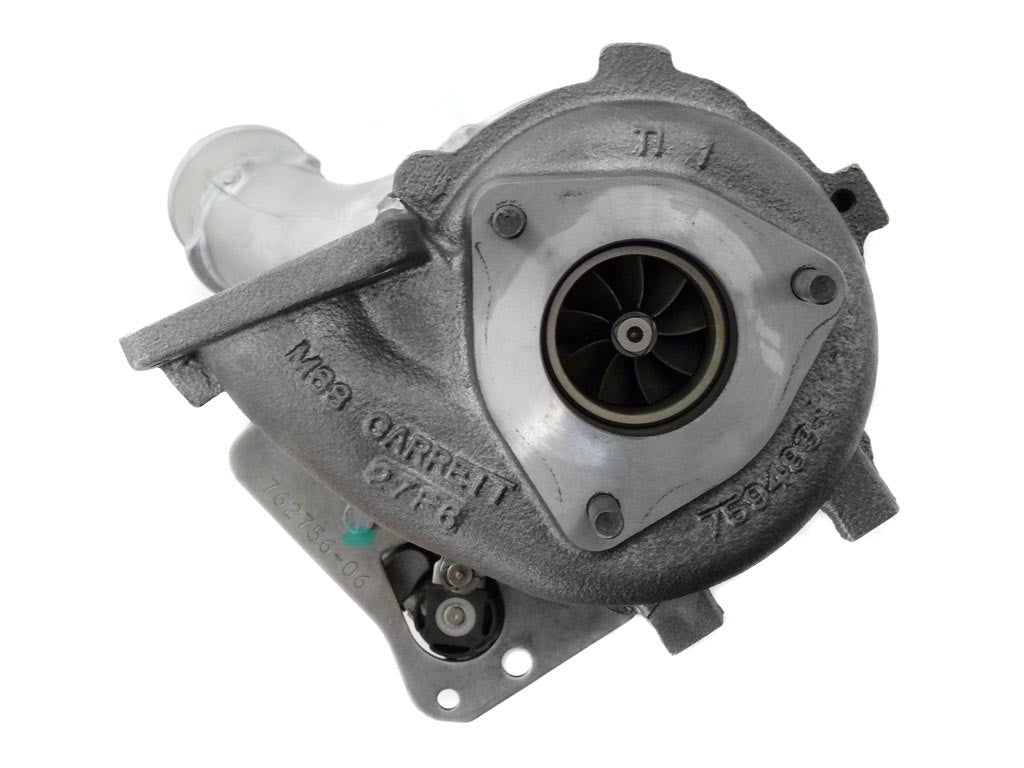

769701-0001 (059145721E) - Turbocharger
Brand: Garrett
Garrett Reference: 769701-0001
OEM Numbers: 059145721E
769701-0001 - Alternative numbers
GHT (Garrett OEM, original turbo number): 769701-0001
GHA (Garrett IAM, aftermarket turbo number): 769701-5001S
769701-0001 - Technologies and actuation
Actuation type: Electric (Electric actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
769701-0001 - Turbo replacements
Replaced by: Garrett GTB1756VK 769701-0003
769701-0001 - Turbo interchangeability
Interchangeable with: Garrett GTB1756VK 765314-0003
Interchangeable with: Garrett GTB1756VK 765314-0004
Interchangeable with: Garrett GTB1756VK 769701-0002
Interchangeable with: Garrett GTB1756VK 769701-0003
| Turbo 769701-0001 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| Hella | Actuator | 6NW009483-181 | 1 | -- | 761963-0033, 761963-0060, 761963-33, 761963-60 |
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0011 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0089 | 1 | 737689-0002, 784366-0002 | -- |
| TurboCentras | Back plate | GA-08-0052 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Cartridge | GT117-216 | 1 | -- | -- |
| TurboCentras | Bearing housing | GT117-317 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-326 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-53 | 1 | -- | -- |
| E&E Turbo | Cartridge | GT17-078 | 1 | -- | -- |
| TurboCentras | VNT gasket (turbine) | GT17-149-2 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GT17-95 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
059145721E, 769701-0001, 769701-5001S
Data updated: 2023-07-03 08:33:24
