BorgWarner

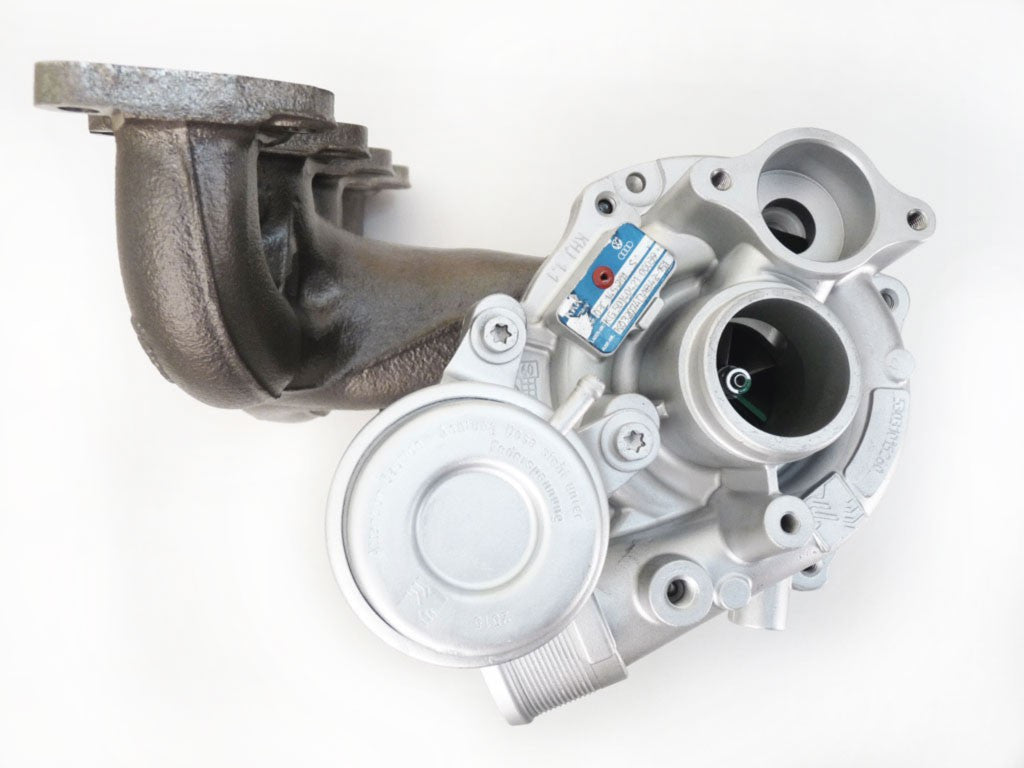

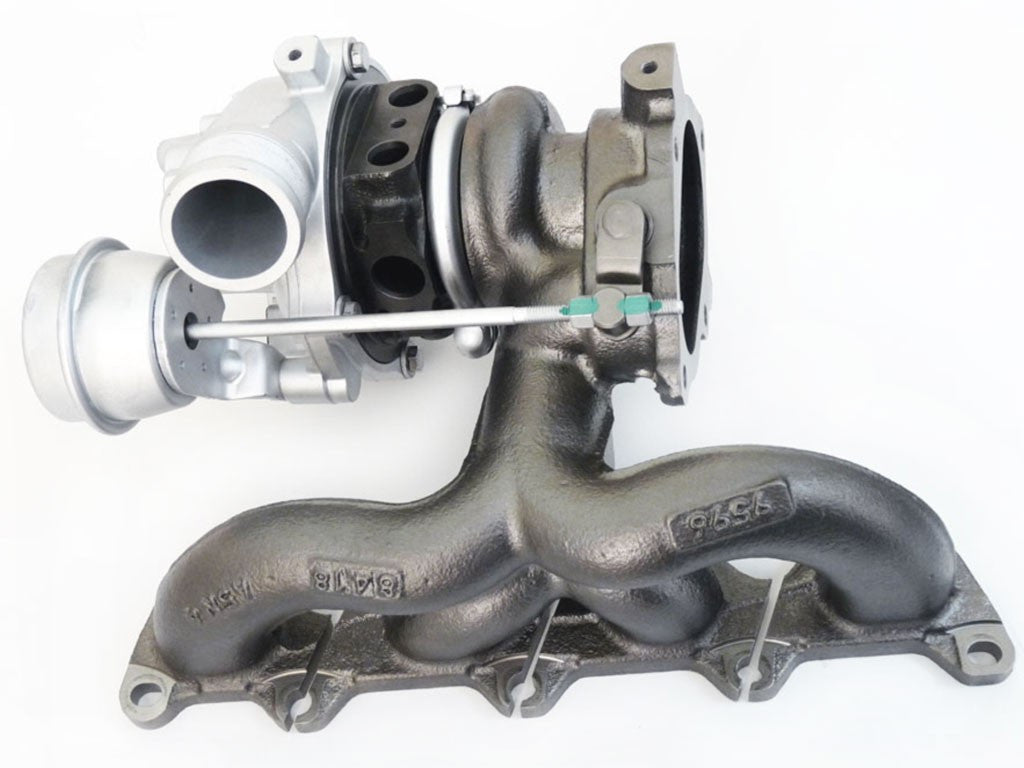

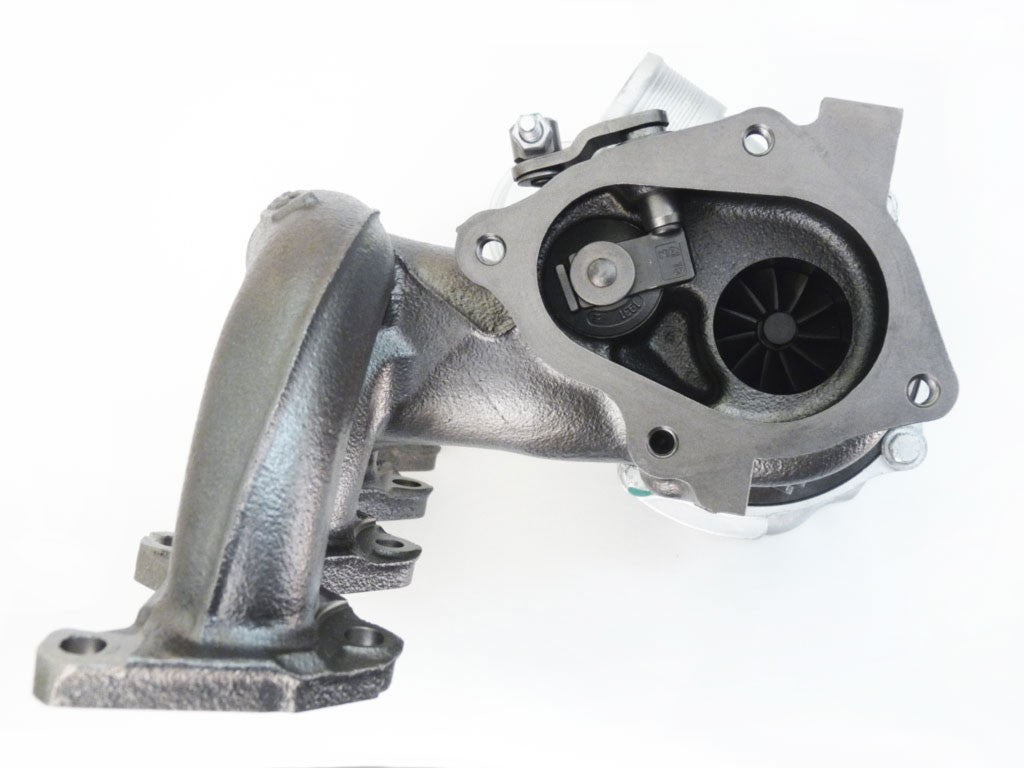

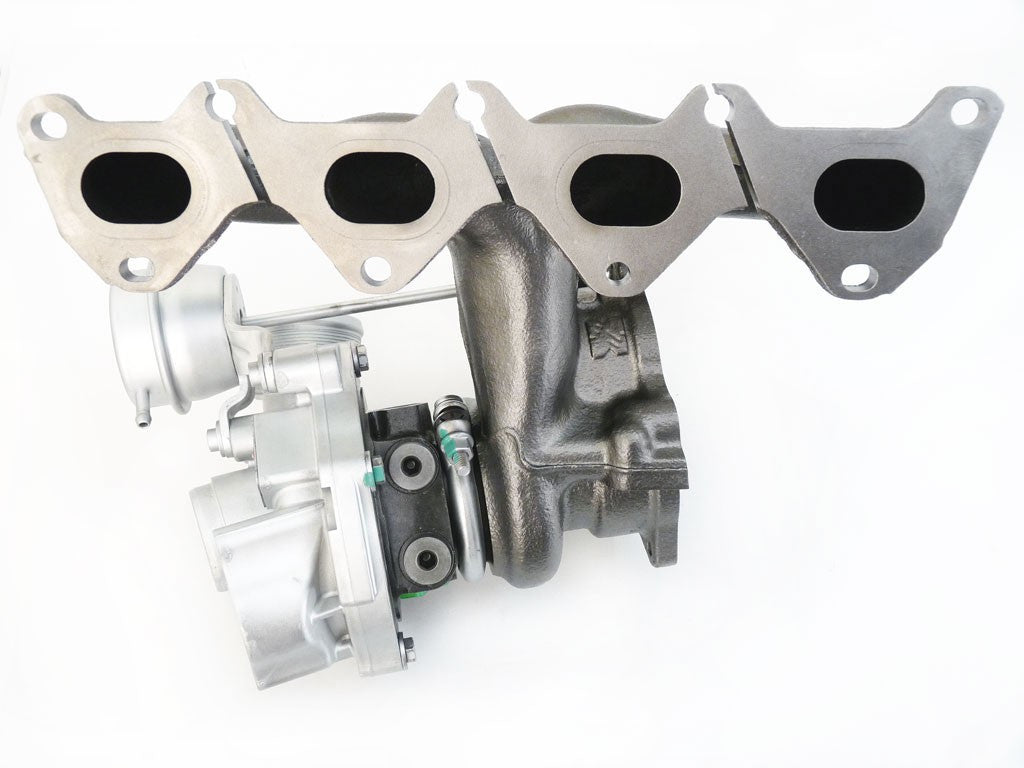

Turbo 53039700151-R 53039700151 (R)
Turbo 53039700151-R 53039700151 (R)
Redna cena
€231,40 EUR
Redna cena
Znižana cena
€231,40 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
53039700151-R (03C145701S) - Turbocharger K03-1874KAB4.82KCAXM
Brand: BorgWarner
Model: K03 - K03-1874KAB4.82KCAXM
BorgWarner Reference: 53039700151-R
OEM Numbers: 03C145701S
53039700151-R - Alternative numbers
BWT (BorgWarner turbo number): 5303 970 0151
53039700151-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger)
53039700151-R - Turbo replacements
Replaced by: BorgWarner K03-1874KAB4.82KCAXM 53039700249
Replaced by: BorgWarner K03-1874KAB4.82KCAXM 53039700460
53039700151-R - Turbo interchangeability
Interchangeable with: BorgWarner K03-1874KAB4.82KCAXM 53039700151
Interchangeable with: BorgWarner K03-1874KAB4.82KCAXM 53039700249
Interchangeable with: BorgWarner K03-1874KAB4.82KCAXM 53039700460
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 4 | -- | -- |
| TurboCentras | Cartridge | BW-00-0092 | 1 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0072 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0041 | 1 | 5303-120-5060, 5303-120-6506, 5303-120-8501, 5303-120-8519 | -- |
| TurboCentras | Compressor wheel | BW-03-0008 | 1 | -- | -- |
| TurboCentras | Compressor wheel | BW-03-0017 | 1 | -- | -- |
| TurboCentras | Repair kit | BW-04-0017 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-05-0018 | 1 | -- | -- |
| TurboCentras | Back plate | BW-08-0030 | 1 | -- | -- |
| TurboCentras | Turbine housing | BW-09-0027 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0004 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Journal bearing | K03/04-110 | 1 | -- | -- |
| TurboCentras | Thrust bearing | K03/04-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | K03/04-130 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-143 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-144 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-145 | 1 | -- | -- |
| TurboCentras | Oil deflector | K03/04-146 | 1 | -- | -- |
| TurboCentras | Thrust washer | K03/04-155 | 1 | -- | -- |
| TurboCentras | Piston ring | K03/04-160 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
53039700151, 03C145701S, 5303 970 0151
Data updated: 2024-05-15 10:10:48
