Garrett

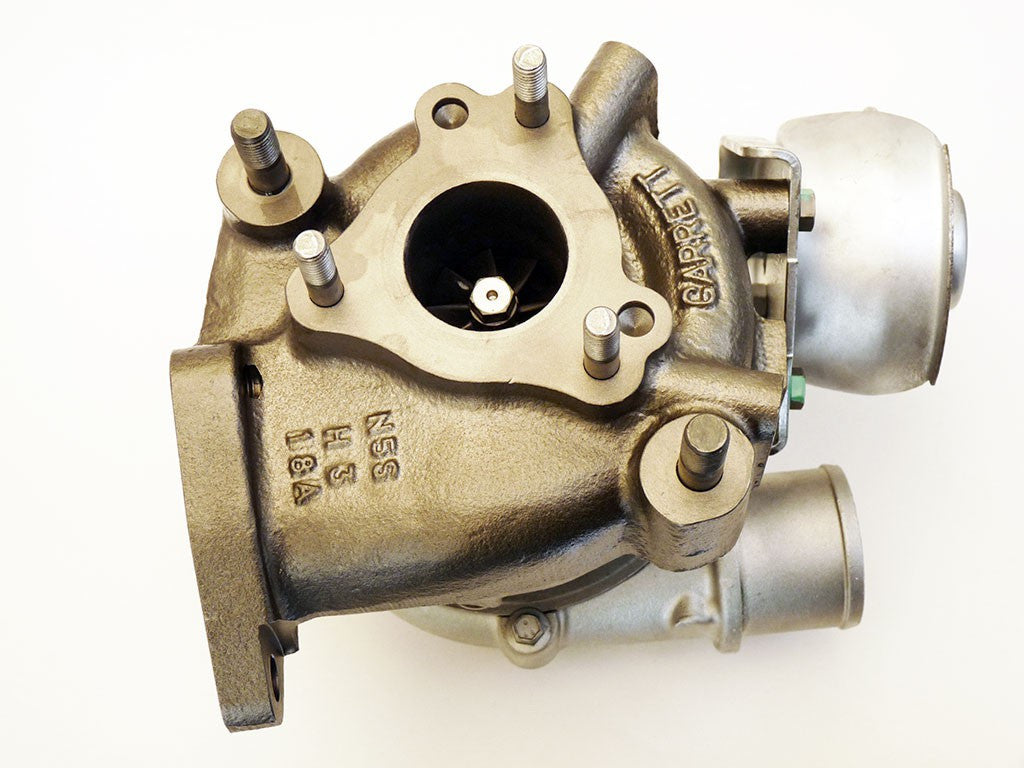

Turbo 801891-0001 (R)
Turbo 801891-0001 (R)
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
801891-0001 (1720127030) - Turbocharger
Brand: Garrett
Garrett Reference: 801891-0001
OEM Numbers: 1720127030
801891-0001 - Alternative numbers
GHO (Garrett original part number): 801891-0001
GHA (Garrett aftermarket part number): 801891-5001S
801891-0001 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
801891-0001 - Turbo replacements
Replaced by: Garrett GT1749V 801891-0004
Replacement for: Garrett GT1749V 721164-0003
Replacement for: Garrett GT1749V 721164-0011
Replacement for: Garrett GT1749V 721164-0013
801891-0001 - Turbo interchangeability
Interchangeable with: BorgWarner GTA1749V 57439880009
Interchangeable with: Garrett GT1749V 721164-0003
Interchangeable with: Garrett GT1749V 721164-0011
Interchangeable with: Garrett GT1749V 721164-0013
Interchangeable with: Garrett GT1749V 801891-0004
| Turbo 801891-0001 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT15-02 | 1 | -- | 436132-0003, 436334-0003, 703925-0003 |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-324 | 1 | -- | 433112-0001 |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-50 | 1 | -- | -- |
| TurboCentras | Back plate | GT15-72 | 1 | -- | -- |
| E&E Turbo | Cartridge | GT17-001 | 1 | -- | 701864-0020 |
| TurboCentras | Cartridge | GT17-211 | 1 | -- | 701864-0020 |
| TurboCentras | Bearing housing | GT17-306 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT17-38 | 1 | -- | 434533-0007, 434533-0009 |
| TurboCentras | Actuator | GT17-482 | 1 | -- | 721777-0003 |
| TurboCentras | Nozzle ring assy. | GT17-90 | 1 | -- | -- |
| TurboCentras | VNT Nozzle ring | GT17-90-1 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2-2 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1020 | 1 | -- | -- |
1720127030, 801891-0001, 801891-5001S
Data updated: 2022-01-05 13:31:12
