Garrett
Turbo 756867-0001 (R)
Turbo 756867-0001 (R)
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

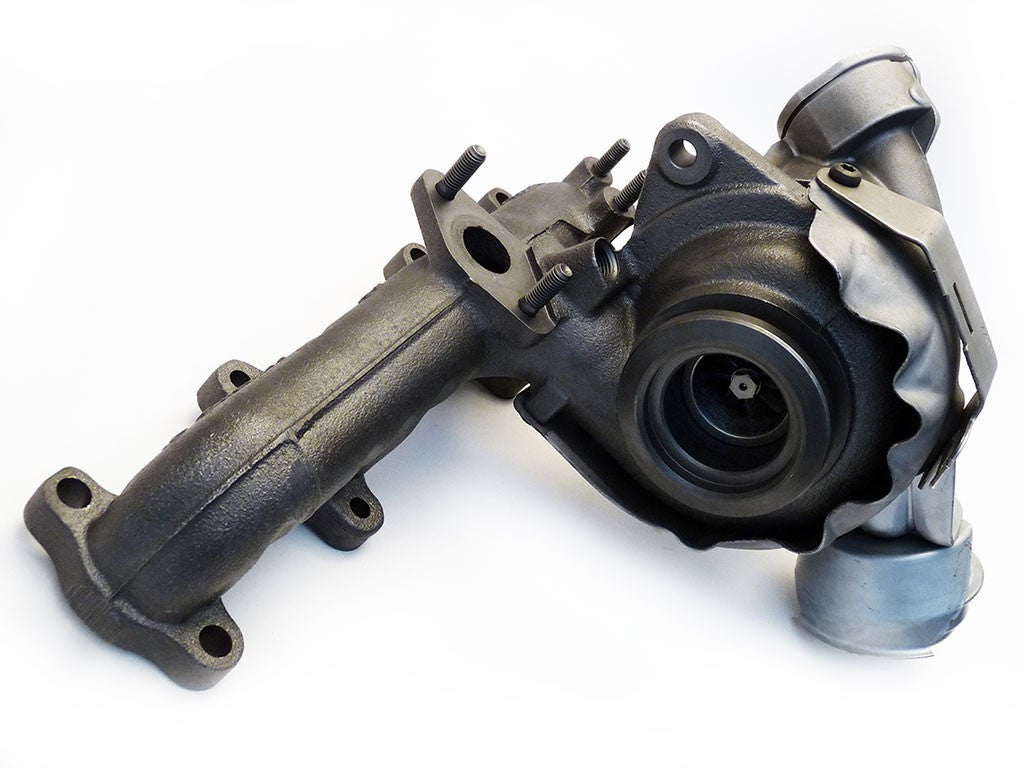

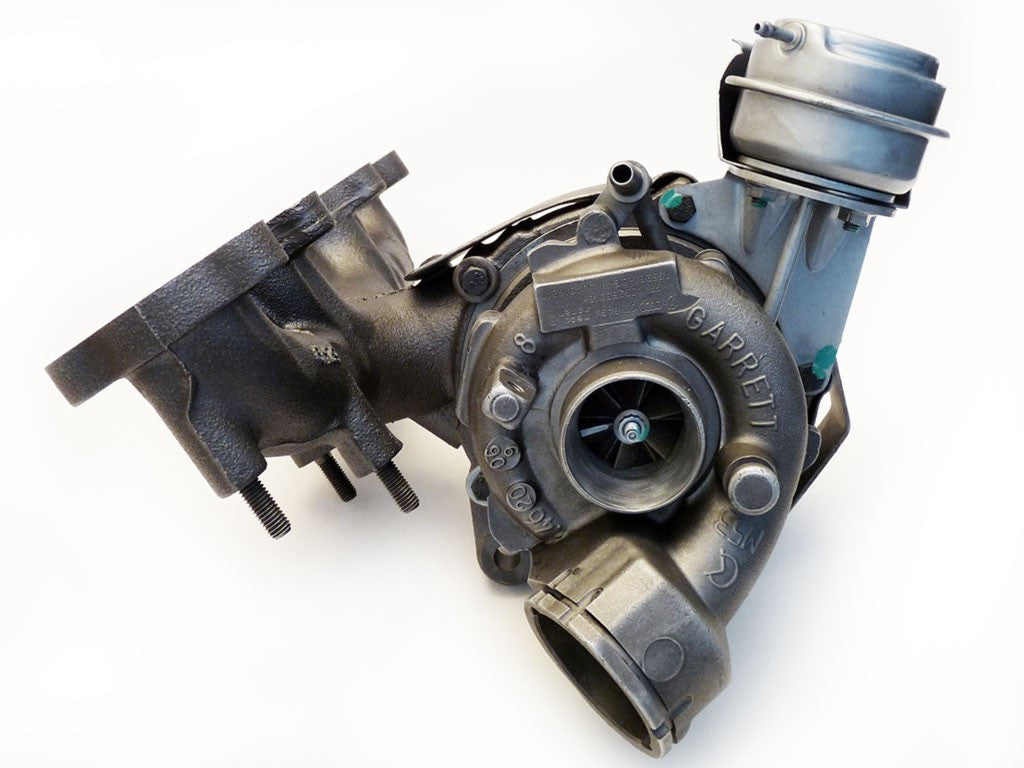

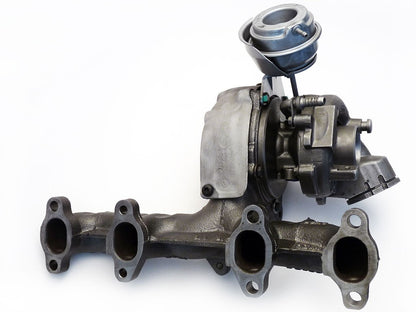

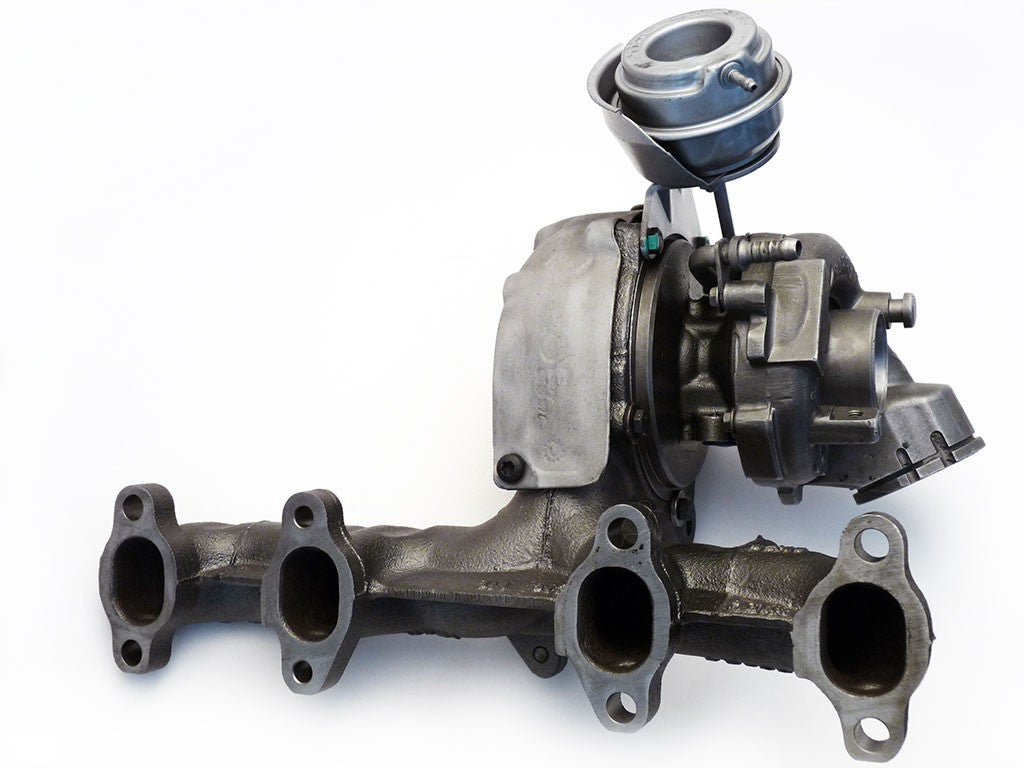

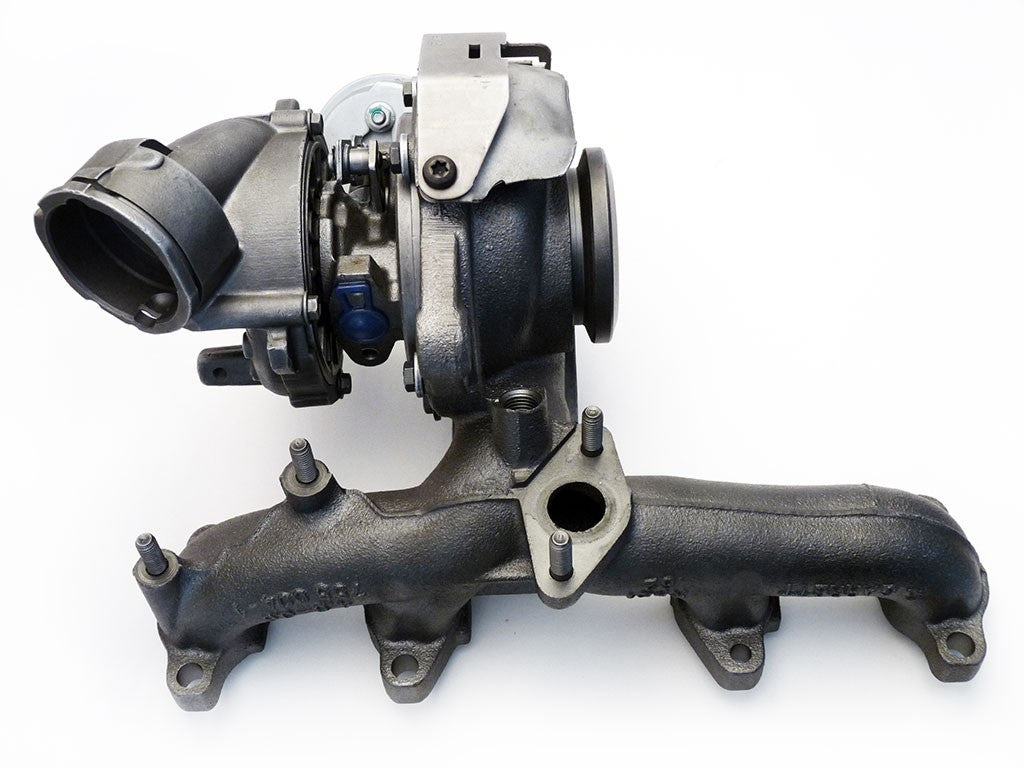

756867-0001 (03G253010, 03G253014N, 03G253019L) - Turbocharger
Brand: Garrett
Garrett Reference: 756867-0001
OEM Numbers: 03G253010, 03G253014N, 03G253019L
756867-0001 - Alternative numbers
GHT (Garrett original turbo number): 756867-0001
GHA (Garrett aftermarket turbo number): 756867-5001S
756867-0001 - Turbo replacements
Replaced by: Garrett GTB1646MV 765261-0008
756867-0001 - Turbo interchangeability
Interchangeable with: Garrett GT1646V 756867-0002
Interchangeable with: Garrett GT1646V 756867-0003
Interchangeable with: Garrett GT1646V 765261-0001
Interchangeable with: Garrett GTB1646MV 765261-0002
Interchangeable with: Garrett GTB1646MV 765261-0003
Interchangeable with: Garrett GTB1646MV 765261-0004
Interchangeable with: Garrett GTB1646MV 765261-0005
Interchangeable with: Garrett GTB1646MV 765261-0006
Interchangeable with: Garrett GTB1646MV 765261-0007
Interchangeable with: Garrett GTB1646MV 765261-0008
| Turbo 756867-0001 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Cartridge | GA-00-0231 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0047 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-326 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-53 | 1 | -- | -- |
| E&E Turbo | Cartridge | GT16-005 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT16-01 | 1 | -- | 737686-0002, 784959-0002 |
| TurboCentras | Shaft and wheel | GT16-36 | 1 | -- | -- |
| TurboCentras | Back plate | GT16-61 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GT16-700 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GT16-90 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1023 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1023F | 1 | -- | -- |
03G253010, 03G253014N, 03G253019L, 756867-0001, 756867-5001S
Data updated: 2023-02-03 18:55:34
