Garrett

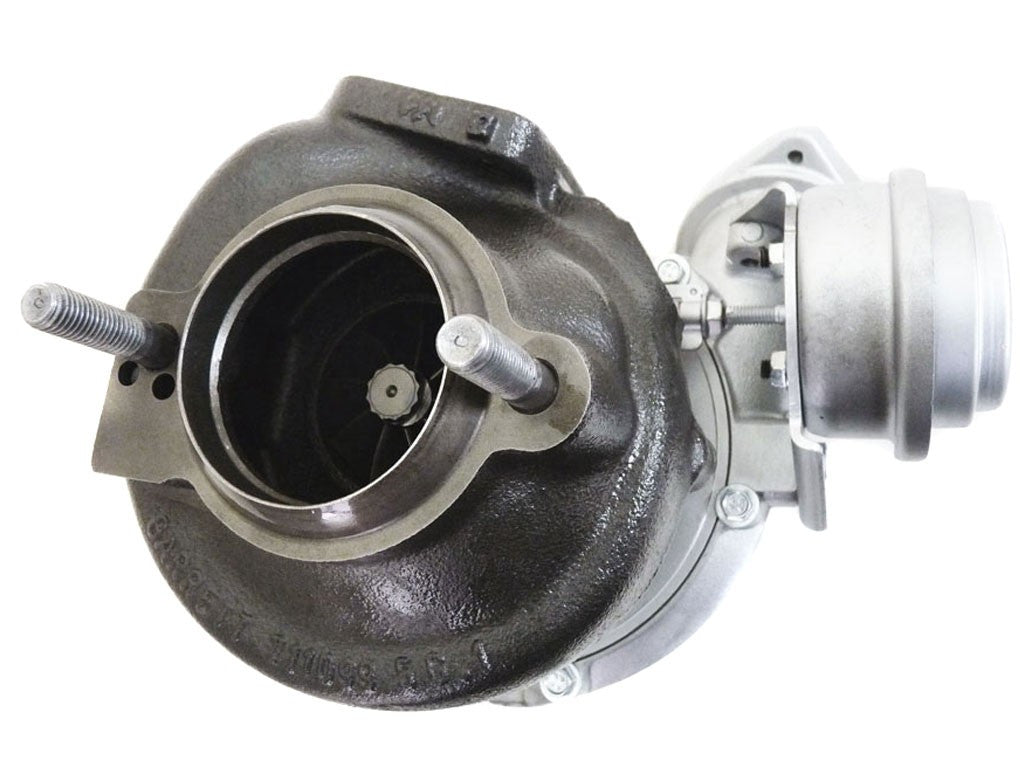

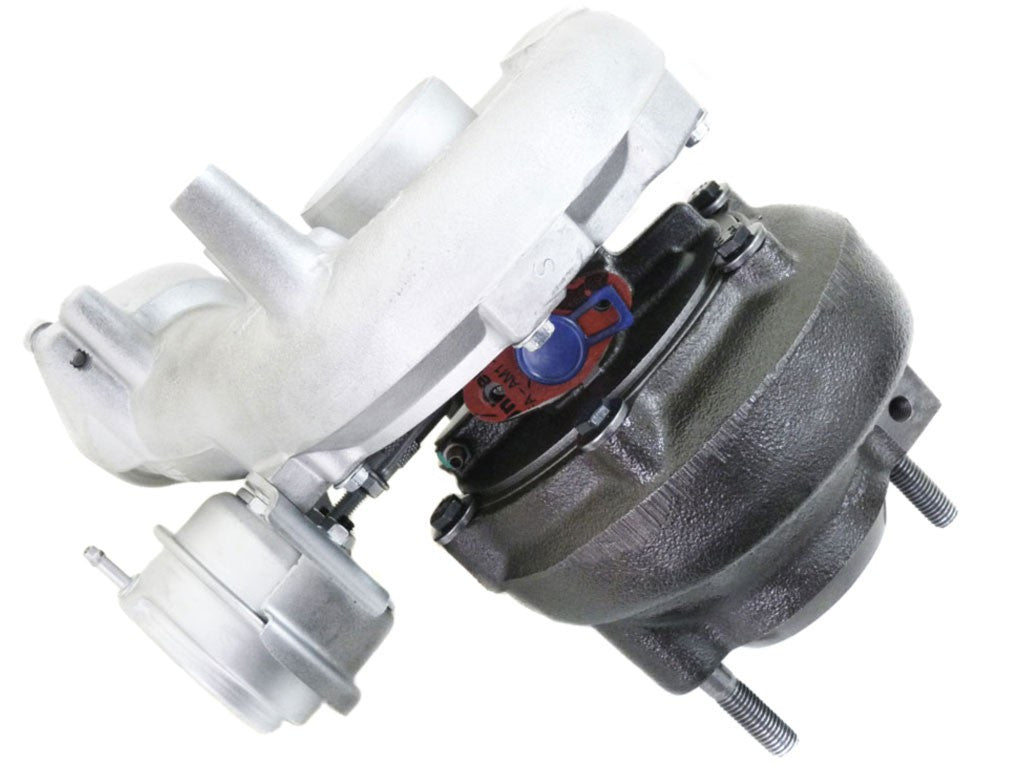

Turbo 753392-0001-R
Turbo 753392-0001-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
753392-0001 (11657791046, 7791044F) - Turbocharger GTA2260V
Brand: Garrett
Model: GT22 - GTA2260V
Garrett Reference: 753392-0001
OEM Numbers: 11657791046, 7791044F
753392-0001 - Alternative numbers
GHT (Garrett turbo number): 753392-0001
GHT (Garrett turbo number): 753392-5001S
753392-0001 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
753392-0001 - Turbo replacements
Replaced by: Garrett GTA2260V 753392-0019, 753392-5019S, 753392-9019S, 7791046M09
753392-0001 - Turbo interchangeability
Interchangeable with: Garrett GTA2260V 742417-0001
Interchangeable with: Garrett GTA2260V 753392-0003, 7791046F
Interchangeable with: Garrett GTA2260V 753392-0015, 7791046K
Interchangeable with: Garrett GTA2260V 753392-0016, 11657791046, 791044M09
Interchangeable with: Garrett GTA2260V 753392-0017, 11657791046, 7791045M09
Interchangeable with: Garrett GTA2260V 753392-0018, 7791046M09
Interchangeable with: Garrett GTA2260V 753392-0019, 753392-5019S, 753392-9019S, 7791046M09
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0198 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0139 | 1 | 722282-0006 | -- |
| TurboCentras | Shaft and wheel | GA-02-0051 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0081 | 1 | 720915-0004 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0012 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0035 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0010 | 1 | -- | -- |
| TurboCentras | Turbine housing | GA-09-0013 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT22-008 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1001 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1001F | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
11657791046, 753392-0001, 753392-5001S, 7791044F
Data updated: 2024-10-11 07:57:22
