Turbo VV16
Turbo VV16
Redna cena
€380,00 EUR
Redna cena
Znižana cena
€380,00 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

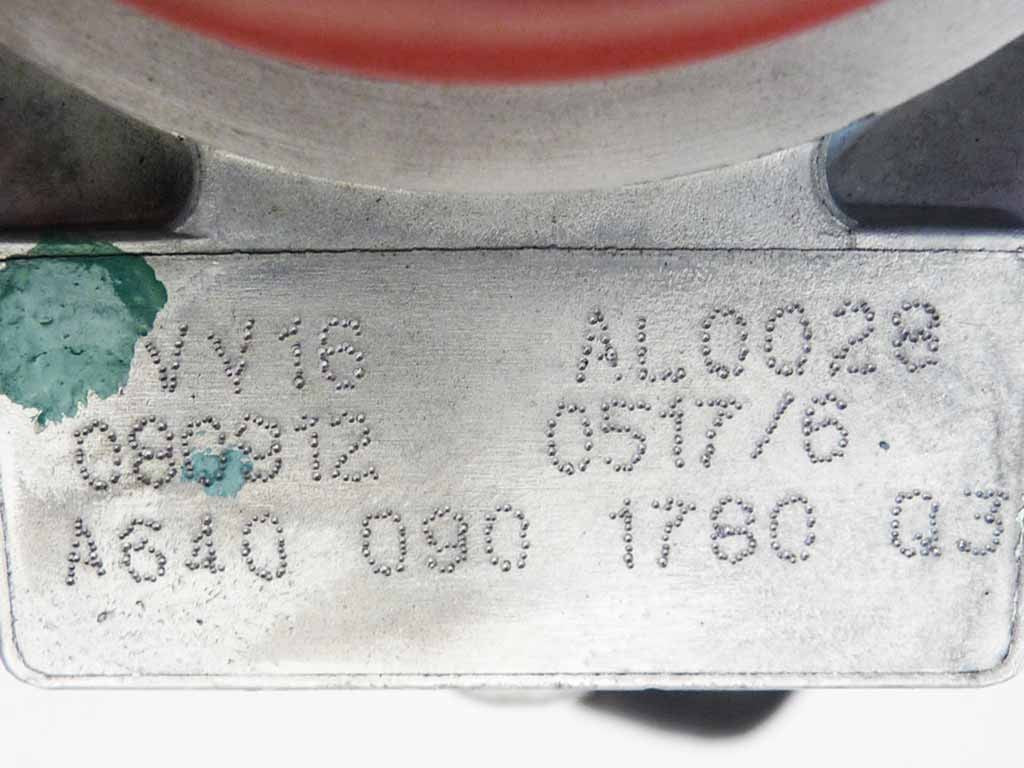

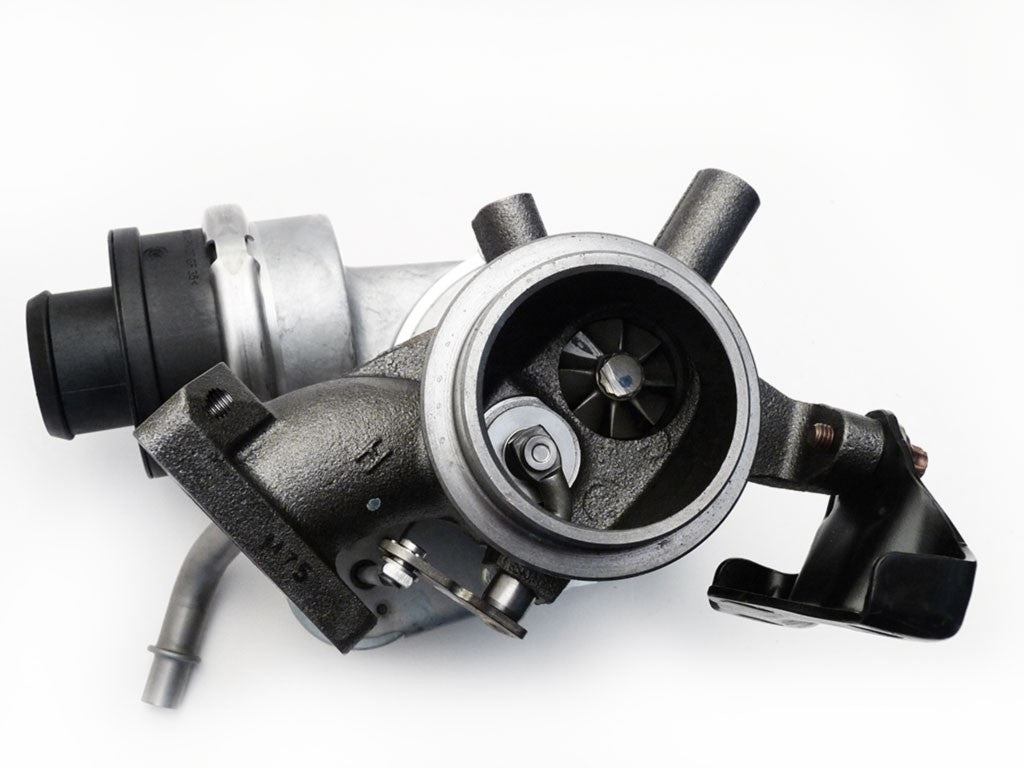

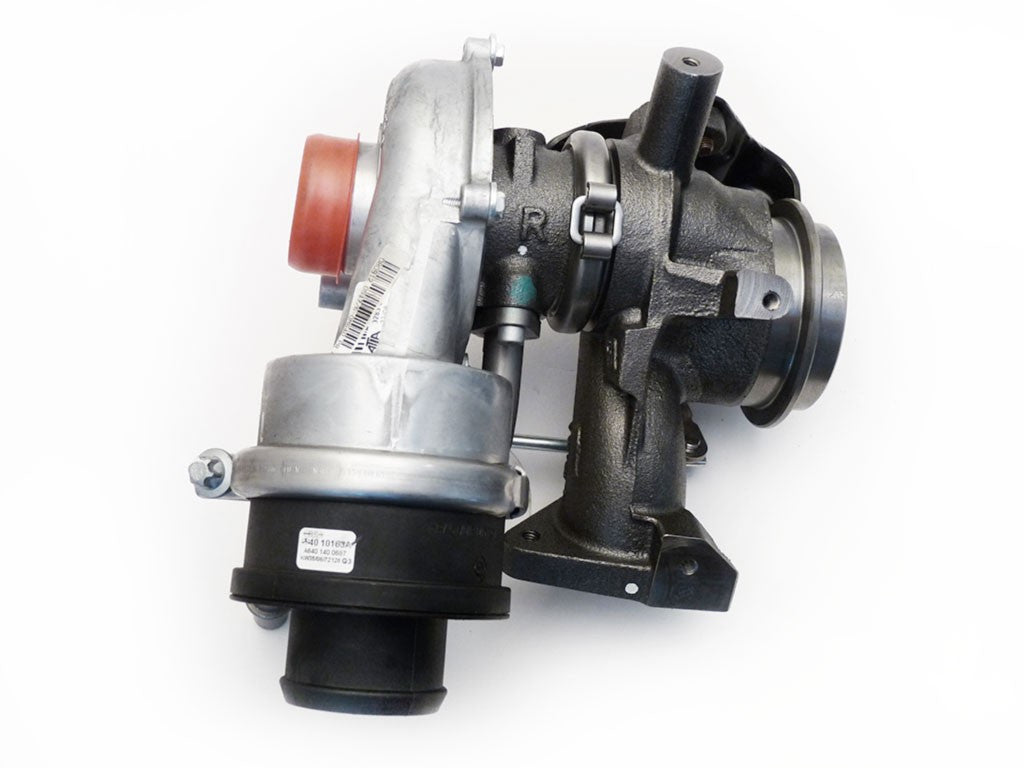

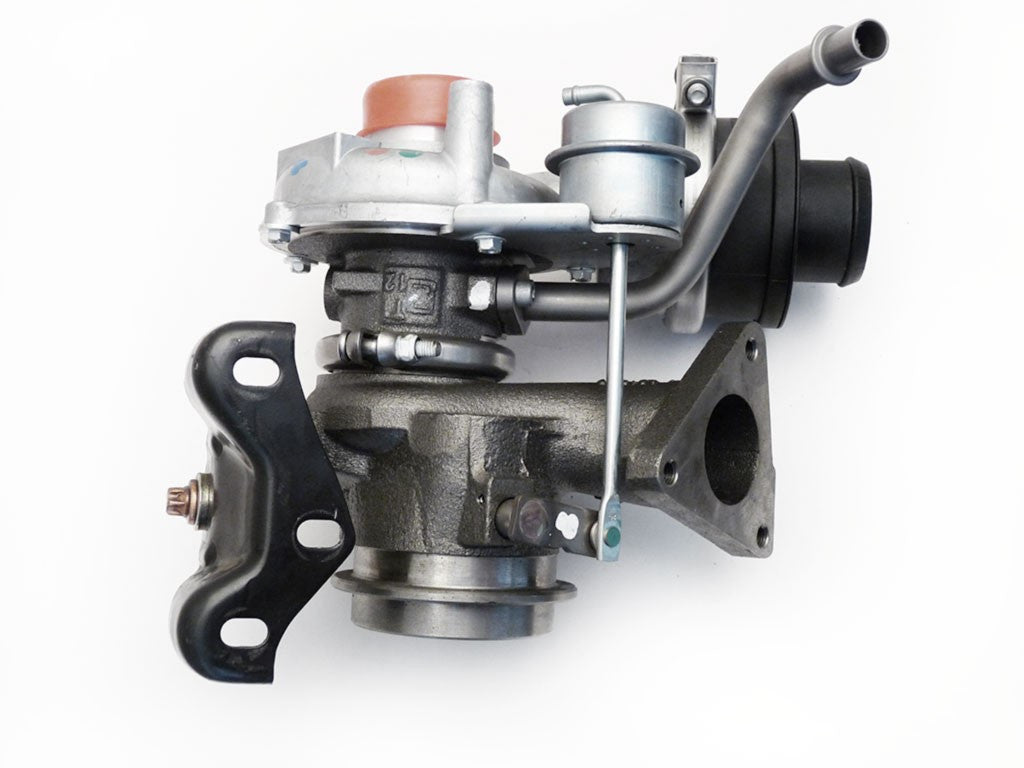

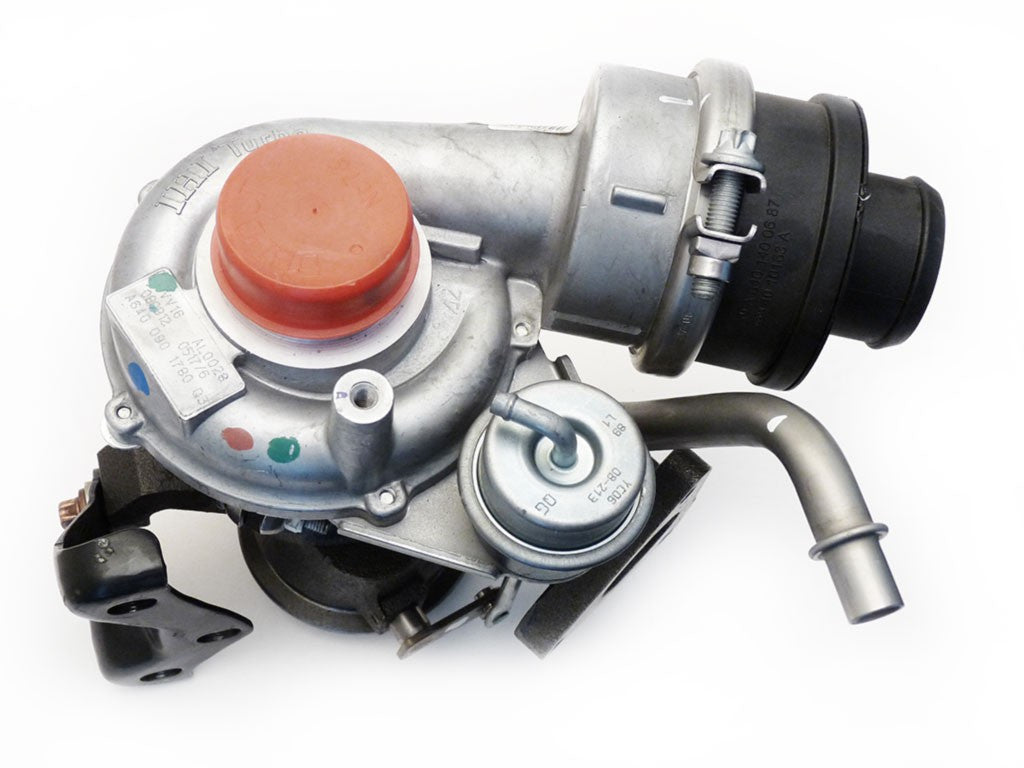

VV16 (A6400901380, A6400901780) - Turbocharger RHF4H-60008P9NHBRL342CDZ
Brand: IHI
Model: RHF4 - RHF4H-60008P9NHBRL342CDZ
IHI Reference: VV16
OEM Numbers: A6400901380, A6400901780
VV16 - Alternative numbers
IHT (IHI turbo number): VF40A281
IHT (IHI turbo number): VV16
VV16 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger)
VV16 - Turbo interchangeability
Interchangeable with: IHI RHF4H-60008P9NHBRL342CDZ VV16-R
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | IHI PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | IH-00-0018 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | IH-02-0024 | 1 | -- | -- |
| TurboCentras | Compressor wheel | IH-03-0021 | 1 | -- | -- |
| TurboCentras | Repair kit | IH-04-0009 | 1 | -- | -- |
| TurboCentras | Heat shield | IH-05-0012 | 1 | -- | -- |
| TurboCentras | Back plate | IH-08-0007 | 1 | -- | -- |
| TurboCentras | Shaft nut | IH-21-0002 | 1 | -- | -- |
| TurboCentras | Journal bearing | RHF4-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | RHF4-121 | 1 | -- | -- |
| TurboCentras | Thrust flinger | RHF4-130 | 1 | -- | -- |
| TurboCentras | Retaining ring | RHF4-145 | 1 | -- | -- |
| TurboCentras | Thrust washer | RHF4-146 | 1 | -- | -- |
| TurboCentras | Piston ring | RHF4-160 | 1 | -- | -- |
| TurboCentras | Piston ring | RHF4-170 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0002 | 3 | -- | -- |
| TurboCentras | Screw | SC-96-0003 | 2 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
A6400901380, A6400901780, VF40A281, VV16
Data updated: 2024-05-17 11:31:09
