BorgWarner

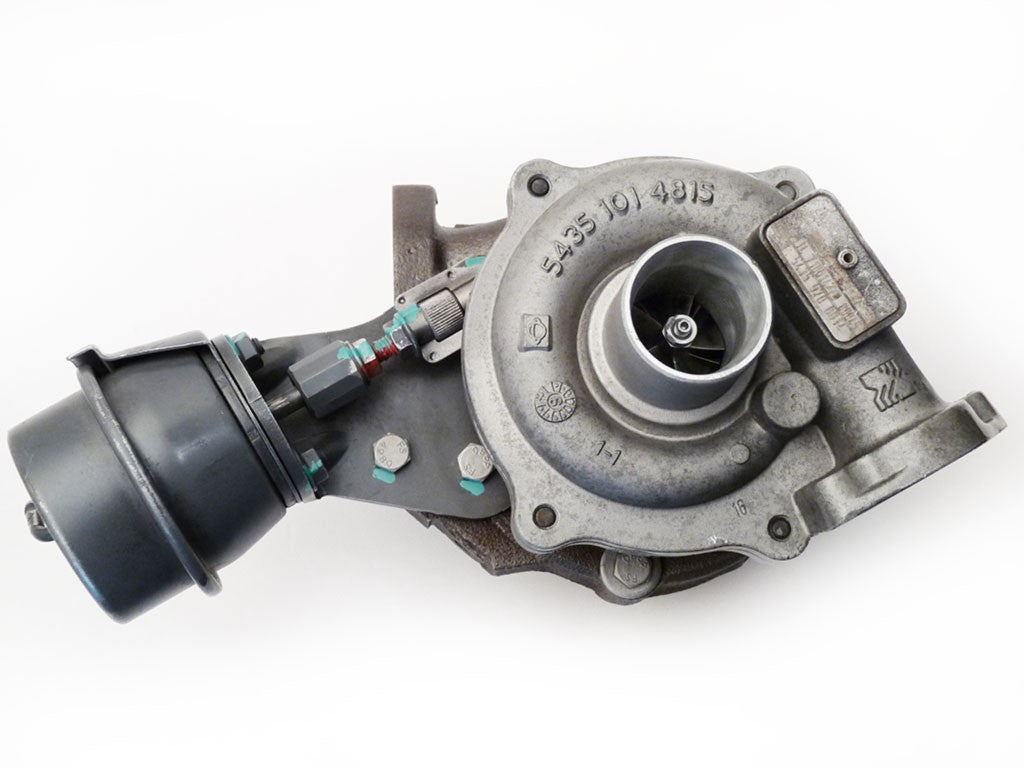

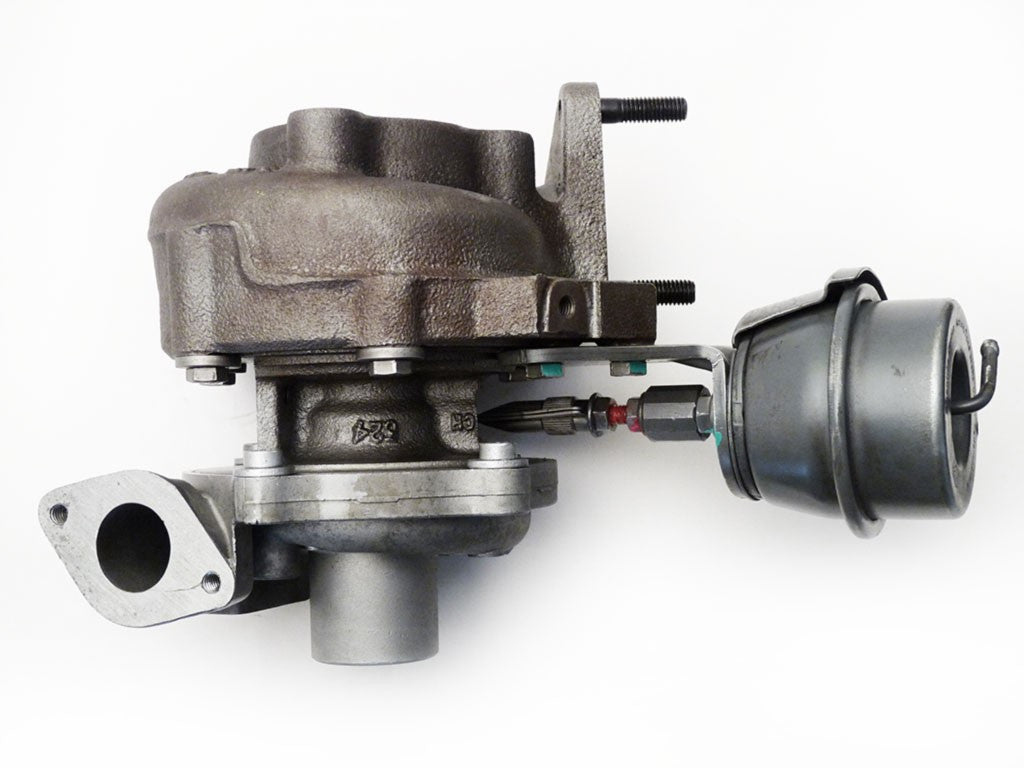

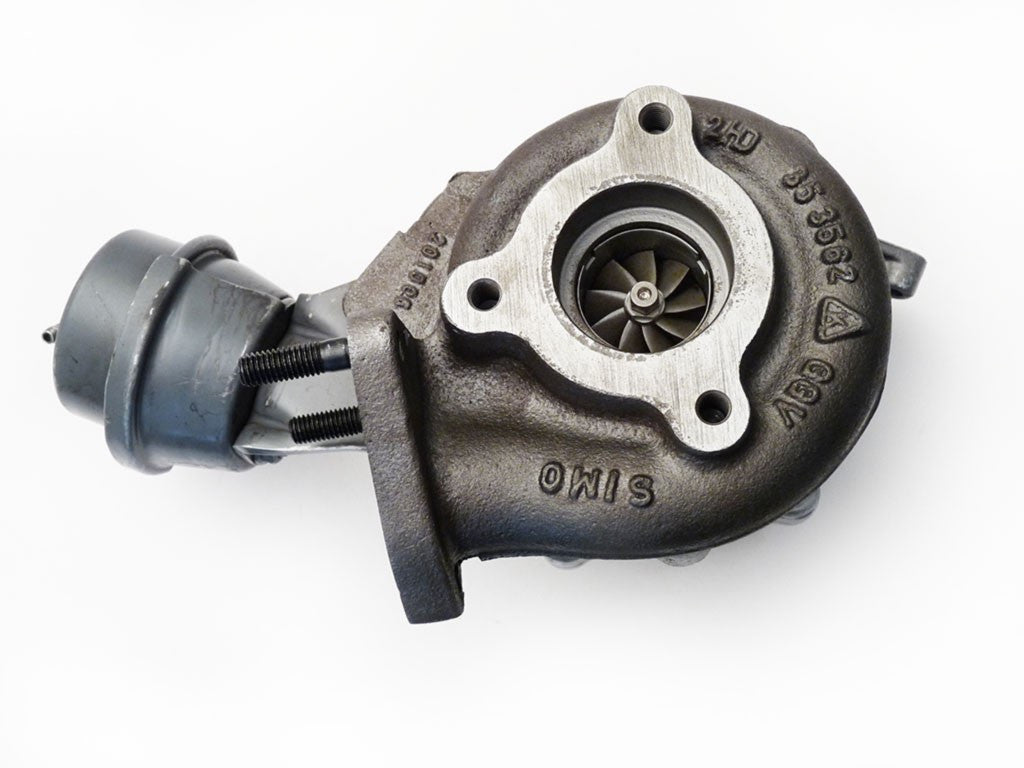

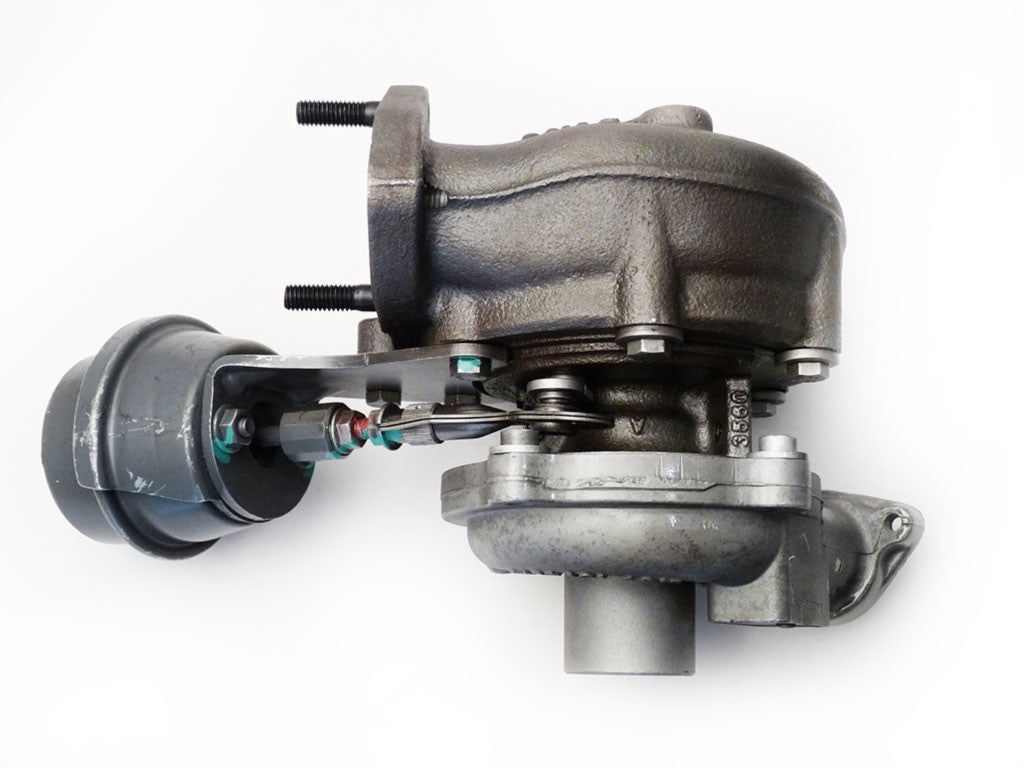

Turbo 54359700014-R 54359700014 (R)
Turbo 54359700014-R 54359700014 (R)
Redna cena
€231,40 EUR
Redna cena
Znižana cena
€231,40 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
54359700014-R (55198317) - Turbocharger BV35-1573DBK462.18AVAXX
Brand: BorgWarner
Model: BV35 - BV35-1573DBK462.18AVAXX
BorgWarner Reference: 54359700014-R
OEM Numbers: 55198317
54359700014-R - Alternative numbers

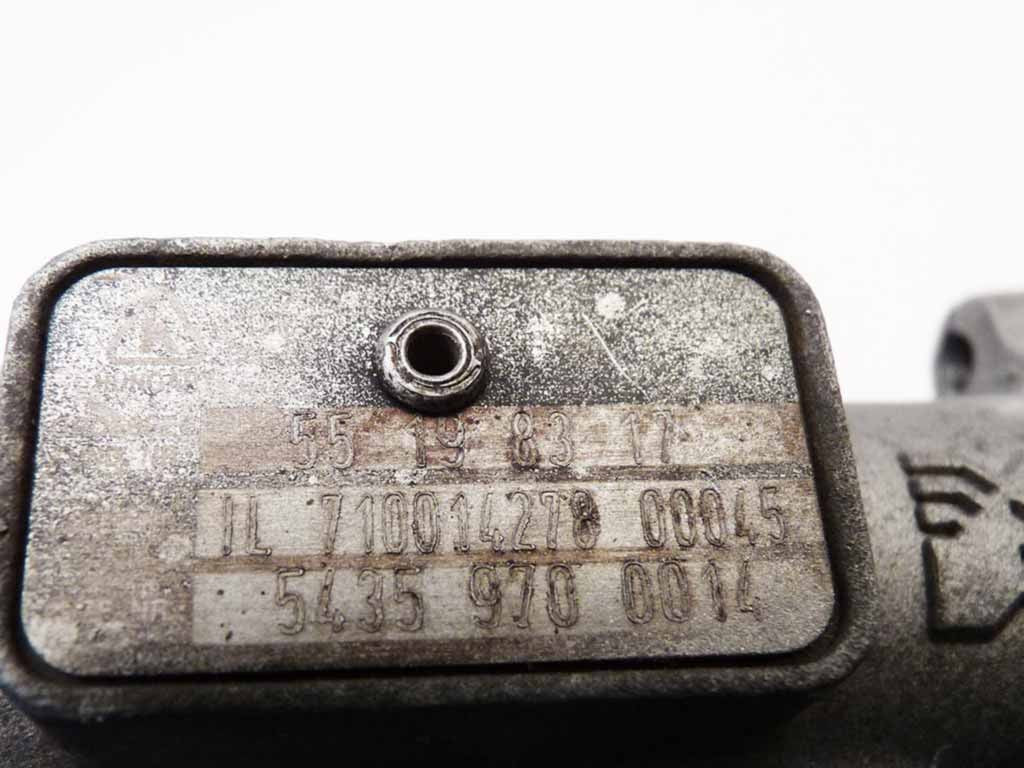

BWT (BorgWarner turbo number): 5435 970 0014
BWT (BorgWarner turbo number): 5435 988 0014
BWT (BorgWarner turbo number): 5435 990 0014
54359700014-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
54359700014-R - Turbo interchangeability
Interchangeable with: BorgWarner BV35-1573DBK462.18AVAXX 54359700014
Interchangeable with: BorgWarner BV35-1573DBK462.18AVAXX 54359710014
Interchangeable with: BorgWarner BV35-1573DBK462.18AVAXX 54359880014
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 6 | -- | -- |
| TurboCentras | Cartridge | BW-00-0025 | 1 | -- | 5435 710 0513 |
| TurboCentras | Bearing housing | BW-01-0024 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0021 | 1 | 5435-120-8501 | -- |
| TurboCentras | Compressor wheel | BW-03-0039 | 1 | 5435-123-2009 | -- |
| TurboCentras | Repair kit | BW-04-0013 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-05-0010 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0012 | 1 | -- | -- |
| TurboCentras | Back plate | BW-08-0007 | 1 | -- | -- |
| TurboCentras | Actuator | BW-10-0015 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 2 | -- | -- |
| TurboCentras | Piston ring | K03/04-170 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-130 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-131 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-201 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | KP39-149 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1069 | 1 | -- | -- |
54359900014, 54359880014, 54359700014, 5435 970 0014, 5435 988 0014, 5435 990 0014, 55198317
