Turbo 760698-0004-R
Turbo 760698-0004-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

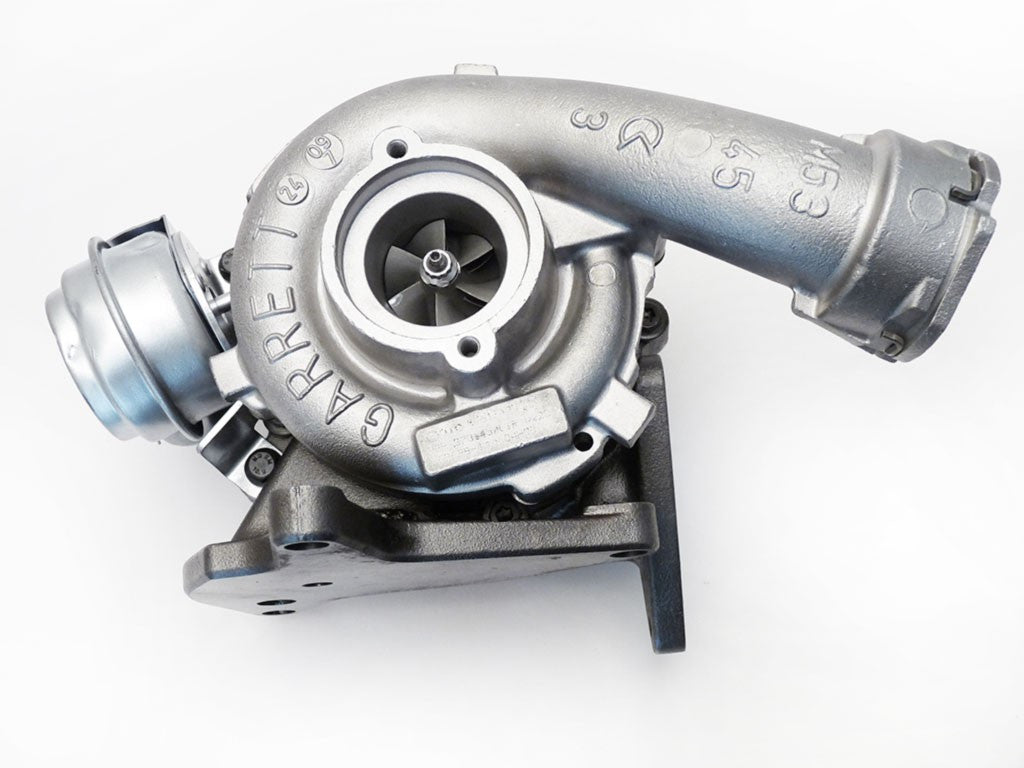

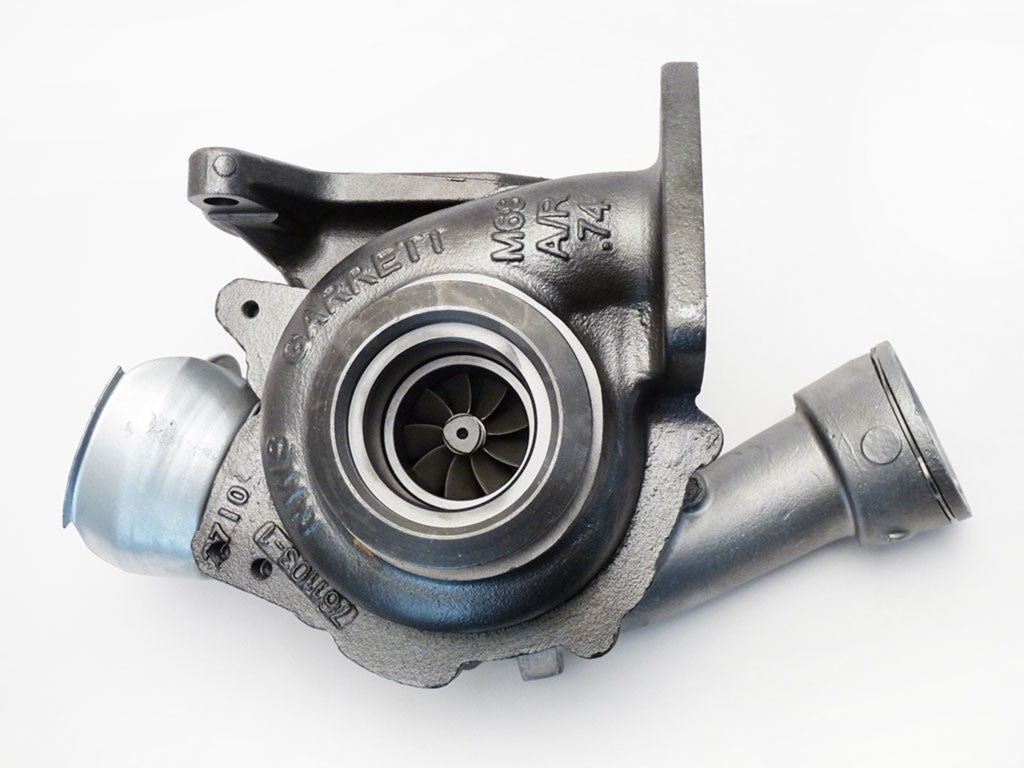

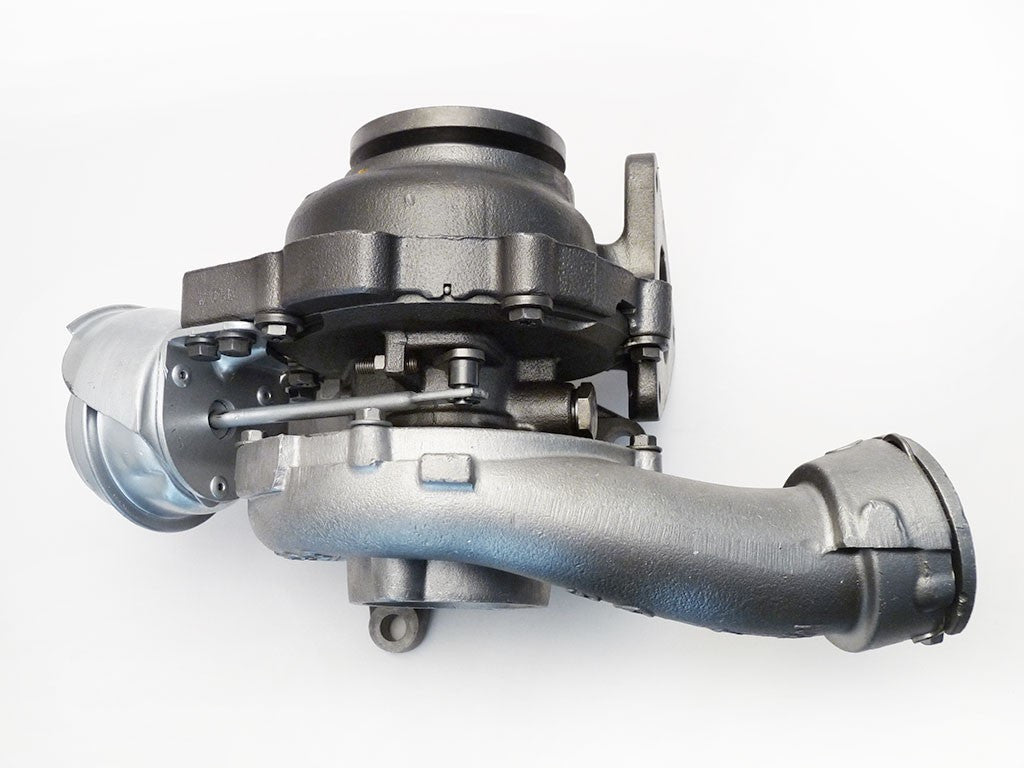

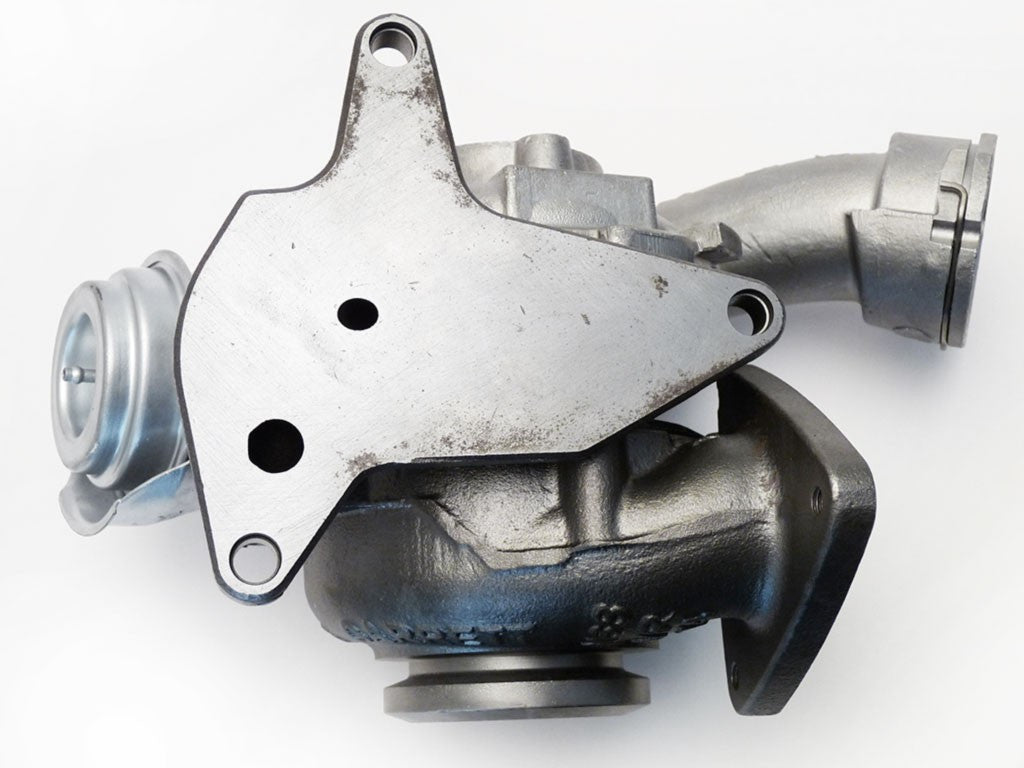

760698-0004-R (070145701RV220) - Turbocharger GTB1749V
Brand: Garrett
Model: GT17 - GTB1749V
Garrett Reference: 760698-0004-R

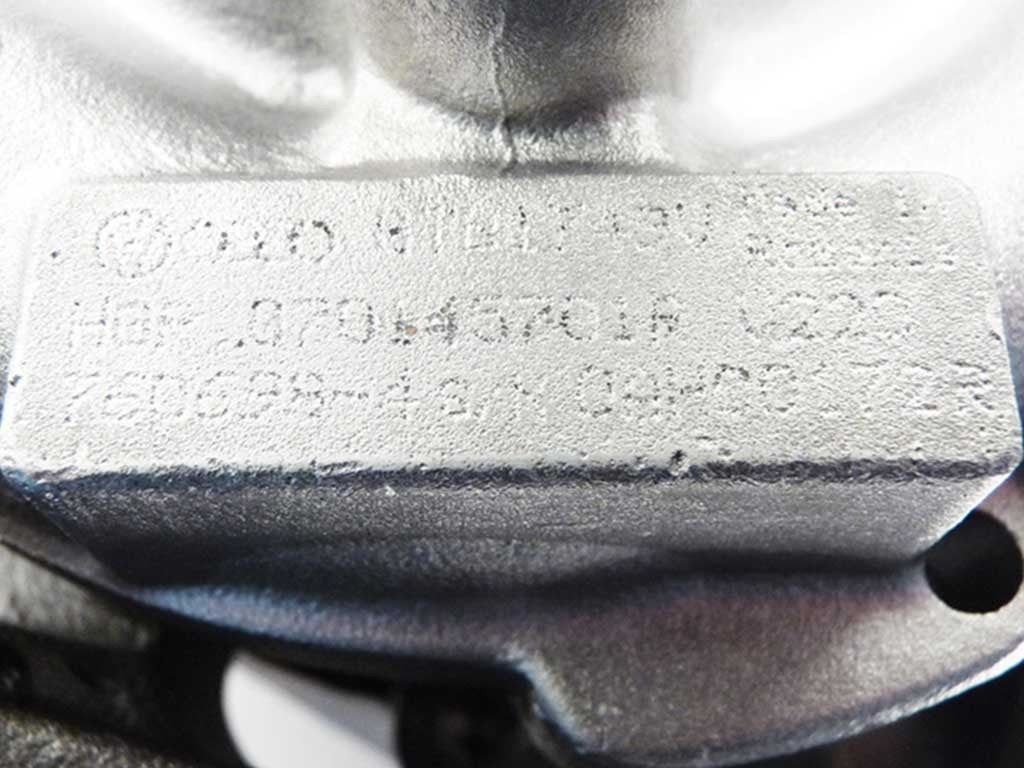

OEM Numbers: 070145701RV220
760698-0004-R - Alternative numbers
GHT (Garrett turbo number): 760698-0004
GHT (Garrett turbo number): 760698-0004-R
760698-0004-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
760698-0004-R - Turbo replacements
Replaced by: Garrett GTB1749V 760698-0005, 070145701RV220, 760698-5005S
Replaced by: Garrett GTB1749V 760698-0006, 070145701RV220, 760698-5006S
Replacement for: Garrett GTB1749V 760698-0002, 070145701RV204, 760698-5002S
Replacement for: Garrett GTB1749V 760698-0003, 070145701RV210, 760698-5003S
760698-0004-R - Turbo interchangeability
Interchangeable with: Garrett GTB1749V 760698-0002, 070145701RV204, 760698-5002S
Interchangeable with: Garrett GTB1749V 760698-0003, 070145701RV210, 760698-5003S
Interchangeable with: Garrett GTB1749V 760698-0004, 070145701RV220, 760698-5004S
Interchangeable with: Garrett GTB1749V 760698-0005, 070145701RV220, 760698-5005S
Interchangeable with: Garrett GTB1749V 760698-0006, 070145701RV220, 760698-5006S
Interchangeable with: EE Turbo GTB1749V Turbo-G118, 070145701RV204, 070145701RV210, 070145701RV220, 760698-0002, 760698-0003, 760698-0004, 760698-0005, 760698-0006, 760698-5002S, 760698-5003S, 760698-5004S, 760698-5005S, 760698-5006S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0120 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0009 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0035 | 1 | 702489-0001, 702489-0004, 702489-0005, 702489-0007 | -- |
| TurboCentras | Repair kit | GA-04-0016 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0015 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0016 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0028 | 1 | -- | -- |
| TurboCentras | Turbine housing | GA-09-0027 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0033 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT17-061 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1039 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
070145701RV220, 760698-0004, 760698-0004-R
Data updated: 2025-03-06 12:38:48
