Garrett
Turbo 760680-0004 (R)
Turbo 760680-0004 (R)
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

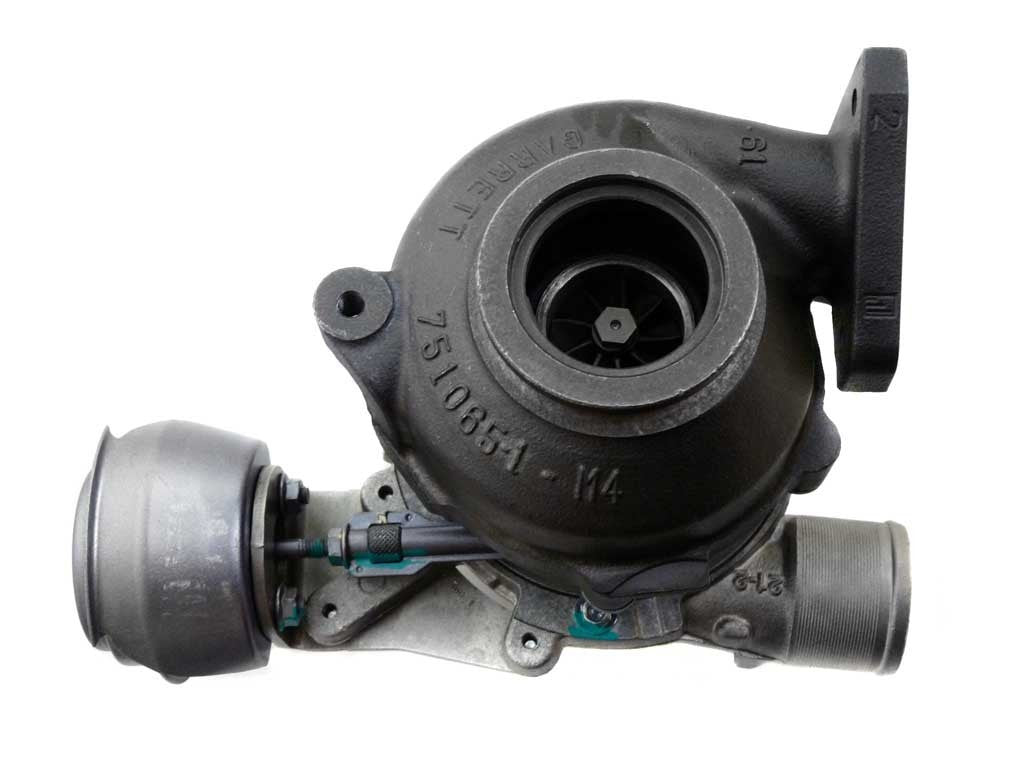

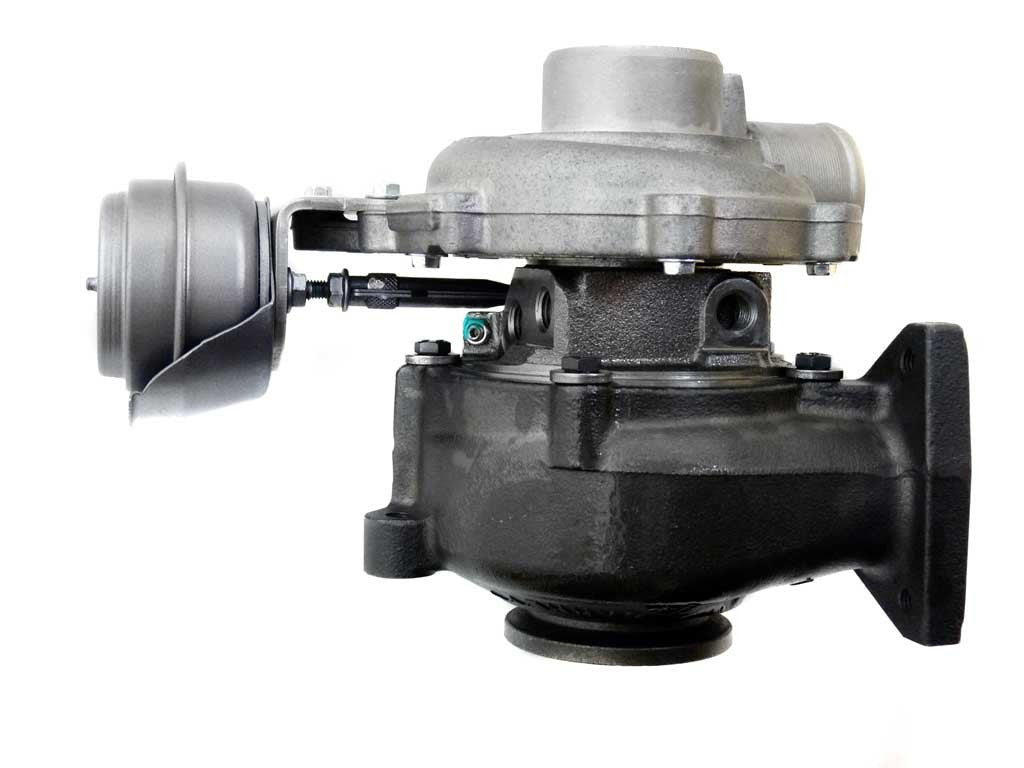

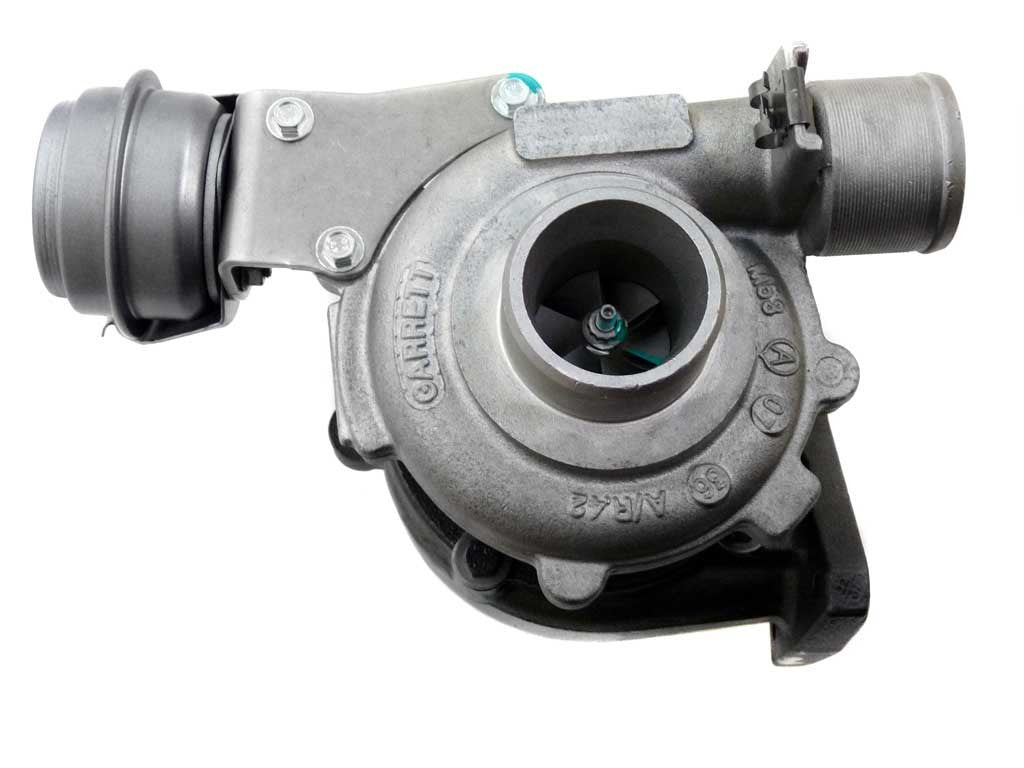

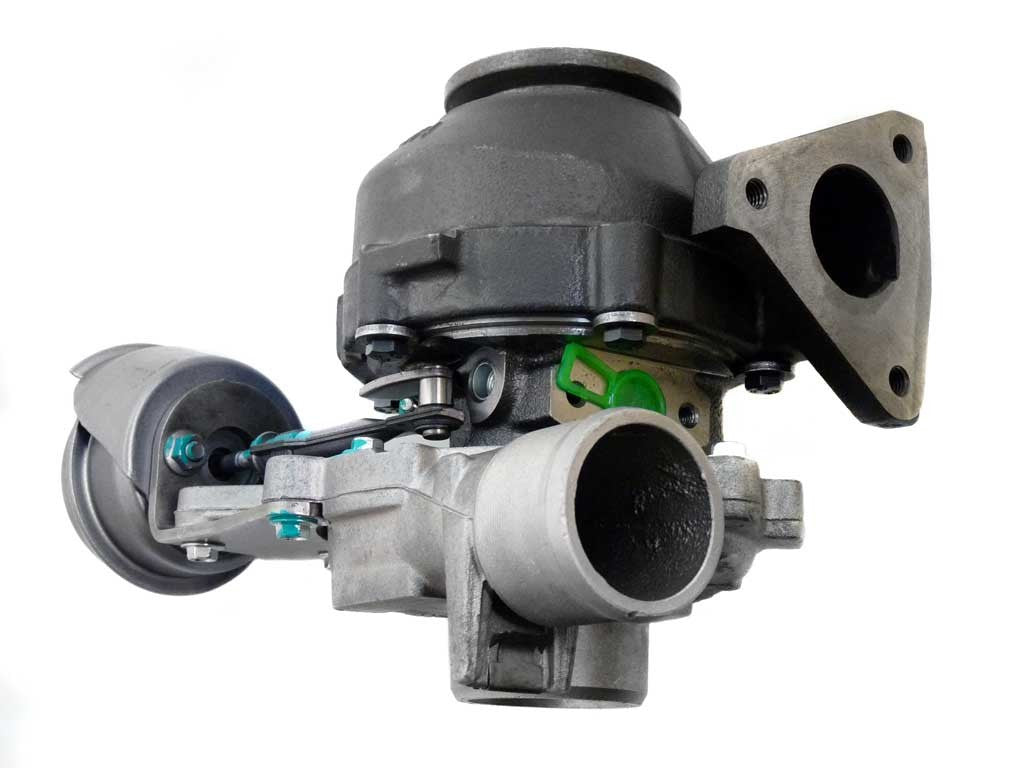

760680-0004 (8200732948A) - Turbocharger
Brand: Garrett
Garrett Reference: 760680-0004
OEM Numbers: 8200732948A
760680-0004 - Alternative numbers
GHO (Garrett original part number): 760680-0004
GHA (Garrett aftermarket part number): 760680-5004S
760680-0004 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
760680-0004 - Turbo replacements
Replaced by: Garrett GTA1746LV 760680-0005
Replaced by: Garrett GTA1746LV 760680-0006
Replacement for: Garrett GTA1746LV 760680-0001
Replacement for: Garrett GTA1746LV 760680-0002
Replacement for: Garrett GTA1746LV 760680-0003
760680-0004 - Turbo interchangeability
Interchangeable with: Garrett GTA1746LV 760680-0001
Interchangeable with: Garrett GTA1746LV 760680-0002
Interchangeable with: Garrett GTA1746LV 760680-0003
Interchangeable with: Garrett GTA1746LV 760680-0005
Interchangeable with: Garrett GTA1746LV 760680-0006
| Turbo 760680-0004 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT15-22 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-324 | 1 | -- | 433112-0001 |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-50 | 1 | -- | -- |
| TurboCentras | Back plate | GT15-80 | 1 | -- | 436399-0002 |
| E&E Turbo | Cartridge | GT17-038 | 1 | -- | -- |
| TurboCentras | Cartridge | GT17-240 | 1 | -- | -- |
| TurboCentras | Bearing housing | GT17-315 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT17-46 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GT17-90 | 1 | -- | -- |
| TurboCentras | VNT Nozzle ring | GT17-90-1 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
760680-0004, 760680-5004S, 8200732948A
Data updated: 2022-10-19 15:19:55
