Garrett

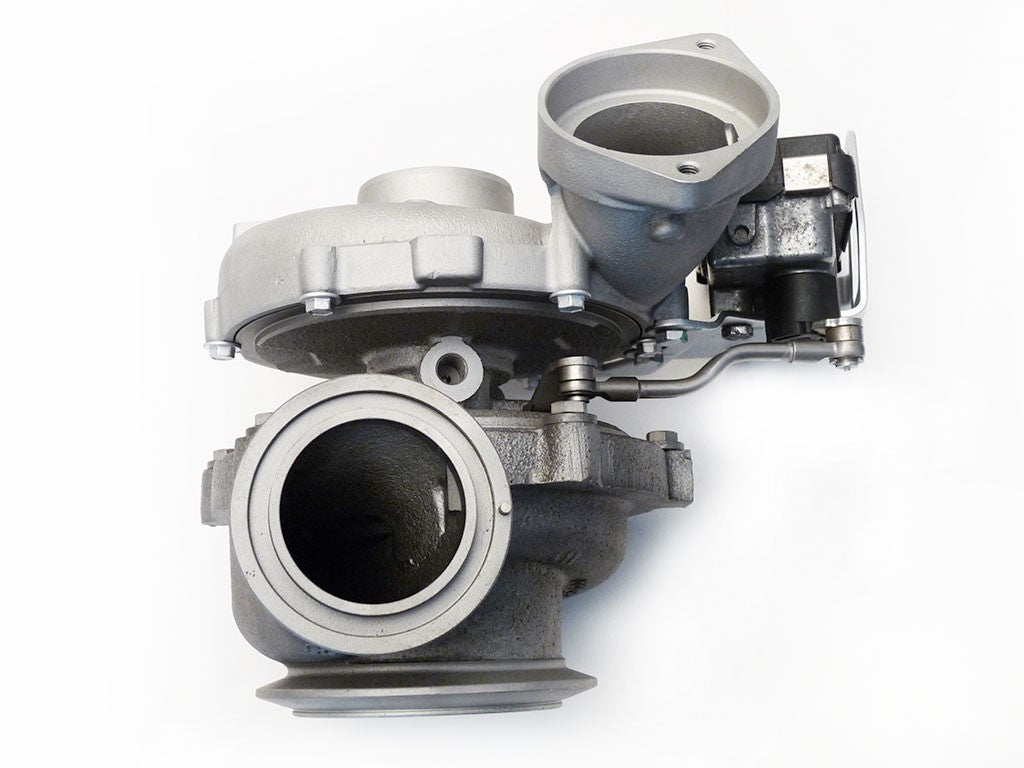

Turbo 758351-0005-R
Turbo 758351-0005-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
758351-0005 (11657794260, 7794259H) - Turbocharger GTB2260VK
Brand: Garrett
Model: GT22 - GTB2260VK
Garrett Reference: 758351-0005
OEM Numbers: 11657794260, 7794259H
758351-0005 - Alternative numbers
GHT (Garrett turbo number): 758351-0005
GHT (Garrett turbo number): 758351-5005S
758351-0005 - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
758351-0005 - Turbo replacements
Replaced by: Garrett GTB2260VK 758351-0024, 758351-5024S, 758351-5024W, 758351-9024W, 7794260R17
758351-0005 - Turbo interchangeability
Interchangeable with: Garrett GTB2260VK 758351-0002, 758351-5002S, 7794259F
Interchangeable with: Garrett GTB2260VK 758351-0003, 11657794260, 758351-5003S, 7794259F
Interchangeable with: Garrett GTB2260VK 758351-0009, 11657794260, 758351-5009S, 7794259K10
Interchangeable with: Garrett GTB2260VK 758351-0013, 11657794260, 758351-5013S, 7794259L
Interchangeable with: Garrett GTB2260VK 758351-0015, 11657794260, 758351-5015S, 7794259M12
Interchangeable with: Garrett GTB2260VK 758351-0017, 11657794260, 758351-5017S, 7794259N13
Interchangeable with: Garrett GTB2260VK 758351-0019, 11657794260, 758351-5019S, 7794259O14
Interchangeable with: Garrett GTB2260VK 758351-0020, 758351-5020S, 7794260O14
Interchangeable with: Garrett GTB2260VK 758351-0022, 758351-5022S, 7794260Q16
Interchangeable with: Garrett GTB2260VK 758351-0024, 758351-5024S, 758351-5024W, 758351-9024W, 7794260R17
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0196 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0145 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0106 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0087 | 1 | 784369-0002, 787571-0002 | -- |
| TurboCentras | Repair kit | GA-04-0016 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0018 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0060 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GA-07-0012 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0045 | 1 | 730078-0001 | -- |
| TurboCentras | Turbine housing | GA-09-0020 | 1 | -- | -- |
| TurboCentras | Compressor housing | GA-11-0005 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GA-50-0009 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1059 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1059F | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
11657794260, 758351-0005, 758351-5005S, 7794259H
Data updated: 2025-09-01 10:00:35
