BorgWarner

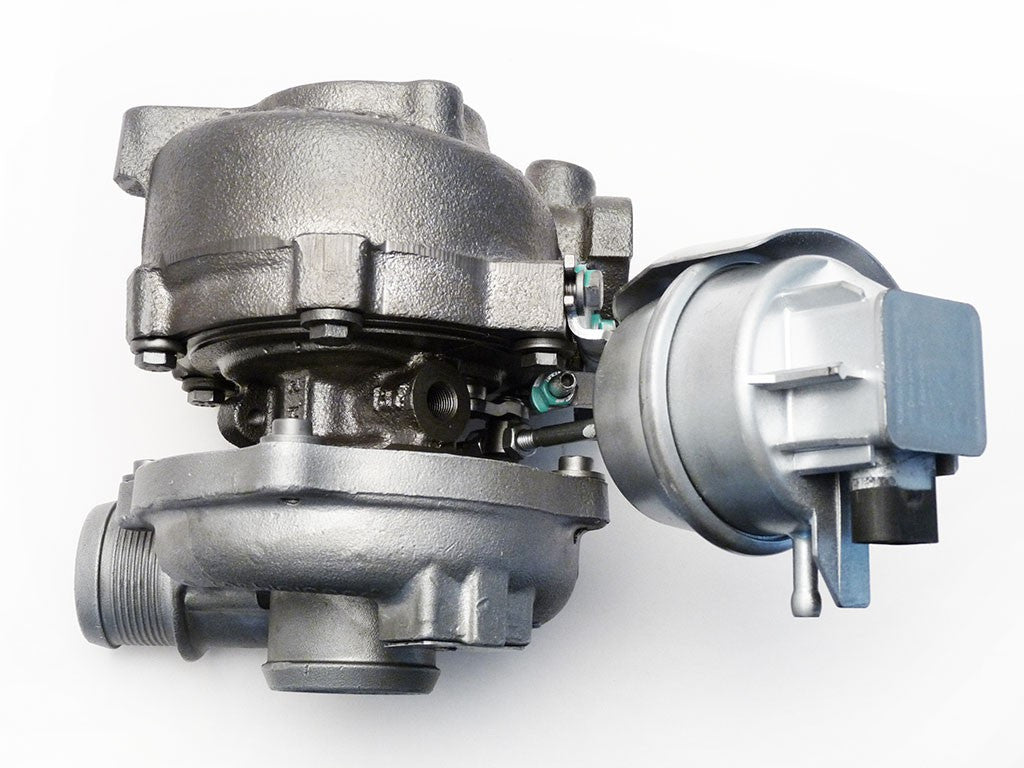

Turbo 53039700109-R 53039700109 (R)
Turbo 53039700109-R 53039700109 (R)
Redna cena
€289,26 EUR
Redna cena
Znižana cena
€289,26 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
53039700109-R (03G145702H) - Turbocharger BV43-1880DXF419.18BXAXC
Brand: BorgWarner
Model: BV43 - BV43-1880DXF419.18BXAXC
BorgWarner Reference: 53039700109-R
OEM Numbers: 03G145702H
53039700109-R - Alternative numbers

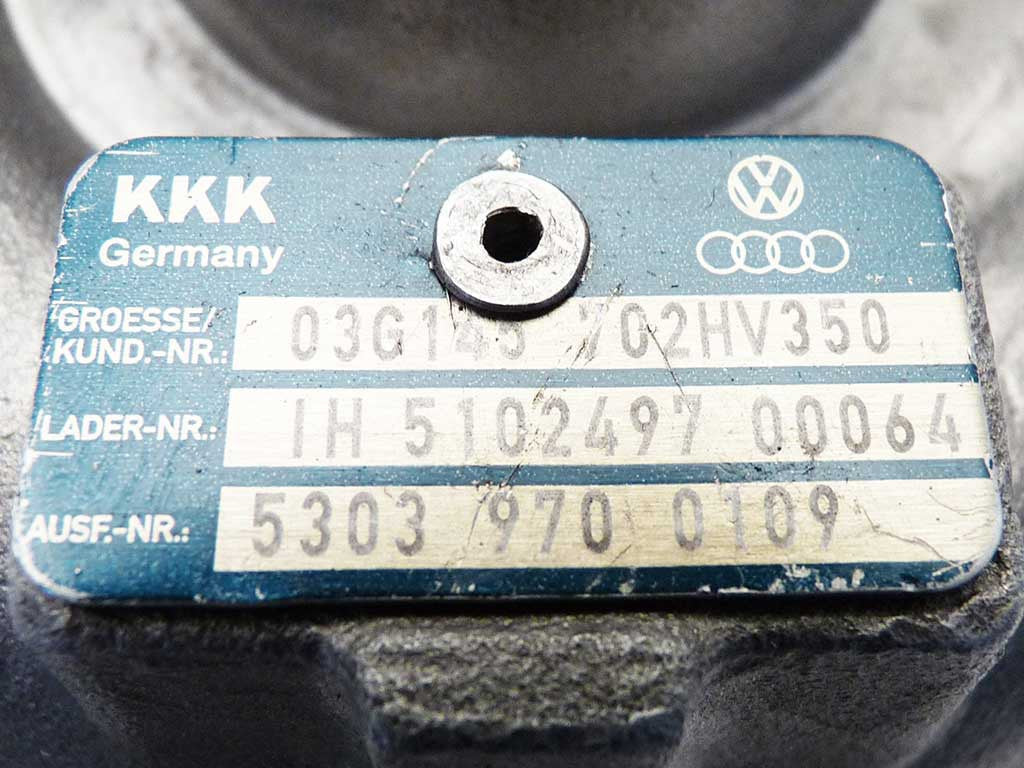

BWT (BorgWarner turbo number): 5303 970 0109
BWT (BorgWarner turbo number): 5303 988 0109
BWT (BorgWarner turbo number): 5303 990 0109
53039700109-R - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
53039700109-R - Turbo interchangeability
Interchangeable with: BorgWarner BV43-1880DXF419.18BXAXC 53039700109
Interchangeable with: BorgWarner BV43-1880DXF419.18BXAXC 53039880109
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 4 | -- | -- |
| TurboCentras | Cartridge | BW-00-0006 | 1 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0056 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0004 | 1 | 5303-120-5030, 5303-120-5034, 5303-120-8505 | -- |
| TurboCentras | Compressor wheel | BW-03-0007 | 1 | 5303-123-2025 | -- |
| TurboCentras | Repair kit | BW-04-0003 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-05-0002 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0010 | 1 | 5303-160-5010 | -- |
| TurboCentras | Back plate | BW-08-0032 | 1 | -- | -- |
| TurboCentras | Actuator | BW-10-0012 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0004 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| EE Turbo | Cartridge | K03-037 | 1 | -- | 5303 710 0556 |
| TurboCentras | Journal bearing | K03/04-110 | 1 | -- | -- |
| TurboCentras | Thrust bearing | K03/04-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | K03/04-130 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-143 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-144 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-145 | 1 | -- | -- |
| TurboCentras | Oil deflector | K03/04-146 | 1 | -- | -- |
| TurboCentras | Thrust washer | K03/04-155 | 1 | -- | -- |
| TurboCentras | Piston ring | K03/04-160 | 1 | -- | -- |
| TurboCentras | Piston ring | K03/04-170 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1002 | 1 | -- | -- |
53039900109, 53039880109, 53039700109, 03G145702H, 5303 970 0109, 5303 988 0109, 5303 990 0109
Data updated: 2024-05-06 14:46:55
