Garrett

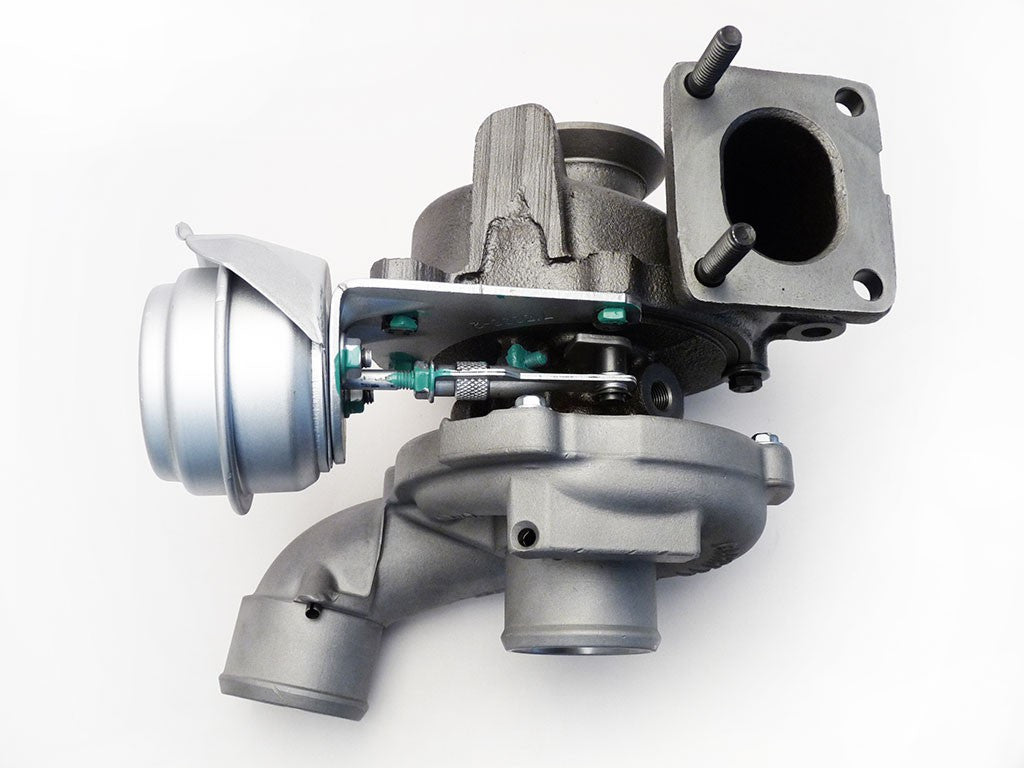

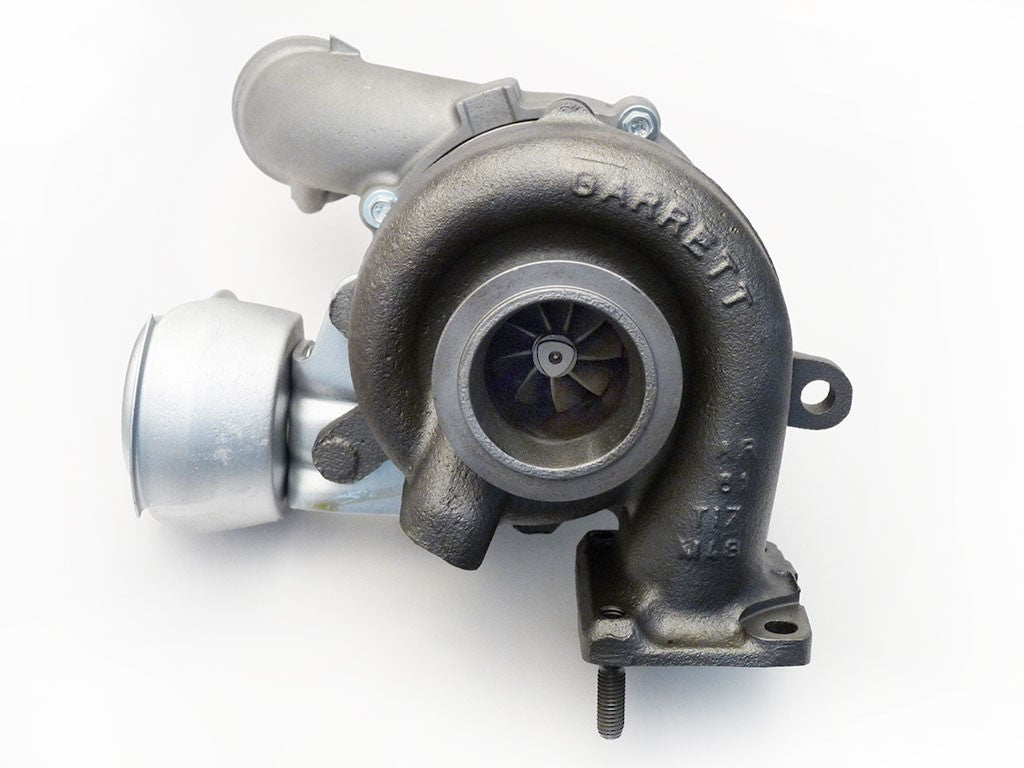

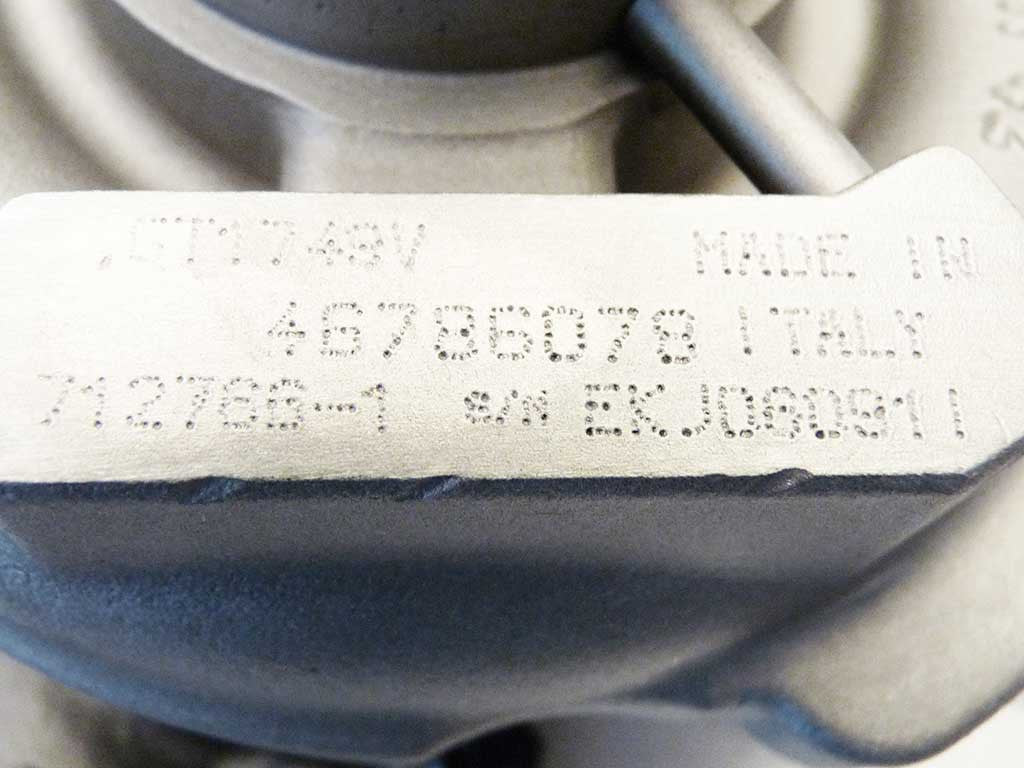

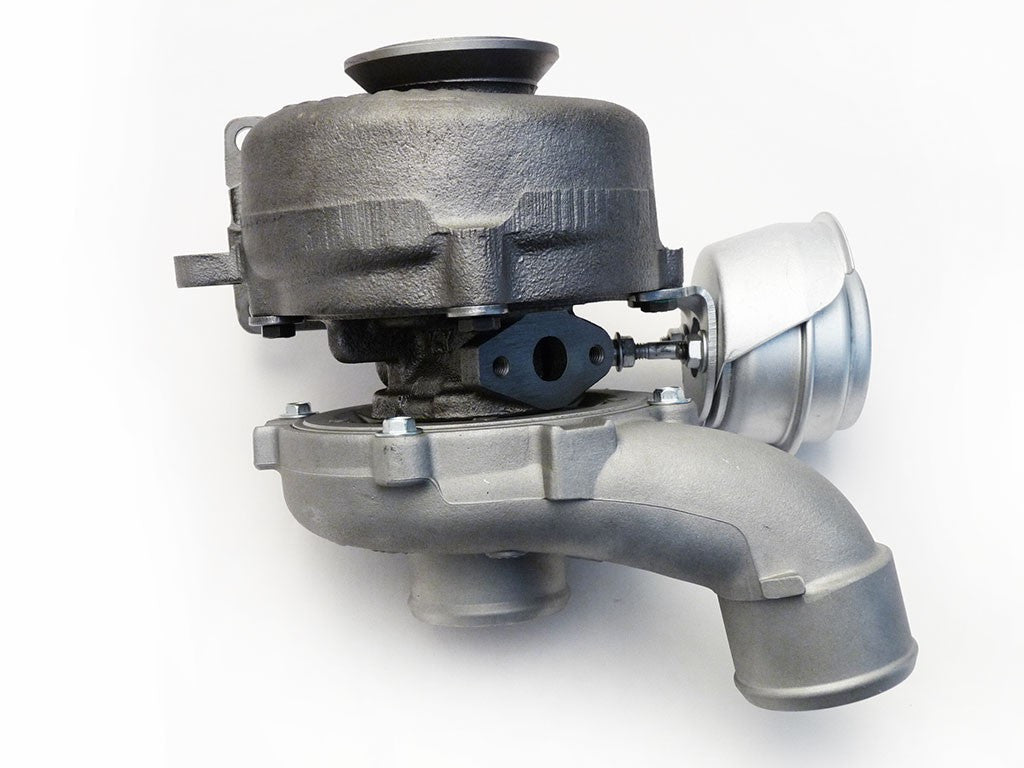

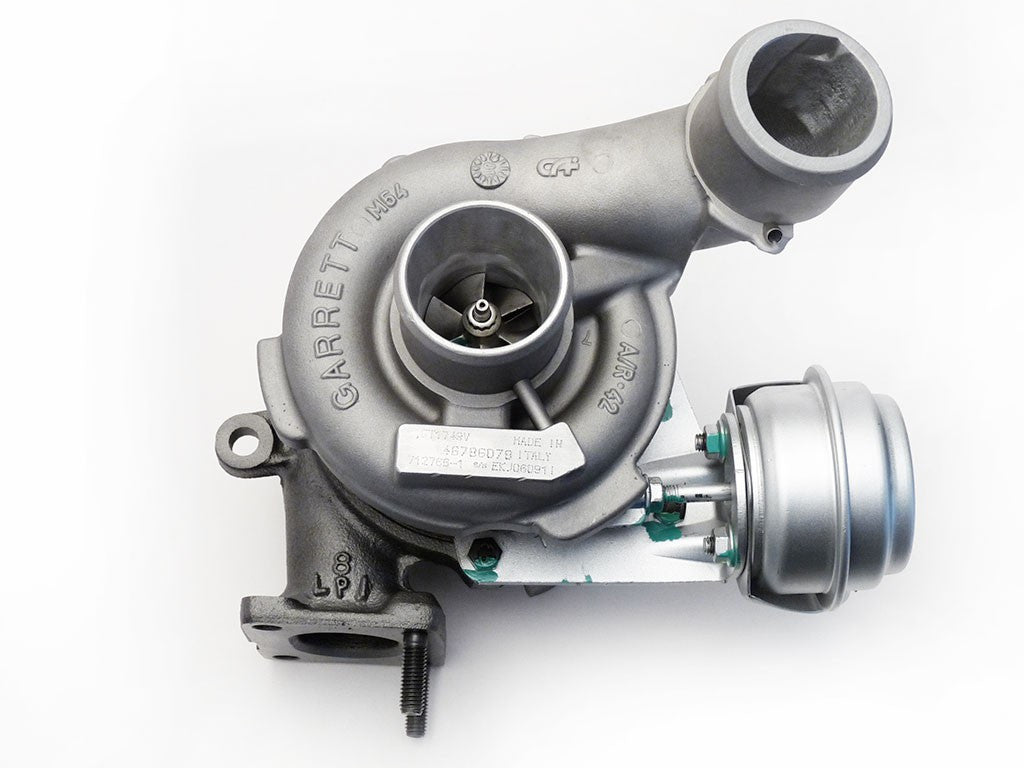

Turbo 712766-0001 (R)
Turbo 712766-0001 (R)
Redna cena
€231,40 EUR
Redna cena
Znižana cena
€231,40 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
712766-0001 (46779032, 46786078, 55191596) - Turbocharger
Brand: Garrett
Garrett Reference: 712766-0001
OEM Numbers: 46779032, 46786078, 55191596, 60816402
712766-0001 - Alternative numbers
GHO (Garrett original part number): 712766-0001
GHA (Garrett aftermarket part number): 712766-5001S
712766-0001 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
712766-0001 - Turbo replacements
Replaced by: Garrett GT1749V 712766-0003
712766-0001 - Turbo interchangeability
Interchangeable with: Garrett GT1749V 712766-0002
Interchangeable with: Garrett GT1749V 712766-0003
| Turbo 712766-0001 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Bearing housing | GT117-305 | 1 | -- | 722282-0040 |
| TurboCentras | Compressor wheel | GT15-01 | 1 | -- | 702489-0002, 702489-0006, 702489-0009 |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-324 | 1 | -- | 433112-0001 |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-50 | 1 | -- | -- |
| TurboCentras | Back plate | GT15-61 | 1 | -- | 700593-0003 |
| TurboCentras | Cartridge | GT17-233 | 1 | -- | 703890-0033 |
| TurboCentras | Shaft and wheel | GT17-40 | 1 | -- | 434533-0018 |
| TurboCentras | Nozzle ring assy. | GT17-90 | 1 | -- | -- |
| TurboCentras | VNT Nozzle ring | GT17-90-1 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
46779032, 46786078, 55191596, 60816402, 712766-0001, 712766-5001S
Data updated: 2022-03-01 16:20:55
