Garrett
Turbo 760774-0003-R
Turbo 760774-0003-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

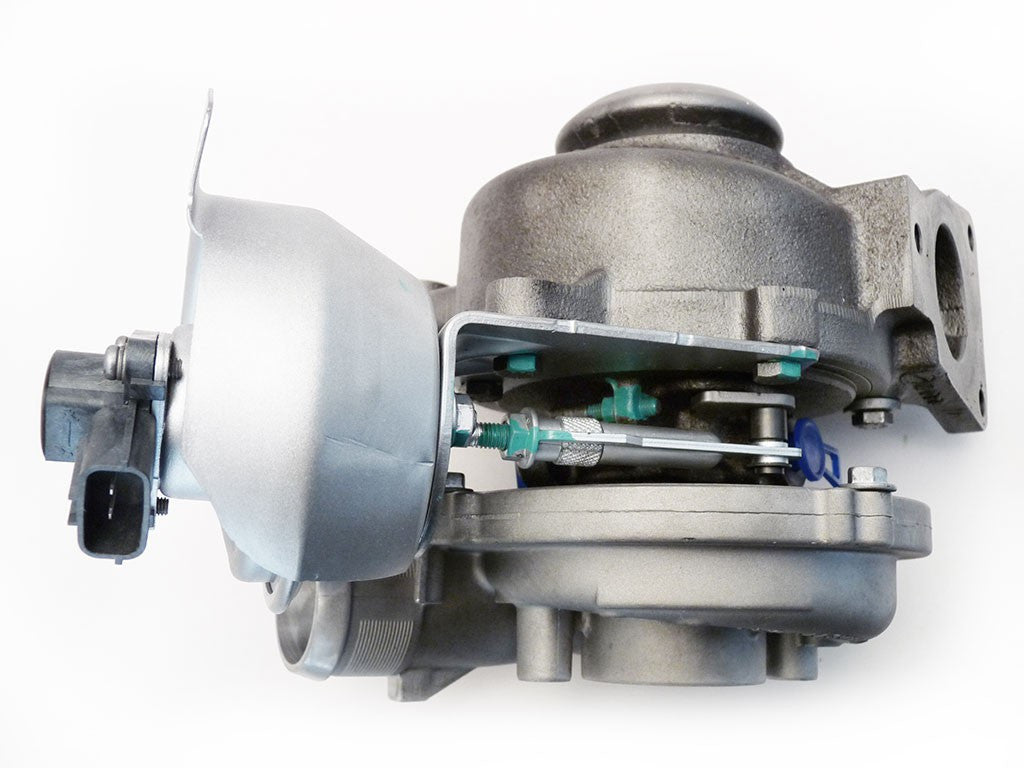

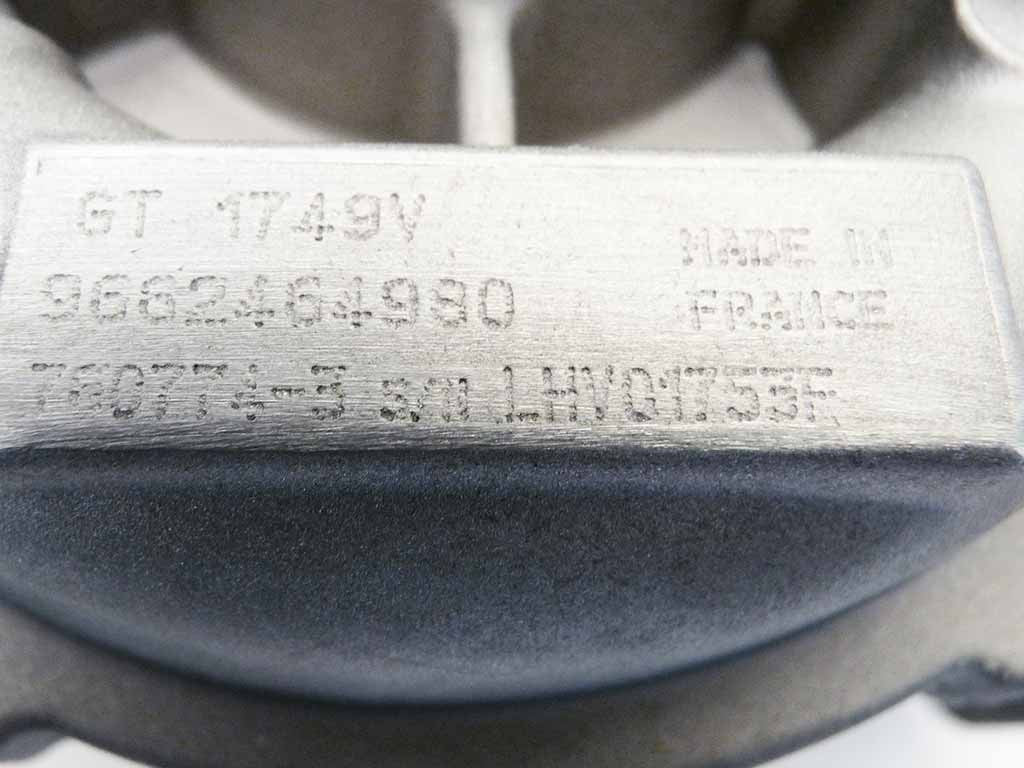

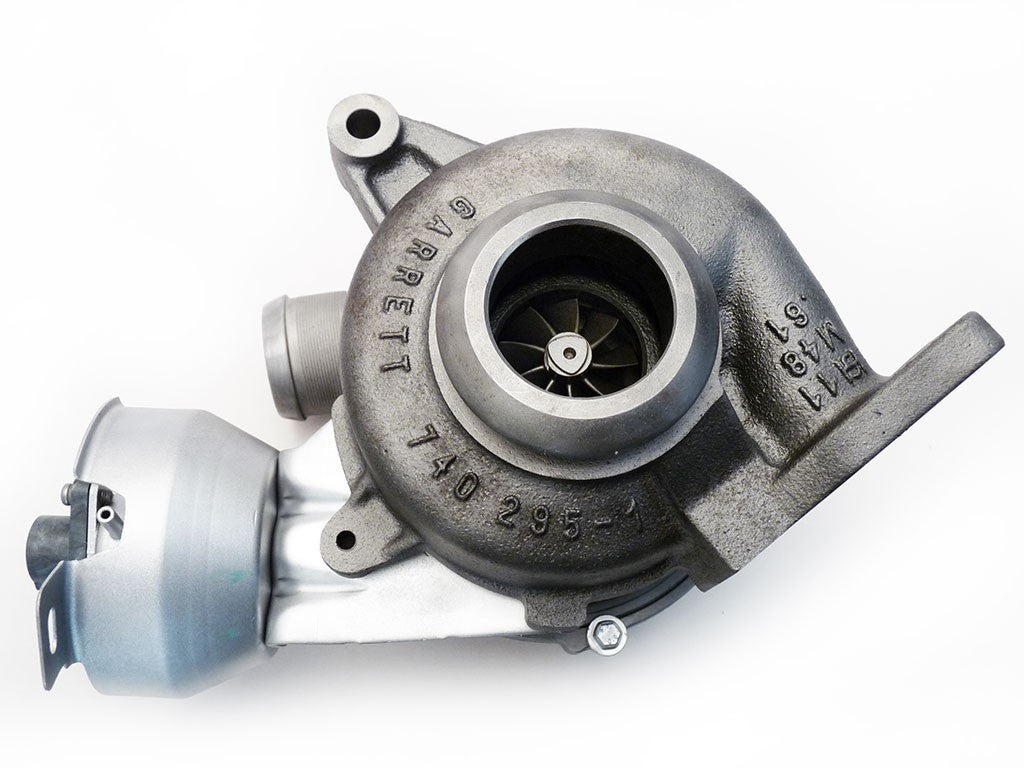

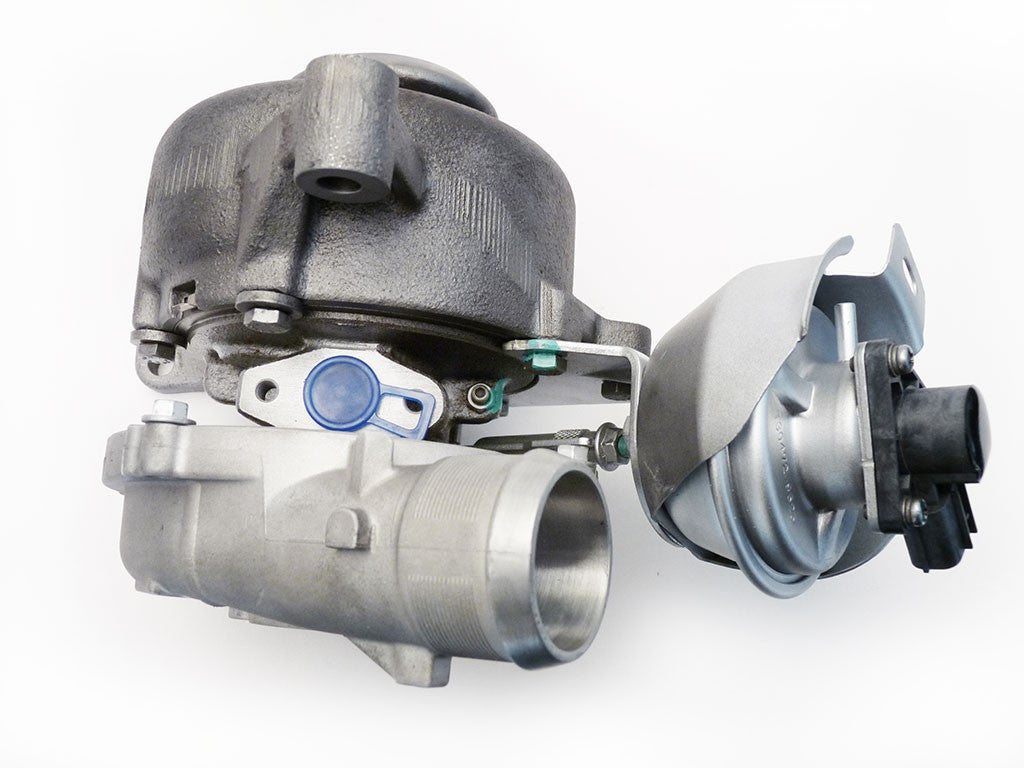

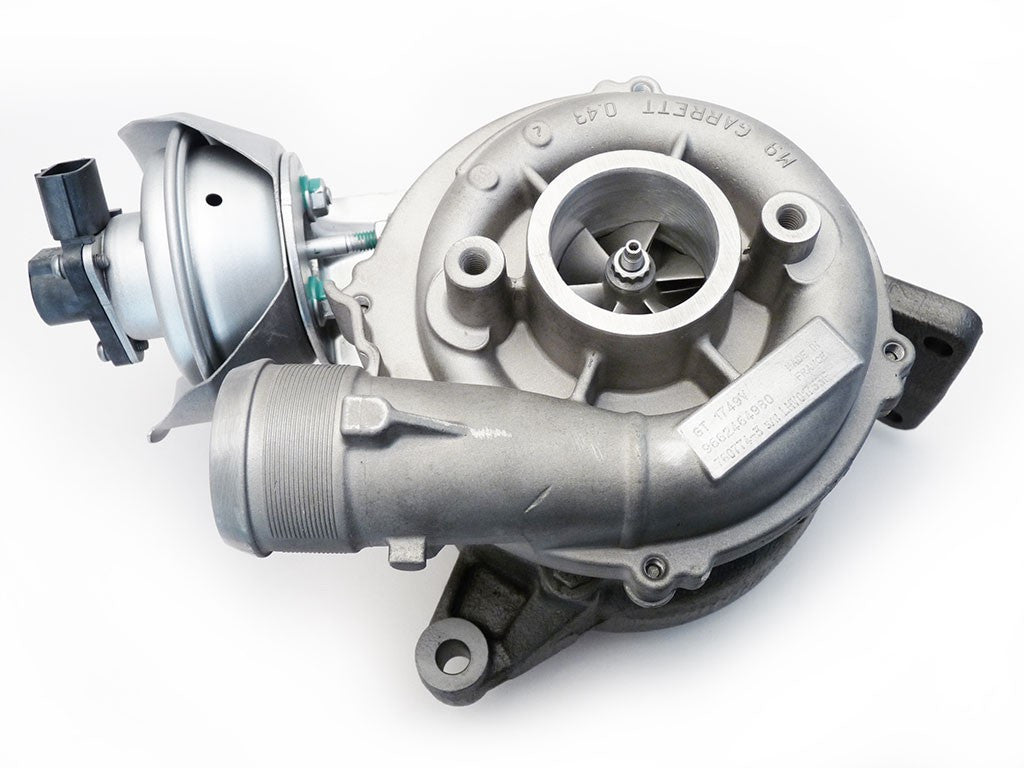

760774-0003 (1483819, 30725134, 36002265) - Turbocharger GT1749V
Brand: Garrett
Model: GT17 - GT1749V
Garrett Reference: 760774-0003
OEM Numbers: 1483819, 30725134, 36002265, 3M5Q6K682CD, 9662464980
760774-0003 - Alternative numbers
GHT (Garrett turbo number): 760774-0003
GHT (Garrett turbo number): 760774-5003S
760774-0003 - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
760774-0003 - Turbo replacements
Replaced by: Garrett GT1749V 760774-0005, 1483819, 30725134, 36002265, 3M5Q6K682CD, 760774-5005S, 760774-9005S, 9662464980
760774-0003 - Turbo interchangeability
Interchangeable with: Garrett GTA1749V 728768-0004, 36000059, 36000248, 36002265, 728768-5004S, 9647105580
Interchangeable with: Garrett GT1749V 728768-0005, 728768-5005S, 9647105580, 9654262180
Interchangeable with: Garrett GTA1749V 753847-0002, 1331247, 753847-5002S, 9654931780
Interchangeable with: Garrett GTA1749V 753847-0006, 1406472, 753847-5006S, 9659667380
Interchangeable with: Garrett GT1749V 760774-0005, 1483819, 30725134, 36002265, 3M5Q6K682CD, 760774-5005S, 760774-9005S, 9662464980
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Actuator sensor | AS-1 | 1 | -- | -- |
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0101 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0108 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0077 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0035 | 1 | 702489-0001, 702489-0004, 702489-0005, 702489-0007 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0023 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0014 | 1 | 703682-0014 | -- |
| TurboCentras | Actuator | GA-10-0030 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT17-008 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1031 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
1483819, 30725134, 36002265, 3M5Q6K682CD, 760774-0003, 760774-5003S, 9662464980
Data updated: 2024-12-20 15:23:22
