IHI

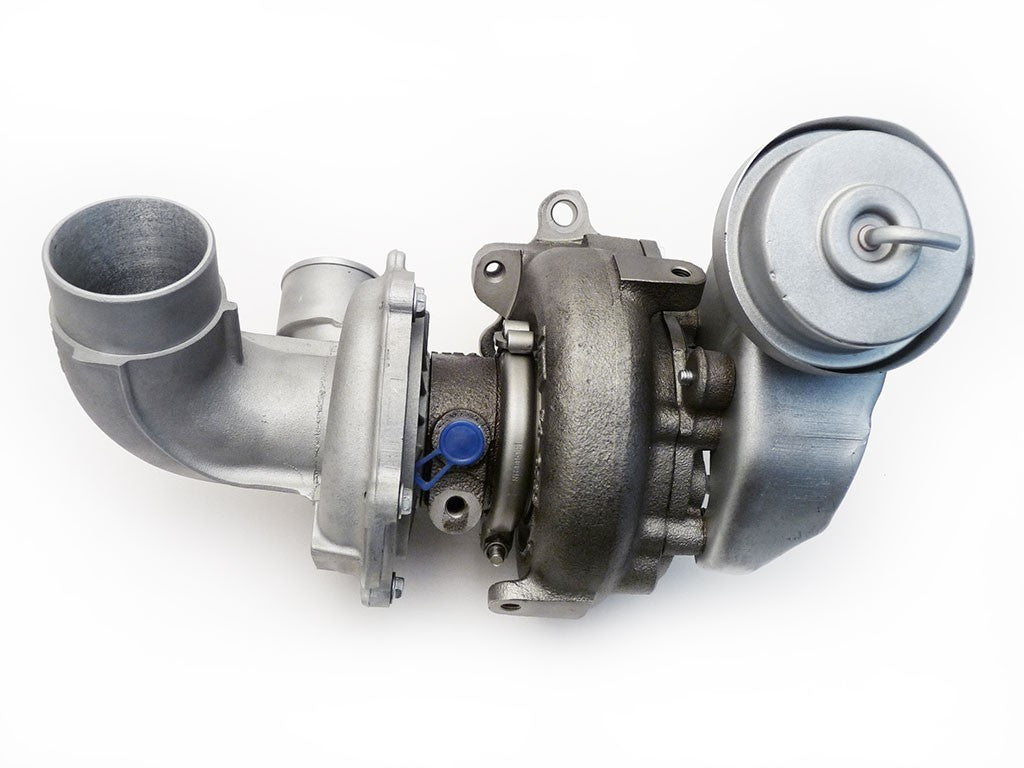

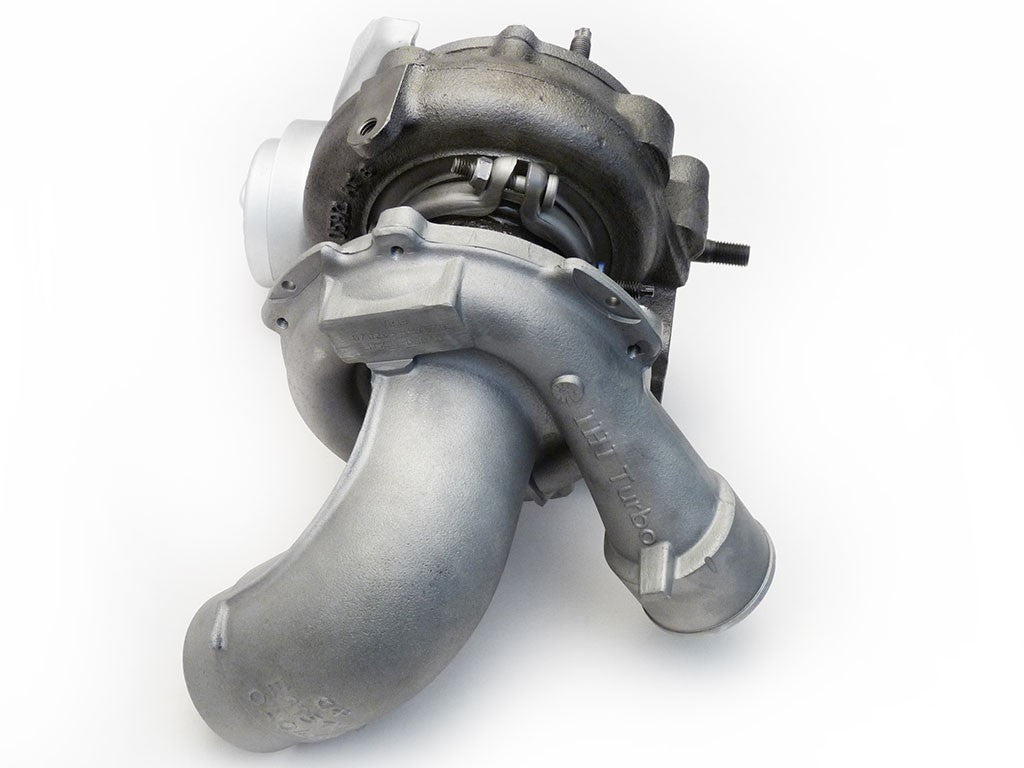

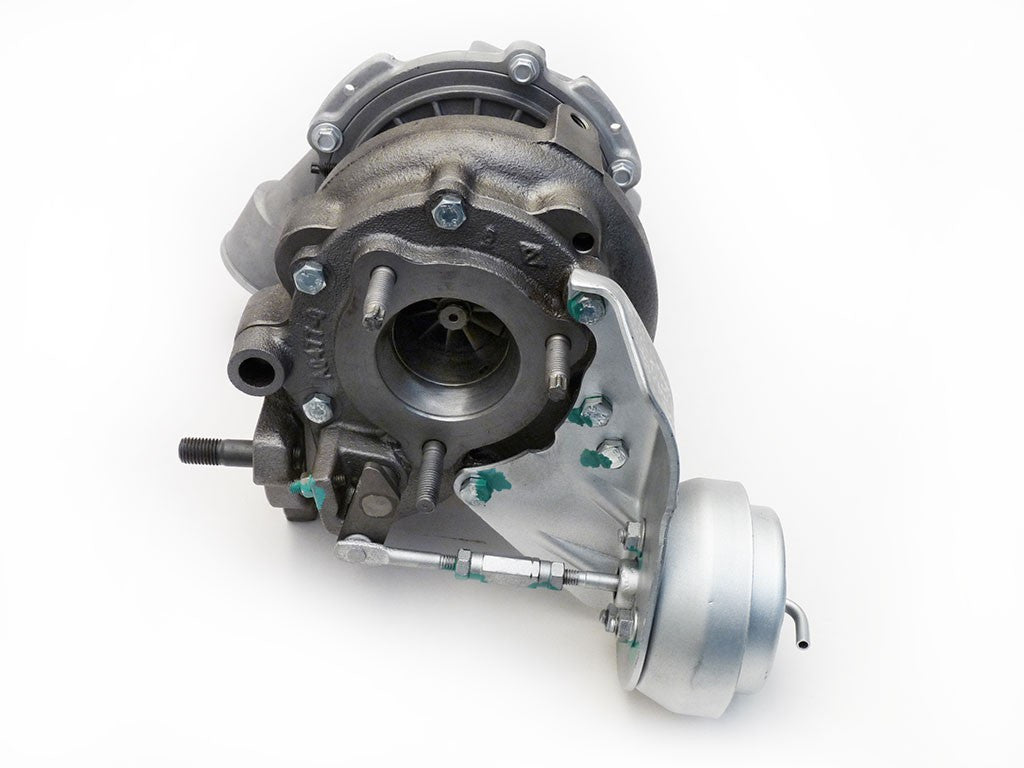

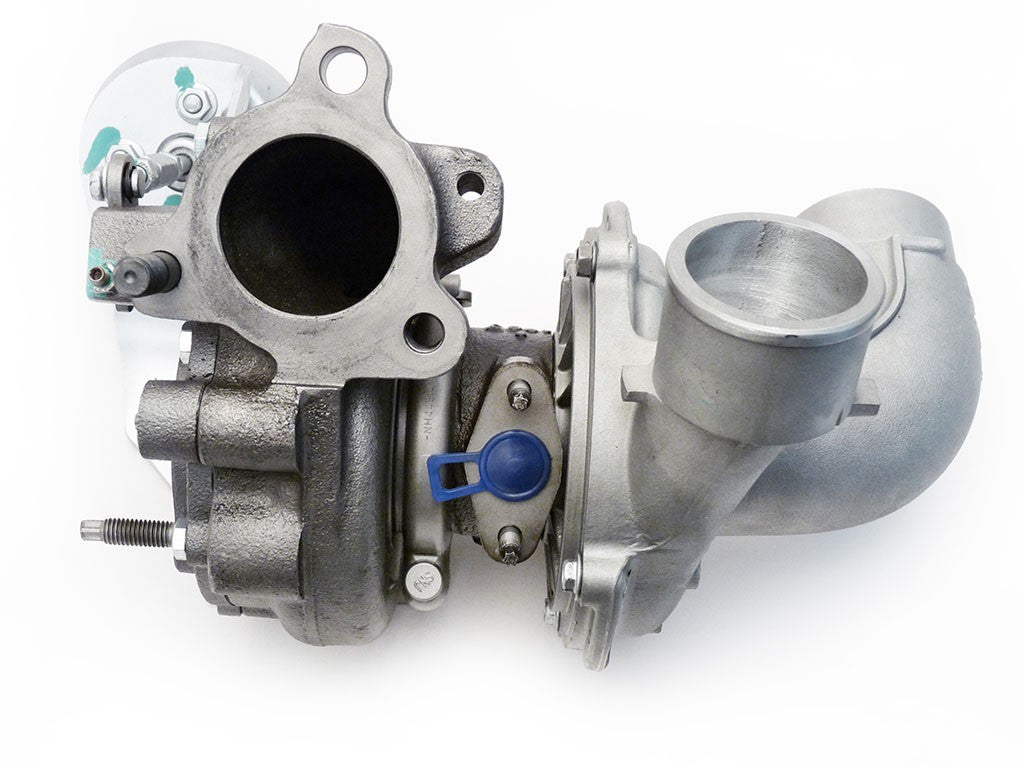

Turbo VB19-R
Turbo VB19-R
Redna cena
€289,26 EUR
Redna cena
Znižana cena
€289,26 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
VB19 (17201-0R040, 17201-0R041, 17201-26051) - Turbocharger RHF4
Brand: IHI
Model: RHF4 - RHF4

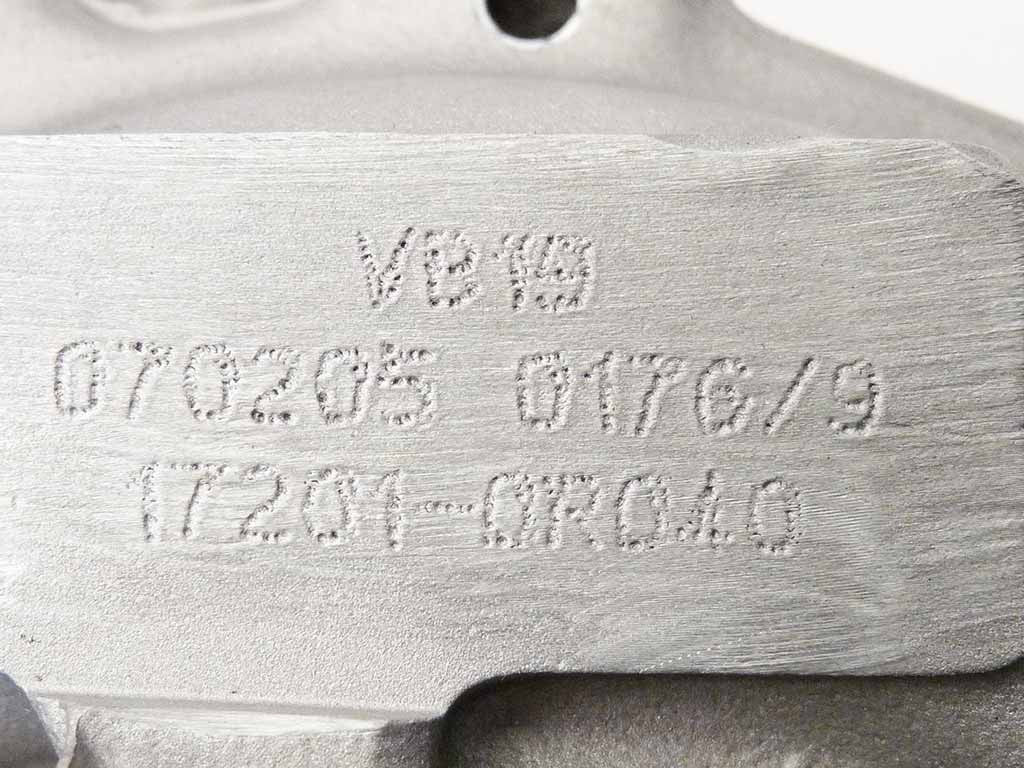

IHI Reference: VB19
OEM Numbers: 17201-0R040, 17201-0R041, 17201-26051, 17201-26053
VB19 - Alternative numbers
IHT (IHI turbo number): VB19
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | IHI PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | IH-00-0015 | 1 | -- | -- |
| TurboCentras | Bearing housing | IH-01-0018 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | IH-02-0020 | 1 | -- | -- |
| TurboCentras | Compressor wheel | IH-03-0017 | 1 | -- | -- |
| TurboCentras | Repair kit | IH-04-0008 | 1 | -- | -- |
| TurboCentras | Heat shield | IH-05-0011 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | IH-06-0007 | 1 | -- | -- |
| TurboCentras | Back plate | IH-08-0006 | 1 | -- | -- |
| TurboCentras | Shaft nut | IH-21-0002 | 1 | -- | -- |
| TurboCentras | Journal bearing | RHF4-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | RHF4-121 | 1 | -- | -- |
| TurboCentras | Thrust flinger | RHF4-130 | 1 | -- | -- |
| TurboCentras | Retaining ring | RHF4-145 | 1 | -- | -- |
| TurboCentras | Thrust washer | RHF4-146 | 1 | -- | -- |
| TurboCentras | Piston ring | RHF4-160 | 1 | -- | -- |
| TurboCentras | Piston ring | RHF4-170 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0002 | 3 | -- | -- |
| TurboCentras | Screw | SC-96-0003 | 2 | -- | -- |
| TurboCentras | Screw | SC-96-0006 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1038 | 1 | -- | -- |
17201-0R040, 17201-0R041, 17201-26051, 17201-26053, VB19
Data updated: 2025-04-28 16:15:34
