Garrett

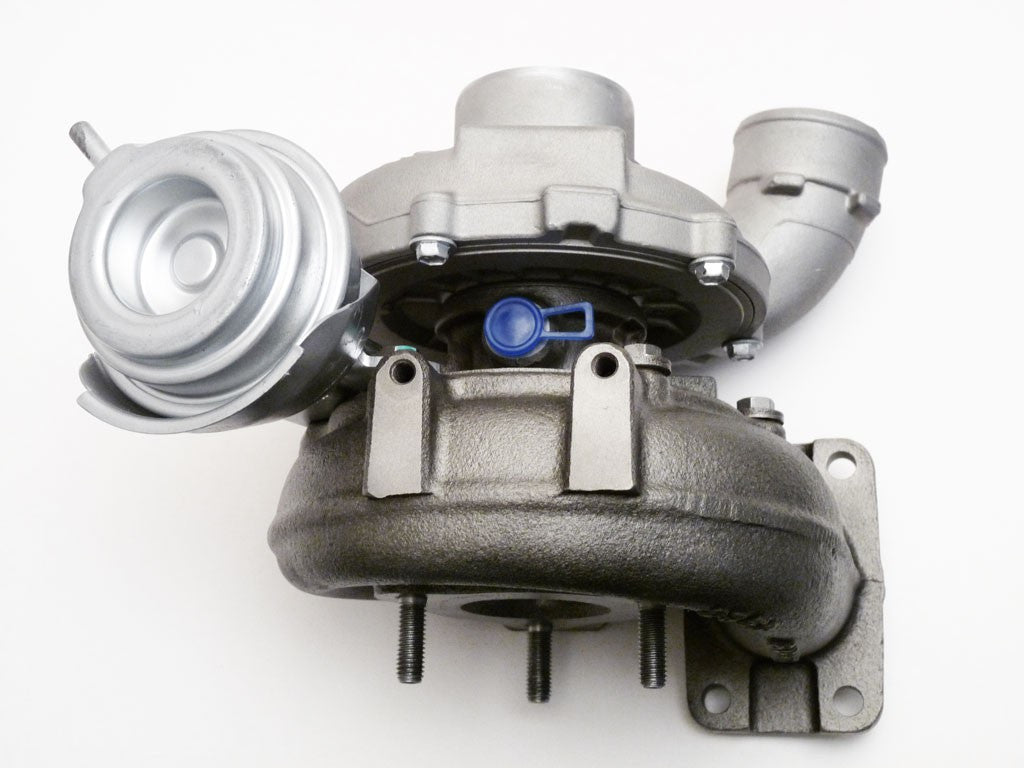

Turbo 454135-0002 (R)
Turbo 454135-0002 (R)
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

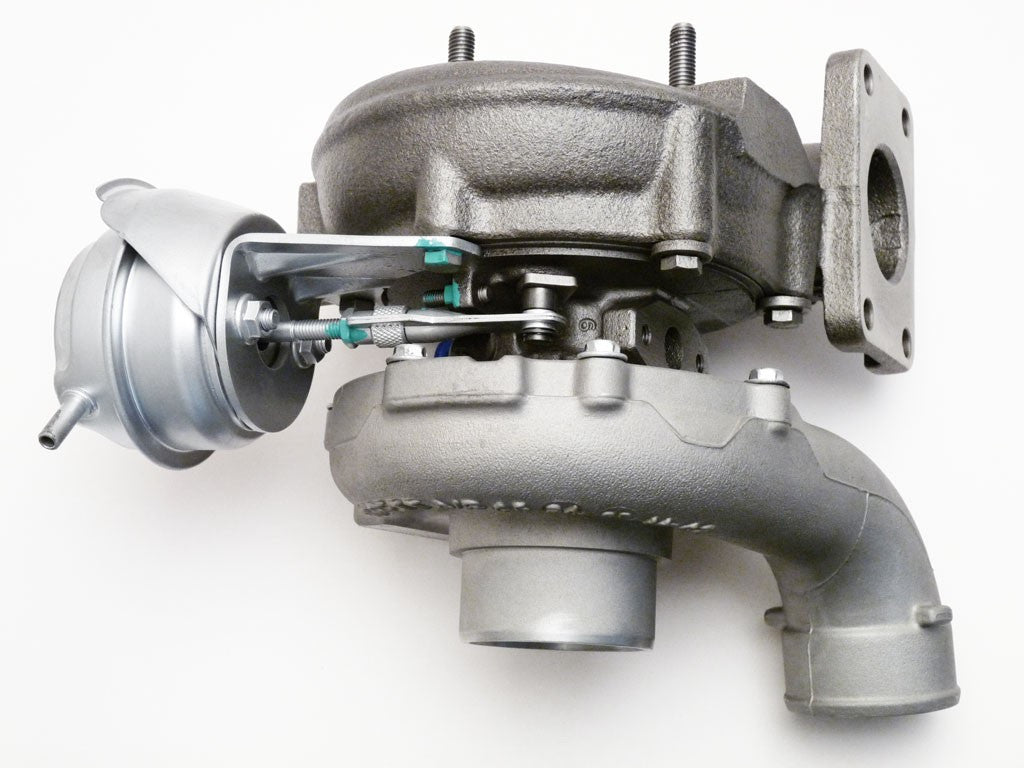

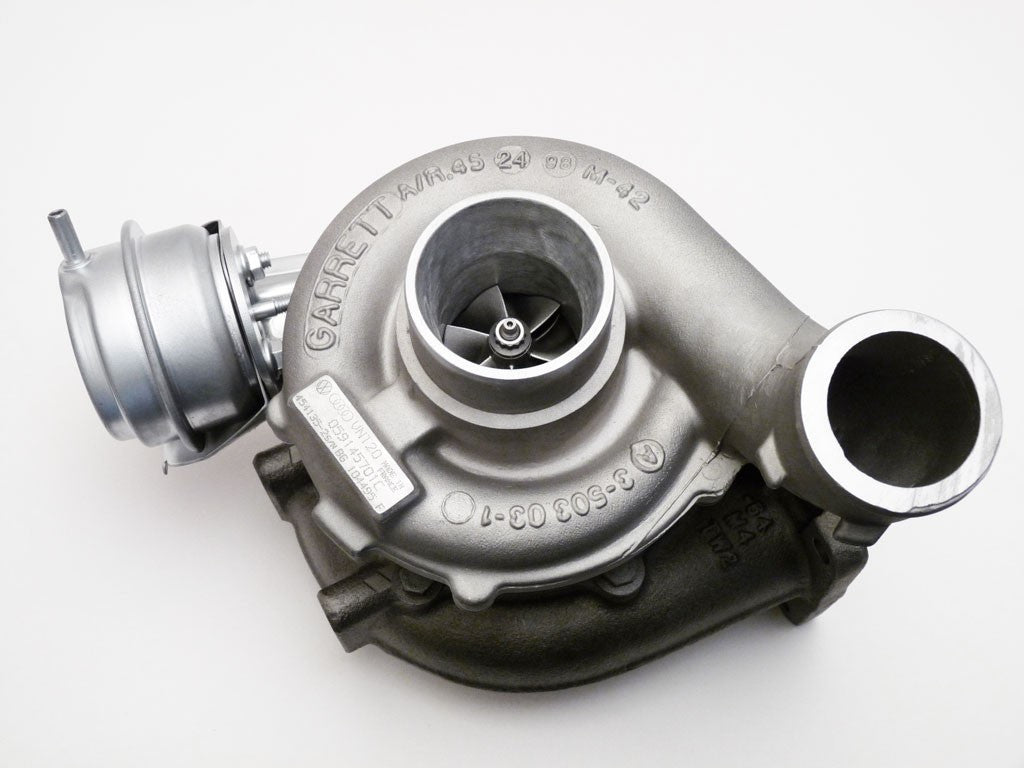

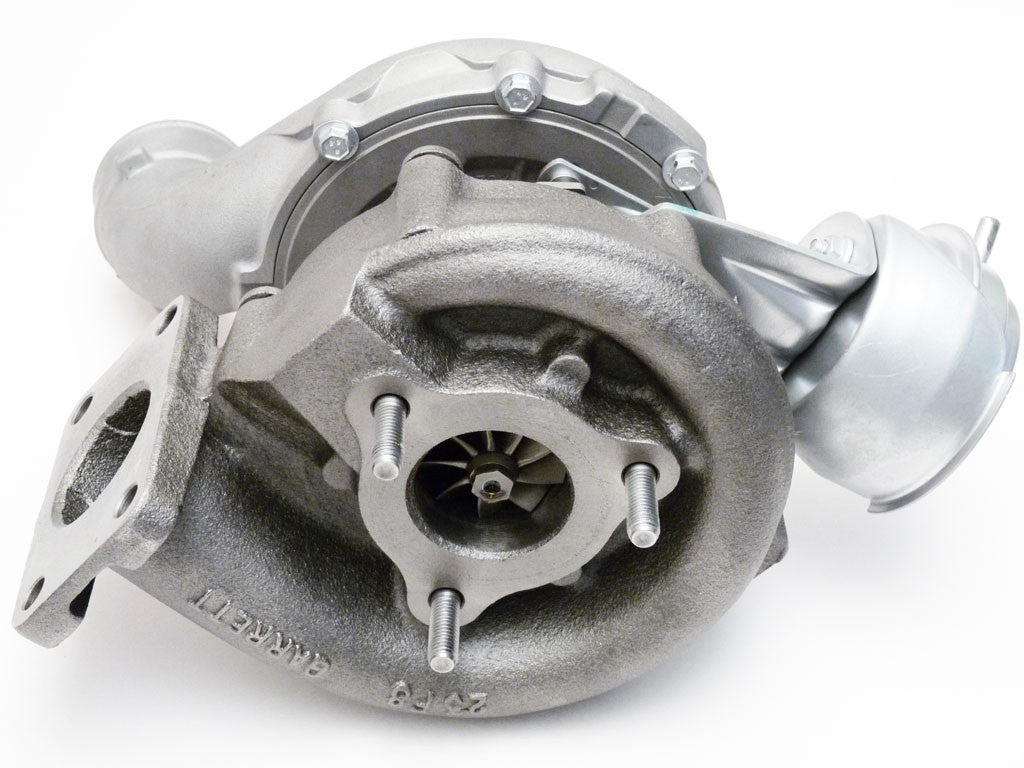

454135-0002 (059145701C, 059145701G, 059145702D) - Turbocharger GT2052V
Brand: Garrett
Model: GT20 - GT2052V
Garrett Reference: 454135-0002

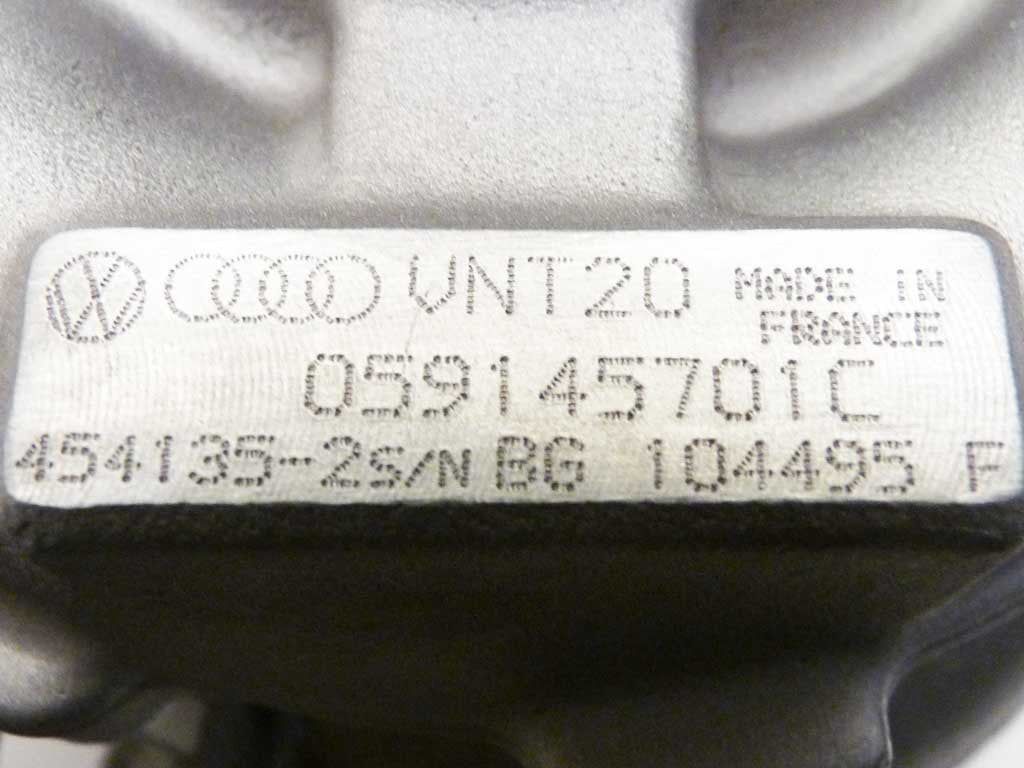

OEM Numbers: 059145701C, 059145701G, 059145702D
454135-0002 - Alternative numbers
GHT (Garrett turbo number): 454135-0002
454135-0002 - Turbo replacements
Replaced by: Garrett GT2052V 454135-0011
454135-0002 - Turbo interchangeability
Interchangeable with: Garrett GT2052V 454135-0001
Interchangeable with: Garrett GT2052V 454135-0003
Interchangeable with: Garrett GT2052V 454135-0005
Interchangeable with: Garrett GT2052V 454135-0006
Interchangeable with: Garrett GT2052V 454135-0007
Interchangeable with: Garrett GT2052V 454135-0008
Interchangeable with: Garrett GT2052V 454135-0009
Interchangeable with: Garrett GTA2052V 454135-0010
Interchangeable with: Garrett GT2052V 454135-0011
Interchangeable with: Garrett GTA2052V 454135-0012
Interchangeable with: BorgWarner BW-GTA2052V 57479880000
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0044 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0012 | 1 | 434765-0001 | -- |
| TurboCentras | Shaft and wheel | GA-02-0153 | 1 | 434883-0001, 434883-0033 | -- |
| TurboCentras | Compressor wheel | GA-03-0031 | 1 | 436131-0002, 436131-0005, 436131-0012, 436131-0022 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0012 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0037 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0007 | 1 | 701335-0003 | -- |
| TurboCentras | Actuator | GA-10-0040 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| EE Turbo | Cartridge | GT15-017 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1028 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
059145701C, 059145701G, 059145702D, 454135-0002
Data updated: 2024-09-16 08:20:15
